Find Your Part

seat, cushion (leather) of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - seat, cushion (leather)

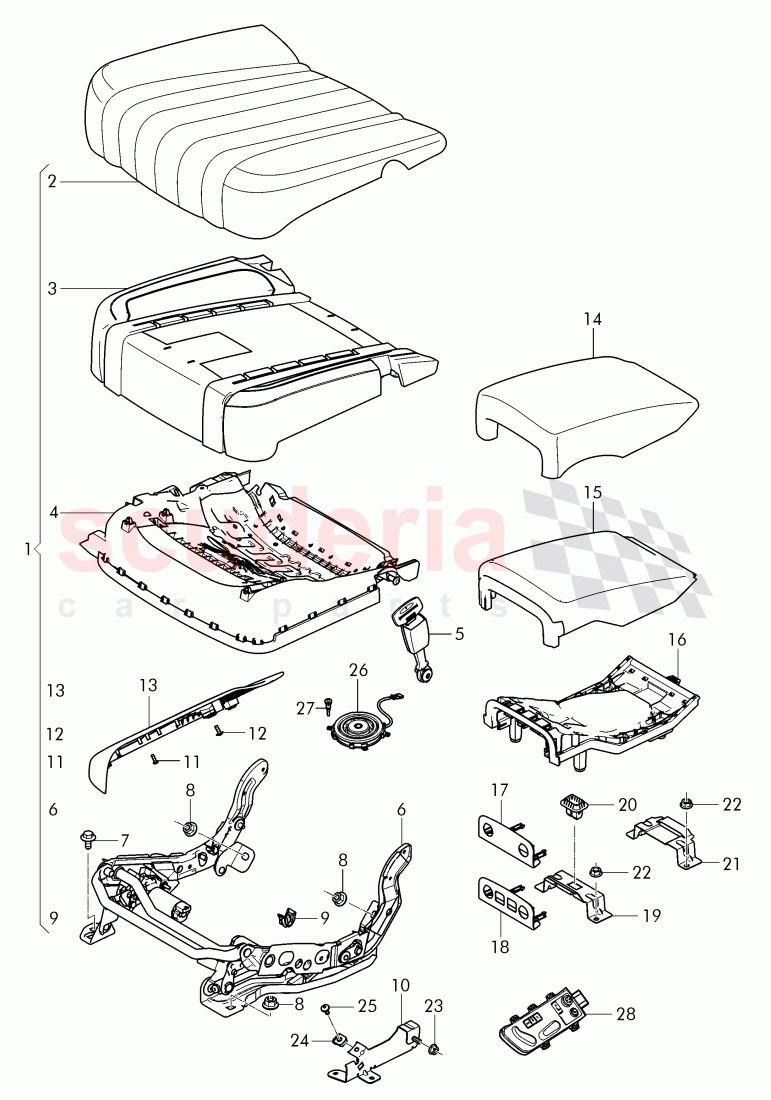

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0886769	padding for seat, assembly, D >> - 03.06.2013	Enquire
	4W0886769A	padding for seat, assembly, D - 03.06.2013>>	Enquire
	4W0886770	padding for seat, assembly, D >> - 03.06.2013	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0885406Q	cover, seat, D - 22.07.2013>>	Enquire
	4W0885406R	cover, seat, D - 22.07.2013>>	Enquire
	4W0885406S	cover, seat, D - 22.07.2013>>	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0885883K	padding for seat, D - 03.02.2014>>	Enquire
	4W0885883J	padding for seat, D - 03.02.2014>>	Enquire
	4W0885884K	padding for seat, D - 03.02.2014>>	Enquire

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0885191	seat frame	Enquire
	4W0885192	seat frame	Enquire

Photo	Part No	Description	Price (each)	Stock
	4H0885139	seat frame, Base carrier	Enquire
	4H0885140	seat frame, Base carrier	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90942804	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N98923402	Hexagon collar nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0881280	clamp, for seat frame	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0857745	bracket for seat	Enquire	IN STOCK
	4W0857746	bracket for seat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90965203	hexagon socket head panel bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885316	trim panel for seat frame	Enquire	IN STOCK
	4W0885315	trim panel for seat frame	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885403	cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885959	padding for rear seat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885735A	frame for seat	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0886289A	trim for switch	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0886289	trim for switch	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885333A	bracket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1K0886373C	grommet	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4W0885330A	bracket	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90348402	hex. nut with washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90215804	Hexagon nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90455902	Speed nut	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	N90944603	Oval hexagon socket head bolt	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G8963575	fan, D >> - 02.01.2017	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H0941117	Securing element	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4W0886769	padding for seat, assembly, D >> - 03.06.2013	4W0886769 padding for seat, assembly, D >> - 03.06.2013 left rear,	-	1	Enquire
1	4W0886769A	padding for seat, assembly, D - 03.06.2013>>	4W0886769A padding for seat, assembly, D - 03.06.2013>> left rear,	-	1	Enquire
1	4W0886770	padding for seat, assembly, D >> - 03.06.2013	4W0886770 padding for seat, assembly, D >> - 03.06.2013 right rear,	-	1	Enquire
1	4W0886770A	padding for seat, assembly, D - 03.06.2013>>	4W0886770A padding for seat, assembly, D - 03.06.2013>> right rear,	-	1	Enquire
2	4W0885406Q	cover, seat, D - 22.07.2013>>	4W0885406Q cover, seat, D - 22.07.2013>> right rear, Fluted, PR-N5M+3NL,, 5KA+4D0	-	1	Enquire
2	4W0885406R	cover, seat, D - 22.07.2013>>	4W0885406R cover, seat, D - 22.07.2013>> right rear, Fluted, vent, PR-N5M+3NL,, 5KA+4D2	-	1	Enquire
2	4W0885406S	cover, seat, D - 22.07.2013>>	4W0885406S cover, seat, D - 22.07.2013>> right rear, Diamond, Pattern, PR-N1Y+3NL,, 5KA	-	1	Enquire
2	4W0885405Q	cover, seat, D - 22.07.2013>>	4W0885405Q cover, seat, D - 22.07.2013>> left rear, Fluted, PR-N5M+3NL,, 5KA+4D0	-	1	Enquire
2	4W0885405R	cover, seat, D - 22.07.2013>>	4W0885405R cover, seat, D - 22.07.2013>> left rear, Fluted, vent, PR-N5M+3NL,, 5KA+4D2	-	1	Enquire
2	4W0885405S	cover, seat, D - 22.07.2013>>	4W0885405S cover, seat, D - 22.07.2013>> left rear, Diamond, Pattern, PR-N1Y+3NL,, 5KA	-	1	Enquire
3	4W0885883K	padding for seat, D - 03.02.2014>>	4W0885883K padding for seat, D - 03.02.2014>> left rear, vent, PR-3NL,, 5KA+4D2	-	1	Enquire
3	4W0885883J	padding for seat, D - 03.02.2014>>	4W0885883J padding for seat, D - 03.02.2014>> left rear, non vent, PR-3NL,, 5KA+4D0	-	1	Enquire
3	4W0885884K	padding for seat, D - 03.02.2014>>	4W0885884K padding for seat, D - 03.02.2014>> right rear, vent, PR-3NL,, 5KA+4D2	-	1	Enquire
3	4W0885884G	padding for seat, D >> - 03.02.2014	4W0885884G padding for seat, D >> - 03.02.2014 right rear, non vent, PR-3NL,, 5KA+4D0	-	1	Enquire
3	4W0885884J	padding for seat, D - 03.02.2014>>	4W0885884J padding for seat, D - 03.02.2014>> right rear, non vent, PR-3NL,, 5KA+4D0	-	1	Enquire
4	4W0885191	seat frame	4W0885191 seat frame left rear, PR-3NL,, 5KA	-	1	Enquire
4	4W0885192	seat frame	4W0885192 seat frame right rear, PR-3NL,, 5KA	-	1	Enquire
6	4H0885139	seat frame, Base carrier	4H0885139 seat frame, Base carrier left rear, PR-3NL,, 5KA	-	1	Enquire
6	4H0885140	seat frame, Base carrier	4H0885140 seat frame, Base carrier right rear, PR-3NL,, 5KA	-	1	Enquire
7	N90942804	bolt, hex. hd. with shoulder	N90942804 bolt, hex. hd. with shoulder M10X25,	-	1	Enquire
8	N98923402	Hexagon collar nut	N98923402 Hexagon collar nut	-	3	Enquire
9	3Y0881280	clamp, for seat frame IN STOCK	3Y0881280 clamp, for seat frame IN STOCK	-	2	Enquire
10	4W0857745	bracket for seat	4W0857745 bracket for seat left rear, PR-3NL,, 5KA	-	1	Enquire
10	4W0857746	bracket for seat	4W0857746 bracket for seat right rear, PR-3NL,, 5KA	-	1	Enquire
11	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	1	Enquire
12	N90965203	hexagon socket head panel bolt	N90965203 hexagon socket head panel bolt 4,5X13,0,	-	1	Enquire
13	4W0885316	trim panel for seat frame	4W0885316 trim panel for seat frame right rear, PR-3NL,, 5KA	-	1	Enquire
13	4W0885315	trim panel for seat frame	4W0885315 trim panel for seat frame left rear, PR-3NL,, 5KA	-	1	Enquire
14	4W0885403	cover	4W0885403 cover PR-5KA	-	1	Enquire
15	4W0885959	padding for rear seat	4W0885959 padding for rear seat centre/rear, PR-5KA	-	1	Enquire
16	4W0885735A	frame for seat	4W0885735A frame for seat centre/rear, PR-5KA	-	1	Enquire
17	4W0886289A	trim for switch	4W0886289A trim for switch PR-5KA+9WA	-	1	Enquire
18	4W0886289	trim for switch	4W0886289 trim for switch PR-5KA+9WK,	-	1	Enquire
19	4W0885333A	bracket	4W0885333A bracket centre/rear, PR-5KA	-	1	Enquire
20	1K0886373C	grommet	1K0886373C grommet PR-5KA	-	1	Enquire
21	4W0885330A	bracket	4W0885330A bracket centre/rear, PR-5KA	-	1	Enquire
22	N90348402	hex. nut with washer	N90348402 hex. nut with washer M8,	-	4	Enquire
23	N90215804	Hexagon nut IN STOCK	N90215804 Hexagon nut M6, IN STOCK	-	1	Enquire
24	N90455902	Speed nut	N90455902 Speed nut M5X16,6X15,	-	1	Enquire
25	N90944603	Oval hexagon socket head bolt IN STOCK	N90944603 Oval hexagon socket head bolt M5X12, IN STOCK	-	1	Enquire
26	4G8963575	fan, D >> - 02.01.2017	4G8963575 fan, D >> - 02.01.2017 PR-4D2	-	2	Enquire
27	4H0941117	Securing element	4H0941117 Securing element PR-4D2	-	8	Enquire
