fender of Bentley Bentley Continental Flying Spur (2013+)

View All

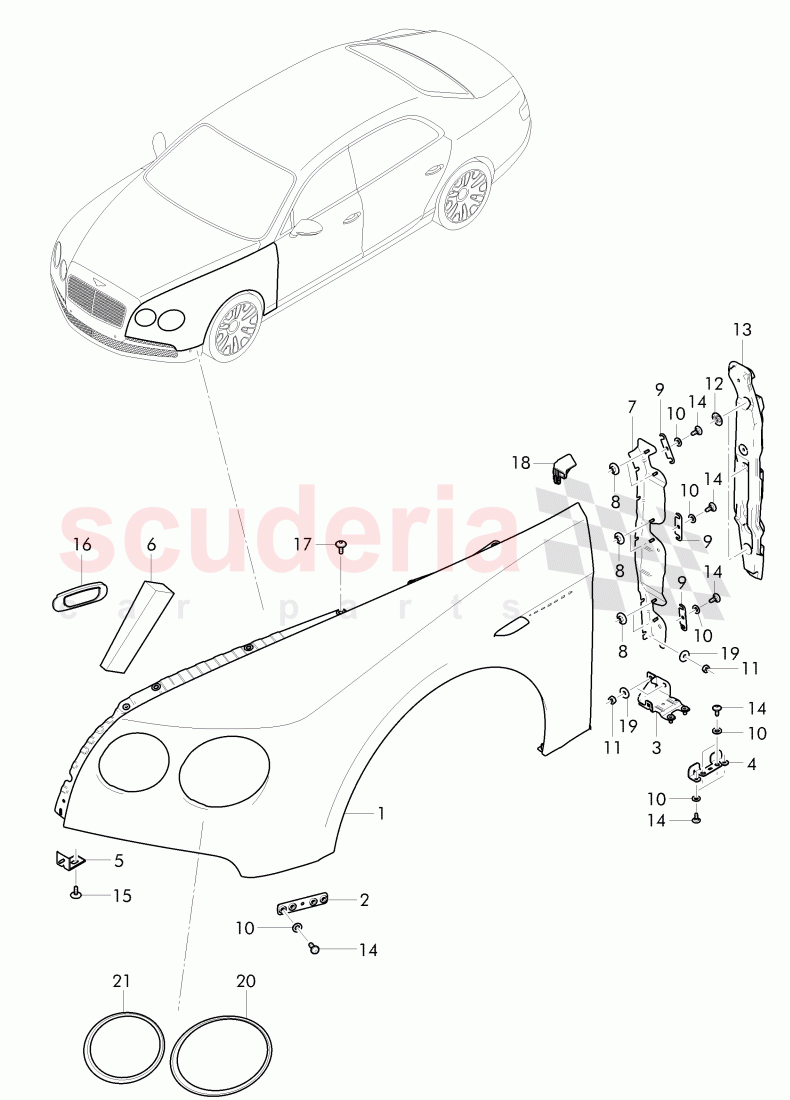

Bentley Continental Flying Spur (2013+) - fender

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0821021M	fender, D - MJ 2017>>	Enquire
	4W0821021N	fender, D - MJ 2017>>	Enquire
	4W0821022M	fender, D - 20.05.2013>> - 26.05.2014	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3W8821295B	bracket, bracket, D >> - 30.04.2012	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0821167A	bracket	Enquire
	4W0821168A	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821233	bracket, D - 30.04.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock

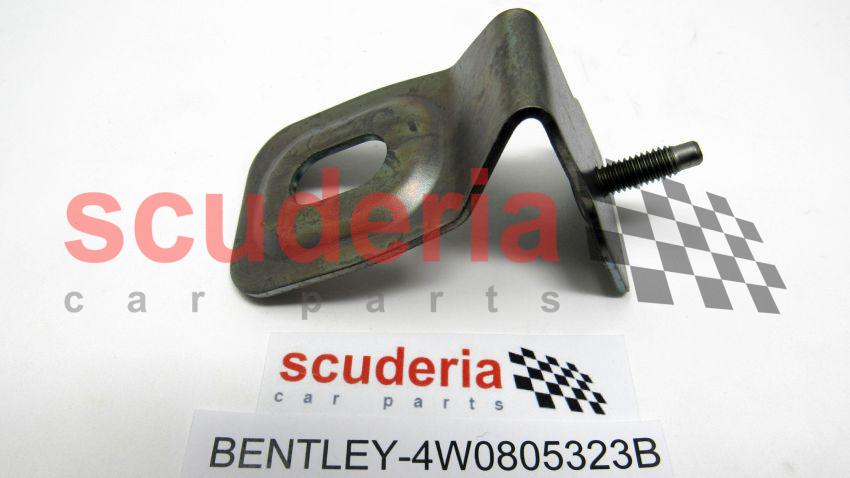

	4W0805323B	bracket, D - 26.01.2015>>	Enquire
	4W0805659A	bracket, D - 26.08.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0864646	foam insert, radiator grille	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0821153C	rip plate, D - 03.06.2013>>	Enquire
	4W0821154C	rip plate, D - 03.06.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90570802	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W8821161B	spacer washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT005640	washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01100632	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90335006	Clamping washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0864561	sound baffle	Enquire
	4W0864562	sound baffle	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90788402	Locating bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91188301	Hexagon socket head bolt	Enquire
	N91009701	bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0821115B	side marker light, bracket	Enquire
	4W0821116B	side marker light, mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91121901	screw, csk. with polygon, socket hd., For mounting to:	Enquire
	N91121902	screw, cheese hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0821229A	bracket, D - 03.06.2013>> - 16.09.2013	Enquire
	4W0821230A	bracket, D - 03.06.2013>> - 16.09.2013	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01166620	Washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0807823A	headlamp trim frame, D >> - MJ 2016	Enquire
	4W0807823A	headlamp trim frame, D >> - MJ 2016	Enquire
	4W0807823D	headlamp trim frame, D - MJ 2017>>	Enquire

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0807833A	headlamp trim frame, D >> - MJ 2016	Enquire
	4W0807833A	headlamp trim frame, D >> - MJ 2016	Enquire
	4W0807833D	headlamp trim frame, D - MJ 2017>>	Enquire

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

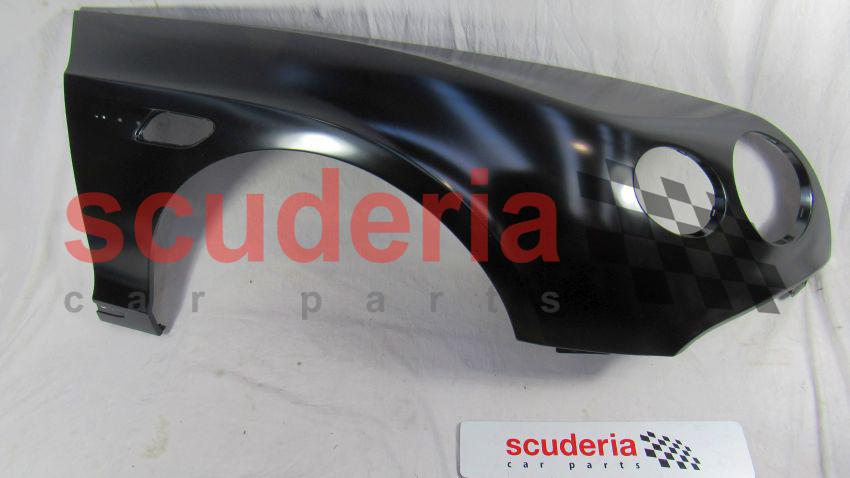

1	4W0821021M	fender, D - MJ 2017>>	4W0821021M fender, D - MJ 2017>> left, PR-8F2	-	1	Enquire
1	4W0821021N	fender, D - MJ 2017>>	4W0821021N fender, D - MJ 2017>> left, PR-7R7	-	1	Enquire
1	4W0821022M	fender, D - 20.05.2013>> - 26.05.2014	4W0821022M fender, D - 20.05.2013>> - 26.05.2014 right, PR-8F2	-	1	Enquire
1	4W0821022N	fender, D - 20.05.2013>> - 26.05.2014	4W0821022N fender, D - 20.05.2013>> - 26.05.2014 right, PR-7R7	-	1	Enquire
2	3W8821295B	bracket, bracket, D >> - 30.04.2012	3W8821295B bracket, bracket, D >> - 30.04.2012	-	2	Enquire
3	4W0821167A	bracket	4W0821167A bracket left lower,	-	1	Enquire
3	4W0821168A	bracket	4W0821168A bracket right lower,	-	1	Enquire
4	3W8821233	bracket, D - 30.04.2012>>	3W8821233 bracket, D - 30.04.2012>>	-	2	Enquire
5	4W0805323B	bracket, D - 26.01.2015>>	4W0805323B bracket, D - 26.01.2015>> left a. right, PR-VL0	-	2	Enquire
5	4W0805659A	bracket, D - 26.08.2013>>	4W0805659A bracket, D - 26.08.2013>> left a. right, PR-VL1	-	1	Enquire

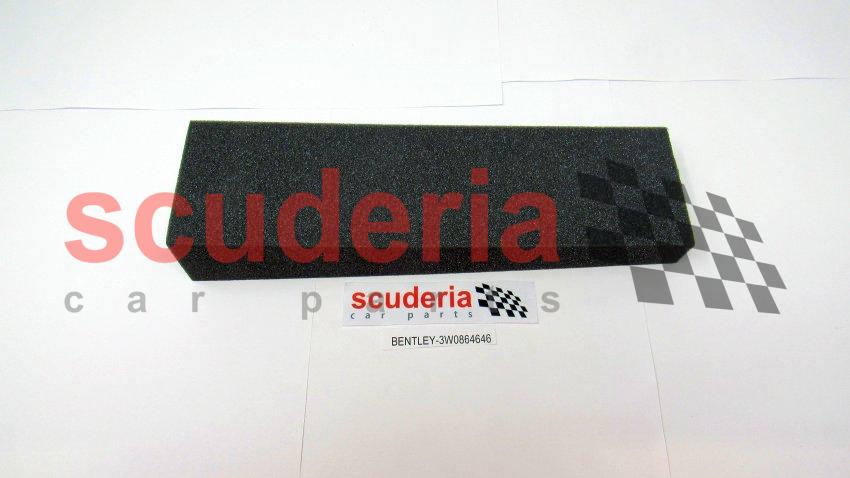

6	3W0864646	foam insert, radiator grille	3W0864646 foam insert, radiator grille	-	2	Enquire
7	4W0821153C	rip plate, D - 03.06.2013>>	4W0821153C rip plate, D - 03.06.2013>> left,	-	1	Enquire
7	4W0821154C	rip plate, D - 03.06.2013>>	4W0821154C rip plate, D - 03.06.2013>> right,	-	1	Enquire
8	N90570802	hex. nut with washer	N90570802 hex. nut with washer M6,	-	22	Enquire
9	3W8821161B	spacer washer	3W8821161B spacer washer	-	6	Enquire
10	WHT005640	washer	WHT005640 washer 9,3X18X2,	-	14	Enquire
11	N01100632	hexagon nut	N01100632 hexagon nut M6,	-	10	Enquire
12	N90335006	Clamping washer	N90335006 Clamping washer	-	6	Enquire
13	4W0864561	sound baffle	4W0864561 sound baffle left,	-	1	Enquire
13	4W0864562	sound baffle	4W0864562 sound baffle right,	-	1	Enquire
14	N90788402	Locating bolt	N90788402 Locating bolt M6X16,0,	-	8	Enquire
15	N91188301	Hexagon socket head bolt	N91188301 Hexagon socket head bolt M6X20,	-	2	Enquire
15	N91009701	bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>>	N91009701 bolt, with polygon socket hd., F 3W-F-047 422>>, F ZA-F-047 422>> M8X25,	-	1	Enquire

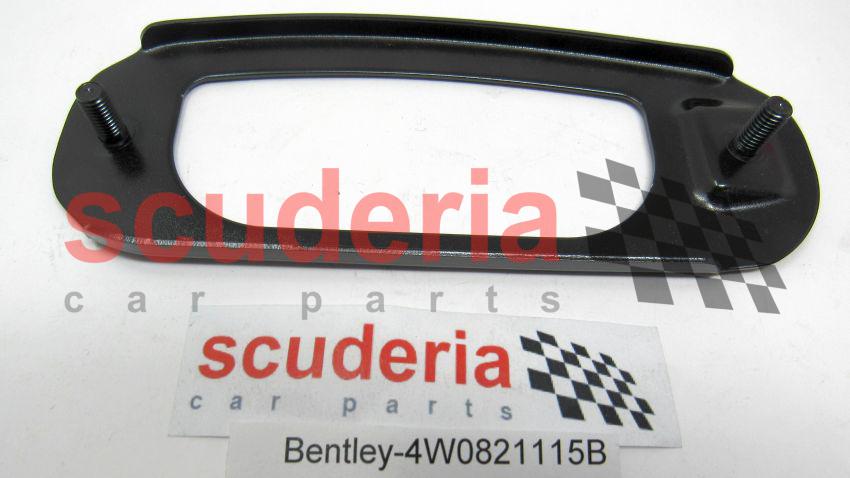

16	4W0821115B	side marker light, bracket	4W0821115B side marker light, bracket left, PR-7R7	-	1	Enquire
16	4W0821116B	side marker light, mounting	4W0821116B side marker light, mounting right, PR-7R7	-	1	Enquire
17	N91121901	screw, csk. with polygon, socket hd., For mounting to:	N91121901 screw, csk. with polygon, socket hd., For mounting to: M6X12, BRIGHT FINISH,	-	10	Enquire
17	N91121902	screw, cheese hd.	N91121902 screw, cheese hd. M6X12, DARK FINISH,	-	10	Enquire
18	4W0821229A	bracket, D - 03.06.2013>> - 16.09.2013	4W0821229A bracket, D - 03.06.2013>> - 16.09.2013 left,	-	1	Enquire
18	4W0821230A	bracket, D - 03.06.2013>> - 16.09.2013	4W0821230A bracket, D - 03.06.2013>> - 16.09.2013 right,	-	1	Enquire
19	N01166620	Washer	N01166620 Washer M6,	-	10	Enquire

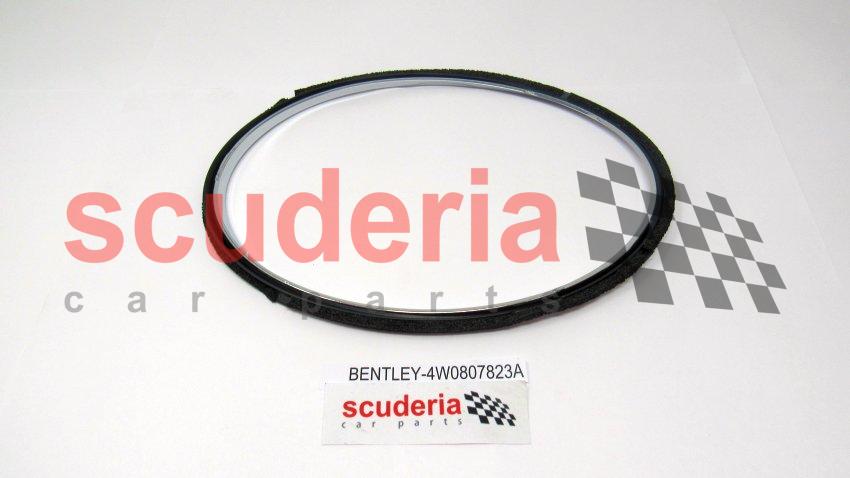

20	4W0807823A	headlamp trim frame, D >> - MJ 2016	4W0807823A headlamp trim frame, D >> - MJ 2016 left outer, chrome,	-	1	Enquire
20	4W0807823A	headlamp trim frame, D >> - MJ 2016	4W0807823A headlamp trim frame, D >> - MJ 2016 left outer, chrome, PR-4B1	-	1	Enquire
20	4W0807823D	headlamp trim frame, D - MJ 2017>>	4W0807823D headlamp trim frame, D - MJ 2017>> left outer, black, PR-4B3	-	1	Enquire

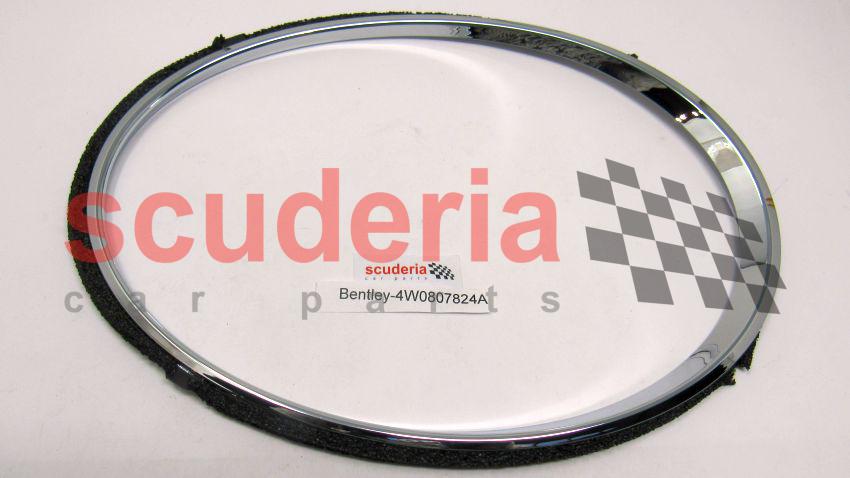

20	4W0807824A	headlamp trim frame, D >> - MJ 2016	4W0807824A headlamp trim frame, D >> - MJ 2016 right outer, chrome,	-	1	Enquire
20	4W0807824A	headlamp trim frame, D >> - MJ 2016	4W0807824A headlamp trim frame, D >> - MJ 2016 right outer, chrome, PR-4B1	-	1	Enquire
20	4W0807824D	headlamp trim frame, D - MJ 2017>>	4W0807824D headlamp trim frame, D - MJ 2017>> right outer, black, PR-4B3	-	1	Enquire

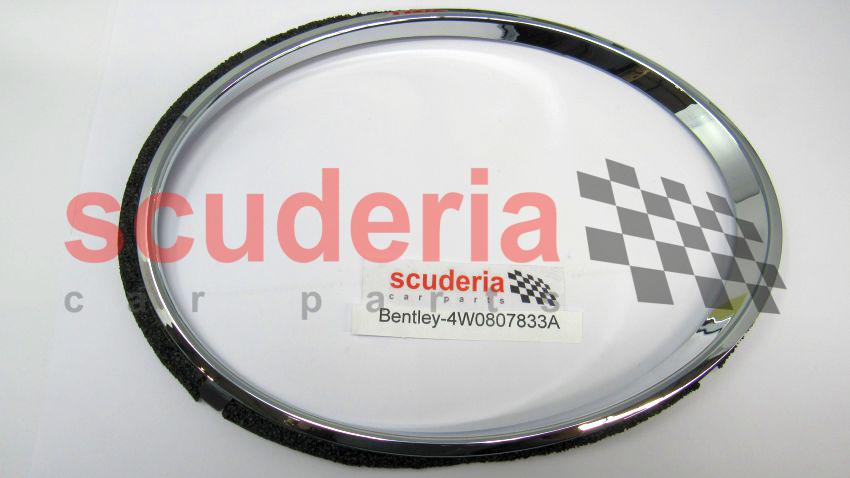

21	4W0807833A	headlamp trim frame, D >> - MJ 2016	4W0807833A headlamp trim frame, D >> - MJ 2016 left inner, chrome,	-	1	Enquire
21	4W0807833A	headlamp trim frame, D >> - MJ 2016	4W0807833A headlamp trim frame, D >> - MJ 2016 left inner, chrome, PR-4B1	-	1	Enquire
21	4W0807833D	headlamp trim frame, D - MJ 2017>>	4W0807833D headlamp trim frame, D - MJ 2017>> left inner, black, PR-4B3	-	1	Enquire

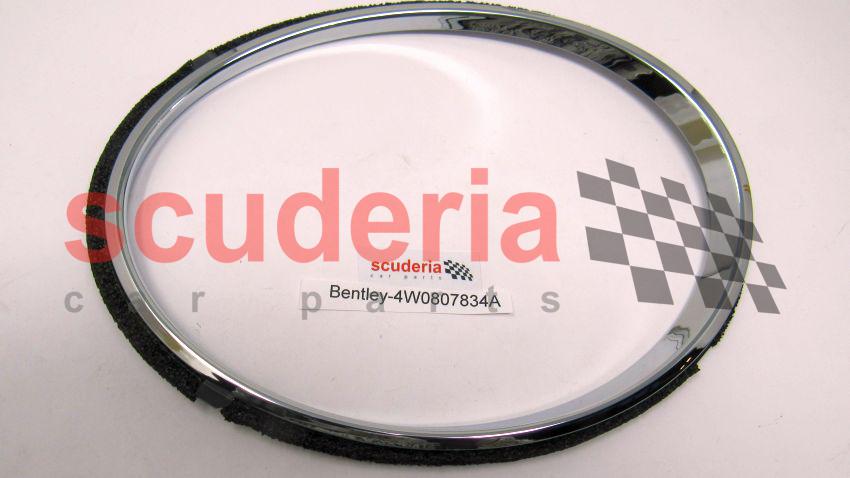

21	4W0807834A	headlamp trim frame, D >> - MJ 2016	4W0807834A headlamp trim frame, D >> - MJ 2016 right inner, chrome,	-	1	Enquire
21	4W0807834A	headlamp trim frame, D >> - MJ 2016	4W0807834A headlamp trim frame, D >> - MJ 2016 right inner, chrome, PR-4B1	-	1	Enquire
21	4W0807834D	headlamp trim frame, D - MJ 2017>>	4W0807834D headlamp trim frame, D - MJ 2017>> right inner, black, PR-4B3	-	1	Enquire
