Find Your Part

doors, door hinge with mounting parts, door seal of Bentley Bentley Continental Flying Spur (2013+)

View All

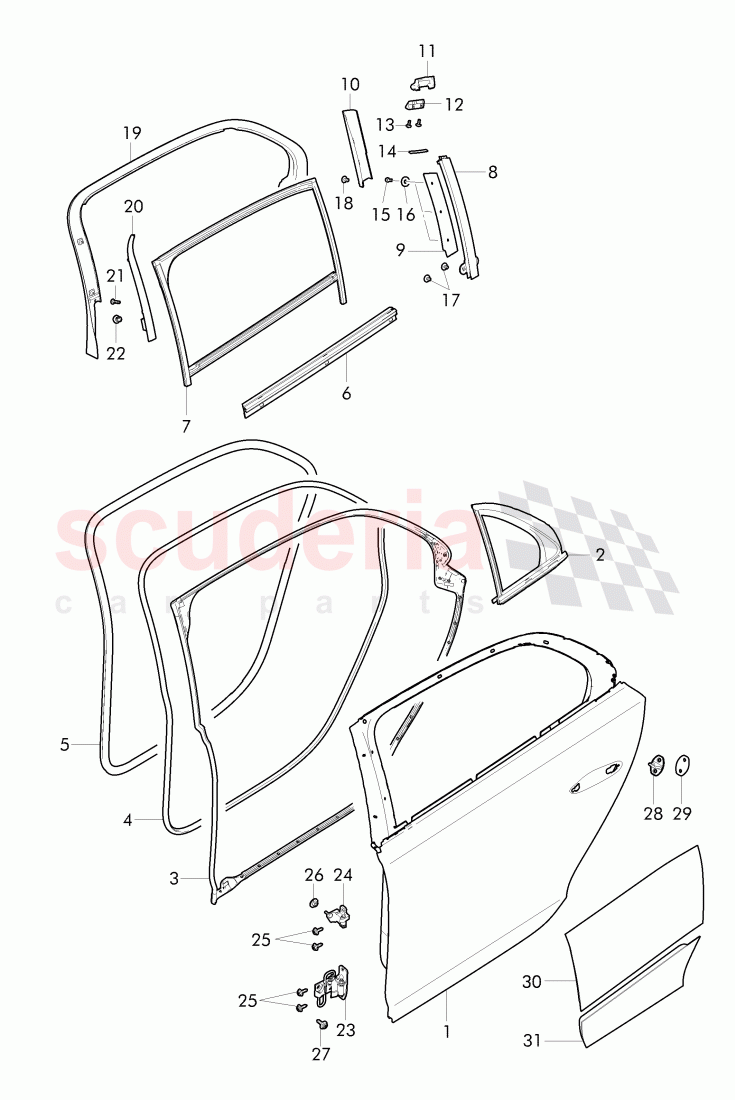

Bentley Continental Flying Spur (2013+) - doors, door hinge with mounting parts, door seal

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4W0833055B	door	Enquire
	4W0833056B	door	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839439C	window seal, D - 09.06.2014>>	Enquire
	4W0839440C	window seal, D - 09.06.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839155F	door seal, outer, D - 30.06.2014>>	Enquire
	4W0839156F	door seal, outer, D - 30.06.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839701A	door seal, (adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0867367A	door seal, inner, D - 23.12.2013>>	Enquire
	4W0867368A	door seal, inner, D - 23.12.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839477	window seal	Enquire
	4W0839478	window seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839431	window slot seal	Enquire
	4W0839432	window slot seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839487B	glass channel	Enquire
	4W0839488B	glass channel	Enquire
	4W0839487C	glass channel	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0854987B	glass channel, lining - cover	Enquire
	4W0854986B	glass channel, lining - cover	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0854957B	glass channel, cover strip	Enquire
	4W0854958B	glass channel, cover strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839739	Shaped part (foam)	Enquire
	4W0839740	Shaped part (foam)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839931A	glass channel, mounting	Enquire
	4W0839932A	glass channel, mounting	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90944604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W5864500	plastic foam, gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10613301	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N01166420	Washer see drawing:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002209	screw, thread cutting	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0854891C	Trim for window frame	Enquire
	4W0854891D	Trim for window frame	Enquire
	4W0854892C	Trim for window frame	Enquire

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4W0854909C	trim for door window frame, D - 25.08.2014>>	Enquire
	4W0854910C	trim for door window frame, D - 25.08.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10415903	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	3Y0867780	clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D7833411A	door hinge	Enquire
	3D7833412A	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D4833401B	door hinge	Enquire
	3D4833402B	door hinge	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90511508	hex. nut with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90930503	multi-point socket head bolt with collar	Enquire

Photo	Part No	Description	Price (each)	Stock
	8P7837033A	striker	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0837759	striker plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839731	sound absorber for door	Enquire
	4W0839732	sound absorber for door	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0839731A	sound absorber for door	Enquire
	4W0839732A	sound absorber for door	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4W0833055B	door	4W0833055B door left rear,	-	1	Enquire
1	4W0833056B	door	4W0833056B door right rear,	-	1	Enquire
2	4W0839439C	window seal, D - 09.06.2014>>	4W0839439C window seal, D - 09.06.2014>> left rear,	-	1	Enquire
2	4W0839440C	window seal, D - 09.06.2014>>	4W0839440C window seal, D - 09.06.2014>> right rear,	-	1	Enquire
3	4W0839155F	door seal, outer, D - 30.06.2014>>	4W0839155F door seal, outer, D - 30.06.2014>> left rear,	-	1	Enquire
3	4W0839156F	door seal, outer, D - 30.06.2014>>	4W0839156F door seal, outer, D - 30.06.2014>> right rear,	-	1	Enquire
4	4W0839701A	door seal, (adhesive)	4W0839701A door seal, (adhesive) left a. right,	-	2	Enquire
5	4W0867367A	door seal, inner, D - 23.12.2013>>	4W0867367A door seal, inner, D - 23.12.2013>> left inner,	-	1	Enquire
5	4W0867368A	door seal, inner, D - 23.12.2013>>	4W0867368A door seal, inner, D - 23.12.2013>> right inner,	-	1	Enquire
6	4W0839477	window seal	4W0839477 window seal left outer,	-	1	Enquire
6	4W0839478	window seal	4W0839478 window seal right outer,	-	1	Enquire
7	4W0839431	window slot seal	4W0839431 window slot seal left,	-	1	Enquire
7	4W0839432	window slot seal	4W0839432 window slot seal right,	-	1	Enquire
8	4W0839487B	glass channel	4W0839487B glass channel left, PR-3Y8	-	1	Enquire
8	4W0839488B	glass channel	4W0839488B glass channel right, PR-3Y8	-	1	Enquire
8	4W0839487C	glass channel	4W0839487C glass channel left, PR-3Y2	-	1	Enquire
8	4W0839488C	glass channel	4W0839488C glass channel right, PR-3Y2	-	1	Enquire
9	4W0854987B	glass channel, lining - cover	4W0854987B glass channel, lining - cover left outer, PR-3Y8	-	1	Enquire
9	4W0854986B	glass channel, lining - cover	4W0854986B glass channel, lining - cover right outer, PR-3Y8	-	1	Enquire
10	4W0854957B	glass channel, cover strip	4W0854957B glass channel, cover strip left inner, PR-3Y8	-	1	Enquire
10	4W0854958B	glass channel, cover strip	4W0854958B glass channel, cover strip right inner, PR-3Y8	-	1	Enquire
11	4W0839739	Shaped part (foam)	4W0839739 Shaped part (foam) left,	-	1	Enquire
11	4W0839740	Shaped part (foam)	4W0839740 Shaped part (foam) right,	-	1	Enquire
12	4W0839931A	glass channel, mounting	4W0839931A glass channel, mounting left,	-	1	Enquire
12	4W0839932A	glass channel, mounting	4W0839932A glass channel, mounting right,	-	1	Enquire
13	N90944604	Oval hexagon socket head bolt	N90944604 Oval hexagon socket head bolt M5X12,	-	4	Enquire
14	3W5864500	plastic foam, gasket	3W5864500 plastic foam, gasket front,	-	2	Enquire
15	N10613301	Hexagon socket flat head bolt	N10613301 Hexagon socket flat head bolt M3X8,	-	6	Enquire
16	N01166420	Washer see drawing:	N01166420 Washer see drawing: 4,3 DIA,	-	6	Enquire
17	N10284905	fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>>	N10284905 fillister hd. screw with, MULTI-POINT SOCKET HEAD, D - 07.04.2014>> M6X8,	-	4	Enquire
18	WHT002209	screw, thread cutting	WHT002209 screw, thread cutting 4.2X7,	-	2	Enquire
19	4W0854891C	Trim for window frame	4W0854891C Trim for window frame left rear, PR-3Y2	-	1	Enquire
19	4W0854891D	Trim for window frame	4W0854891D Trim for window frame left rear, PR-3Y8	-	1	Enquire
19	4W0854892C	Trim for window frame	4W0854892C Trim for window frame right rear, PR-3Y2	-	1	Enquire
19	4W0854892D	Trim for window frame	4W0854892D Trim for window frame right rear, PR-3Y8	-	1	Enquire
20	4W0854909C	trim for door window frame, D - 25.08.2014>>	4W0854909C trim for door window frame, D - 25.08.2014>> left front, PR-3Y8	-	1	Enquire
20	4W0854910C	trim for door window frame, D - 25.08.2014>>	4W0854910C trim for door window frame, D - 25.08.2014>> right front, PR-3Y8	-	1	Enquire
21	N10415903	Oval hexagon socket head bolt	N10415903 Oval hexagon socket head bolt TP4X12,	-	4	Enquire
22	3Y0867780	clamp	3Y0867780 clamp white,	-	4	Enquire
23	3D7833411A	door hinge	3D7833411A door hinge rear, lower, left,	-	1	Enquire
23	3D7833412A	door hinge	3D7833412A door hinge rear, lower, right,	-	1	Enquire
24	3D4833401B	door hinge	3D4833401B door hinge left upper,	-	1	Enquire
24	3D4833402B	door hinge	3D4833402B door hinge right upper,	-	1	Enquire
25	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	8	Enquire
26	N90511508	hex. nut with washer	N90511508 hex. nut with washer M8,	-	2	Enquire
27	N90930503	multi-point socket head bolt with collar	N90930503 multi-point socket head bolt with collar M8X24,	-	2	Enquire
28	8P7837033A	striker	8P7837033A striker	-	2	Enquire
29	4W0837759	striker plate	4W0837759 striker plate	-	2	Enquire
30	4W0839731	sound absorber for door	4W0839731 sound absorber for door left upper,	-	1	Enquire
30	4W0839732	sound absorber for door	4W0839732 sound absorber for door right upper,	-	1	Enquire
31	4W0839731A	sound absorber for door	4W0839731A sound absorber for door left lower,	-	1	Enquire
31	4W0839732A	sound absorber for door	4W0839732A sound absorber for door right lower,	-	1	Enquire
