Bentley Continental Flying Spur (2013+) - Front end section, repair plate -, cross member, push-on type

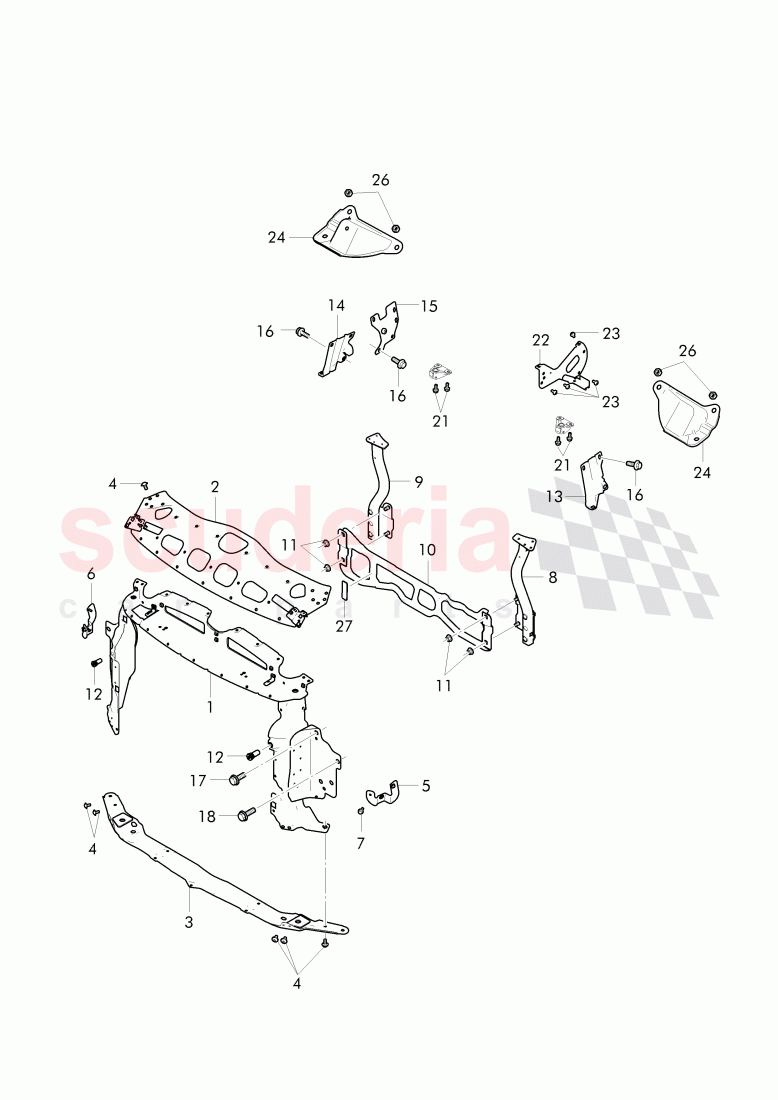

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0805155AJ	frame, D - MJ 2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0804415C	filler plate, D - 17.09.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0805057J	repair panel D - 28.11.2011>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737105	Hexagon socket oval head bolt, self-locking	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199417	Front end, retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199418	Front end, retainer	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0199171B	Front end section, repair plate -, cross member, push-on type, D - 01.08.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91095501	hexagon nut, shouldered	Enquire

Photo	Part No	Description	Price (each)	Stock
	8H0806221	Compensating piece	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0806357A	cross panel	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0806358B	end plate, D - 23.04.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W1805301B	end plate, D - 07.05.2007>>	Enquire
	3W2805301C	end plate, D - 23.04.2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10063205	bolt, hex. hd. with shoulder	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91139301	hexagon screw with washer	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90958803	hexagon head bolt (combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10155906	bolt, hex. hd. with shoulder, D - MJ 2007>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D2805301	filler plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90949402	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0805065D	reinforcement for side panel, D - 04.11.2013>>	Enquire
	4W0805066D	reinforcement for side panel, D - 04.11.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N98991001	hexagon nut	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0823722	plastic foam, (self-adhesive), D - 01.08.2016>>	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3W0805155AJ	frame, D - MJ 2016>>	3W0805155AJ frame, D - MJ 2016>> front,	-	1	Enquire
2	3W0804415C	filler plate, D - 17.09.2012>>	3W0804415C filler plate, D - 17.09.2012>>	-	1	Enquire
3	3W0805057J	repair panel D - 28.11.2011>>	3W0805057J repair panel D - 28.11.2011>> front, lower,	-	1	Enquire
4	N90737105	Hexagon socket oval head bolt, self-locking	N90737105 Hexagon socket oval head bolt, self-locking M6X12,	-	23	Enquire
8	3W0199417	Front end, retainer	3W0199417 Front end, retainer left,	-	1	Enquire
9	3W0199418	Front end, retainer	3W0199418 Front end, retainer right,	-	1	Enquire

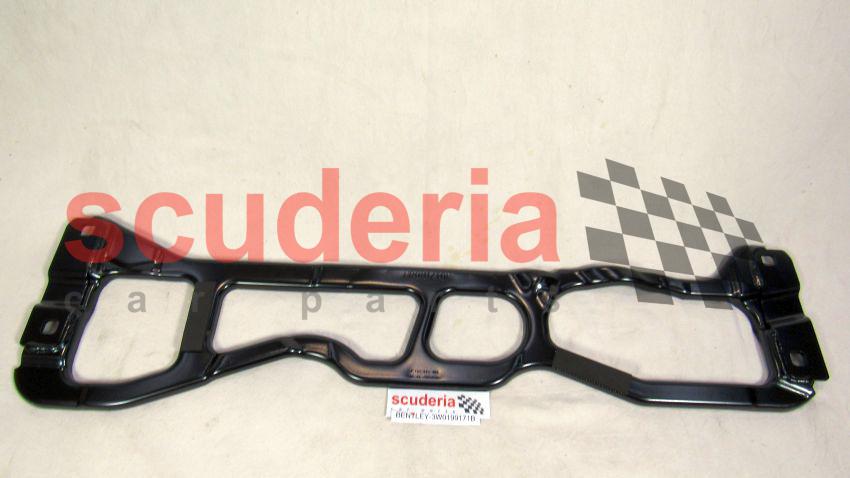

10	3W0199171B	Front end section, repair plate -, cross member, push-on type, D - 01.08.2016>>	3W0199171B Front end section, repair plate -, cross member, push-on type, D - 01.08.2016>>	-	1	Enquire
11	N91095501	hexagon nut, shouldered	N91095501 hexagon nut, shouldered M10,	-	4	Enquire
12	8H0806221	Compensating piece	8H0806221 Compensating piece	-	2	Enquire
13	3W0806357A	cross panel	3W0806357A cross panel left front,	-	1	Enquire
14	3W0806358B	end plate, D - 23.04.2007>>	3W0806358B end plate, D - 23.04.2007>> right front,	-	1	Enquire
15	3W1805301B	end plate, D - 07.05.2007>>	3W1805301B end plate, D - 07.05.2007>> rear lhd, PR-L0L	-	1	Enquire
15	3W2805301C	end plate, D - 23.04.2007>>	3W2805301C end plate, D - 23.04.2007>> rear rhd, PR-L0R	-	1	Enquire
16	N10063205	bolt, hex. hd. with shoulder	N10063205 bolt, hex. hd. with shoulder M8X20,	-	8	Enquire
17	N91139301	hexagon screw with washer	N91139301 hexagon screw with washer M8X40,	-	4	Enquire
18	N90958803	hexagon head bolt (combi)	N90958803 hexagon head bolt (combi) M10X40,	-	4	Enquire
21	N10155906	bolt, hex. hd. with shoulder, D - MJ 2007>>	N10155906 bolt, hex. hd. with shoulder, D - MJ 2007>> M8X20,	-	4	Enquire
22	3D2805301	filler plate	3D2805301 filler plate PR-L0R	-	1	Enquire
23	N90949402	Oval hexagon socket head bolt	N90949402 Oval hexagon socket head bolt M6X12,	-	4	Enquire
24	4W0805065D	reinforcement for side panel, D - 04.11.2013>>	4W0805065D reinforcement for side panel, D - 04.11.2013>> left,	-	1	Enquire
24	4W0805066D	reinforcement for side panel, D - 04.11.2013>>	4W0805066D reinforcement for side panel, D - 04.11.2013>> right,	-	1	Enquire
26	N98991001	hexagon nut	N98991001 hexagon nut	-	4	Enquire
27	3W0823722	plastic foam, (self-adhesive), D - 01.08.2016>>	3W0823722 plastic foam, (self-adhesive), D - 01.08.2016>>	-	2	Enquire
