intake manifold - upper part, throttle valve, cut-off valve, suction hose of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - intake manifold - upper part, throttle valve, cut-off valve, suction hose

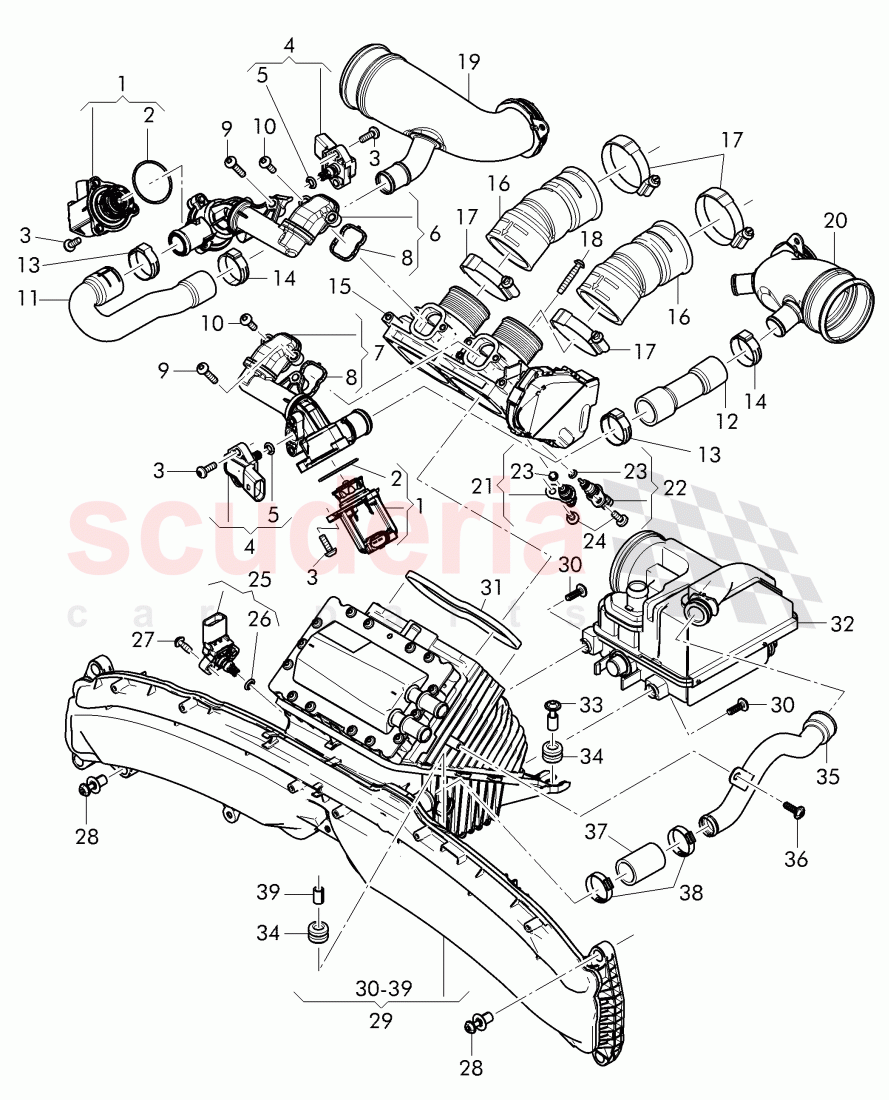

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6H145710D	cut-off valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	38906051K	pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145751J	adapter, D - 07.12.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145751J	adapter, D - 07.12.2015>>	Enquire
	79145751J	adapter, D - 07.12.2015>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145417B	seal strip, D - 27.06.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10156206	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock

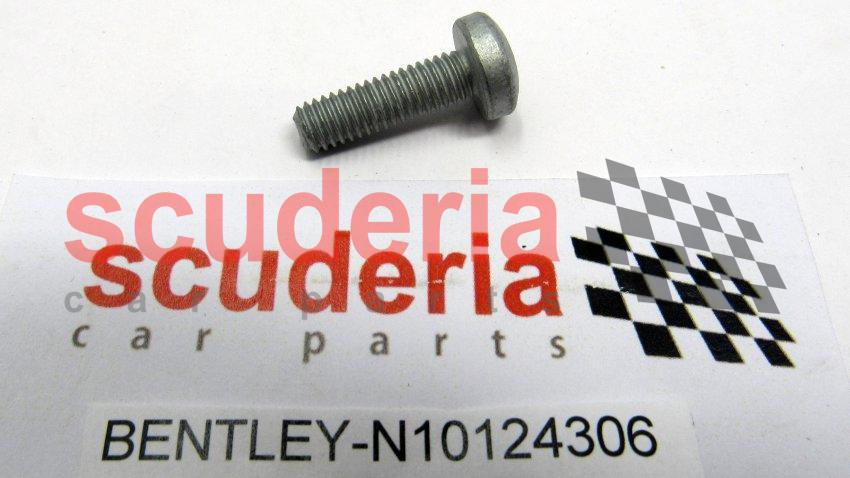

	N10124306	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145712D	suction hose, D - 12.05.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145712B	suction hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90489801	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90442501	retaining clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	79133062L	throttle valve, D - 07.01.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145834D	air hose for pressure side	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10518801	Hose Clamp	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10547902	screw, thread cutting	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919501D	temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	79919501F	temperature sender	Enquire

Photo	Part No	Description	Price (each)	Stock
	WHT002287C	O-ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10405604	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	38906051K	pressure sensor	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10721401	oval hd. self-tapp fitt. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79133235	Spring pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145581T	air duct for charge, air cooler, contains:, charge air cooler, Crankcase breather, intake manifold - upper part, D - 04.07.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145818	seal strip	Enquire

Photo	Part No	Description	Price (each)	Stock
	79145219A	Spacer sleeve with cylinder, collar bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103216	vent tube	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103237A	vent hose	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91115401	spring clip	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6H145710D	cut-off valve	6H145710D cut-off valve	-	2	Enquire
3	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	10	Enquire
4	38906051K	pressure sensor	38906051K pressure sensor 0,1-3,0 BAR,	-	2	Enquire
6	79145751J	adapter, D - 07.12.2015>>	79145751J adapter, D - 07.12.2015>> right upper,	-	1	Enquire
7	79145751J	adapter, D - 07.12.2015>>	79145751J adapter, D - 07.12.2015>> left upper,	-	1	Enquire
7	79145751J	adapter, D - 07.12.2015>>	79145751J adapter, D - 07.12.2015>> left upper,	-	1	Enquire
8	79145417B	seal strip, D - 27.06.2016>>	79145417B seal strip, D - 27.06.2016>>	-	2	Enquire
9	N10156206	Oval hexagon socket head bolt	N10156206 Oval hexagon socket head bolt M6X30,	-	2	Enquire
10	N10124306	Hexagon socket flat head bolt	N10124306 Hexagon socket flat head bolt M6X20,	-	4	Enquire
11	79145712D	suction hose, D - 12.05.2014>>	79145712D suction hose, D - 12.05.2014>> right upper,	-	1	Enquire
12	79145712B	suction hose	79145712B suction hose left upper,	-	1	Enquire
13	N90489801	retaining clip	N90489801 retaining clip 33,5X10X0,8,	-	2	Enquire
14	N90442501	retaining clip	N90442501 retaining clip 32X10X0,8,	-	2	Enquire
15	79133062L	throttle valve, D - 07.01.2013>>	79133062L throttle valve, D - 07.01.2013>>	-	1	Enquire
16	79145834D	air hose for pressure side	79145834D air hose for pressure side	-	2	Enquire
17	N10518801	Hose Clamp	N10518801 Hose Clamp 40-60X12,	-	4	Enquire
18	N10547902	screw, thread cutting	N10547902 screw, thread cutting 6X35,	-	6	Enquire
21	79919501D	temperature sender	79919501D temperature sender	-	1	Enquire
22	79919501F	temperature sender	79919501F temperature sender	-	1	Enquire
23	WHT002287C	O-ring	WHT002287C O-ring 5,6X2,	-	2	Enquire
24	N10405604	Oval hexagon socket head bolt	N10405604 Oval hexagon socket head bolt M6X15,0,	-	2	Enquire
25	38906051K	pressure sensor	38906051K pressure sensor 0,1-3,0 BAR,	-	1	Enquire
27	N10721401	oval hd. self-tapp fitt. screw	N10721401 oval hd. self-tapp fitt. screw 6X16,	-	2	Enquire
28	79133235	Spring pin	79133235 Spring pin M6X28,	-	6	Enquire
29	79145581T	air duct for charge, air cooler, contains:, charge air cooler, Crankcase breather, intake manifold - upper part, D - 04.07.2016>>	79145581T air duct for charge, air cooler, contains:, charge air cooler, Crankcase breather, intake manifold - upper part, D - 04.07.2016>>	-	1	Enquire
30	N10442003	self-tapping screw	N10442003 self-tapping screw 5X16,	-	2	Enquire
31	79145818	seal strip	79145818 seal strip	-	1	Enquire
33	79145219A	Spacer sleeve with cylinder, collar bolt	79145219A Spacer sleeve with cylinder, collar bolt	-	3	Enquire
35	79103216	vent tube	79103216 vent tube	-	1	Enquire
36	N10442003	self-tapping screw	N10442003 self-tapping screw 5X16,	-	1	Enquire
37	79103237A	vent hose	79103237A vent hose	-	1	Enquire
38	N91115401	spring clip	N91115401 spring clip A20-32X9,	-	2	Enquire
