air duct, Coolant radiator parts for Bentley Continental Flying Spur (2013+) | Scuderia Car Parts

Find Your Part

air duct, Coolant radiator of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - air duct, Coolant radiator

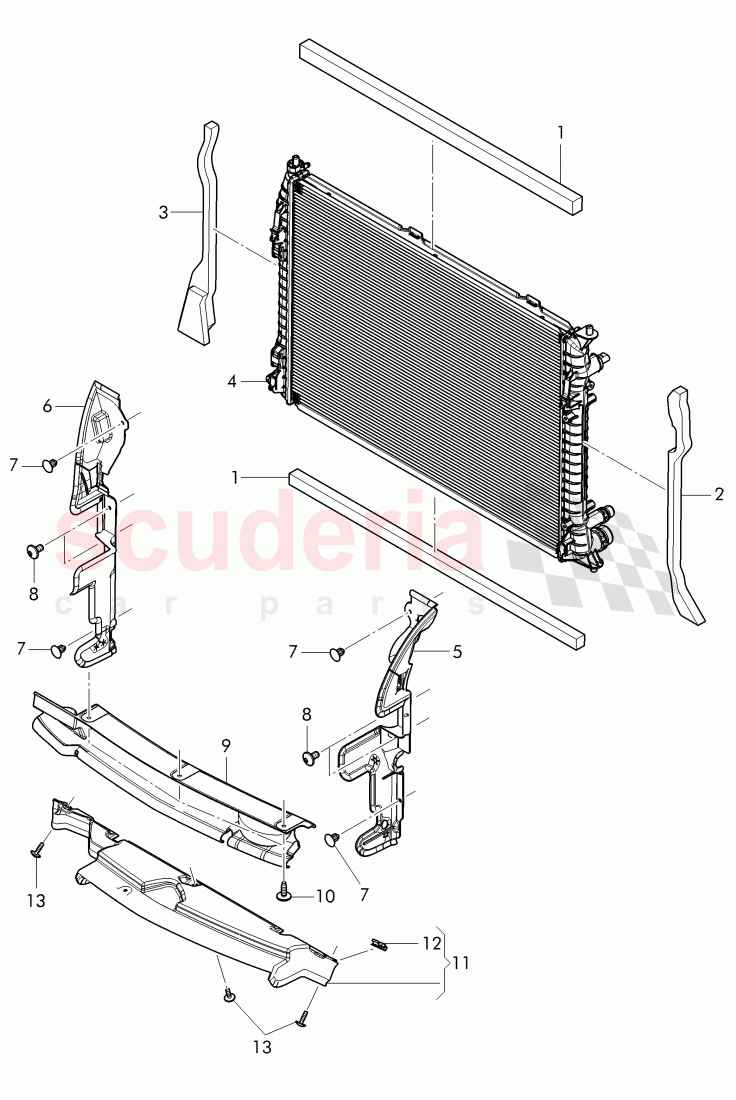

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN

IN STOCK

AS

ARRIVING SOON

TO

To Order

PE

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3W0121221A	sealing strip (self-adhesive)	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121230	sealing strip, (adhesive )	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0121245A	sealing strip, (adhesive )	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0121333E	air duct, Coolant radiator	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0121334B	air duct, Coolant radiator	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0881279	Securing clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90737107	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0121281A	air deflector plate, Coolant radiator	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90840102	tapping screw,fill.hd.(combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0121287E	air deflector plate, Coolant radiator	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90698801	Speed nut Included in position:	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90840102	tapping screw,fill.hd.(combi.)	Enquire

View All

air duct, Coolant radiator of Bentley Bentley Continental Flying Spur (2013+)

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

	#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Order Qty	Add to Cart
	1	3W0121221A	sealing strip (self-adhesive)	3W0121221A sealing strip (self-adhesive) upper/lower,	-	2		Enquire
	2	3W0121230	sealing strip, (adhesive )	3W0121230 sealing strip, (adhesive ) side left,	-	2		Enquire
	3	3W0121245A	sealing strip, (adhesive )	3W0121245A sealing strip, (adhesive ) side right,	-	1		Enquire
	5	4W0121333E	air duct, Coolant radiator	4W0121333E air duct, Coolant radiator side left,	-	1		Enquire

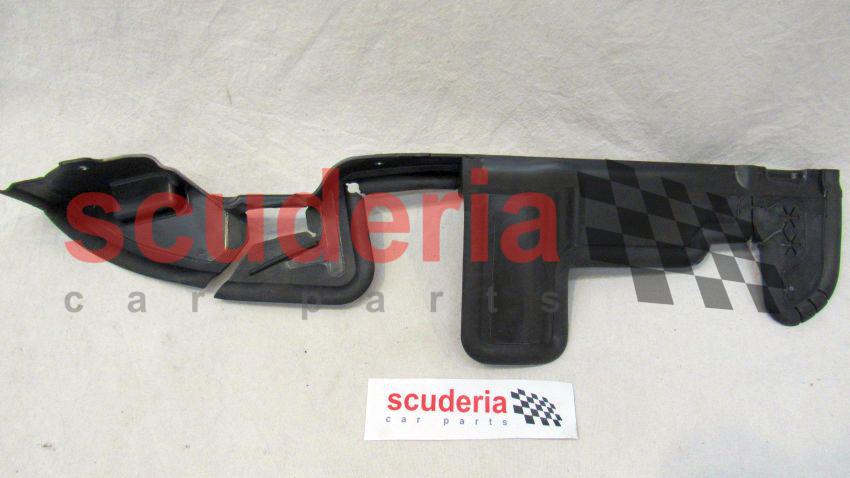

	6	4W0121334B	air duct, Coolant radiator	4W0121334B air duct, Coolant radiator side right,	-	1		Enquire
	7	3W0881279	Securing clip	3W0881279 Securing clip	-	4		Enquire
	8	N90737107	Oval hexagon socket head bolt	N90737107 Oval hexagon socket head bolt M6X12,	-	4		Enquire

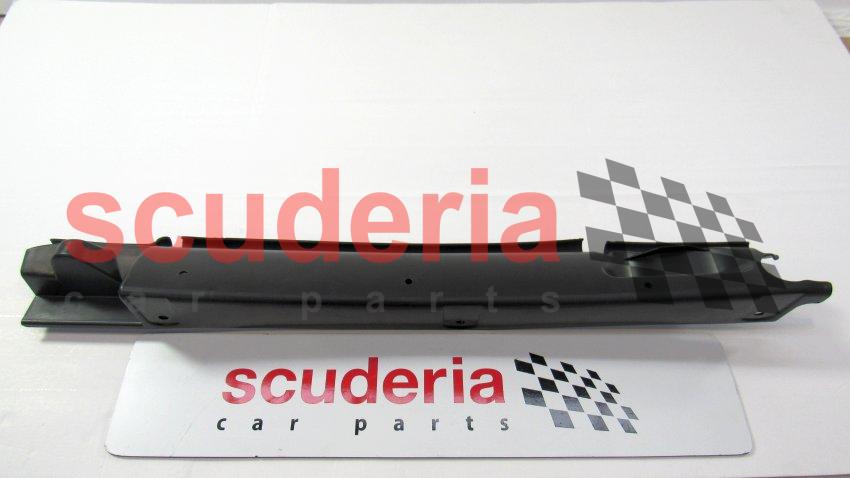

	9	4W0121281A	air deflector plate, Coolant radiator	4W0121281A air deflector plate, Coolant radiator center upper,	-	1		Enquire
	10	N90840102	tapping screw,fill.hd.(combi.)	N90840102 tapping screw,fill.hd.(combi.)	-	3		Enquire

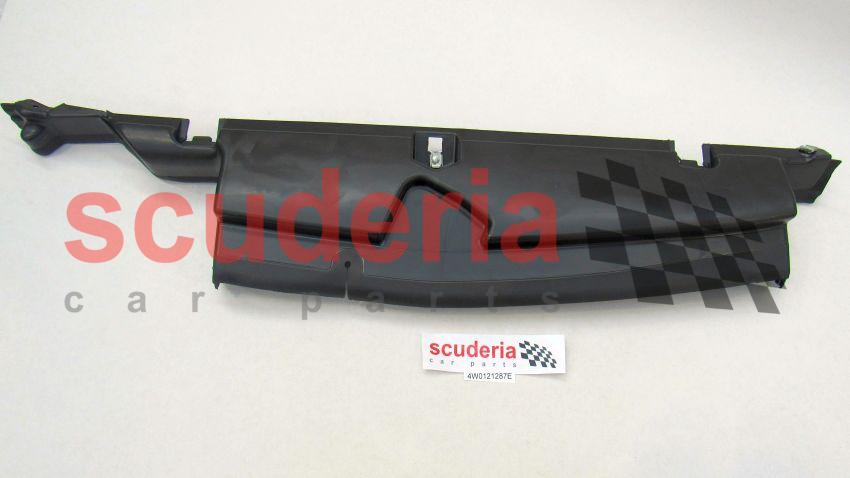

	11	4W0121287E	air deflector plate, Coolant radiator	4W0121287E air deflector plate, Coolant radiator center lower,	-	1		Enquire
	12	N90698801	Speed nut Included in position:	N90698801 Speed nut Included in position:	-	3		Enquire
	13	N90840102	tapping screw,fill.hd.(combi.)	N90840102 tapping screw,fill.hd.(combi.)	-	3		Enquire
