camshaft sprocket, drive chain, tensioner - chain of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - camshaft sprocket, drive chain, tensioner - chain

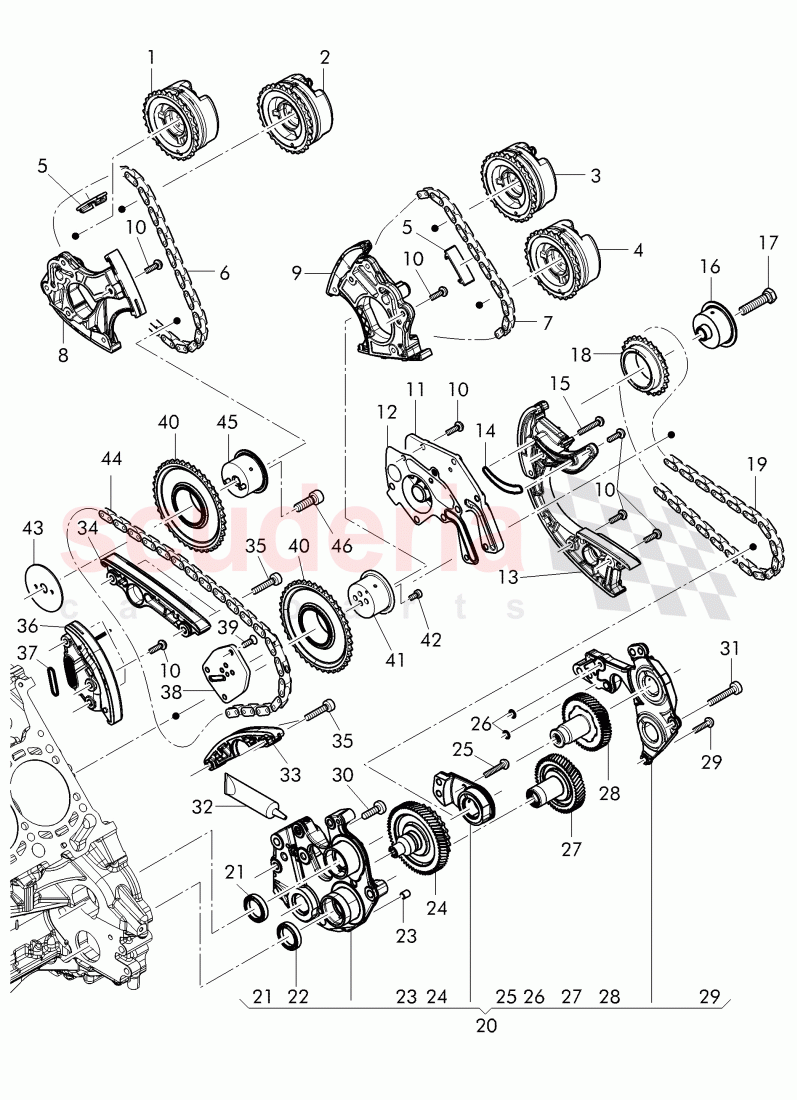

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	79109470A	lining, D - 06.03.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109465AS	timing chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109465AT	timing chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109218AK	tensioner - chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109217AJ	tensioner - chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10124304	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103337N	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103161AH	gasket, D - 08.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109507AF	tensioner - chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109139M	gasket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10554002	round hd. screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109224E	bearing pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10197211	screw, hex. hd.	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109570AT	sprocket	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109465BL	TIMING CHAIN	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109359DG	plate, gear for drive shaft, D - 01.10.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103051E	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	79103051J	seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91020801	dowel sleeve	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10156205	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90740801	O-Ring	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10413405	Hexagon socket flat head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91046302	bolt, with polygon socket hd., (combi.)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91119601	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	D176501A1	Silicon sealant	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109469AM	track	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109469AL	track	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91129001	socket hd. screw with polygon, socket	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109507AM	tensioner - chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109139L	Seal	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109493	plate	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90954903	Hex socket countersunk bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109077N	sprocket, D - 27.02.2017>>	Enquire
	6E109077N	sprocket, D - 27.02.2017>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109289	bearing pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10285505	Socket head bolt with inner hex round head	Enquire

Photo	Part No	Description	Price (each)	Stock
	79109180D	axial (thrust) bearing, D - 24.03.2014>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109465BC	timing chain	Enquire

Photo	Part No	Description	Price (each)	Stock
	6E109220A	bearing pin	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90962301	bolt, with polygon socket hd.	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
5	79109470A	lining, D - 06.03.2017>>	79109470A lining, D - 06.03.2017>>	-	2	Enquire
6	6E109465AS	timing chain	6E109465AS timing chain cylinders 1-4,	-	1	Enquire
7	6E109465AT	timing chain	6E109465AT timing chain cylinders 5-8,	-	1	Enquire
8	6E109218AK	tensioner - chain	6E109218AK tensioner - chain cylinders 1-4,	-	1	Enquire
9	6E109217AJ	tensioner - chain	6E109217AJ tensioner - chain cylinders 5-8,	-	1	Enquire
10	N10124304	Oval hexagon socket head bolt	N10124304 Oval hexagon socket head bolt M6X20,	-	21	Enquire
11	79103337N	bracket	79103337N bracket	-	1	Enquire
12	79103161AH	gasket, D - 08.04.2013>>	79103161AH gasket, D - 08.04.2013>>	-	1	Enquire
13	79109507AF	tensioner - chain	79109507AF tensioner - chain	-	1	Enquire
14	79109139M	gasket	79109139M gasket	-	1	Enquire
15	N10554002	round hd. screw	N10554002 round hd. screw M6X35,	-	1	Enquire
16	79109224E	bearing pin	79109224E bearing pin	-	1	Enquire
17	N10197211	screw, hex. hd.	N10197211 screw, hex. hd. M10X45,	-	1	Enquire
18	79109570AT	sprocket	79109570AT sprocket Z=25,	-	1	Enquire
19	6E109465BL	TIMING CHAIN	6E109465BL TIMING CHAIN	-	1	Enquire
20	79109359DG	plate, gear for drive shaft, D - 01.10.2012>>	79109359DG plate, gear for drive shaft, D - 01.10.2012>>	-	1	Enquire
21	79103051E	seal	79103051E seal	-	1	Enquire
22	79103051J	seal	79103051J seal	-	1	Enquire
23	N91020801	dowel sleeve	N91020801 dowel sleeve	-	2	Enquire
25	N10156205	Oval hexagon socket head bolt	N10156205 Oval hexagon socket head bolt M6X30,	-	2	Enquire
26	N90740801	O-Ring	N90740801 O-Ring 7,65X1,78,	-	2	Enquire
29	N10413405	Hexagon socket flat head bolt	N10413405 Hexagon socket flat head bolt M6X25,	-	3	Enquire
30	N91046302	bolt, with polygon socket hd., (combi.)	N91046302 bolt, with polygon socket hd., (combi.) M8X28,	-	1	Enquire
31	N91119601	socket hd. screw with polygon, socket	N91119601 socket hd. screw with polygon, socket M8X45,	-	4	Enquire
32	D176501A1	Silicon sealant	D176501A1 Silicon sealant 50ml,	-	-	Enquire
33	79109469AM	track	79109469AM track	-	1	Enquire
34	79109469AL	track	79109469AL track	-	1	Enquire
35	N91129001	socket hd. screw with polygon, socket	N91129001 socket hd. screw with polygon, socket M7X36,	-	4	Enquire
36	79109507AM	tensioner - chain	79109507AM tensioner - chain	-	1	Enquire
37	79109139L	Seal	79109139L Seal	-	1	Enquire
38	6E109493	plate	6E109493 plate	-	1	Enquire
39	N90954903	Hex socket countersunk bolt	N90954903 Hex socket countersunk bolt M6X18,	-	3	Enquire
40	6E109077N	sprocket, D - 27.02.2017>>	6E109077N sprocket, D - 27.02.2017>>	-	1	Enquire
40	6E109077N	sprocket, D - 27.02.2017>>	6E109077N sprocket, D - 27.02.2017>>	-	2	Enquire
41	6E109289	bearing pin	6E109289 bearing pin	-	1	Enquire
42	N10285505	Socket head bolt with inner hex round head	N10285505 Socket head bolt with inner hex round head M6X12,	-	3	Enquire
43	79109180D	axial (thrust) bearing, D - 24.03.2014>>	79109180D axial (thrust) bearing, D - 24.03.2014>>	-	1	Enquire
44	6E109465BC	timing chain	6E109465BC timing chain	-	1	Enquire
45	6E109220A	bearing pin	6E109220A bearing pin	-	1	Enquire
46	N90962301	bolt, with polygon socket hd.	N90962301 bolt, with polygon socket hd.	-	1	Enquire
