secondary air pump, secondary air control valve, pipes and hoses for purge system of Bentley Bentley Continental Flying Spur (2013+)

View All

Bentley Continental Flying Spur (2013+) - secondary air pump, secondary air control valve, pipes and hoses for purge system

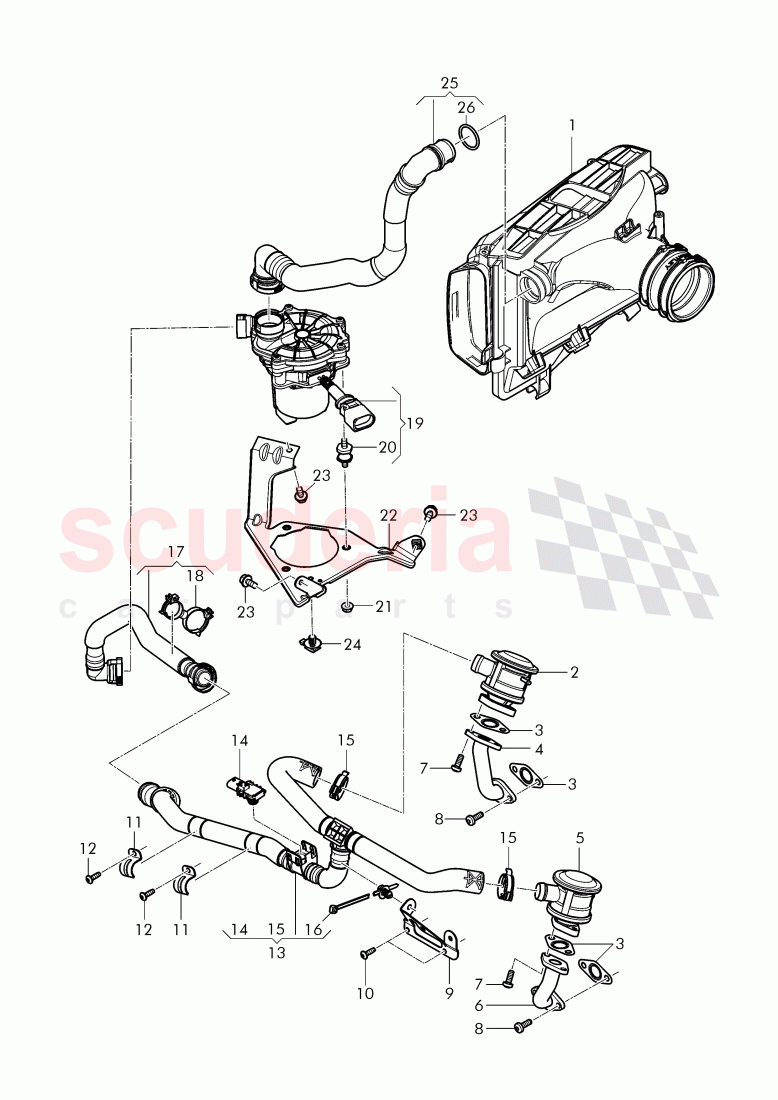

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	79131101AJ	combi valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	79131120F	gasket, D - 08.04.2013>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79131166AR	adapter, combi valve, M >> CYC 004 049	Enquire
	79131166AT	adapter, combi valve, M CYC 004 050>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79131101AK	combi valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	79131166AQ	adapter, combi valve, M >> CYC 004 049	Enquire
	79131166AS	adapter, combi valve, M CYC 004 050>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10451408	Oval hexagon socket head bolt	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10196103	Oval socket head bolt with hex drive	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085Q	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131085R	bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10442003	self-tapping screw	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0131128B	connecting pipe, combi valve	Enquire

Photo	Part No	Description	Price (each)	Stock
	6K906052	Pressure sensor D >> - 29.10.2018	Enquire

Photo	Part No	Description	Price (each)	Stock
	N91182601	spring clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	3D0971838K	Cable ties with bracket	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0131125A	connecting pipe	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0131483A	double clip	Enquire

Photo	Part No	Description	Price (each)	Stock
	79959231G	secondary air pump, D - 05.09.2016>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	79133567	jounce bumper	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0131035A	Bracket for secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	N10158605	bolt,hex.hd.with shoul.(combi)	Enquire

Photo	Part No	Description	Price (each)	Stock
	N90685101	bracket for connector housing, D - 20.08.2012>>	Enquire

Photo	Part No	Description	Price (each)	Stock
	4W0131143E	connecting pipe, secondary air pump	Enquire
	4W0131143E	connecting pipe, secondary air pump	Enquire

Photo	Part No	Description	Price (each)	Stock
	3W0129409	O-Ring	Enquire

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	79131101AJ	combi valve	79131101AJ combi valve cylinders 1-4,	-	1	Enquire
3	79131120F	gasket, D - 08.04.2013>>	79131120F gasket, D - 08.04.2013>>	-	4	Enquire
4	79131166AR	adapter, combi valve, M >> CYC 004 049	79131166AR adapter, combi valve, M >> CYC 004 049 cylinders 1-4,	-	1	Enquire
4	79131166AT	adapter, combi valve, M CYC 004 050>>	79131166AT adapter, combi valve, M CYC 004 050>> cylinders 1-4,	-	1	Enquire
5	79131101AK	combi valve	79131101AK combi valve cylinders 5-8,	-	1	Enquire
6	79131166AQ	adapter, combi valve, M >> CYC 004 049	79131166AQ adapter, combi valve, M >> CYC 004 049 cylinders 5-8,	-	1	Enquire
6	79131166AS	adapter, combi valve, M CYC 004 050>>	79131166AS adapter, combi valve, M CYC 004 050>> cylinders 5-8,	-	1	Enquire
7	N10451408	Oval hexagon socket head bolt	N10451408 Oval hexagon socket head bolt M6X16,	-	4	Enquire
8	N10196103	Oval socket head bolt with hex drive	N10196103 Oval socket head bolt with hex drive M6X18,	-	4	Enquire
9	3W0131085Q	bracket	3W0131085Q bracket side left,	-	1	Enquire
10	N10442003	self-tapping screw	N10442003 self-tapping screw 5X16,	-	2	Enquire
11	3W0131085R	bracket	3W0131085R bracket side right,	-	2	Enquire
12	N10442003	self-tapping screw	N10442003 self-tapping screw 5X16,	-	2	Enquire
13	4W0131128B	connecting pipe, combi valve	4W0131128B connecting pipe, combi valve	-	1	Enquire
14	6K906052	Pressure sensor D >> - 29.10.2018	6K906052 Pressure sensor D >> - 29.10.2018	-	1	Enquire
15	N91182601	spring clip	N91182601 spring clip 27X10,	-	2	Enquire
16	3D0971838K	Cable ties with bracket	3D0971838K Cable ties with bracket	-	1	Enquire
17	4W0131125A	connecting pipe	4W0131125A connecting pipe	-	1	Enquire
18	3W0131483A	double clip	3W0131483A double clip	-	1	Enquire
19	79959231G	secondary air pump, D - 05.09.2016>>	79959231G secondary air pump, D - 05.09.2016>>	-	1	Enquire
20	79133567	jounce bumper	79133567 jounce bumper	-	3	Enquire
21	N90215805	shouldered hex. nut, Discont./New add.+FULU calc.	N90215805 shouldered hex. nut, Discont./New add.+FULU calc. M6,	-	3	Enquire
22	4W0131035A	Bracket for secondary air pump	4W0131035A Bracket for secondary air pump	-	1	Enquire
23	N10158605	bolt,hex.hd.with shoul.(combi)	N10158605 bolt,hex.hd.with shoul.(combi) M6X16,	-	3	Enquire
24	N90685101	bracket for connector housing, D - 20.08.2012>>	N90685101 bracket for connector housing, D - 20.08.2012>>	-	1	Enquire
25	4W0131143E	connecting pipe, secondary air pump	4W0131143E connecting pipe, secondary air pump PR-7GH,7MJ,, 7MM,7MV	-	1	Enquire
25	4W0131143E	connecting pipe, secondary air pump	4W0131143E connecting pipe, secondary air pump PR-7GB	-	1	Enquire
26	3W0129409	O-Ring	3W0129409 O-Ring 27X3,	-	1	Enquire
