Engine Power Conversion of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Engine Power Conversion

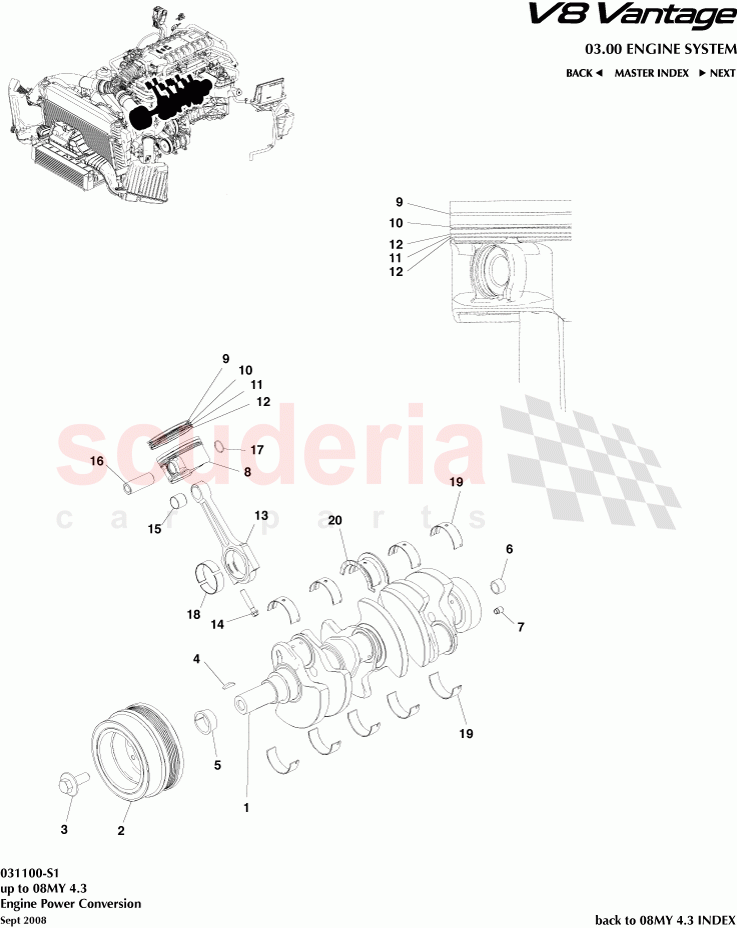

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G336303EA	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336316CB	DAMPER & PULLEY ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310039	Bolt CrankShaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702574	KEY 26.65X5.9X4.7 WDRF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430210109	TAPER COLLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120210061	Bearing Assembly Pilot	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G430310049	DOWEL MAIN BEARING CAP TO CYLINDER BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336K109CAA	PISTON ASSY	Enquire	To Order
	6G336K109CBA	PISTON ASSY	Enquire	To Order
	6G336K109CCA	PISTON ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430210352	RING SET-SNGLE PISTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430210352	RING SET-SNGLE PISTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430210352	RING SET-SNGLE PISTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430210352	RING SET-SNGLE PISTN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G336200BA	Connecting Rod Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310019	BOLT-CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310018	BUSHING-CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336135AA	GUDGEON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310035	CLIP - PISTON PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336211FBB	BRG-CONN ROD-BLACK	Enquire	To Order
	6G336211FAB	BRG-CONN ROD-RED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	EG336333AAA	BRG CRKSHT MAIN UPR	Enquire	To Order
	EG336331AAA	BEARING	Enquire	To Order
	EG336333ADA	BRG CRKSHT MAIN UPR	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	EG33538131AA	Thrust Washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G336303EA	CRANKSHAFT	6G336303EA CRANKSHAFT	-	1	Enquire
2	6G336316CB	DAMPER & PULLEY ASSY	6G336316CB DAMPER & PULLEY ASSY	-	1	Enquire
3	6G430310039	Bolt CrankShaft	6G430310039 Bolt CrankShaft	-	1	Enquire
4	702574	KEY 26.65X5.9X4.7 WDRF	702574 KEY 26.65X5.9X4.7 WDRF	-	1	Enquire
5	6G430210109	TAPER COLLET	6G430210109 TAPER COLLET	-	1	Enquire
6	1R120210061	Bearing Assembly Pilot ARRIVING SOON	1R120210061 Bearing Assembly Pilot ARRIVING SOON	-	1	Enquire
7	6G430310049	DOWEL MAIN BEARING CAP TO CYLINDER BLACK	6G430310049 DOWEL MAIN BEARING CAP TO CYLINDER BLACK	-	1	Enquire
8	6G336K109CAA	PISTON ASSY	6G336K109CAA PISTON ASSY	-	8	Enquire
8	6G336K109CBA	PISTON ASSY	6G336K109CBA PISTON ASSY	-	8	Enquire
8	6G336K109CCA	PISTON ASSY	6G336K109CCA PISTON ASSY	-	8	Enquire
9	6G430210352	RING SET-SNGLE PISTN	6G430210352 RING SET-SNGLE PISTN	-	8	Enquire
10	6G430210352	RING SET-SNGLE PISTN	6G430210352 RING SET-SNGLE PISTN	-	8	Enquire
11	6G430210352	RING SET-SNGLE PISTN	6G430210352 RING SET-SNGLE PISTN	-	8	Enquire
12	6G430210352	RING SET-SNGLE PISTN	6G430210352 RING SET-SNGLE PISTN	-	16	Enquire
13	9G336200BA	Connecting Rod Assy	9G336200BA Connecting Rod Assy	-	8	Enquire
14	6G430310019	BOLT-CONNECTING ROD	6G430310019 BOLT-CONNECTING ROD	-	16	Enquire
15	6G430310018	BUSHING-CONNECTING ROD	6G430310018 BUSHING-CONNECTING ROD	-	8	Enquire
16	6G336135AA	GUDGEON PIN	6G336135AA GUDGEON PIN	-	8	Enquire
17	6G430310035	CLIP - PISTON PIN	6G430310035 CLIP - PISTON PIN	-	16	Enquire
18	6G336211FBB	BRG-CONN ROD-BLACK	6G336211FBB BRG-CONN ROD-BLACK	-	16	Enquire
18	6G336211FAB	BRG-CONN ROD-RED	6G336211FAB BRG-CONN ROD-RED	-	16	Enquire
19	EG336333AAA	BRG CRKSHT MAIN UPR	EG336333AAA BRG CRKSHT MAIN UPR	-	5	Enquire
19	EG336331AAA	BEARING	EG336331AAA BEARING	-	5	Enquire
19	EG336333ADA	BRG CRKSHT MAIN UPR	EG336333ADA BRG CRKSHT MAIN UPR	-	5	Enquire
19	EG336331ADA	BRG CRKSHT MAIN LWR	EG336331ADA BRG CRKSHT MAIN LWR	-	5	Enquire
19	EG336333ACA	BRG CRKSHT MAIN UPR	EG336333ACA BRG CRKSHT MAIN UPR	-	5	Enquire
19	EG336331ACA	BRG CRKSHT MAIN LWR	EG336331ACA BRG CRKSHT MAIN LWR	-	5	Enquire

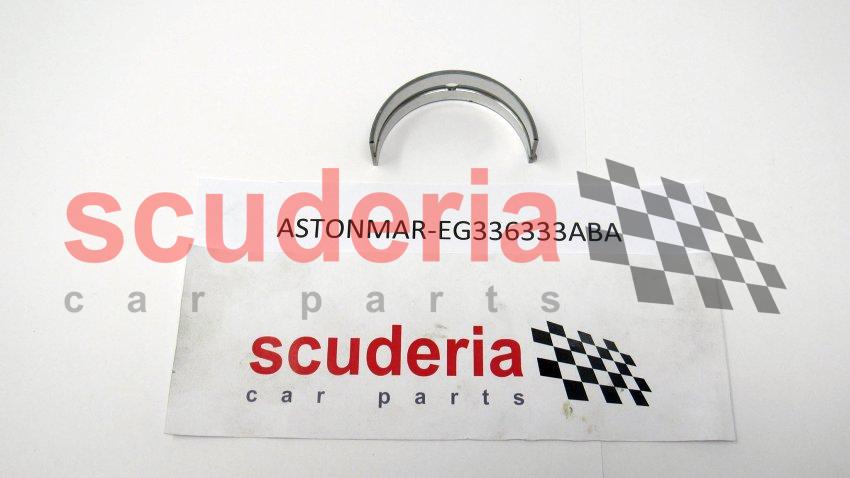

19	EG336333ABA	BRG CRKSHT MAIN UPR	EG336333ABA BRG CRKSHT MAIN UPR	-	5	Enquire
19	EG336331ABA	BRG CRKSHY MAIN LOWER	EG336331ABA BRG CRKSHY MAIN LOWER	-	5	Enquire
20	EG33538131AA	Thrust Washer	EG33538131AA Thrust Washer	-	2	Enquire
