Engine Lubrication (Line Fit)

Aston Martin V8 Vantage (upto 2016)

Find Your Part

Aston Martin V8 Vantage (upto 2016) - Engine Lubrication (Line Fit)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
6G336C702AC OIL TANK ASSY Enquire To Order
6G336L688AC Tank body, oil cooler Enquire To Order
Photo Part No Description Price (each) Stock
6G336766AB OIL FILLER CAP ASSY Enquire To Order
6G336730AB DRAIN PLUG-OIL TANK Enquire To Order

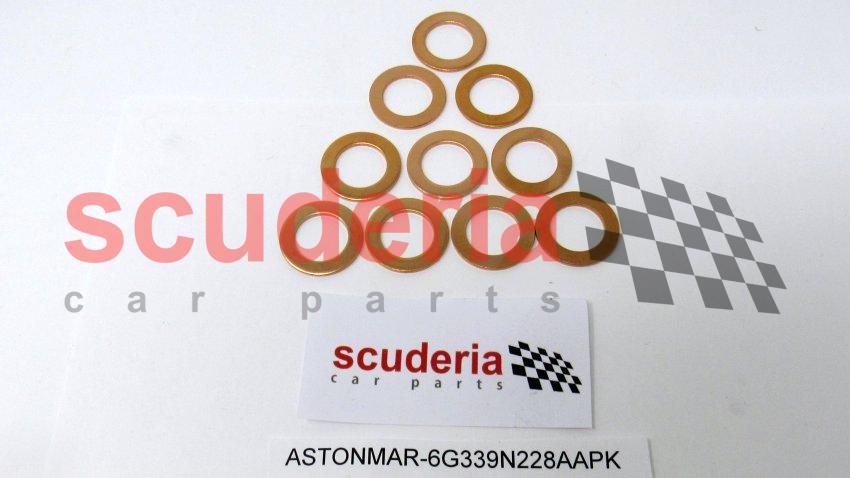

6G339N228AAPK Washer Oil Tank Drain (Pack of 10) Enquire To Order
Photo Part No Description Price (each) Stock
703120 Screw M8-1.25-90 Hex Socket Head Shoulder Enquire To Order
Photo Part No Description Price (each) Stock
6G336B748AB TUBE ASY OIL COOLER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
6G336K622AB TUBE ASY - OIL THERMOSTAT TO TANK Enquire To Order
Photo Part No Description Price (each) Stock
6G336617AC TUBE ASSY- OIL PUMP INLET Enquire To Order
Photo Part No Description Price (each) Stock
702542 BOLT M6 x 20 HF PIL 8 Enquire To Order
Photo Part No Description Price (each) Stock
6G339N778AC TUBE ASY - OIL PUMP OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
702535 Screw M6x12 hex flg hd Enquire To Order
Photo Part No Description Price (each) Stock
6G336B747AB TUBE ASY OIL COOLER INLET Enquire To Order
Photo Part No Description Price (each) Stock
6G336L635AA THERMO ASY OIL TEMP CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
703025 Screw, M6 x 25, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
6G334410500 OIL COOLER ASY-8 ROW Enquire To Order
Photo Part No Description Price (each) Stock
6G337H460AC ENGINE OIL COOLER AIR OFF DUCT Enquire To Order
Photo Part No Description Price (each) Stock
4G432705AA Rivet Plastic Enquire To Order
Photo Part No Description Price (each) Stock
6G336L654AA FOAM SEAL- ENGINE OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
6G336L654BA FOAM SEAL- ENGINE OIL COOLER Enquire To Order
View All

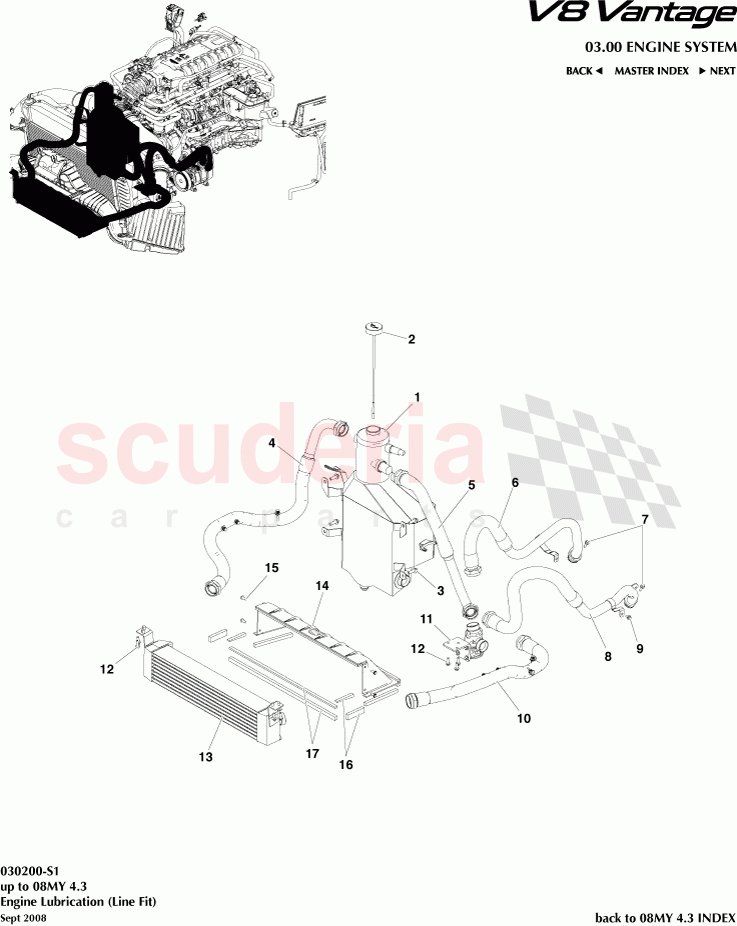

Engine Lubrication (Line Fit) of Aston Martin Aston Martin V8 Vantage (upto 2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 6G336C702AC
OIL TANK ASSY 		- 1 Enquire
1 6G336L688AC
Tank body, oil cooler 		- 1 Enquire
2 6G336766AB
OIL FILLER CAP ASSY 		- 1 Enquire
2 6G336730AB
DRAIN PLUG-OIL TANK 		- 1 Enquire
2 6G339N228AAPK
Washer Oil Tank Drain (Pack of 10) 		- 1 Enquire
3 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 4 Enquire
4 6G336B748AB
TUBE ASY OIL COOLER OUTLET 		- 1 Enquire
5 6G336K622AB
TUBE ASY - OIL THERMOSTAT TO TANK 		- 1 Enquire
6 6G336617AC
TUBE ASSY- OIL PUMP INLET 		- 1 Enquire
7 702542
BOLT M6 x 20 HF PIL 8 		- 2 Enquire
8 6G339N778AC
TUBE ASY - OIL PUMP OUTLET 		- 1 Enquire
9 702535
Screw M6x12 hex flg hd 		- 1 Enquire
10 6G336B747AB
TUBE ASY OIL COOLER INLET 		- 1 Enquire
11 6G336L635AA
THERMO ASY OIL TEMP CONTROL 		- 1 Enquire
12 703025
Screw, M6 x 25, Hex Flange Head 		- 2 Enquire
13 6G334410500
OIL COOLER ASY-8 ROW 		- 1 Enquire
14 6G337H460AC
ENGINE OIL COOLER AIR OFF DUCT 		- 1 Enquire
15 4G432705AA
Rivet Plastic 		- 4 Enquire
16 6G336L654AA
FOAM SEAL- ENGINE OIL COOLER 		- 4 Enquire
17 6G336L654BA
FOAM SEAL- ENGINE OIL COOLER 		- 2 Enquire
