Name: Engine Cooling (Engine Fit)
Rating: 5.0 (1 reviews)

Engine Cooling (Engine Fit) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Engine Cooling (Engine Fit)

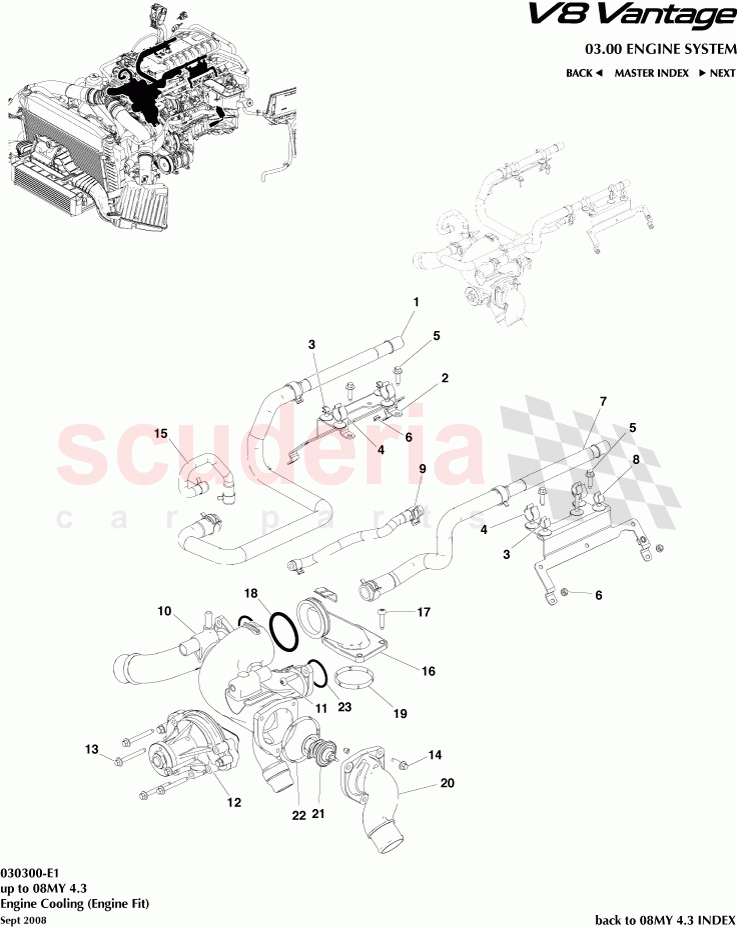

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3318K579AD	HEATER HOSE INLET	$40.74	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318N348BB	BRACKET - HEATER HOSE - RH	$33.38	To Order

Photo	Part No	Description	Price (each)	Stock
	702569	C-CLIP	$2.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	$3.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3318K580AC	HEATER HOSE OUTLET	$33.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318N348AB	BRACKET - HEATER HOSE - LH	$650.34	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338C362AA	DEGAS VENT HOSE	$11.95	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338A520AK	TUBE ASSEMBLY-WATER OUTLET	$869.37	To Order

Photo	Part No	Description	Price (each)	Stock
	702543	BOLT M6 x 25 PN TI PIL 8	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430510083	WATER PUMP	$1,239.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702544	BOLT M6 x 50 HF PIL 8	$0.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702542	BOLT M6 x 20 HF PIL 8	$1.34	IN STOCK
	702545	Stud M6 x 15/M6 x 22	$30.02	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339F813AC	ASSY HOSE THROTTLE FEED	$10.43	To Order

Photo	Part No	Description	Price (each)	Stock
	6G433210450	INTAKE MANFLD INT COOL HOSE	$178.41	To Order

Photo	Part No	Description	Price (each)	Stock
	702543	BOLT M6 x 25 PN TI PIL 8	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702730	O RING	$87.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G433210451	Gasket Thermostat Housing Front	$8.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4H338594AB	Connector water outlet, upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G433210449	Thermostat	$168.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G433210310	Seal -Thermostat	$21.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G433210366	GASKET-WATER OUTLET	$27.88	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G3318K579AD	HEATER HOSE INLET	6G3318K579AD HEATER HOSE INLET	$40.74	1
2	6G3318N348BB	BRACKET - HEATER HOSE - RH	6G3318N348BB BRACKET - HEATER HOSE - RH	$33.38	1
3	702569	C-CLIP IN STOCK	702569 C-CLIP IN STOCK	$2.10	4
4	701181	Clip, 16 x 6.5 x 1.5-6 IN STOCK	701181 Clip, 16 x 6.5 x 1.5-6 IN STOCK	$3.28	4
5	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	$1.34	4
6	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.11	4
7	6G3318K580AC	HEATER HOSE OUTLET	6G3318K580AC HEATER HOSE OUTLET	$33.34	1
8	6G3318N348AB	BRACKET - HEATER HOSE - LH	6G3318N348AB BRACKET - HEATER HOSE - LH	$650.34	1
9	6G338C362AA	DEGAS VENT HOSE	6G338C362AA DEGAS VENT HOSE	$11.95	1
10	6G338A520AK	TUBE ASSEMBLY-WATER OUTLET	6G338A520AK TUBE ASSEMBLY-WATER OUTLET	$869.37	1
11	702543	BOLT M6 x 25 PN TI PIL 8 IN STOCK	702543 BOLT M6 x 25 PN TI PIL 8 IN STOCK	$0.36	8
12	6G430510083	WATER PUMP IN STOCK	6G430510083 WATER PUMP IN STOCK	$1,239.02	1
13	702544	BOLT M6 x 50 HF PIL 8 IN STOCK	702544 BOLT M6 x 50 HF PIL 8 IN STOCK	$0.37	5
14	702542	BOLT M6 x 20 HF PIL 8 IN STOCK	702542 BOLT M6 x 20 HF PIL 8 IN STOCK	$1.34	2
14	702545	Stud M6 x 15/M6 x 22	702545 Stud M6 x 15/M6 x 22	$30.02	3
15	6G339F813AC	ASSY HOSE THROTTLE FEED	6G339F813AC ASSY HOSE THROTTLE FEED	$10.43	1
16	6G433210450	INTAKE MANFLD INT COOL HOSE	6G433210450 INTAKE MANFLD INT COOL HOSE	$178.41	1
17	702543	BOLT M6 x 25 PN TI PIL 8 IN STOCK	702543 BOLT M6 x 25 PN TI PIL 8 IN STOCK	$0.36	4
18	702730	O RING IN STOCK	702730 O RING IN STOCK	$87.17	1
19	6G433210451	Gasket Thermostat Housing Front IN STOCK	6G433210451 Gasket Thermostat Housing Front IN STOCK	$8.91	1
20	4H338594AB	Connector water outlet, upper	4H338594AB Connector water outlet, upper	-	1	Enquire
21	6G433210449	Thermostat IN STOCK	6G433210449 Thermostat IN STOCK	$168.46	1
22	6G433210310	Seal -Thermostat IN STOCK	6G433210310 Seal -Thermostat IN STOCK	$21.45	1
23	6G433210366	GASKET-WATER OUTLET	6G433210366 GASKET-WATER OUTLET	$27.88	2
