Engine Sealing of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Engine Sealing

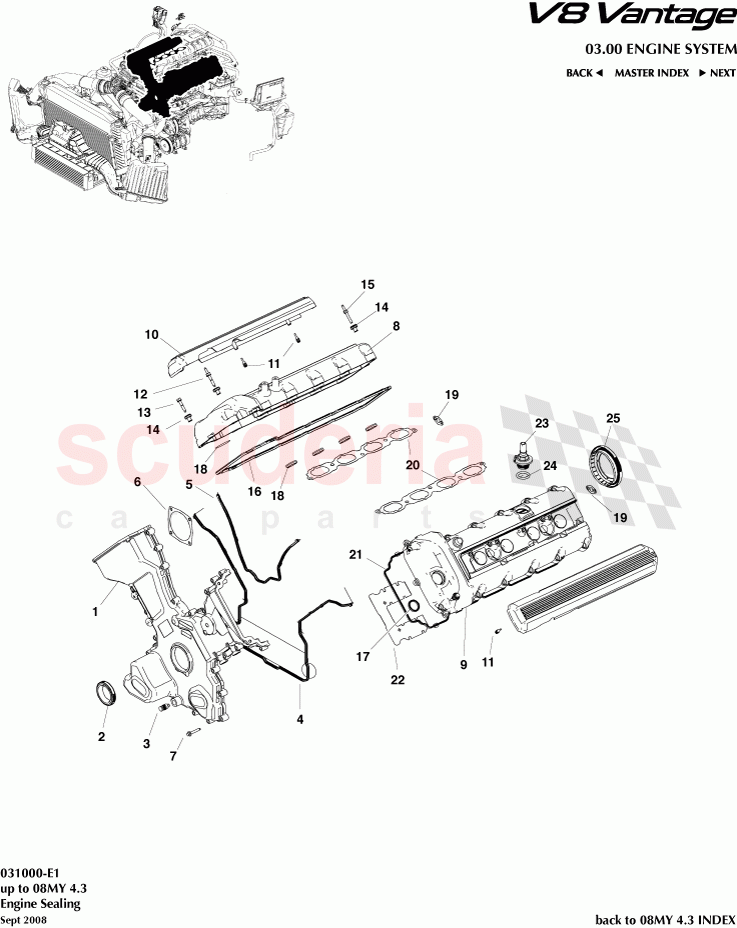

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G336019BB	COVER ASSY CYLINDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310020	Seal Crank Shaft Front	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G339H490AA	Cartridge Assembly - John Guest	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G336E009AA	Outer Seal	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310022	Sealing Ring	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G339F809AA	Gasket - Throttle to Adaptor	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702946	Bolt, M6 x 35, Hex Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	2W936P037JB	Cover, cylinder head RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430310029	Cover, cylinder head LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3312025AD	ON PLUG COIL COVER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G336A548BA	BOLT M6 x 31.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310027	Grommet Valve Rocker Arm Cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310025	Grommet CVR VLV RKR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430710416	GROMMET ASSY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G336A548AB	BOLT M6 X 31.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G330710487	Gasket Camshaft Cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310021	Seal - Valve Arm Rocker Cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310017PK	Spark Plug Sleeve (Pack of 8)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G339P435AB	GASKET SAI TUBE TO CYLINDER HEAD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G339P851ABPK	Intake Manifold Gasket (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G330710494	Gasket Camshaft Cover	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430710107	COVER ASSY-CYLINDER HEAD LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G336C729BA	CAP STUB ASSY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G430310033	Seal Crankshaft Rear	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G336019BB	COVER ASSY CYLINDER	6G336019BB COVER ASSY CYLINDER	-	1	Enquire
2	6G430310020	Seal Crank Shaft Front IN STOCK	6G430310020 Seal Crank Shaft Front IN STOCK	-	1	Enquire
3	6G339H490AA	Cartridge Assembly - John Guest IN STOCK	6G339H490AA Cartridge Assembly - John Guest IN STOCK	-	1	Enquire
4	6G336E009AA	Outer Seal IN STOCK	6G336E009AA Outer Seal IN STOCK	-	1	Enquire
5	6G430310022	Sealing Ring IN STOCK	6G430310022 Sealing Ring IN STOCK	-	1	Enquire
6	6G339F809AA	Gasket - Throttle to Adaptor IN STOCK	6G339F809AA Gasket - Throttle to Adaptor IN STOCK	-	1	Enquire
7	702946	Bolt, M6 x 35, Hex Head IN STOCK	702946 Bolt, M6 x 35, Hex Head IN STOCK	-	4	Enquire
8	2W936P037JB	Cover, cylinder head RH	2W936P037JB Cover, cylinder head RH	-	1	Enquire
9	6G430310029	Cover, cylinder head LH	6G430310029 Cover, cylinder head LH	-	1	Enquire
10	6G3312025AD	ON PLUG COIL COVER IN STOCK	6G3312025AD ON PLUG COIL COVER IN STOCK	-	2	Enquire
11	6G336A548BA	BOLT M6 x 31.5 IN STOCK	6G336A548BA BOLT M6 x 31.5 IN STOCK	-	4	Enquire
12	6G430310027	Grommet Valve Rocker Arm Cover IN STOCK	6G430310027 Grommet Valve Rocker Arm Cover IN STOCK	-	5	Enquire
13	6G430310025	Grommet CVR VLV RKR IN STOCK	6G430310025 Grommet CVR VLV RKR IN STOCK	-	-	Enquire
14	6G430710416	GROMMET ASSY IN STOCK	6G430710416 GROMMET ASSY IN STOCK	-	-	Enquire
15	6G336A548AB	BOLT M6 X 31.5	6G336A548AB BOLT M6 X 31.5	-	-	Enquire
16	9G330710487	Gasket Camshaft Cover IN STOCK	9G330710487 Gasket Camshaft Cover IN STOCK	-	1	Enquire
17	6G430310021	Seal - Valve Arm Rocker Cover IN STOCK	6G430310021 Seal - Valve Arm Rocker Cover IN STOCK	-	2	Enquire
18	6G430310017PK	Spark Plug Sleeve (Pack of 8) IN STOCK	6G430310017PK Spark Plug Sleeve (Pack of 8) IN STOCK	-	8	Enquire
19	6G339P435AB	GASKET SAI TUBE TO CYLINDER HEAD IN STOCK	6G339P435AB GASKET SAI TUBE TO CYLINDER HEAD IN STOCK	-	2	Enquire
20	6G339P851ABPK	Intake Manifold Gasket (Pack of 2)	6G339P851ABPK Intake Manifold Gasket (Pack of 2) Pack of 2	-	2	Enquire
21	9G330710494	Gasket Camshaft Cover IN STOCK	9G330710494 Gasket Camshaft Cover IN STOCK	-	1	Enquire
22	6G430710107	COVER ASSY-CYLINDER HEAD LH	6G430710107 COVER ASSY-CYLINDER HEAD LH	-	1	Enquire
23	6G336C729BA	CAP STUB ASSY IN STOCK	6G336C729BA CAP STUB ASSY Includes O ring IN STOCK	-	1	Enquire
25	6G430310033	Seal Crankshaft Rear	6G430310033 Seal Crankshaft Rear	-	1	Enquire
