Transaxle, Sportshift of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Transaxle, Sportshift

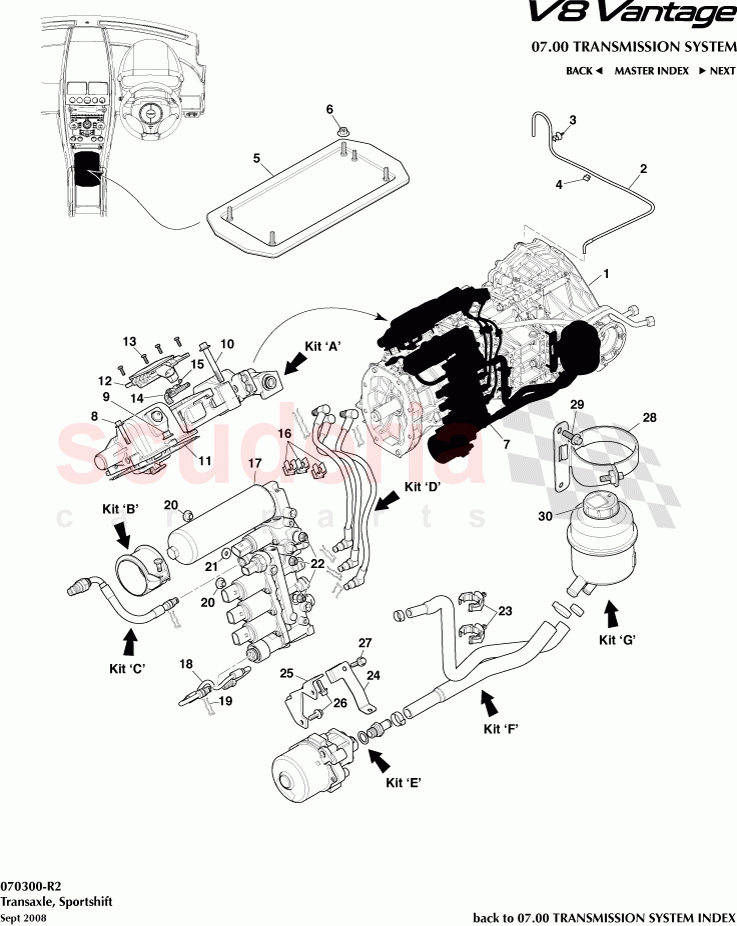

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91718	ASM Gearbox, remanufactured	Enquire	To Order
	6G337002BH	ASM TRANS ASY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337A245AA	PIPE ASSY- TRANS BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701575	Clip, Trans Breather Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702284	Clip, Edge, Trans Breather Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G337C391AE	Transmission Kit, Sportshift Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K364AB	GASKET TRANSMISSION/COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J269AB	SNS ASSEMBLY - TRANSMISSION ACTUATOR PSN	Enquire	To Order
	6G337J269AC	SENSOR TRANSMISSION ACTUATOR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G337J282AB	Magnet assy, trans actuator position	Enquire	To Order
	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33505066AC	Screw, M3 x 6, button head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702971	CLIP 8-10x6.5x0.5- 4.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F054AA	VALVE AND ACCUMILATOR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087AA	PIPE ASSEMBLY	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G337C526AA	PIPE CLIP-SMALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J039BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J039AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702282	CLIP 16-18 5x6 5x1-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L564AC	ASM HYDRAULIC PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G337F160AA	BRACKET ASSEMBLY RESERVOIR MOUNTING	Enquire	To Order
	6G337F160BB	BRACKET - TRANSMISSION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	Enquire	To Order
	6G3375106AA/S	OIL-MAN TRANS 1 ltr	Enquire	To Order
	6G3367483AA	Reservoir cap assy	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	6G337C595AA	ACCUMULATOR BRACKET KIT	6G337C595AA ACCUMULATOR BRACKET KIT	-	1	Enquire
-	6G337J327AA	DRY BREAK CONNECTOR (ASM KITSIDE) SERVCE	6G337J327AA DRY BREAK CONNECTOR (ASM KITSIDE) SERVCE	-	1	Enquire
-	6G337H394BA	H.P. FEED HOSE TO SHIFTER COVER- SERVICE KIT	6G337H394BA H.P. FEED HOSE TO SHIFTER COVER- SERVICE KIT	-	1	Enquire
-	6G337A103AA	Asm Hydraulic Pump Assy - Service Kit IN STOCK	6G337A103AA Asm Hydraulic Pump Assy - Service Kit IN STOCK	-	1	Enquire
-	6G337H394AA	Feed/Return Hose Kit To Reservoir	6G337H394AA Feed/Return Hose Kit To Reservoir	-	1	Enquire
-	6G337J387AA	Reservoir Tank Service Kit IN STOCK	6G337J387AA Reservoir Tank Service Kit IN STOCK	-	1	Enquire
1	91718	ASM Gearbox, remanufactured	91718 ASM Gearbox, remanufactured	-	1	Enquire
1	6G337002BH	ASM TRANS ASY	6G337002BH ASM TRANS ASY	-	1	Enquire
2	6G337A245AA	PIPE ASSY- TRANS BREATHER	6G337A245AA PIPE ASSY- TRANS BREATHER	-	1	Enquire
3	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe	-	1	Enquire
4	702284	Clip, Edge, Trans Breather Pipe	702284 Clip, Edge, Trans Breather Pipe	-	1	Enquire
5	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	4G437C309CB PLT ASY - TRANS GR SH OPG CVR	-	1	Enquire
6	703749	Nut, M6, Hex Flange Head IN STOCK	703749 Nut, M6, Hex Flange Head IN STOCK	-	4	Enquire
7	6G337C391AE	Transmission Kit, Sportshift Assy	6G337C391AE Transmission Kit, Sportshift Assy	-	1	Enquire
8	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL IN STOCK	BG33292227AA HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL IN STOCK	-	5	Enquire
9	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	1	Enquire
10	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	1	Enquire
11	6G337K364AB	GASKET TRANSMISSION/COVER	6G337K364AB GASKET TRANSMISSION/COVER	-	1	Enquire
12	6G337J269AB	SNS ASSEMBLY - TRANSMISSION ACTUATOR PSN	6G337J269AB SNS ASSEMBLY - TRANSMISSION ACTUATOR PSN Up to 24/11/06	-	1	Enquire
12	6G337J269AC	SENSOR TRANSMISSION ACTUATOR IN STOCK	6G337J269AC SENSOR TRANSMISSION ACTUATOR From 24/11/06 IN STOCK	-	1	Enquire
13	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX IN STOCK	702959 SCREW M4x12 PAN HEAD 6 LOBE TORX IN STOCK	-	4	Enquire
14	6G337J282AB	Magnet assy, trans actuator position	6G337J282AB Magnet assy, trans actuator position Up to 24/11/06	-	1	Enquire
14	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	6G337J282AC MAGNET ASSY - TRANMISSION ACTUATOR POSN From 24/11/06	-	1	Enquire
15	6G33505066AC	Screw, M3 x 6, button head	6G33505066AC Screw, M3 x 6, button head	-	1	Enquire
16	702971	CLIP 8-10x6.5x0.5- 4.5	702971 CLIP 8-10x6.5x0.5- 4.5	-	3	Enquire
17	6G337F054AA	VALVE AND ACCUMILATOR ASSEMBLY	6G337F054AA VALVE AND ACCUMILATOR ASSEMBLY	-	3	Enquire
18	6G337L087AA	PIPE ASSEMBLY IN STOCK	6G337L087AA PIPE ASSEMBLY IN STOCK	-	1	Enquire
19	6G337C526AA	PIPE CLIP-SMALL	6G337C526AA PIPE CLIP-SMALL	-	2	Enquire
20	6G337J039BA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G337J039BA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	-	2	Enquire
21	6G337J039AA	ISOLATOR - TRANS SHIFT CONTROL MOUNTING	6G337J039AA ISOLATOR - TRANS SHIFT CONTROL MOUNTING	-	1	Enquire
22	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	3	Enquire
23	702282	CLIP 16-18 5x6 5x1-6	702282 CLIP 16-18 5x6 5x1-6	-	2	Enquire
24	6G337L564AC	ASM HYDRAULIC PUMP BRACKET	6G337L564AC ASM HYDRAULIC PUMP BRACKET	-	1	Enquire
25	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	6G337L564BB ASM HYDRAULIC PUMP BRACKET	-	1	Enquire
26	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	4	Enquire
27	703025	Screw, M6 x 25, Hex Flange Head IN STOCK	703025 Screw, M6 x 25, Hex Flange Head IN STOCK	-	4	Enquire
28	6G337F160AA	BRACKET ASSEMBLY RESERVOIR MOUNTING	6G337F160AA BRACKET ASSEMBLY RESERVOIR MOUNTING -part 1	-	1	Enquire
28	6G337F160BB	BRACKET - TRANSMISSION MOUNTING	6G337F160BB BRACKET - TRANSMISSION MOUNTING -part 2	-	1	Enquire
29	703187	SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	703187 SCREW M8 x 25 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
30	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	6G3319H373BA Fluid Hydraulic ASM S-Cam (Service) 1 Litre 1 litre	-	-	Enquire
30	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr 1 litre	-	-	Enquire
30	6G3367483AA	Reservoir cap assy	6G3367483AA Reservoir cap assy	-	1	Enquire
