Manual Transaxle of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

Aston Martin V8 Vantage (upto 2016) - Manual Transaxle

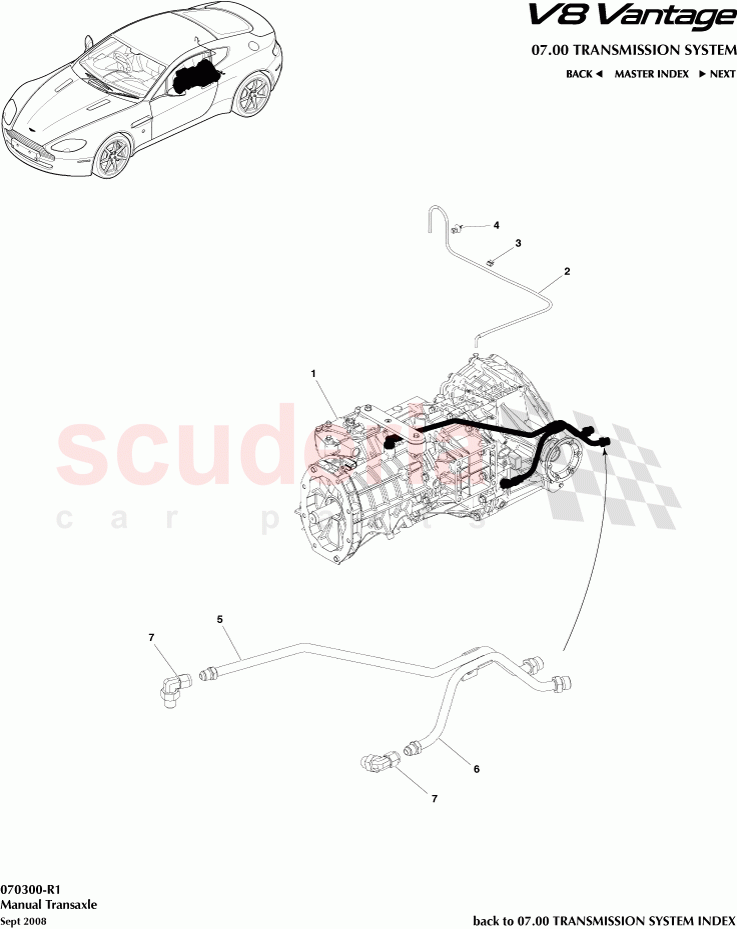

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91774	MAN TRANSMISSION ASY	Enquire	To Order
	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	Enquire	To Order
	6G337002AL	MAN TRANSMISSION ASY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G337A245AA	PIPE ASSY- TRANS BREATHER	Enquire	To Order
	4G432710488	Adaptor, Breather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702284	Clip, Edge, Trans Breather Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319G506BA	Grease, Input Shaft Spline	Enquire	To Order
	6G337H436AA	Pinion and bevel gear set	Enquire	To Order
	6G3375106AA/S	OIL-MAN TRANS 1 ltr	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G337F113AB	TRANSMISSION COOLER PIPE - TRANS INLET	Enquire	To Order
	6G337F113CA	TRANSMISSION COOLER PIPE - TRANS INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	Enquire	To Order
	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	Enquire	To Order
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	Enquire	To Order
	4G432710482	O Ring, 2.62 x 75.87	Enquire	To Order
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	Enquire	To Order

...and 16 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91774	MAN TRANSMISSION ASY	91774 MAN TRANSMISSION ASY	-	1	Enquire
1	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	-	1	Enquire
1	6G337002AL	MAN TRANSMISSION ASY	6G337002AL MAN TRANSMISSION ASY	-	1	Enquire
1	6G33XSC2159AA	Bolt, flg, M6 x 50 bell crank attach	6G33XSC2159AA Bolt, flg, M6 x 50 bell crank attach	-	3	Enquire
1	6G33106205AA	Bolt, flg, M6 x 30 bell crank attach	6G33106205AA Bolt, flg, M6 x 30 bell crank attach	-	3	Enquire
2	6G337A245AA	PIPE ASSY- TRANS BREATHER	6G337A245AA PIPE ASSY- TRANS BREATHER	-	1	Enquire
2	4G432710488	Adaptor, Breather	4G432710488 Adaptor, Breather	-	1	Enquire
3	702284	Clip, Edge, Trans Breather Pipe	702284 Clip, Edge, Trans Breather Pipe	-	1	Enquire
4	4G4319G506BA	Grease, Input Shaft Spline	4G4319G506BA Grease, Input Shaft Spline	-	1	Enquire
4	6G337H436AA	Pinion and bevel gear set	6G337H436AA Pinion and bevel gear set	-	1	Enquire
4	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr	-	1	Enquire
4	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe	-	1	Enquire
5	6G337F113AB	TRANSMISSION COOLER PIPE - TRANS INLET	6G337F113AB TRANSMISSION COOLER PIPE - TRANS INLET Pre 07MY up to(V)C03882	-	1	Enquire
5	6G337F113CA	TRANSMISSION COOLER PIPE - TRANS INLET	6G337F113CA TRANSMISSION COOLER PIPE - TRANS INLET 07MY from(V) C03883	-	1	Enquire
6	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	6G337F112CA Pipe, Transmission Oil Cooler, Outlet Pre 07MY up to(V)C03882	-	1	Enquire
6	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	6G337F112CA Pipe, Transmission Oil Cooler, Outlet 07MY from(V) C03883	-	1	Enquire
6	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	2	Enquire
7	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10)	-	1	Enquire
7	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87	-	1	Enquire
7	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	-	1	Enquire
7	4G432710601	OUTPUT SHAFT - RIGHT SIDE DIF	4G432710601 OUTPUT SHAFT - RIGHT SIDE DIF	-	1	Enquire
7	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF	-	1	Enquire
7	4G432710490	Filter, Oil	4G432710490 Filter, Oil	-	1	Enquire
7	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8	-	1	Enquire
7	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8	-	1	Enquire
7	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22	-	1	Enquire
7	6G338F875AA	REVERSE SWITCH AND WASHER KIT	6G338F875AA REVERSE SWITCH AND WASHER KIT	-	1	Enquire
7	4G432710500	O Ring, 3.53 x 228.19	4G432710500 O Ring, 3.53 x 228.19	-	1	Enquire
7	6G337C081AA	INPUT SHAFT SEAL	6G337C081AA INPUT SHAFT SEAL	-	1	Enquire
7	4G437J175BB	Reverse switch	4G437J175BB Reverse switch	-	1	Enquire
7	702815	BOLT M8 x 30	702815 BOLT M8 x 30	-	12	Enquire
7	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	-	2	Enquire
7	6G337E319AA	OIL COOLER PIPE ADAPTOR	6G337E319AA OIL COOLER PIPE ADAPTOR	-	2	Enquire
7	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	-	2	Enquire
7	6G3336298AA	RING DOWEL	6G3336298AA RING DOWEL	-	2	Enquire
7	6G33E606403AA	FLANGE BOLT - M6X16	6G33E606403AA FLANGE BOLT - M6X16	-	4	Enquire
