Clutch System (RHD) of Aston Martin Aston Martin V8 Vantage (upto 2016)

View All

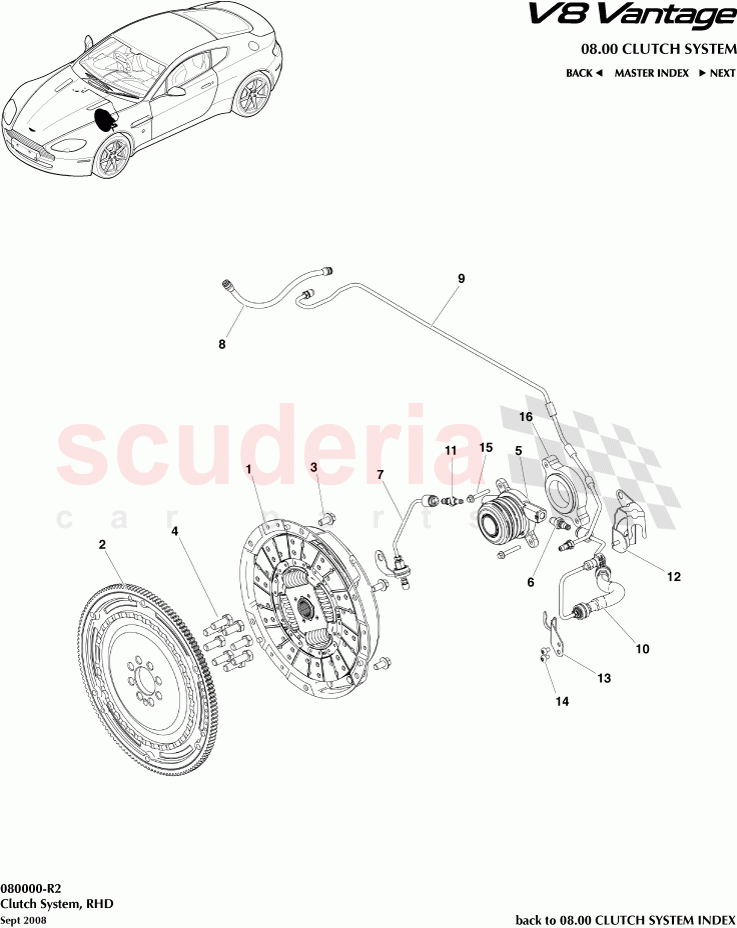

Aston Martin V8 Vantage (upto 2016) - Clutch System (RHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G337540AL	Clutch Plate and Housing - Manual	Enquire	To Order
	9G337540AD	CLUTCH PLATE MANUAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G336375AB	Flywheel	Enquire	To Order
	6G336375DD	Flywheel Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703186	Bolt M10 x 20 Flange Head Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486859AAPK	M12 x 30LG Bolt (Pack of 10)	Enquire	To Order
	6G33486859AAPK	M12 x 30LG Bolt (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337A564BA	CLUTCH SLAVE CYLINDER	Enquire	To Order
	4G437A564AB	Clutch Slave Cylinder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337H552AA	HOSE CLUTCH BLEED	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K592CB	TUBE ASSY-MST CYL TO SLAVE SYL-RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337A512EA	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K640AA	STUTZEN BLEEDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33R7N630BE	BRKT CLUTCH LINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33R7N630DB	BRACKET - CHASSIS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703198	Bolt, M6 x 40, Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33209031AB	SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G337540AL	Clutch Plate and Housing - Manual	6G337540AL Clutch Plate and Housing - Manual 4.3L	-	1	Enquire
1	9G337540AD	CLUTCH PLATE MANUAL	9G337540AD CLUTCH PLATE MANUAL 09MY	-	1	Enquire
2	9G336375AB	Flywheel	9G336375AB Flywheel 09MY	-	1	Enquire
2	6G336375DD	Flywheel Assembly	6G336375DD Flywheel Assembly	-	1	Enquire
3	703186	Bolt M10 x 20 Flange Head Chrome Free	703186 Bolt M10 x 20 Flange Head Chrome Free	-	6	Enquire
4	6G33486859AAPK	M12 x 30LG Bolt (Pack of 10)	6G33486859AAPK M12 x 30LG Bolt (Pack of 10) 08MY From (V) D07649	-	8	Enquire
4	6G33486859AAPK	M12 x 30LG Bolt (Pack of 10)	6G33486859AAPK M12 x 30LG Bolt (Pack of 10)	-	8	Enquire
5	6G337A564BA	CLUTCH SLAVE CYLINDER	6G337A564BA CLUTCH SLAVE CYLINDER 08MY From (V) D07649	-	1	Enquire
5	4G437A564AB	Clutch Slave Cylinder	4G437A564AB Clutch Slave Cylinder	-	1	Enquire
7	6G337H552AA	HOSE CLUTCH BLEED ARRIVING SOON	6G337H552AA HOSE CLUTCH BLEED ARRIVING SOON	-	1	Enquire
8	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl	-	1	Enquire
9	6G337K592CB	TUBE ASSY-MST CYL TO SLAVE SYL-RHD	6G337K592CB TUBE ASSY-MST CYL TO SLAVE SYL-RHD	-	1	Enquire
10	6G337A512EA	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER RHD	6G337A512EA TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER RHD	-	1	Enquire
11	6G337K640AA	STUTZEN BLEEDER	6G337K640AA STUTZEN BLEEDER	-	1	Enquire
12	6G33R7N630BE	BRKT CLUTCH LINE	6G33R7N630BE BRKT CLUTCH LINE	-	1	Enquire
13	6G33R7N630DB	BRACKET - CHASSIS	6G33R7N630DB BRACKET - CHASSIS	-	1	Enquire
14	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	2	Enquire
15	703198	Bolt, M6 x 40, Chrome Free	703198 Bolt, M6 x 40, Chrome Free	-	2	Enquire
16	6G33209031AB	SPACER	6G33209031AB SPACER	-	1	Enquire
