Aston Martin V8 Vantage (upto 2016) - Transaxle, Sportshift II

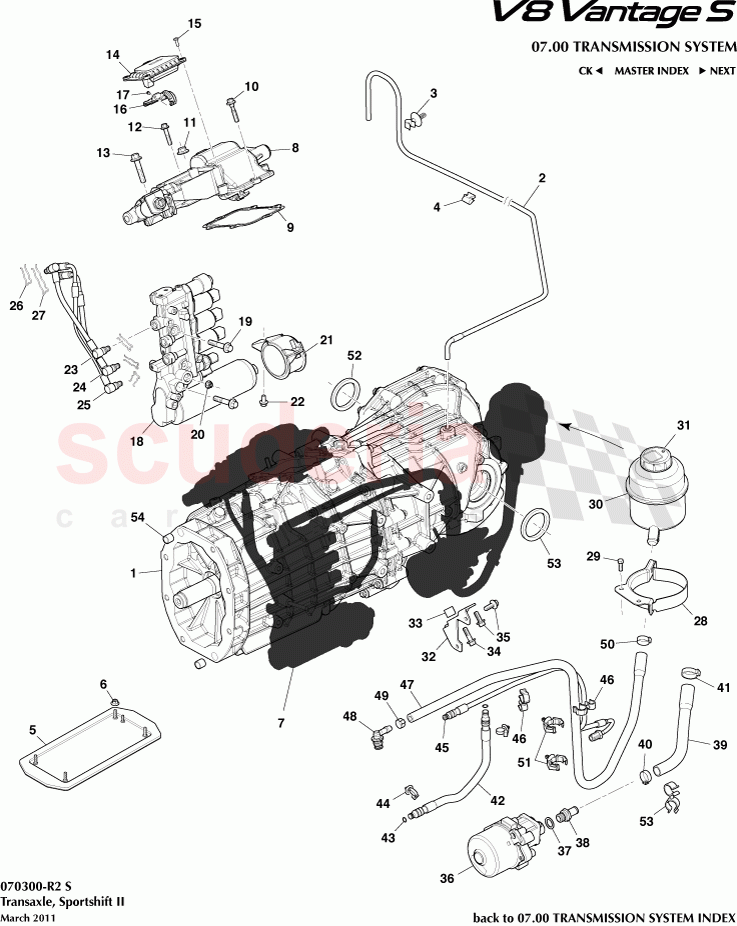

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG337002BD	Transaxle assy, Sportshift II	Enquire	To Order
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337A245AA	PIPE ASSEMBLY - TRANSMISSION BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701575	Clip, Trans Breather Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702284	Clip, Edge, Trans Breather Pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337C391AC	Sportshift II Assy, Complete	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337K444AA	ACTUATOR ASSY - SERVICE KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337K364AB	GASKET TRANSMISSION/COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J269AC	SENSOR TRANSMISSION ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33505066AA	Screw, M3 x 6, button head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337F054AA	Valve and Accumulator Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337V000AA	Bracket Assy, Trans Acum Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L086CA	Pipe Assy, Trans Select Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L086BA	Pipe Assy, Trans Select Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L086AA	Pipe Assy, Trans Select Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337F160AA	Bracket, Trans Reservoir	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337J061AA	Reservoir and Cap Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337J061CA	Reservoir cap assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG335435AA	Spacer Boss	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337055AA	Pump and Motor Assy, Trans Shift Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337055AA	Washer, Pump and Motor Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337055AA	Washer, Pump and Motor Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L087BA	Pipe Assy, Trans Control Pump LP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087CA	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087BA	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337H503AA	Pipe Assy, CL Actuator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337B411AA	O Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	98AG14A169AA	FIRTREE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L087AA	Pipe Assy, Trans SH Control Pump HP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AMLno	Remanufactured ASM gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG337L087CA	Pipe Assy, Reservior Return	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087CA	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087AA	PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337L087CA	Clip, Oetiker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702282	CLIP 16-18 5x6 5x1-6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG332710483	LH OUTPUT SHAFT LIP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG332710604	RH OUTPUT SHAFT LIP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	Enquire	To Order
	6G3375106AA/S	OIL-MAN TRANS 1 ltr	Enquire	To Order
	6G3336298AA	RING DOWEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BG337002BD	Transaxle assy, Sportshift II	BG337002BD Transaxle assy, Sportshift II V8S/ 12.25MY	-	1	Enquire
1	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox	-	1	Enquire
2	BG337A245AA	PIPE ASSEMBLY - TRANSMISSION BREATHER	BG337A245AA PIPE ASSEMBLY - TRANSMISSION BREATHER V8S/ 12.25MY	-	1	Enquire
3	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe	-	1	Enquire
4	702284	Clip, Edge, Trans Breather Pipe	702284 Clip, Edge, Trans Breather Pipe	-	1	Enquire
5	4G437C309CB	PLT ASY - TRANS GR SH OPG CVR	4G437C309CB PLT ASY - TRANS GR SH OPG CVR	-	1	Enquire
6	703749	Nut, M6, Hex Flange Head	703749 Nut, M6, Hex Flange Head	-	4	Enquire
7	BG337C391AC	Sportshift II Assy, Complete	BG337C391AC Sportshift II Assy, Complete V8S/ 12.25MY	-	1	Enquire
8	BG337K444AA	ACTUATOR ASSY - SERVICE KIT	BG337K444AA ACTUATOR ASSY - SERVICE KIT Cover Assy, Trans Gear Selector	-	1	Enquire
9	6G337K364AB	GASKET TRANSMISSION/COVER	6G337K364AB GASKET TRANSMISSION/COVER	-	1	Enquire
10	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	BG33292227AA HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	-	4	Enquire
11	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	1	Enquire
12	BG33292227AA	HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	BG33292227AA HEX FLANGE BOLT M6 x 30 WITH THREAD SEAL	-	1	Enquire
13	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
14	6G337J269AC	SENSOR TRANSMISSION ACTUATOR	6G337J269AC SENSOR TRANSMISSION ACTUATOR	-	1	Enquire
15	702959	SCREW M4x12 PAN HEAD 6 LOBE TORX	702959 SCREW M4x12 PAN HEAD 6 LOBE TORX	-	4	Enquire
16	6G337J282AC	MAGNET ASSY - TRANMISSION ACTUATOR POSN	6G337J282AC MAGNET ASSY - TRANMISSION ACTUATOR POSN	-	1	Enquire
17	6G33505066AA	Screw, M3 x 6, button head	6G33505066AA Screw, M3 x 6, button head	-	1	Enquire
18	BG337F054AA	Valve and Accumulator Assy	BG337F054AA Valve and Accumulator Assy pt of BG33-7C391-AC	-	1	Enquire
19	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox	-	2	Enquire
20	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	-	1	Enquire
21	BG337V000AA	Bracket Assy, Trans Acum Support	BG337V000AA Bracket Assy, Trans Acum Support	-	1	Enquire
22	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox	-	1	Enquire
23	BG337L086CA	Pipe Assy, Trans Select Control	BG337L086CA Pipe Assy, Trans Select Control	-	1	Enquire
24	BG337L086BA	Pipe Assy, Trans Select Control	BG337L086BA Pipe Assy, Trans Select Control	-	1	Enquire
25	BG337L086AA	Pipe Assy, Trans Select Control	BG337L086AA Pipe Assy, Trans Select Control	-	1	Enquire
26	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox HP Pipes	-	4	Enquire
27	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox HP Pipe	-	1	Enquire
28	BG337F160AA	Bracket, Trans Reservoir	BG337F160AA Bracket, Trans Reservoir	-	1	Enquire
29	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox V8S/ 12.25MY	-	2	Enquire
30	BG337J061AA	Reservoir and Cap Assy	BG337J061AA Reservoir and Cap Assy	-	1	Enquire
31	BG337J061CA	Reservoir cap assy	BG337J061CA Reservoir cap assy	-	1	Enquire
32	6G337L564BB	ASM HYDRAULIC PUMP BRACKET	6G337L564BB ASM HYDRAULIC PUMP BRACKET	-	1	Enquire
33	BG335435AA	Spacer Boss	BG335435AA Spacer Boss Pump and Motor Assy	-	1	Enquire
34	703199	Bolt M6x30 HEX FLG Chrome Free	703199 Bolt M6x30 HEX FLG Chrome Free Pump and Motor Assy	-	1	Enquire
35	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Pump and Motor Assy	-	3	Enquire
36	BG337055AA	Pump and Motor Assy, Trans Shift Control	BG337055AA Pump and Motor Assy, Trans Shift Control	-	1	Enquire
37	6G337055AA	Washer, Pump and Motor Assy	6G337055AA Washer, Pump and Motor Assy	-	1	Enquire
38	6G337055AA	Washer, Pump and Motor Assy	6G337055AA Washer, Pump and Motor Assy	-	1	Enquire
39	BG337L087BA	Pipe Assy, Trans Control Pump LP	BG337L087BA Pipe Assy, Trans Control Pump LP	-	1	Enquire
40	6G337L087CA	Clip, Oetiker	6G337L087CA Clip, Oetiker	-	1	Enquire
41	6G337L087BA	Clip, Oetiker	6G337L087BA Clip, Oetiker	-	1	Enquire
42	BG337H503AA	Pipe Assy, CL Actuator	BG337H503AA Pipe Assy, CL Actuator incl O rings and Clips	-	1	Enquire
43	6G337B411AA	O Ring	6G337B411AA O Ring	-	2	Enquire
44	98AG14A169AA	FIRTREE CLIP	98AG14A169AA FIRTREE CLIP	-	2	Enquire
45	BG337L087AA	Pipe Assy, Trans SH Control Pump HP	BG337L087AA Pipe Assy, Trans SH Control Pump HP	-	1	Enquire
46	AMLno	Remanufactured ASM gearbox	AMLno Remanufactured ASM gearbox pt of BG33-7L087-AA	-	2	Enquire
47	BG337L087CA	Pipe Assy, Reservior Return	BG337L087CA Pipe Assy, Reservior Return	-	1	Enquire
48	6G337L087CA	Clip, Oetiker	6G337L087CA Clip, Oetiker	-	1	Enquire
49	6G337L087AA	PIPE ASSEMBLY	6G337L087AA PIPE ASSEMBLY	-	1	Enquire
50	6G337L087CA	Clip, Oetiker	6G337L087CA Clip, Oetiker	-	1	Enquire
51	702282	CLIP 16-18 5x6 5x1-6	702282 CLIP 16-18 5x6 5x1-6	-	2	Enquire
52	BG332710483	LH OUTPUT SHAFT LIP SEAL	BG332710483 LH OUTPUT SHAFT LIP SEAL	-	1	Enquire
53	BG332710604	RH OUTPUT SHAFT LIP SEAL	BG332710604 RH OUTPUT SHAFT LIP SEAL	-	1	Enquire
54	6G3319H373BA	Fluid Hydraulic ASM S-Cam (Service) 1 Litre	6G3319H373BA Fluid Hydraulic ASM S-Cam (Service) 1 Litre 1 litre	-	-	Enquire
54	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr 1 litre	-	-	Enquire
54	6G3336298AA	RING DOWEL	6G3336298AA RING DOWEL	-	2	Enquire
