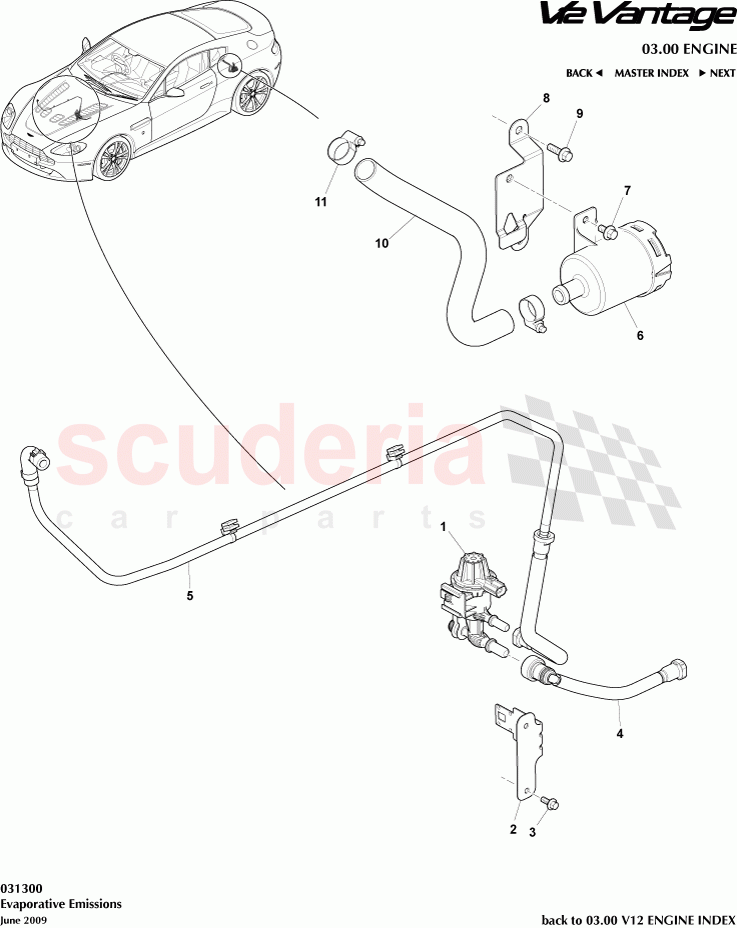

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G433410937	Valve Fuel/ Vapour Purge Electronic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239G743AA	Bracket, Electronic, Fuel Vapour Management	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239B051AA	TUBE - PURGE VALVE INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439B995AA	Filter, Fuel/Vapour Storage Canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239C177AA	Bracket assy, Fu/tank Vent Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339F984AB	HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433410937	Valve Fuel/ Vapour Purge Electronic	4G433410937 Valve Fuel/ Vapour Purge Electronic	-	1	Enquire
2	AD239G743AA	Bracket, Electronic, Fuel Vapour Management	AD239G743AA Bracket, Electronic, Fuel Vapour Management	-	1	Enquire
3	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
4	AD239B051AA	TUBE - PURGE VALVE INLET	AD239B051AA TUBE - PURGE VALVE INLET	-	1	Enquire
5	4G439D289BD	TUBE ASSY - EVMV TO MANIFOLD RH	4G439D289BD TUBE ASSY - EVMV TO MANIFOLD RH	-	1	Enquire
6	4G439B995AA	Filter, Fuel/Vapour Storage Canister	4G439B995AA Filter, Fuel/Vapour Storage Canister	-	1	Enquire
7	700606	Screw, M6 x 12, Hex Flange Head	700606 Screw, M6 x 12, Hex Flange Head	-	1	Enquire
8	AD239C177AA	Bracket assy, Fu/tank Vent Valve	AD239C177AA Bracket assy, Fu/tank Vent Valve	-	1	Enquire
9	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
10	6G339F984AB	HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	6G339F984AB HOSE ASSY - FUEL VAPOUR CANISTER VENT INLET	-	1	Enquire
11	699094	Clip, Hose, Spring Loaded, 16-25	699094 Clip, Hose, Spring Loaded, 16-25	-	2	Enquire
