Name: Engine Cooling (line fit)
Rating: 4.8 (1 reviews)

View All

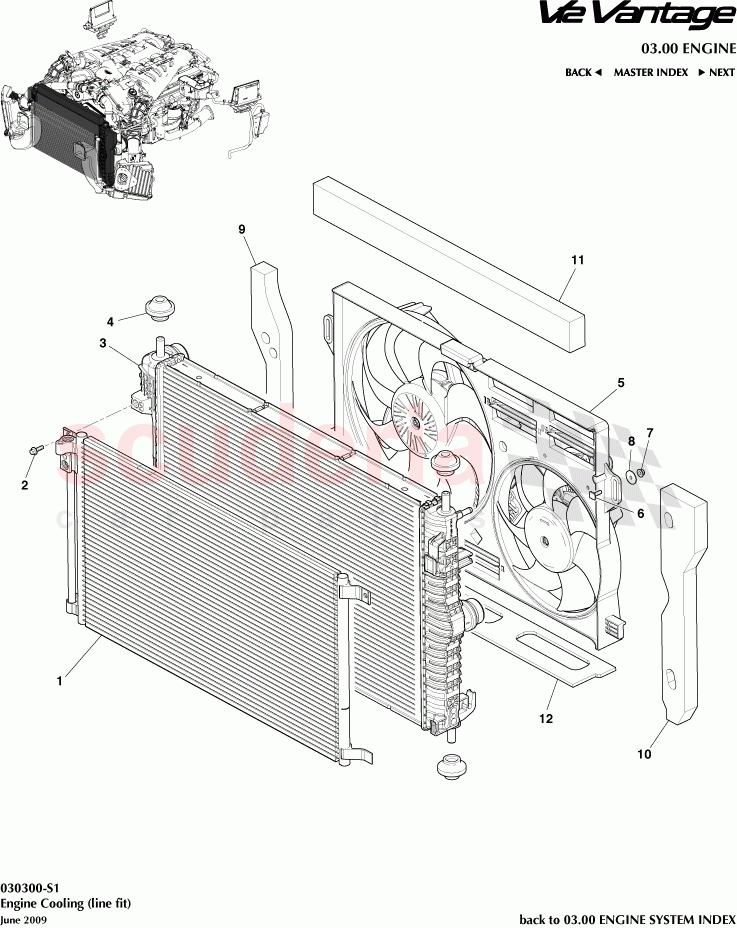

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	9G4319710AA	Condenser	$879.50	To Order

Photo	Part No	Description	Price (each)	Stock
	703750	Bolt, M6 x 20, Hex Flg Hd	$3.00	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338005AC	RADIATOR	$1,532.77	To Order

Photo	Part No	Description	Price (each)	Stock
	3285101PK	Bush Mounting Upper (Pack of 2)	$21.06	To Order

Photo	Part No	Description	Price (each)	Stock
	8D338C607AD	Fan Module	$1,044.83	To Order

Photo	Part No	Description	Price (each)	Stock
	703728	Screw, M6 x 19, Square Head	$13.35	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23F8B171AB	FOAM SEAL - LEFT HAND	$62.90	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23F8B170AB	FOAM SEAL RIGHT HAND	$62.90	To Order

Photo	Part No	Description	Price (each)	Stock
	9G338N301AA	Seal, Radiator air upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238C477AA	Seal, Radiator, Lower	$23.71	To Order
	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	$232.74	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	9G4319710AA	Condenser	9G4319710AA Condenser	$879.50	1
2	703750	Bolt, M6 x 20, Hex Flg Hd	703750 Bolt, M6 x 20, Hex Flg Hd	$3.00	1
3	8D338005AC	RADIATOR	8D338005AC RADIATOR	$1,532.77	1
4	3285101PK	Bush Mounting Upper (Pack of 2)	3285101PK Bush Mounting Upper (Pack of 2)	$21.06	4
5	8D338C607AD	Fan Module	8D338C607AD Fan Module	$1,044.83	1
6	703728	Screw, M6 x 19, Square Head	703728 Screw, M6 x 19, Square Head	$13.35	2
7	703169	NUT - M6 HEX FLANGE CHROME FREE	703169 NUT - M6 HEX FLANGE CHROME FREE	$0.59	2
8	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	$0.73	2
9	AD23F8B171AB	FOAM SEAL - LEFT HAND	AD23F8B171AB FOAM SEAL - LEFT HAND	$62.90	1
10	AD23F8B170AB	FOAM SEAL RIGHT HAND	AD23F8B170AB FOAM SEAL RIGHT HAND	$62.90	1
11	9G338N301AA	Seal, Radiator air upper	9G338N301AA Seal, Radiator air upper	-	1	Enquire
12	AD238C477AA	Seal, Radiator, Lower	AD238C477AA Seal, Radiator, Lower	$23.71	1
12	1R12322666AAPK	COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	1R12322666AAPK COOLANT ANTIFREEZE (OAT) 1 Ltr BOTTLE -BOX OF 12	$232.74	-
