Coolant Hoses of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

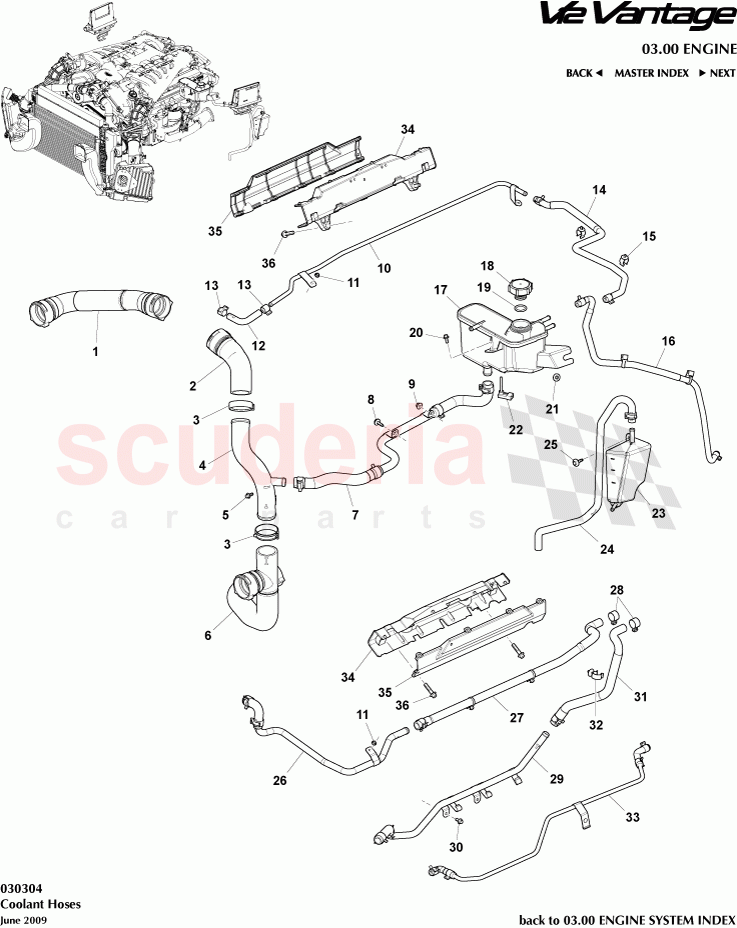

Aston Martin V12 Vantage (upto 2016) - Coolant Hoses

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD238333AC	Bypass tube assy	Enquire	To Order
	AD238333AB	Hose, Radiator Inlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238555EA	HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702903	Heavy Duty Spring Band Clamp 55 x 15	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238555FA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238555BB	Hose Bypass Tube to Water Pump	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD238C350AB	Hose, Coolant Return	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703749	Nut, M6, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	720904	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438063AE	Hose, Engine to Supply Tank	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701172	Clip, 16 x 2.8 - 3.3	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G338B081AB	HOSE - RADIATOR SUPPLY TANK OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319B518BD	RADIATOR EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438101BB	PRESSURE CAP 150KPA	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703612	Nut & Washer, M6, HVAC to XCB	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123710166	Switch, Coolant Level	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33TBD2BA	Reservoir, Coolant Expansion	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G338N029AB	HOSE - RADIAOTR OVERFLOW EXT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701667	Bolt and Washer, M6 x 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED238584AA	HOS ASY THERMO UPR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	Enquire	To Order
	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701335	Clip, Hose Spring, 20 x 15	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2318674CA	Tube assy, heater outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	Enquire	To Order
	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701570	Clip, Swivel 20-24.5mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238C363AB	Hose Assy, Radiator Degas	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434867BA	Cover assy, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436793BB	Top Cover, Engine Harness	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703731	Bolt, M8 x 35, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD238333AC	Bypass tube assy	AD238333AC Bypass tube assy Includes items 2, 3, 4, 5 & 6	-	1	Enquire
1	AD238333AB	Hose, Radiator Inlet	AD238333AB Hose, Radiator Inlet	-	1	Enquire
2	AD238555EA	HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	AD238555EA HOSE ASSY - BYPASS TUBE TO RADIATOR MODULE	-	1	Enquire
3	702903	Heavy Duty Spring Band Clamp 55 x 15 IN STOCK	702903 Heavy Duty Spring Band Clamp 55 x 15 IN STOCK	-	2	Enquire
4	AD238555FA	HOSE ASSY - BYPASS TUBE TO THERMOSTAT	AD238555FA HOSE ASSY - BYPASS TUBE TO THERMOSTAT	-	1	Enquire
5	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	4	Enquire
6	AD238555BB	Hose Bypass Tube to Water Pump IN STOCK	AD238555BB Hose Bypass Tube to Water Pump IN STOCK	-	1	Enquire
7	AD238C350AB	Hose, Coolant Return	AD238C350AB Hose, Coolant Return	-	1	Enquire
8	702839PK	Screw & Washer M6 x 20 Hex Head (Pack of 20) IN STOCK	702839PK Screw & Washer M6 x 20 Hex Head (Pack of 20) IN STOCK	-	1	Enquire
9	703749	Nut, M6, Hex Flange Head IN STOCK	703749 Nut, M6, Hex Flange Head IN STOCK	-	1	Enquire
10	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	-	1	Enquire
11	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	-	2	Enquire
12	4G438003CA	Hose, Thermo Housing, Cross Over Bleed	4G438003CA Hose, Thermo Housing, Cross Over Bleed	-	1	Enquire
13	720904	Clamp	720904 Clamp	-	2	Enquire
14	4G438063AE	Hose, Engine to Supply Tank IN STOCK	4G438063AE Hose, Engine to Supply Tank IN STOCK	-	1	Enquire
15	701172	Clip, 16 x 2.8 - 3.3 IN STOCK	701172 Clip, 16 x 2.8 - 3.3 IN STOCK	-	2	Enquire
16	6G338B081AB	HOSE - RADIATOR SUPPLY TANK OVERFLOW	6G338B081AB HOSE - RADIATOR SUPPLY TANK OVERFLOW	-	1	Enquire
17	4G4319B518BD	RADIATOR EXPANSION TANK	4G4319B518BD RADIATOR EXPANSION TANK	-	1	Enquire
18	4G438101BB	PRESSURE CAP 150KPA IN STOCK	4G438101BB PRESSURE CAP 150KPA IN STOCK	-	1	Enquire
20	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD -Expansion Tank IN STOCK	-	1	Enquire
21	703612	Nut & Washer, M6, HVAC to XCB IN STOCK	703612 Nut & Washer, M6, HVAC to XCB IN STOCK	-	1	Enquire
22	1R123710166	Switch, Coolant Level IN STOCK	1R123710166 Switch, Coolant Level IN STOCK	-	1	Enquire
23	6G33TBD2BA	Reservoir, Coolant Expansion IN STOCK	6G33TBD2BA Reservoir, Coolant Expansion IN STOCK	-	1	Enquire
24	6G338N029AB	HOSE - RADIAOTR OVERFLOW EXT	6G338N029AB HOSE - RADIAOTR OVERFLOW EXT	-	1	Enquire
25	701667	Bolt and Washer, M6 x 25	701667 Bolt and Washer, M6 x 25	-	2	Enquire
26	ED238584AA	HOS ASY THERMO UPR	ED238584AA HOS ASY THERMO UPR	-	1	Enquire
27	4G4318D334BC	HEATER INLET HOSE ASSY - RHD	4G4318D334BC HEATER INLET HOSE ASSY - RHD RHD	-	1	Enquire
27	4G4318D334AC	HEATER INLET HOSE ASSY - LHD	4G4318D334AC HEATER INLET HOSE ASSY - LHD LHD	-	1	Enquire
28	701335	Clip, Hose Spring, 20 x 15	701335 Clip, Hose Spring, 20 x 15	-	2	Enquire
29	AD2318674CA	Tube assy, heater outlet	AD2318674CA Tube assy, heater outlet	-	1	Enquire
30	HY53E804349AA	M6 X 14 SCREW HEX HD IN STOCK	HY53E804349AA M6 X 14 SCREW HEX HD IN STOCK	-	2	Enquire
31	4G4318D359BC	HEATER OUTLET HOSE ASSY - RHD	4G4318D359BC HEATER OUTLET HOSE ASSY - RHD RHD	-	1	Enquire
31	4G4318D359AC	HEATER OUTLET HOSE ASSY - LHD	4G4318D359AC HEATER OUTLET HOSE ASSY - LHD LHD	-	1	Enquire
32	701570	Clip, Swivel 20-24.5mm	701570 Clip, Swivel 20-24.5mm Heater Outlet Pipe	-	1	Enquire
33	AD238C363AB	Hose Assy, Radiator Degas	AD238C363AB Hose Assy, Radiator Degas	-	1	Enquire
34	4G434867BA	Cover assy, bottom	4G434867BA Cover assy, bottom	-	2	Enquire
35	4G436793BB	Top Cover, Engine Harness IN STOCK	4G436793BB Top Cover, Engine Harness IN STOCK	-	2	Enquire
36	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
