Engine Cooling (engine fit) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

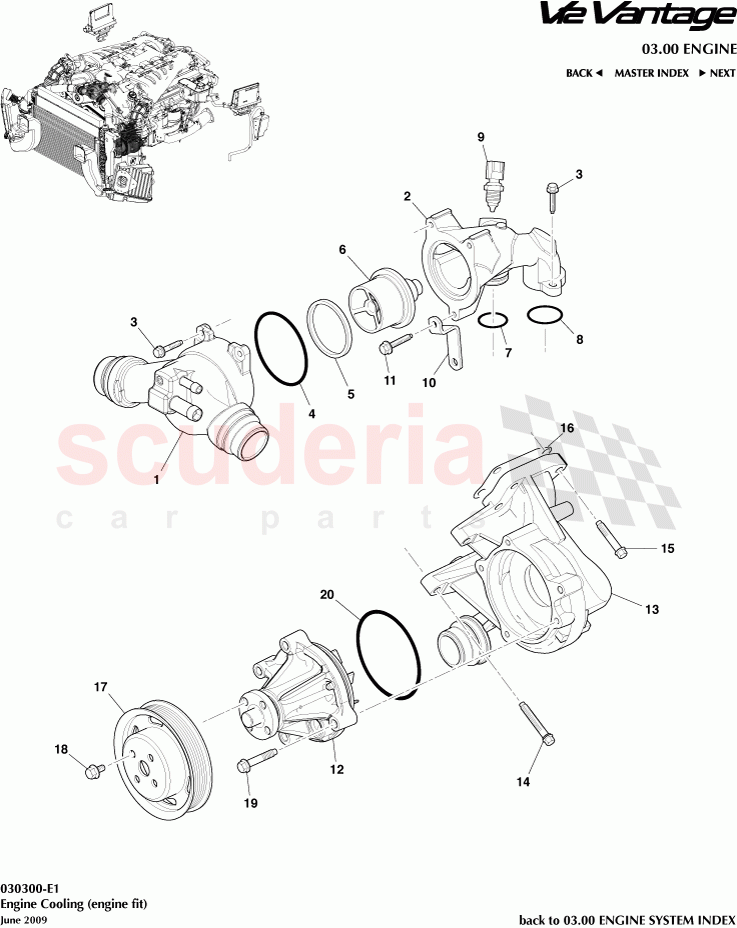

Aston Martin V12 Vantage (upto 2016) - Engine Cooling (engine fit)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CD338A586AA	Housing and Connection Assembly, Engine Thermostat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G438594AA	Connection, Water Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702855	BOLT &WASHER-M6x30 HEX FLG PIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3285114	O Ring - Seal Housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

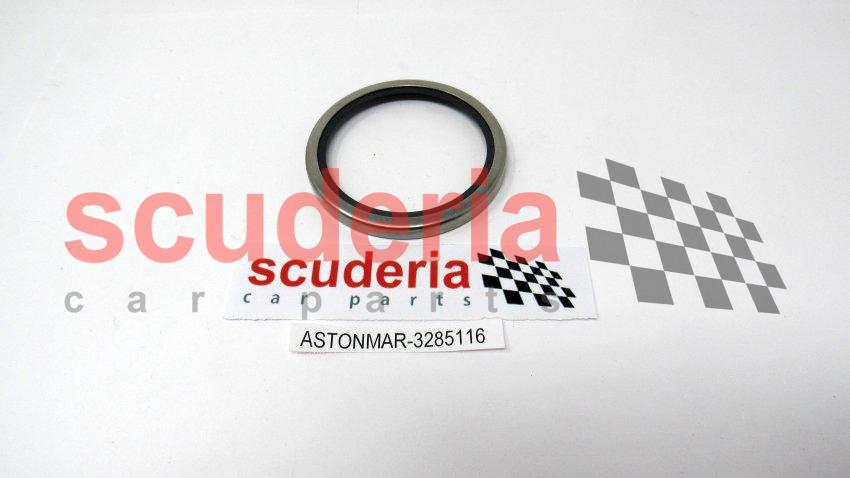

	3285116	Seal Thermostat	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G4E8575AB	Thermostat	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	3285113	O RING SEAL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	3285112	O Ring - Water Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

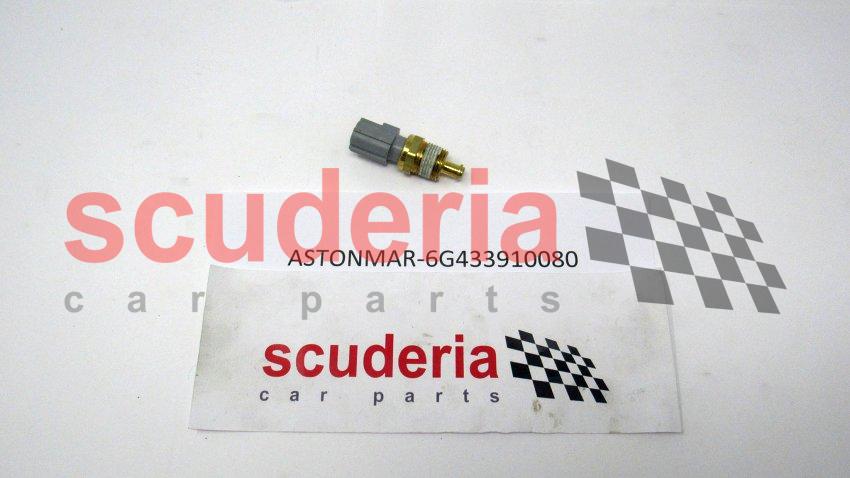

	6G433910080	Sensor, Engine Coolant Temperature	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	7G438A588AA	Bracket, Engine Thermostat Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238K168AB	WATER PUMP ASSEMBLY	Enquire	To Order
	702855	BOLT &WASHER-M6x30 HEX FLG PIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD238A513AB	Cover Assy, Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

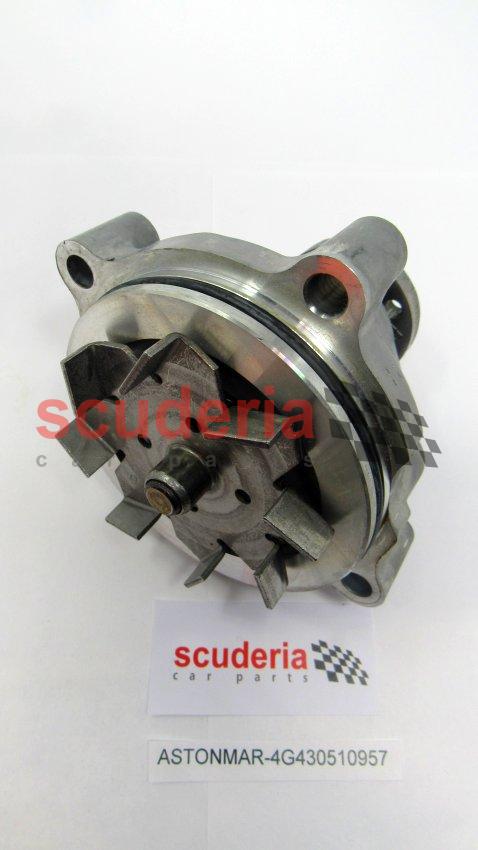

	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585382	Gasket, Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585104	Pulley, Water Pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703194	BOLT M8x45 HEX FLNG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

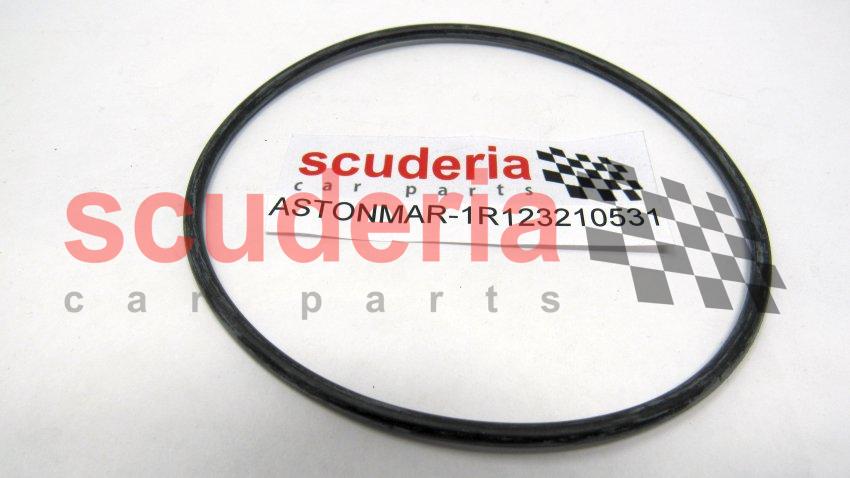

	1R123210531	WATER PUMP PRESS IN SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8G438A586AC	Housing & Connection Assy, Engine Thermostat	8G438A586AC Housing & Connection Assy, Engine Thermostat	-	1	Enquire
1	CD338A586AA	Housing and Connection Assembly, Engine Thermostat	CD338A586AA Housing and Connection Assembly, Engine Thermostat pt of 8G43-8A586-AA	-	1	Enquire
2	7G438594AA	Connection, Water Outlet	7G438594AA Connection, Water Outlet pt of 8G43-8A586-AA	-	1	Enquire
3	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL pt of 8G43-8A586-AA	-	4	Enquire
4	3285114	O Ring - Seal Housing	3285114 O Ring - Seal Housing	-	1	Enquire
5	3285116	Seal Thermostat ARRIVING SOON	3285116 Seal Thermostat ARRIVING SOON	-	1	Enquire
6	4G4E8575AB	Thermostat ARRIVING SOON	4G4E8575AB Thermostat ARRIVING SOON	-	1	Enquire
7	3285113	O RING SEAL ARRIVING SOON	3285113 O RING SEAL ARRIVING SOON	-	1	Enquire
8	3285112	O Ring - Water Outlet	3285112 O Ring - Water Outlet	-	1	Enquire
9	6G433910080	Sensor, Engine Coolant Temperature ARRIVING SOON	6G433910080 Sensor, Engine Coolant Temperature ARRIVING SOON	-	1	Enquire
10	7G438A588AA	Bracket, Engine Thermostat Connector	7G438A588AA Bracket, Engine Thermostat Connector	-	1	Enquire
11	AD238K168AB	WATER PUMP ASSEMBLY	AD238K168AB WATER PUMP ASSEMBLY	-	1	Enquire
11	702855	BOLT &WASHER-M6x30 HEX FLG PIL	702855 BOLT &WASHER-M6x30 HEX FLG PIL	-	6	Enquire
12	AD238A513AB	Cover Assy, Water Pump	AD238A513AB Cover Assy, Water Pump pt of AD23-8K168-AB	-	1	Enquire
13	4G430510957	WATER PUMP (NOSE CONE ASSEMBLY)	4G430510957 WATER PUMP (NOSE CONE ASSEMBLY) pt of AD23-8K168-AB	-	1	Enquire
14	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	-	3	Enquire
15	702842	Bolt, M8 x 1.25 x 41, Hex Flange Head	702842 Bolt, M8 x 1.25 x 41, Hex Flange Head	-	3	Enquire
16	585382	Gasket, Water Pump	585382 Gasket, Water Pump	-	1	Enquire
17	585104	Pulley, Water Pump	585104 Pulley, Water Pump	-	1	Enquire
18	702843	Screw and Washer, M8 x 1.25 x 19, Hex Head	702843 Screw and Washer, M8 x 1.25 x 19, Hex Head	-	4	Enquire
19	703194	BOLT M8x45 HEX FLNG CHROME FREE	703194 BOLT M8x45 HEX FLNG CHROME FREE	-	4	Enquire
20	1R123210531	WATER PUMP PRESS IN SEAL	1R123210531 WATER PUMP PRESS IN SEAL	-	1	Enquire
