Name: Body Rear End Trim Assembly
Rating: 5.0 (1 reviews)

Body Rear End Trim Assembly of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

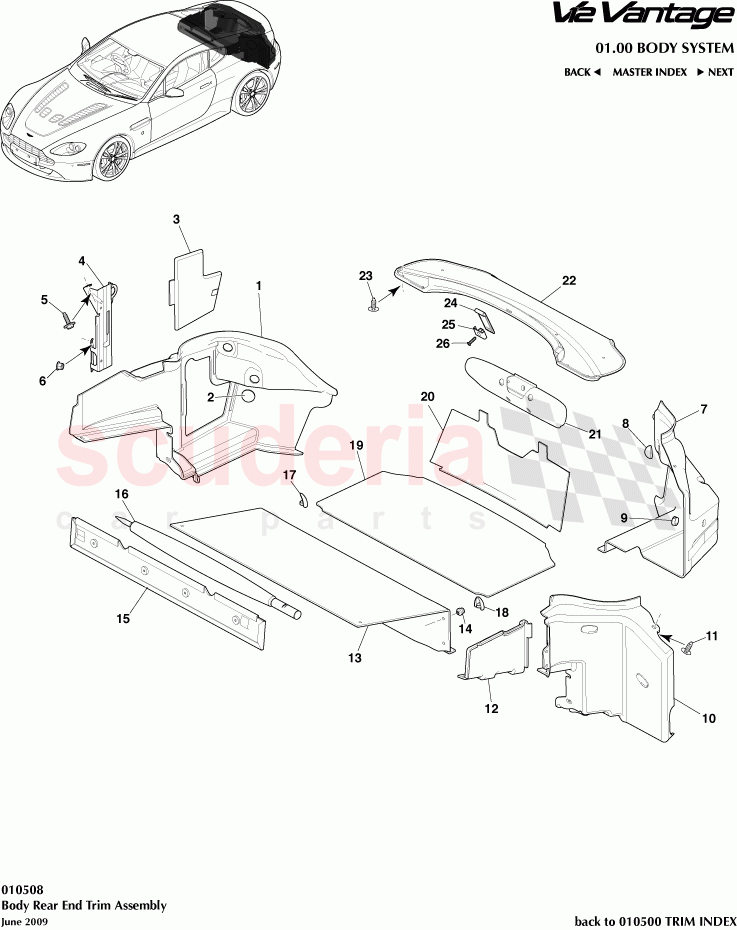

Aston Martin V12 Vantage (upto 2016) - Body Rear End Trim Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3345422BE	CARPET ASSY REAR LOAD COMPARTMENT SIDE RH	$163.31	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33454A28AB	REAR LAMP BOLT COVER	$13.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3345702AC	Door Assembly, Load Compartment, RH	$348.18	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3341849AE	Bracket, Aux Power and Battery Switch	$84.03	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	$5.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33454K64BF	CRPT AST L/C SD RR L	$130.06	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33454A28AB	REAR LAMP BOLT COVER	$13.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33451B04AA	LOADSPACE LHS HOLE PLUG 26MM DIA	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3345423BE	CARPET ASSY REAR LOAD COMPARTMENT SIDE LH	$127.87	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	$8.88	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3345704AC	LHS LOADSPACE DOOR	$187.81	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3345456BC	CARPET ASSY FRONT LOAD COMPARTMENT FLOOR- FRONT	$280.66	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33438A26AB	Luggage Tie Down, Load Compartment	$36.41	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33130A60CB	LOADSPACE CARPET FRONT BULKHEAD ASY (UMBRELLA)	$560.65	To Order

Photo	Part No	Description	Price (each)	Stock
	709131	UMBRELLA-BLACK	$243.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3311367AC	Cover, Rear Subframe Bolt, RH	$4.37	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3311366AC	Cover, Rear Subframe Bolt, LH	$20.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33454A14BC	Carpet Assembly, Load Compartment, Floor Rear	$412.40	To Order

Photo	Part No	Description	Price (each)	Stock
	RF6G33130A58CB	REAR CARPET (WARNING TRIANGLE)	$120.27	To Order
	RF6G33130A58AD	REAR SILL CARPET	$95.08	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3342626CC	REAR SILL STRIKER TRIM	$215.93	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33580374BK	L/C LID TR ASY	$283.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	$8.88	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33434A30AB	Pull Assembly, Luggage Compartment Door	$327.68	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3340168AC	Bracket, strap, pull assy, boot trim	$39.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G33AA0231AA	SCREW M8X34 CSK FLAT TORX - BLACK	$6.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	6G3345422BE	CARPET ASSY REAR LOAD COMPARTMENT SIDE RH	6G3345422BE CARPET ASSY REAR LOAD COMPARTMENT SIDE RH	$163.31	1
2	6G33454A28AB	REAR LAMP BOLT COVER IN STOCK	6G33454A28AB REAR LAMP BOLT COVER IN STOCK	$13.43	2
3	6G3345702AC	Door Assembly, Load Compartment, RH	6G3345702AC Door Assembly, Load Compartment, RH	$348.18	1
4	6G3341849AE	Bracket, Aux Power and Battery Switch	6G3341849AE Bracket, Aux Power and Battery Switch	$84.03	1
5	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10) IN STOCK	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) IN STOCK	$5.40	1
6	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	$0.50	2
7	6G33454K64BF	CRPT AST L/C SD RR L	6G33454K64BF CRPT AST L/C SD RR L	$130.06	1
8	6G33454A28AB	REAR LAMP BOLT COVER IN STOCK	6G33454A28AB REAR LAMP BOLT COVER IN STOCK	$13.43	3
9	6G33451B04AA	LOADSPACE LHS HOLE PLUG 26MM DIA	6G33451B04AA LOADSPACE LHS HOLE PLUG 26MM DIA	$0.59	1
10	6G3345423BE	CARPET ASSY REAR LOAD COMPARTMENT SIDE LH	6G3345423BE CARPET ASSY REAR LOAD COMPARTMENT SIDE LH	$127.87	1
11	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	$8.88	3
12	6G3345704AC	LHS LOADSPACE DOOR	6G3345704AC LHS LOADSPACE DOOR	$187.81	1
13	6G3345456BC	CARPET ASSY FRONT LOAD COMPARTMENT FLOOR- FRONT	6G3345456BC CARPET ASSY FRONT LOAD COMPARTMENT FLOOR- FRONT	$280.66	1
14	6G33438A26AB	Luggage Tie Down, Load Compartment	6G33438A26AB Luggage Tie Down, Load Compartment	$36.41	6
15	6G33130A60CB	LOADSPACE CARPET FRONT BULKHEAD ASY (UMBRELLA)	6G33130A60CB LOADSPACE CARPET FRONT BULKHEAD ASY (UMBRELLA)	$560.65	1
16	709131	UMBRELLA-BLACK IN STOCK	709131 UMBRELLA-BLACK IN STOCK	$243.81	1
17	6G3311367AC	Cover, Rear Subframe Bolt, RH IN STOCK	6G3311367AC Cover, Rear Subframe Bolt, RH IN STOCK	$4.37	1
18	6G3311366AC	Cover, Rear Subframe Bolt, LH IN STOCK	6G3311366AC Cover, Rear Subframe Bolt, LH IN STOCK	$20.95	1
19	6G33454A14BC	Carpet Assembly, Load Compartment, Floor Rear	6G33454A14BC Carpet Assembly, Load Compartment, Floor Rear	$412.40	1
20	RF6G33130A58CB	REAR CARPET (WARNING TRIANGLE)	RF6G33130A58CB REAR CARPET (WARNING TRIANGLE)	$120.27	1
20	RF6G33130A58AD	REAR SILL CARPET	RF6G33130A58AD REAR SILL CARPET	$95.08	1
21	6G3342626CC	REAR SILL STRIKER TRIM	6G3342626CC REAR SILL STRIKER TRIM	$215.93	1
22	6G33580374BK	L/C LID TR ASY	6G33580374BK L/C LID TR ASY	$283.30	1
23	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	$8.88	12
24	6G33434A30AB	Pull Assembly, Luggage Compartment Door	6G33434A30AB Pull Assembly, Luggage Compartment Door	$327.68	1
25	6G3340168AC	Bracket, strap, pull assy, boot trim IN STOCK	6G3340168AC Bracket, strap, pull assy, boot trim IN STOCK	$39.17	1
26	6G33AA0231AA	SCREW M8X34 CSK FLAT TORX - BLACK	6G33AA0231AA SCREW M8X34 CSK FLAT TORX - BLACK	$6.13	1
