Front Side Door Trim of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

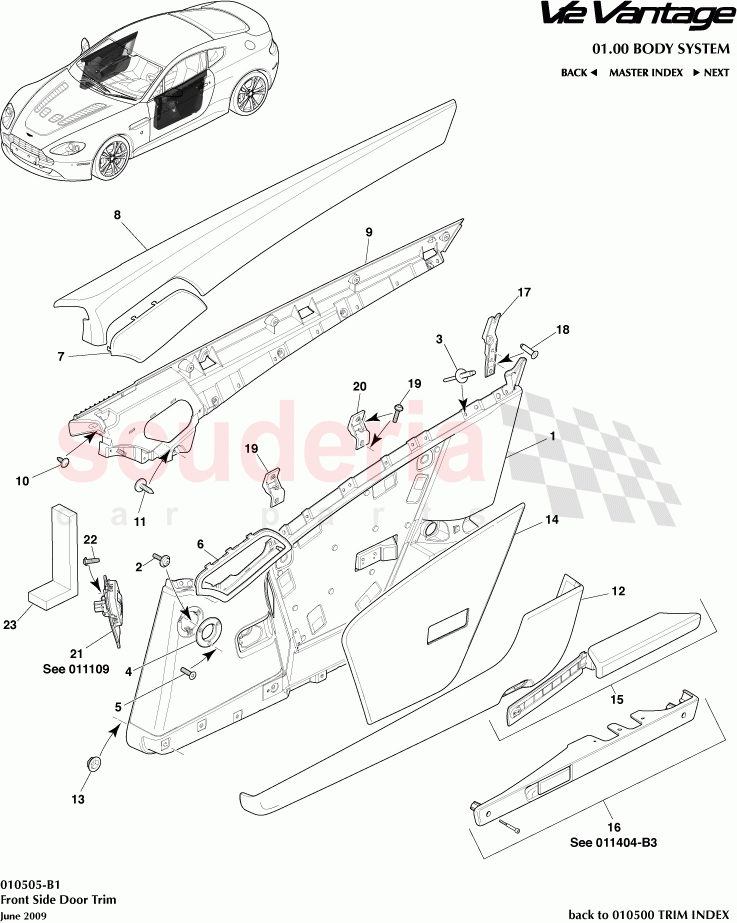

Aston Martin V12 Vantage (upto 2016) - Front Side Door Trim

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD2323936AAW	PANEL ASSEMBLY FRONT DOOR TRIM LOWER RIGHT HAND	Enquire	To Order
	AD2323937AAW	PANEL ASSEMBLY FRONT DOOR TRIM LOWER LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33RA610123AA	Pop Rivet, Aluminium, 4.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33310C00AA	BRACKET SPEAKER GRILLE DOOR TRIM PANEL RH	Enquire	To Order
	6G33310C01AA	BRACKET SPEAKER GRILLE DOOR TRIM PANEL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C18982AA	DOOR SPEAKER GRILLE RH GRAPHITE	Enquire	To Order
	6G33C18983AA	DOOR SPEAKER GRILLE LH GRAPHITE	Enquire	To Order
	6G33C18980_AB	Grille, radio speaker, RH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3323928AAW	Panel Assy, Door Trim Applique, RH	Enquire	To Order
	6G3323929AAW	Panel Assy, Door Trim Applique, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3323900AC	Panel, Door Trim Upper, RH	Enquire	To Order
	6G3323901AC	Panel, Door Trim Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3323718ABW	Pocket assy, door, RH	Enquire	To Order
	8D3323719ABW	Pocket assy, door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4383000BB	Nut - Speed M5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2323864BAW	INSERT ASSEMBLY DOOR TRIM PANEL RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23240A28AAW	Kit, armrest, RH	Enquire	To Order
	AD23240A29AAW	Kit, armrest, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3322614AE	ASY INSD REL HNDL RH	Enquire	To Order
	8D3322615AE	ASY INSD REL HNDL LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320839AA	RETAINER DOOR TRIM UPPER MOULDING RHS	Enquire	To Order
	6G3320839BA	RETAINER DOOR TRIM UPPER MOULDING LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3320838AA	RETAINER DOOR TRIM UPPER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701171	SCREW M4x16 THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G3314540BA	DRIVERS WINDOWLIFT SWITCH	Enquire	To Order
	9G3314717AA	Switchpack, Window Lift, Passenger Side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701447	Screw, M4 x 12, Pan Head, Torx Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD2323936AAW	PANEL ASSEMBLY FRONT DOOR TRIM LOWER RIGHT HAND	AD2323936AAW PANEL ASSEMBLY FRONT DOOR TRIM LOWER RIGHT HAND	-	1	Enquire
1	AD2323937AAW	PANEL ASSEMBLY FRONT DOOR TRIM LOWER LH	AD2323937AAW PANEL ASSEMBLY FRONT DOOR TRIM LOWER LH	-	1	Enquire
2	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head 5 per panel	-	10	Enquire
3	6G33RA610123AA	Pop Rivet, Aluminium, 4.8	6G33RA610123AA Pop Rivet, Aluminium, 4.8 6 per panel	-	12	Enquire
4	9G33C237898AA	Bezel, Door Trim, Black	9G33C237898AA Bezel, Door Trim, Black 1 per panel, Graphite	-	2	Enquire
4	9D33C237898AA	Bezel, door trim	9D33C237898AA Bezel, door trim 1 per panel, Black	-	2	Enquire
5	4G43103081BA	Screw, M4 x 16, Countersunk, Stainless Black	4G43103081BA Screw, M4 x 16, Countersunk, Stainless Black 3 per panel	-	6	Enquire
6	6G33310C00AA	BRACKET SPEAKER GRILLE DOOR TRIM PANEL RH	6G33310C00AA BRACKET SPEAKER GRILLE DOOR TRIM PANEL RH	-	1	Enquire
6	6G33310C01AA	BRACKET SPEAKER GRILLE DOOR TRIM PANEL LH	6G33310C01AA BRACKET SPEAKER GRILLE DOOR TRIM PANEL LH	-	1	Enquire
7	6G33C18982AA	DOOR SPEAKER GRILLE RH GRAPHITE	6G33C18982AA DOOR SPEAKER GRILLE RH GRAPHITE Graphite	-	1	Enquire
7	6G33C18983AA	DOOR SPEAKER GRILLE LH GRAPHITE	6G33C18983AA DOOR SPEAKER GRILLE LH GRAPHITE Graphite	-	1	Enquire
7	6G33C18980_AB	Grille, radio speaker, RH	6G33C18980_AB Grille, radio speaker, RH Platinum	-	1	Enquire
7	6G33C18981AB	Grille, radio speaker, LH Platinum	6G33C18981AB Grille, radio speaker, LH Platinum Platinum	-	1	Enquire
8	6G3323928AAW	Panel Assy, Door Trim Applique, RH	6G3323928AAW Panel Assy, Door Trim Applique, RH	-	1	Enquire
8	6G3323929AAW	Panel Assy, Door Trim Applique, LH	6G3323929AAW Panel Assy, Door Trim Applique, LH	-	1	Enquire
9	6G3323900AC	Panel, Door Trim Upper, RH	6G3323900AC Panel, Door Trim Upper, RH	-	1	Enquire
9	6G3323901AC	Panel, Door Trim Upper, LH	6G3323901AC Panel, Door Trim Upper, LH	-	1	Enquire
10	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW 1 per panel	-	2	Enquire
11	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) 1 per panel	-	2	Enquire
12	8D3323718ABW	Pocket assy, door, RH	8D3323718ABW Pocket assy, door, RH	-	1	Enquire
12	8D3323719ABW	Pocket assy, door, LH	8D3323719ABW Pocket assy, door, LH	-	1	Enquire
13	4G4383000BB	Nut - Speed M5	4G4383000BB Nut - Speed M5 10 per panel	-	20	Enquire
14	AD2323864BAW	INSERT ASSEMBLY DOOR TRIM PANEL RH	AD2323864BAW INSERT ASSEMBLY DOOR TRIM PANEL RH	-	1	Enquire
15	AD23240A28AAW	Kit, armrest, RH	AD23240A28AAW Kit, armrest, RH	-	1	Enquire
15	AD23240A29AAW	Kit, armrest, LH	AD23240A29AAW Kit, armrest, LH	-	1	Enquire
16	8D3322614AE	ASY INSD REL HNDL RH	8D3322614AE ASY INSD REL HNDL RH See 011404-B3	-	1	Enquire
16	8D3322615AE	ASY INSD REL HNDL LH	8D3322615AE ASY INSD REL HNDL LH See 011404-B3	-	1	Enquire
17	6G3320839AA	RETAINER DOOR TRIM UPPER MOULDING RHS	6G3320839AA RETAINER DOOR TRIM UPPER MOULDING RHS 1 per panel	-	2	Enquire
17	6G3320839BA	RETAINER DOOR TRIM UPPER MOULDING LHS	6G3320839BA RETAINER DOOR TRIM UPPER MOULDING LHS 1 per panel	-	2	Enquire
18	4G4317A873AA	RIVET 4.8 x 12 BLND LRG AL	4G4317A873AA RIVET 4.8 x 12 BLND LRG AL 2 per retainer	-	4	Enquire
19	6G3320838AA	RETAINER DOOR TRIM UPPER MOULDING	6G3320838AA RETAINER DOOR TRIM UPPER MOULDING 2 per moulding	-	4	Enquire
20	701171	SCREW M4x16 THREAD FORMING	701171 SCREW M4x16 THREAD FORMING 4 per retainer	-	8	Enquire
21	9G3314540BA	DRIVERS WINDOWLIFT SWITCH	9G3314540BA DRIVERS WINDOWLIFT SWITCH	-	1	Enquire
21	9G3314717AA	Switchpack, Window Lift, Passenger Side	9G3314717AA Switchpack, Window Lift, Passenger Side	-	1	Enquire
22	701447	Screw, M4 x 12, Pan Head, Torx Screw	701447 Screw, M4 x 12, Pan Head, Torx Screw 4 per swtchpk	-	8	Enquire
23	4G4302275AB	Seal Venair Outlet Duct Door Lower RH	4G4302275AB Seal Venair Outlet Duct Door Lower RH 1 per door	-	2	Enquire
