Front Sport Seat Assembly of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

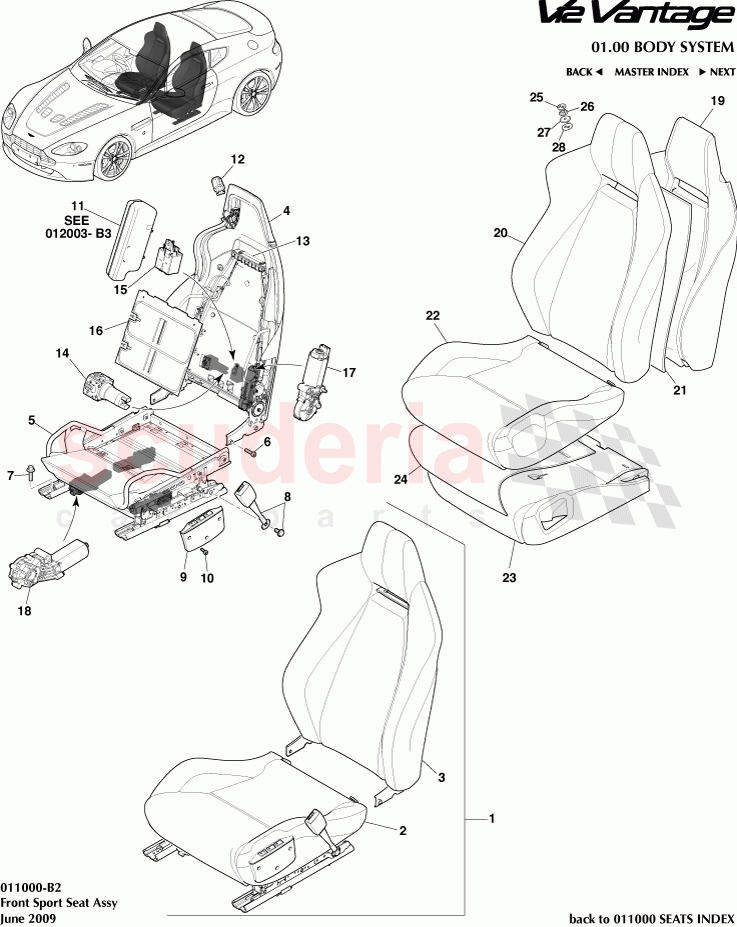

Aston Martin V12 Vantage (upto 2016) - Front Sport Seat Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AD2360008BAW	ASSY FRONT SEAT RH	Enquire	To Order
	AD2360009BAW	ASSY FRONT SEAT LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4360050AGW	FRONT SEAT CUSHION TRIMMED ASSY RH	Enquire	To Order
	7G4360051AFW	CSHN ASY FRT ST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	Enquire	To Order
	AD2360137BAW	FRONT SEAT SQUAB LH TRIMMED ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4364800AC	Squab Frame, Front Seat, RH, Memory	Enquire	To Order
	CG4364802AC	Squab Frame, Front Seat, LH, Memory	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	706423	SCREW-M8 x 25 HF PI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43613K22BD	Buckle Assembly, Front Seatbelt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314E693CA	SWITCH PACK ASSY FRT SEAT LUMBAR LH	Enquire	To Order
	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43N014740AA	Screw, M6 x 16, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410690	Airbag, Side, RH	Enquire	To Order
	4G437410689	Airbag, Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33062A00BB	GLOVEBOX SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43605W00ACW	Strap, Squab Release, Manual Override	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365532AA	Pump, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365524AA	Valve, Lumbar Support Air	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G3365500AA	LUMBAR SUPPORT BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410127	Kit, Squab Motor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437410116	Track Assembly, Front Lightweight Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G434D9513AB	SQUAB FOAM RH	Enquire	To Order
	7G434D9514AB	SEAT BACK FOAM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2364572BAW	Cover Assy, Front Seat Squab, RH	Enquire	To Order
	AD2364573BAW	Cover Assy, Front Seat Squab, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D696AB	Heating Element, Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G3362900AFW	FRONT SEAT CUSHION RH COVER ASSY	Enquire	To Order
	7G3362901AFW	FRONT SEAT CUSHION LH COVER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G439515AA	FRT ST CUSH FOAM RH	Enquire	To Order
	8G439516AA	FRT ST CUSH FOAM LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4314D698AC	Element, Seat Base Heater	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3361L16BA	RING SNAP MAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3361L16CA	PIN MAG SMALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3361L16DA	LATCH MAG LARGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G33611A11AAW	Guide, seat belt, upper, Not illustrated	Enquire	To Order
	6G3361L16EA	WASHER LARGE MAG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AD2360008BAW	ASSY FRONT SEAT RH	AD2360008BAW ASSY FRONT SEAT RH	-	1	Enquire
1	AD2360009BAW	ASSY FRONT SEAT LHS	AD2360009BAW ASSY FRONT SEAT LHS	-	1	Enquire
2	7G4360050AGW	FRONT SEAT CUSHION TRIMMED ASSY RH	7G4360050AGW FRONT SEAT CUSHION TRIMMED ASSY RH	-	1	Enquire
2	7G4360051AFW	CSHN ASY FRT ST	7G4360051AFW CSHN ASY FRT ST	-	1	Enquire
3	AD2360136BAW	FRONT SEAT SQUAB RH TRIMMED ASSY	AD2360136BAW FRONT SEAT SQUAB RH TRIMMED ASSY	-	1	Enquire
3	AD2360137BAW	FRONT SEAT SQUAB LH TRIMMED ASSY	AD2360137BAW FRONT SEAT SQUAB LH TRIMMED ASSY	-	1	Enquire
4	CG4364800AC	Squab Frame, Front Seat, RH, Memory	CG4364800AC Squab Frame, Front Seat, RH, Memory	-	1	Enquire
4	CG4364802AC	Squab Frame, Front Seat, LH, Memory	CG4364802AC Squab Frame, Front Seat, LH, Memory	-	1	Enquire
5	BG43L60344AA	Cushion Frame Assembly, Front Seat, Height Adjusting	BG43L60344AA Cushion Frame Assembly, Front Seat, Height Adjusting	-	2	Enquire
6	4G4361538AB	M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT	4G4361538AB M8 X 30 SOCKET HEAD 8.8 LOCK PATCH BOLT 4 per frame	-	8	Enquire
7	706423	SCREW-M8 x 25 HF PI	706423 SCREW-M8 x 25 HF PI 4 per frame	-	8	Enquire
8	4G43613K22BD	Buckle Assembly, Front Seatbelt	4G43613K22BD Buckle Assembly, Front Seatbelt 1 per frame, includes screw	-	2	Enquire
9	7G4314E693CA	SWITCH PACK ASSY FRT SEAT LUMBAR LH	7G4314E693CA SWITCH PACK ASSY FRT SEAT LUMBAR LH	-	1	Enquire
9	7G4314E693BA	SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	7G4314E693BA SWITCH PACK ASSY FRT SEAT HEAT LUMBAR RH	-	1	Enquire
10	7G43N014740AA	Screw, M6 x 16, Socket Head	7G43N014740AA Screw, M6 x 16, Socket Head 3 per switch pack	-	6	Enquire
11	4G437410690	Airbag, Side, RH	4G437410690 Airbag, Side, RH	-	1	Enquire
11	4G437410689	Airbag, Side, LH	4G437410689 Airbag, Side, LH	-	1	Enquire
12	6G33062A00BB	GLOVEBOX SWITCH	6G33062A00BB GLOVEBOX SWITCH	-	1	Enquire
13	7G43605W00ACW	Strap, Squab Release, Manual Override	7G43605W00ACW Strap, Squab Release, Manual Override 1 per squab assy	-	2	Enquire
14	8G3365532AA	Pump, Lumbar Support Air	8G3365532AA Pump, Lumbar Support Air 1 per squab assy	-	2	Enquire
15	8G3365524AA	Valve, Lumbar Support Air	8G3365524AA Valve, Lumbar Support Air 1 per squab assy	-	2	Enquire
16	8G3365500AA	LUMBAR SUPPORT BAG	8G3365500AA LUMBAR SUPPORT BAG 1 per squab assy	-	2	Enquire
17	4G437410127	Kit, Squab Motor	4G437410127 Kit, Squab Motor 1 per squab assy	-	2	Enquire
18	4G437410116	Track Assembly, Front Lightweight Seat	4G437410116 Track Assembly, Front Lightweight Seat 3 per cushion frame assy- N.S.S.	-	6	Enquire
19	7G434D9513AB	SQUAB FOAM RH	7G434D9513AB SQUAB FOAM RH	-	1	Enquire
19	7G434D9514AB	SEAT BACK FOAM LH	7G434D9514AB SEAT BACK FOAM LH	-	1	Enquire
20	AD2364572BAW	Cover Assy, Front Seat Squab, RH	AD2364572BAW Cover Assy, Front Seat Squab, RH	-	1	Enquire
20	AD2364573BAW	Cover Assy, Front Seat Squab, LH	AD2364573BAW Cover Assy, Front Seat Squab, LH	-	1	Enquire
21	7G4314D696AB	Heating Element, Squab	7G4314D696AB Heating Element, Squab 1 per squab assy	-	2	Enquire
22	7G3362900AFW	FRONT SEAT CUSHION RH COVER ASSY	7G3362900AFW FRONT SEAT CUSHION RH COVER ASSY	-	1	Enquire
22	7G3362901AFW	FRONT SEAT CUSHION LH COVER ASSY	7G3362901AFW FRONT SEAT CUSHION LH COVER ASSY	-	1	Enquire
23	8G439515AA	FRT ST CUSH FOAM RH	8G439515AA FRT ST CUSH FOAM RH	-	1	Enquire
23	8G439516AA	FRT ST CUSH FOAM LH	8G439516AA FRT ST CUSH FOAM LH	-	1	Enquire
24	7G4314D698AC	Element, Seat Base Heater	7G4314D698AC Element, Seat Base Heater 1 per cushion assy	-	2	Enquire
25	6G3361L16BA	RING SNAP MAG	6G3361L16BA RING SNAP MAG 1 per seat assy	-	2	Enquire
26	6G3361L16CA	PIN MAG SMALL	6G3361L16CA PIN MAG SMALL 1 per seat assy	-	2	Enquire
27	6G3361L16DA	LATCH MAG LARGE	6G3361L16DA LATCH MAG LARGE 1 per seat assy	-	2	Enquire
28	7G33611A11AAW	Guide, seat belt, upper, Not illustrated	7G33611A11AAW Guide, seat belt, upper, Not illustrated 1 per seat assy	-	2	Enquire
28	6G3361L16EA	WASHER LARGE MAG	6G3361L16EA WASHER LARGE MAG 1 per seat assy	-	2	Enquire
