Instrument Panel Centre Stack, Sat Nav of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Instrument Panel Centre Stack, Sat Nav

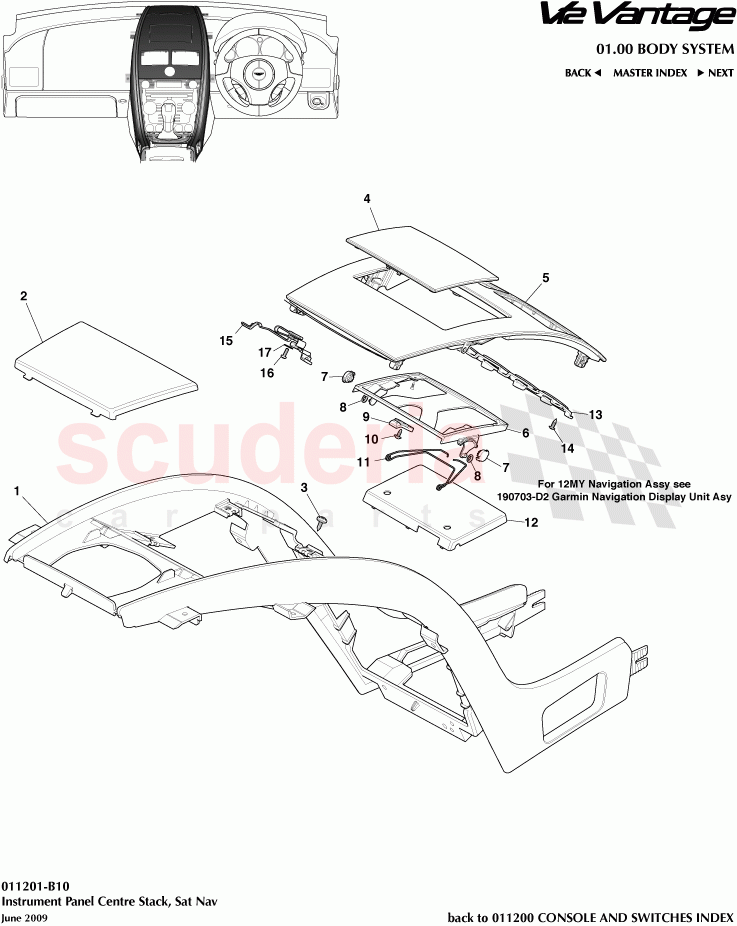

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CG3355210AAW	PANEL ASSEMBLY CENTRE	Enquire	To Order
	9G3355210ADW	Panel assy, instrument centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	Enquire	To Order
	EG43C046A26BA	GRILL I/PNL RADIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG33045G37DA	Door, console navigation, Gun Metal	Enquire	To Order
	9G33045G37AA	DR CNSL NAV	Enquire	To Order
	AD23045G37AA	DOOR CONSOLE NAV EURO 1298 K 1040 FINISH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD33045J10CC	NAV SRRND BLK CF	Enquire	To Order
	CG33045H43MA	Surround assy, Gun Metal	Enquire	To Order
	CG43045J10PE	NAV SURROUND PIANO	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3338392AA	SPINDLE DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314163AB	LOCATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33104101BA	M4 THRD FORM SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436911546	RTI COVER-NAV DISPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3314A462AB	Retainer, control switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703170	SCREW 4x8 PAN T/H CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG43204A34AB	Clip, Console Tether Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707137	SCREW-M4 x 12 PAN HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CG3355210AAW	PANEL ASSEMBLY CENTRE	CG3355210AAW PANEL ASSEMBLY CENTRE 12MY	-	1	Enquire
1	9G3355210ADW	Panel assy, instrument centre	9G3355210ADW Panel assy, instrument centre	-	1	Enquire
2	9D33C046A26AC	Grille Assy, Centre Speaker, Instrument Panel	9D33C046A26AC Grille Assy, Centre Speaker, Instrument Panel -B&O	-	1	Enquire
2	EG43C046A26BA	GRILL I/PNL RADIO	EG43C046A26BA GRILL I/PNL RADIO	-	1	Enquire
3	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	12	Enquire
4	CG33045G37DA	Door, console navigation, Gun Metal	CG33045G37DA Door, console navigation, Gun Metal 12MY	-	1	Enquire
4	9G33045G37AA	DR CNSL NAV	9G33045G37AA DR CNSL NAV	-	1	Enquire
4	AD23045G37AA	DOOR CONSOLE NAV EURO 1298 K 1040 FINISH	AD23045G37AA DOOR CONSOLE NAV EURO 1298 K 1040 FINISH	-	1	Enquire
5	BD33045J10CC	NAV SRRND BLK CF	BD33045J10CC NAV SRRND BLK CF Carbon Edition	-	1	Enquire
5	CG33045H43MA	Surround assy, Gun Metal	CG33045H43MA Surround assy, Gun Metal 12MY	-	1	Enquire
5	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO 12MY	-	1	Enquire
5	CD23045H43BA	Surround assy, Alloy	CD23045H43BA Surround assy, Alloy 12MY	-	1	Enquire
5	9G33045H43BB	NAV SURROUND ASSY	9G33045H43BB NAV SURROUND ASSY	-	1	Enquire
5	CG43045J10PE	NAV SURROUND PIANO	CG43045J10PE NAV SURROUND PIANO	-	1	Enquire
5	AD23045H43BA	SAT NAV SURROUND MANUAL EURO 1298-K- 1040 FINISH	AD23045H43BA SAT NAV SURROUND MANUAL EURO 1298-K- 1040 FINISH	-	1	Enquire
6	6G3318C917AB	BRACKET - NAVIGATION MOUNTING	6G3318C917AB BRACKET - NAVIGATION MOUNTING	-	1	Enquire
7	6G3338392AA	SPINDLE DAMPER	6G3338392AA SPINDLE DAMPER	-	2	Enquire
8	6G338979AA	WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	6G338979AA WASHER-NYLON 6.1mm ID x 10mm OD x 1mm THK	-	2	Enquire
9	6G3314163AB	LOCATOR	6G3314163AB LOCATOR	-	1	Enquire
10	6G33104101BA	M4 THRD FORM SCREW	6G33104101BA M4 THRD FORM SCREW	-	1	Enquire
11	6G3319363AE	SPRING TORSION 100 x 75 x 1.8	6G3319363AE SPRING TORSION 100 x 75 x 1.8	-	1	Enquire
12	4G436911546	RTI COVER-NAV DISPLY	4G436911546 RTI COVER-NAV DISPLY	-	1	Enquire
13	6G3314A462AB	Retainer, control switch	6G3314A462AB Retainer, control switch	-	1	Enquire
14	703170	SCREW 4x8 PAN T/H CHROME FREE	703170 SCREW 4x8 PAN T/H CHROME FREE	-	6	Enquire
15	CG43204A34AB	Clip, Console Tether Strap	CG43204A34AB Clip, Console Tether Strap 12MY	-	1	Enquire
16	707137	SCREW-M4 x 12 PAN HD	707137 SCREW-M4 x 12 PAN HD 12MY	-	2	Enquire
17	9D3346662AA	Washer, 14mm, 43 ID 14 OD 0.8 Thk	9D3346662AA Washer, 14mm, 43 ID 14 OD 0.8 Thk 12MY	-	2	Enquire
