Differential (Manual) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

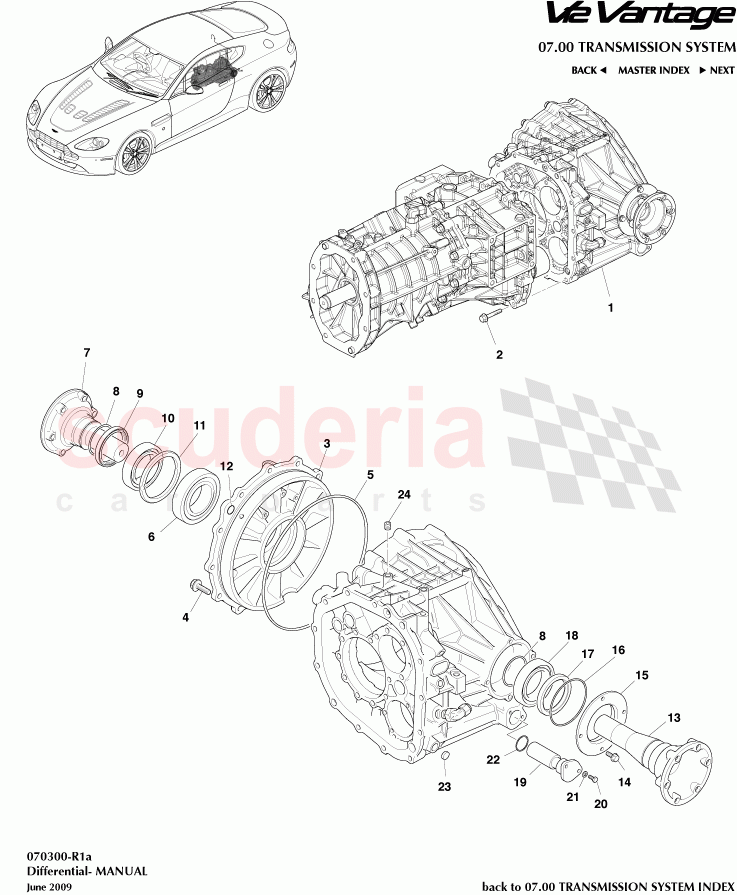

Aston Martin V12 Vantage (upto 2016) - Differential (Manual)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G432710611	HOUSING-DIFFERENTIAL	$5,202.57	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710606	COVER - DIFFERENTIAL	$1,641.99	To Order

Photo	Part No	Description	Price (each)	Stock
	702815	BOLT M8 x 30	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710607	SEAL - COVER	$127.30	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710605	Bearing, Differential Output	$325.16	To Order

Photo	Part No	Description	Price (each)	Stock
	702813	SHIM	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	$77.89	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710603	Bearing, Differential Output Shaft	$216.12	To Order

Photo	Part No	Description	Price (each)	Stock
	702814	SHIM	$175.72	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710502	O Ring, 2.69 x 9.92	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	$1,261.98	To Order

Photo	Part No	Description	Price (each)	Stock
	702812	Bolt, M6 x 16, Hex Flange Head	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710482	O Ring, 2.62 x 75.87	$12.75	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	$78.68	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710603	Bearing, Differential Output Shaft	$216.12	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710490	Filter, Oil	$211.45	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710492	Screw, M5 x 12	$3.28	To Order

Photo	Part No	Description	Price (each)	Stock
	702821	Washer, 5.3 x 0.5	$4.33	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	$44.23	To Order

Photo	Part No	Description	Price (each)	Stock
	702818	PLUG	$3.53	To Order

Photo	Part No	Description	Price (each)	Stock
	702817	Set Screw, M8 x 10	$7.35	To Order
	6G3375106AA/S	OIL-MAN TRANS 1 ltr	Enquire	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G432710611	HOUSING-DIFFERENTIAL	4G432710611 HOUSING-DIFFERENTIAL Complete	$5,202.57	1
3	4G432710606	COVER - DIFFERENTIAL	4G432710606 COVER - DIFFERENTIAL	$1,641.99	1
4	702815	BOLT M8 x 30	702815 BOLT M8 x 30	$5.35	12
5	4G432710607	SEAL - COVER	4G432710607 SEAL - COVER	$127.30	1
6	4G432710605	Bearing, Differential Output	4G432710605 Bearing, Differential Output	$325.16	2
8	702813	SHIM	702813 SHIM	$4.51	2
9	4G432710604	Seal, Differential Output Shaft RH, 55 x 70 x 8	4G432710604 Seal, Differential Output Shaft RH, 55 x 70 x 8	$77.89	1
10	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft	$216.12	2
11	702814	SHIM	702814 SHIM	$175.72	1
12	4G432710502	O Ring, 2.69 x 9.92	4G432710502 O Ring, 2.69 x 9.92	$1.85	1
13	4G432710600	OUTPUT SHAFT - LEFT SIDE DIF	4G432710600 OUTPUT SHAFT - LEFT SIDE DIF	$1,261.98	1
14	702812	Bolt, M6 x 16, Hex Flange Head	702812 Bolt, M6 x 16, Hex Flange Head	$1.27	4
15	4G432710602	BEARING - DIF OUTPUT SHAFT LEFT HAND	4G432710602 BEARING - DIF OUTPUT SHAFT LEFT HAND	$101.79	1
16	4G432710482	O Ring, 2.62 x 75.87	4G432710482 O Ring, 2.62 x 75.87	$12.75	1
17	4G432710483	Seal, Differential Output Shaft, Left, 55 x 72 x 8	4G432710483 Seal, Differential Output Shaft, Left, 55 x 72 x 8	$78.68	1
18	4G432710603	Bearing, Differential Output Shaft	4G432710603 Bearing, Differential Output Shaft	$216.12	2
19	4G432710490	Filter, Oil	4G432710490 Filter, Oil	$211.45	1
20	4G432710492	Screw, M5 x 12	4G432710492 Screw, M5 x 12	$3.28	2
21	702821	Washer, 5.3 x 0.5	702821 Washer, 5.3 x 0.5	$4.33	2
22	4G432710491PK	O RING 2.62 x 20.63 (PACK OF 10)	4G432710491PK O RING 2.62 x 20.63 (PACK OF 10)	$44.23	1
23	702818	PLUG	702818 PLUG	$3.53	1
24	702817	Set Screw, M8 x 10	702817 Set Screw, M8 x 10	$7.35	6
24	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr	-	-	Enquire
