Clutch System (RHD) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

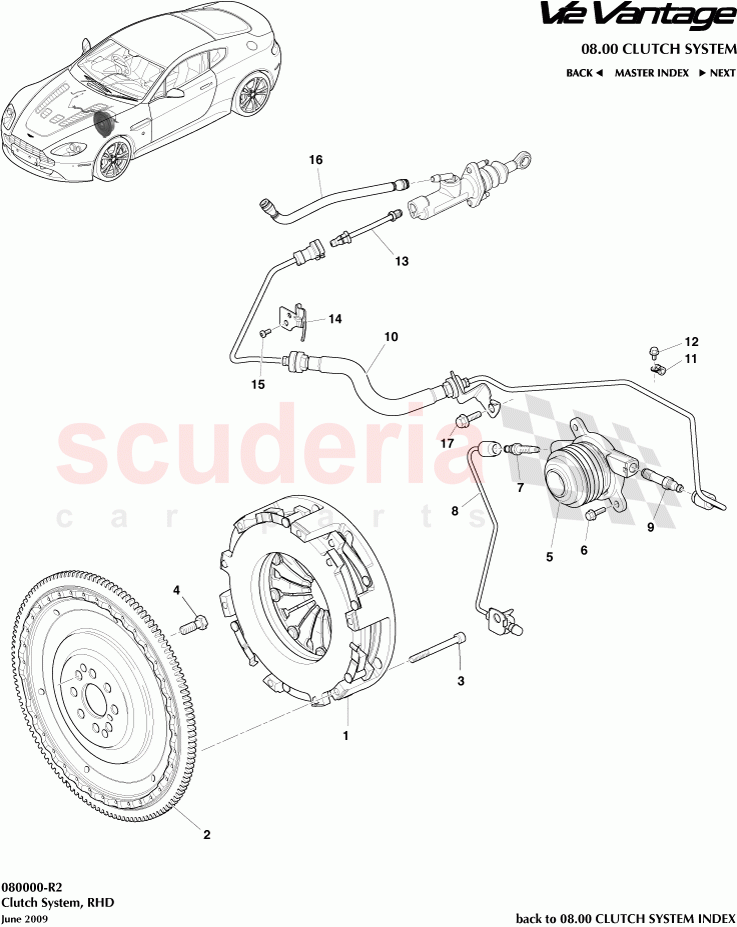

Aston Martin V12 Vantage (upto 2016) - Clutch System (RHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D336375CA	Flywheel Assembly Single Mass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD237A564AA	Slave Cylinder, Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437H552AB	HOSE ASSY - CLUTCH BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640BB	STUTZEN BLEED TO CSC M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699632	'P' CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23R7N630DA	Bracket, Clutch Line, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G431111200	Clutch Kit	4G431111200 Clutch Kit Includes items 1, 2, 3, 4 & 5	-	1	Enquire
2	8D336375CA	Flywheel Assembly Single Mass	8D336375CA Flywheel Assembly Single Mass Prior to VIN S00573 this part will also require items 1, 3 & 5 unless already fitted	-	1	Enquire
3	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head Clutch to Flywheel	-	9	Enquire
4	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain Discard when removed and install new bolts	-	8	Enquire
5	AD237A564AA	Slave Cylinder, Clutch	AD237A564AA Slave Cylinder, Clutch Prior to VIN S00573 this part will also require items 1, 2 & 3 unless already fitted	-	1	Enquire
6	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
7	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0	-	1	Enquire
8	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED	-	1	Enquire
9	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8	-	1	Enquire
10	4G437608AB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD	4G437608AB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE RHD Mstr Cylinder to Slave Cylinder	-	1	Enquire
11	699632	'P' CLIP	699632 'P' CLIP Clutch pipe to torque tube	-	1	Enquire
12	703206	SCREW-M5 x 8 HEX FLG CHROME FREE	703206 SCREW-M5 x 8 HEX FLG CHROME FREE	-	1	Enquire
13	4G437608CB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD	4G437608CB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER RHD Mstr Cylinder to Slave Cylinder	-	1	Enquire
14	AD23R7N630DA	Bracket, Clutch Line, RHD	AD23R7N630DA Bracket, Clutch Line, RHD	-	1	Enquire
15	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	2	Enquire
16	4G4341360BA	Pipe, Clutch Low Pressure, Reservoir to Master Cyl	4G4341360BA Pipe, Clutch Low Pressure, Reservoir to Master Cyl Reservoir to Mstr Cylinder	-	1	Enquire
