Transaxle (Manual) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

Aston Martin V12 Vantage (upto 2016) - Transaxle (Manual)

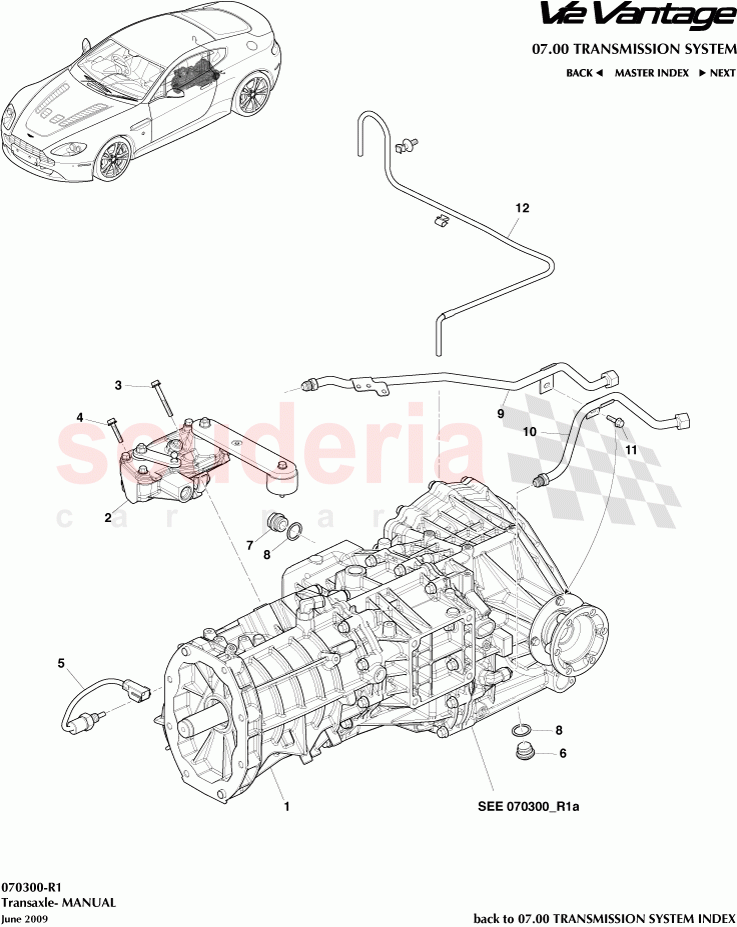

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91778	MANUAL TRANS ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33XSC2159AA	Bolt, flg, M6 x 50 bell crank attach	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33106205AA	Bolt, flg, M6 x 30 bell crank attach	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437J175BB	Reverse switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710493	PLUG - OIL LEVEL M22	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F113CA	TRANSMISSION COOLER PIPE - TRANS INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33E606403AA	FLANGE BOLT - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G337A245AA	PIPE ASSY- TRANS BREATHER	Enquire	To Order
	701575	Clip, Trans Breather Pipe	Enquire	To Order
	702284	Clip, Edge, Trans Breather Pipe	Enquire	To Order

...and 2 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91778	MANUAL TRANS ASSY	91778 MANUAL TRANS ASSY	-	1	Enquire
2	6G337N372AB	BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	6G337N372AB BELLCRANK ASSY - MANUAL TRANS GEAR SHIFT	-	1	Enquire
3	6G33XSC2159AA	Bolt, flg, M6 x 50 bell crank attach	6G33XSC2159AA Bolt, flg, M6 x 50 bell crank attach	-	3	Enquire
4	6G33106205AA	Bolt, flg, M6 x 30 bell crank attach	6G33106205AA Bolt, flg, M6 x 30 bell crank attach	-	3	Enquire
5	4G437J175BB	Reverse switch	4G437J175BB Reverse switch	-	1	Enquire
6	4G432710244	DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	4G432710244 DRAIN PLUG-MAGNETIC M22 x 1.5 (DIFF)	-	1	Enquire
7	4G432710493	PLUG - OIL LEVEL M22	4G432710493 PLUG - OIL LEVEL M22	-	1	Enquire
8	4G432710245PK	Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	4G432710245PK Copper Washer Drain Plug 22x28x1.5 (Pack of 10)	-	2	Enquire
9	6G337F113CA	TRANSMISSION COOLER PIPE - TRANS INLET	6G337F113CA TRANSMISSION COOLER PIPE - TRANS INLET	-	1	Enquire
10	6G337F112CA	Pipe, Transmission Oil Cooler, Outlet	6G337F112CA Pipe, Transmission Oil Cooler, Outlet	-	1	Enquire
11	6G33E606403AA	FLANGE BOLT - M6X16	6G33E606403AA FLANGE BOLT - M6X16	-	4	Enquire
12	6G337A245AA	PIPE ASSY- TRANS BREATHER	6G337A245AA PIPE ASSY- TRANS BREATHER	-	1	Enquire
12	701575	Clip, Trans Breather Pipe	701575 Clip, Trans Breather Pipe	-	1	Enquire
12	702284	Clip, Edge, Trans Breather Pipe	702284 Clip, Edge, Trans Breather Pipe	-	1	Enquire
12	4G4319G506BA	Grease, Input Shaft Spline	4G4319G506BA Grease, Input Shaft Spline	-	-	Enquire
12	6G3375106AA/S	OIL-MAN TRANS 1 ltr	6G3375106AA/S OIL-MAN TRANS 1 ltr	-	-	Enquire
