Clutch System (LHD) of Aston Martin Aston Martin V12 Vantage (upto 2016)

View All

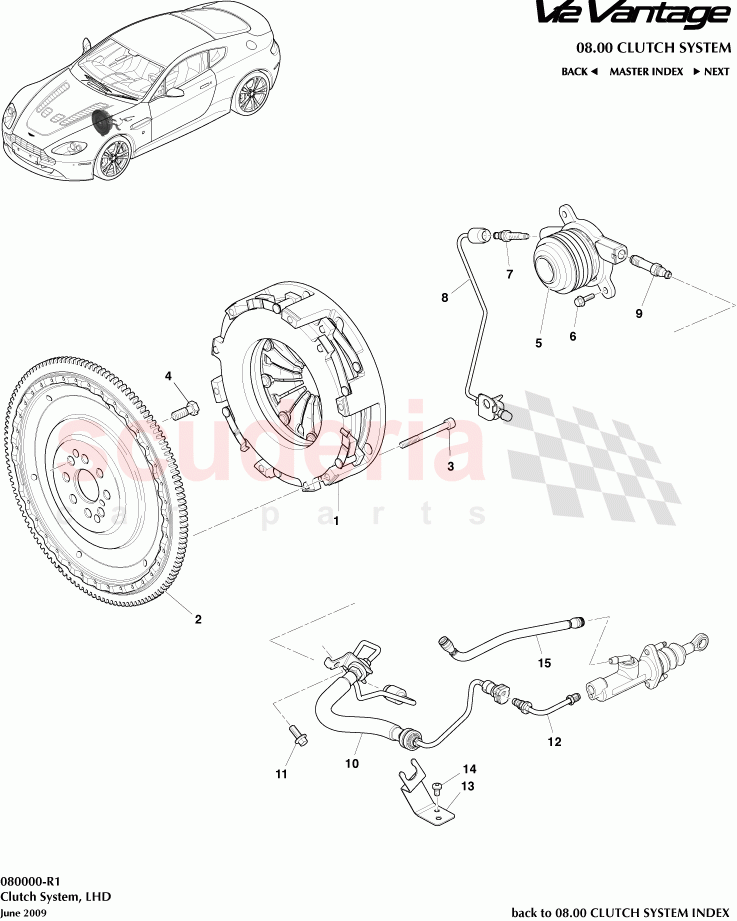

Aston Martin V12 Vantage (upto 2016) - Clutch System (LHD)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D336375CA	Flywheel Assembly Single Mass	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697748	Plug-Oil Pan Drain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD237A564AA	Slave Cylinder, Clutch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437H552AB	HOSE ASSY - CLUTCH BLEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437K640BB	STUTZEN BLEED TO CSC M8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608BB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G437608DB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD23R7N630AA	Bracket, Clutch Line, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701158	SCREW M6x10 BUTTON HD TORX BLACK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4G431111200	Clutch Kit	4G431111200 Clutch Kit Includes items 1, 2, 3, 4 & 5	-	1	Enquire
2	8D336375CA	Flywheel Assembly Single Mass	8D336375CA Flywheel Assembly Single Mass Prior to VIN S00573 this part will also require items 1, 3 & 5 unless already fitted	-	1	Enquire
3	AD23CD60AA	Bolt, M6 x 1.0 x 75, Socket Head	AD23CD60AA Bolt, M6 x 1.0 x 75, Socket Head Clutch to Flywheel	-	9	Enquire
4	697748	Plug-Oil Pan Drain	697748 Plug-Oil Pan Drain Discard when removed and install new bolts	-	8	Enquire
5	AD237A564AA	Slave Cylinder, Clutch	AD237A564AA Slave Cylinder, Clutch Prior to VIN S00573 this part will also require items 1, 2 & 3 unless already fitted	-	1	Enquire
6	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
7	4G437K640AB	STUTZEN FEED TO CSC M12x1.0	4G437K640AB STUTZEN FEED TO CSC M12x1.0	-	1	Enquire
8	4G437H552AB	HOSE ASSY - CLUTCH BLEED	4G437H552AB HOSE ASSY - CLUTCH BLEED	-	1	Enquire
9	4G437K640BB	STUTZEN BLEED TO CSC M8	4G437K640BB STUTZEN BLEED TO CSC M8	-	1	Enquire
10	4G437608BB	HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD	4G437608BB HOSE ASSY - CLUTCH MASTER CYLINDER TUBE LHD Mstr Cylinder to Slave Cylinder	-	1	Enquire
11	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	1	Enquire
12	4G437608DB	TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD	4G437608DB TUBE ASSY MASTER CYLINDER TO SLAVE CYLINDER UPPER LHD Mstr Cylinder to Slave Cylinder	-	1	Enquire
13	AD23R7N630AA	Bracket, Clutch Line, LHD	AD23R7N630AA Bracket, Clutch Line, LHD	-	1	Enquire
14	701158	SCREW M6x10 BUTTON HD TORX BLACK	701158 SCREW M6x10 BUTTON HD TORX BLACK	-	2	Enquire
