Differential, Drive And Prop Shafts

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Differential, Drive and Prop Shafts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
91574 DIFF-4.3:1 VANQUISH Enquire To Order
1R12270211AD DIFFERENTIAL ASSY 3.69:1 Enquire To Order
Photo Part No Description Price (each) Stock
1R12270290AF DRIVESHAFT ASSY - RH Enquire To Order
Photo Part No Description Price (each) Stock
3R12276222AA DRIVESHAFT ASSY RH Enquire To Order
3R12276223AA DRIVESHAFT ASSY LH Enquire To Order
1R12270291AF DRIVESHAFT ASSY - LH Enquire To Order
Photo Part No Description Price (each) Stock
1R12281138AD ABS TONE WHEEL-REAR 48T Enquire To Order
Photo Part No Description Price (each) Stock
1R12271942AA Ring retaining Enquire To Order
Photo Part No Description Price (each) Stock
91807 PROPSHAFT ASSY Enquire To Order
Photo Part No Description Price (each) Stock
700596 BOLT M12x1.25x70 Enquire To Order
Photo Part No Description Price (each) Stock
703094 WASHER M12 Enquire To Order
Photo Part No Description Price (each) Stock
703095 NUT M12x1.25 HEX Enquire To Order
Photo Part No Description Price (each) Stock
1R122710085 ISOLATOR ASSY-DIFF RR-FRT LOWER Enquire To Order
Photo Part No Description Price (each) Stock
1R12274560AA WASHER M12x70x4 Enquire To Order
Photo Part No Description Price (each) Stock
700129 BOLT M12x105 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
1R122710196 ISOLATOR-DIFF UPPER Enquire To Order
Photo Part No Description Price (each) Stock
700147 NUT M12x1.75 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
1R12224311AA ISOLATOR ASSY DIFFERENTIAL REAR Enquire To Order
Photo Part No Description Price (each) Stock
703154 BOLT & WASHER M14x99 HEX CHROME FREE Enquire To Order
Photo Part No Description Price (each) Stock
704596 Nut, M14, Hex Flange Head Enquire To Order
Photo Part No Description Price (each) Stock
9080245 WHEEL SPEED SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
3751825 SHIM-SPEEDO TRANSDCR Enquire To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG Enquire To Order
Photo Part No Description Price (each) Stock
703128 WASHER LOCK M6 Enquire To Order
Photo Part No Description Price (each) Stock
6W834B423AA Nut, Rear Drive Shaft to Rear Hub Flange Enquire To Order
Photo Part No Description Price (each) Stock
1R122710268 Pipe, breather Enquire To Order
Photo Part No Description Price (each) Stock
1R122710269 Clip, pipe Enquire To Order
Photo Part No Description Price (each) Stock
699519 P CLIP Enquire To Order
Photo Part No Description Price (each) Stock
704349PK TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12 Enquire To Order
1R122710327 COLLAPSIBLE SPACER- PINION (DIFF) Enquire To Order
703265 Screw, M6 x 16, Hex Flange Head Enquire To Order
...and 3 more part variants. See table on right for more details.
View All

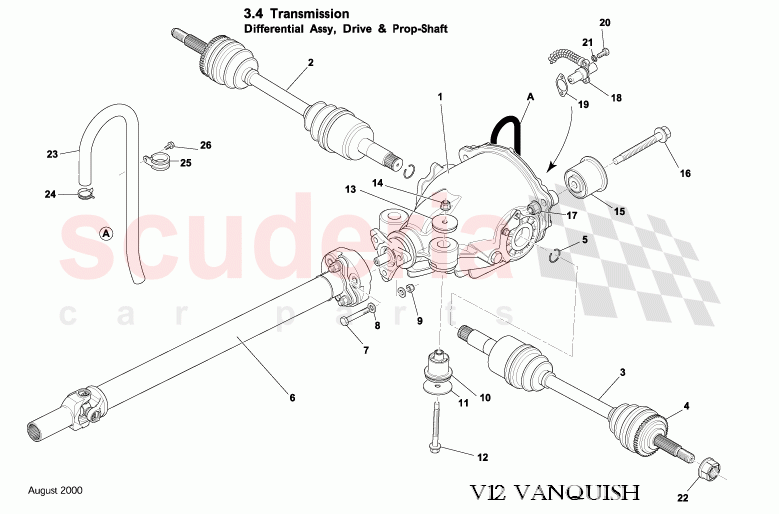

Differential, Drive and Prop Shafts of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 91574
DIFF-4.3:1 VANQUISH
Vanquish S From (V) 501506 		- 1 Enquire
1 1R12270211AD
DIFFERENTIAL ASSY 3.69:1 		- 1 Enquire
2 1R12270290AF
DRIVESHAFT ASSY - RH 		- 1 Enquire
3 3R12276222AA
DRIVESHAFT ASSY RH
For uprated brakes/Vanquish S From (V) 501506 		- 1 Enquire
3 3R12276223AA
DRIVESHAFT ASSY LH
For uprated brakes/Vanquish S From (V) 501506 		- 1 Enquire
3 1R12270291AF
DRIVESHAFT ASSY - LH 		- 1 Enquire
4 1R12281138AD
ABS TONE WHEEL-REAR 48T 		- 2 Enquire
5 1R12271942AA
Ring retaining 		- 2 Enquire
6 91807
PROPSHAFT ASSY 		- 1 Enquire
7 700596
BOLT M12x1.25x70
Propshaft to differential 		- 3 Enquire
8 703094
WASHER M12
Propshaft to differential 		- 3 Enquire
9 703095
NUT M12x1.25 HEX
Propshaft to differential 		- 3 Enquire
10 1R122710085
ISOLATOR ASSY-DIFF RR-FRT LOWER 		- 2 Enquire
11 1R12274560AA
WASHER M12x70x4 		- 4 Enquire
12 700129
BOLT M12x105 HEX FLG 		- 2 Enquire
13 1R122710196
ISOLATOR-DIFF UPPER 		- 2 Enquire
14 700147
NUT M12x1.75 HEX FLG 		- 2 Enquire
15 1R12224311AA
ISOLATOR ASSY DIFFERENTIAL REAR 		- 2 Enquire
16 703154
BOLT & WASHER M14x99 HEX CHROME FREE 		- 2 Enquire
17 704596
Nut, M14, Hex Flange Head 		- 2 Enquire
18 9080245
WHEEL SPEED SENSOR 		- 1 Enquire
19 3751825
SHIM-SPEEDO TRANSDCR 		- 1 Enquire
20 700126
SCREW M6x20 HEX FLG 		- 2 Enquire
21 703128
WASHER LOCK M6 		- 2 Enquire
22 6W834B423AA
Nut, Rear Drive Shaft to Rear Hub Flange 		- 2 Enquire
23 1R122710268
Pipe, breather 		- 1 Enquire
24 1R122710269
Clip, pipe 		- 1 Enquire
25 699519
P CLIP 		- 1 Enquire
26 704349PK
TRANSAXLE OIL (AUTO) SHELL SPIRAX S6 AXME 75W-90 (1ltr) BOX 12
20 litres 		- - Enquire
26 1R122710327
COLLAPSIBLE SPACER- PINION (DIFF) 		- 1 Enquire
26 703265
Screw, M6 x 16, Hex Flange Head 		- 1 Enquire
26 1R122710326
OIL SEAL-PINION(DIFF 		- 1 Enquire
26 1R122710325
NUT-PINION (DIFF) 		- 1 Enquire
26 1R122710328
SEAL-AXLE SHAFT(DIFF 		- 2 Enquire
