ASM Hydraulic System of Aston Martin Aston Martin Vanquish (2001-2007)

View All

Aston Martin Vanquish (2001-2007) - ASM Hydraulic System

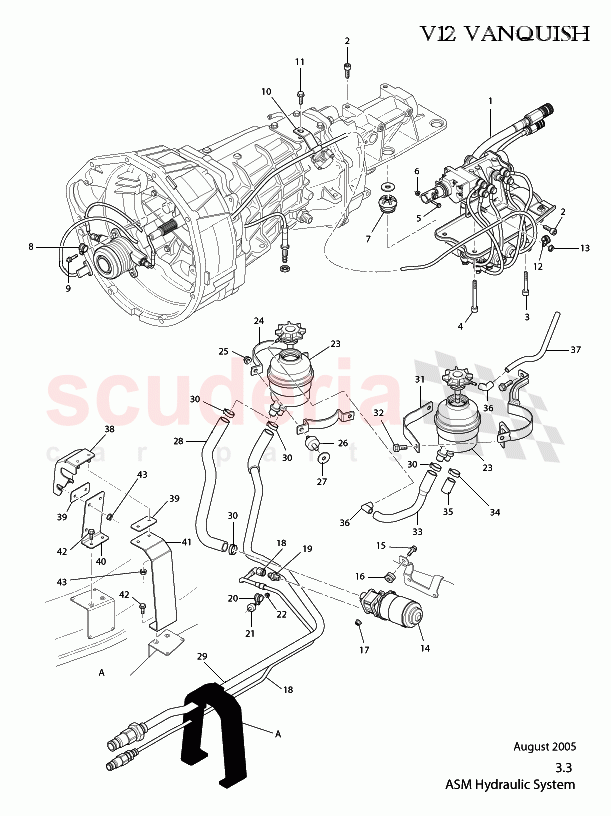

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4R124110718	ASM ACT/MAN	Enquire	To Order
	4R124110718	ASM ACT/MAN	Enquire	To Order
	6G337A564AA	Clutch Bearing Slave Assembly	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	700151	SCREW M8x45 HEX FLG8	Enquire	To Order
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12384064AA	Gaiter, cardan joint	Enquire	To Order
	700920	NUT M8 HEX FLG P/T MTL 10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

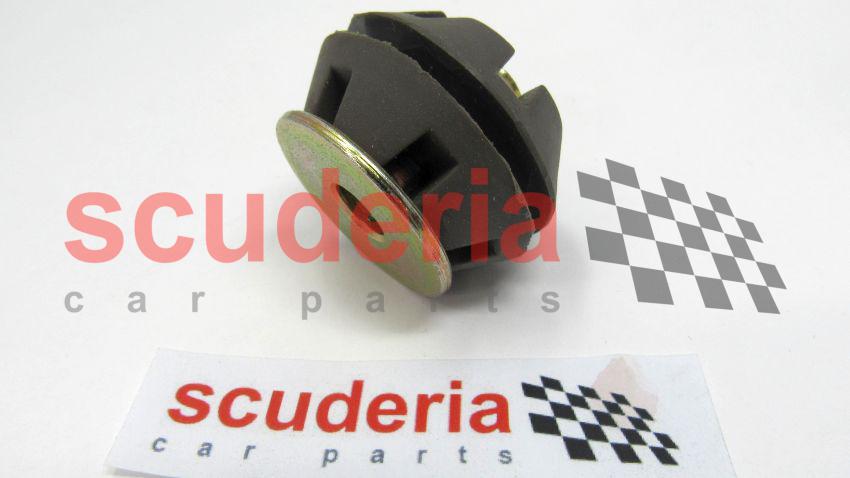

	1R12381756AC	AV MOUNT - ASM MFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699618	'P' CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699083	SCREW M6 x 30 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382674AB	FIXING STRAP HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699700	'P' CLIP - 08	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699697	Nut, M6, Flg Duralock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R124110689	ASM PUMP KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3280356	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12381725AG	HOSE - ASM PUMP TO ASM MANIFOLD (HP)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382818AB	ADAPTOR ASM PUMP M12x1.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699700	'P' CLIP - 08	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699683	ISOLATOR - TYPE A 20-20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703169	NUT - M6 HEX FLANGE CHROME FREE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12384568AA	RESERVOIR - HYDRAULIC OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12381441AB	BRKT-ASM RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699681	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12381449AF	HOSE ASSY - ASM	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12381729AH	HOSE-Y-PIECE TO ASM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699094	Clip, Hose, Spring Loaded, 16-25	Enquire	IN STOCK
	699721	HOSE CLAMP DIA 21	Enquire	To Order
	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702972	Screw, M8 x 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12384430AB	HOSE - RESERVOIR TO OVER FLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3360155AA	CLAMP - PAS HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12384431AA	HOSE - BLANK ASM OVERFLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382943AA	ELBOW - ASM RESERVOIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12382942AA	ASM VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383289AD	BRACKET - HP\LP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12383581AB	ISOLATOR RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12385777AA	BRACKET ASM SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700437	SPACER ASM BRACKET 12MM	Enquire	To Order
	1R12385777AA	BRACKET ASM SUPPORT	Enquire	To Order
	1R12385777AA	BRACKET ASM SUPPORT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12103825AA	STUD - REAR MOUNT - GEARBOX	Enquire	To Order
	1R124110465	MAGNETIC SENSOR UPGRADE KIT	Enquire	To Order
	1R123710370A	KIT-CLUTCH POSITION SENSOR	Enquire	To Order

...and 12 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4R124110718	ASM ACT/MAN	4R124110718 ASM ACT/MAN Vanquish S from (v) 501506	-	1	Enquire
1	4R124110718	ASM ACT/MAN	4R124110718 ASM ACT/MAN	-	1	Enquire
1	6G337A564AA	Clutch Bearing Slave Assembly IN STOCK	6G337A564AA Clutch Bearing Slave Assembly IN STOCK	-	1	Enquire
2	703265	Screw, M6 x 16, Hex Flange Head IN STOCK	703265 Screw, M6 x 16, Hex Flange Head IN STOCK	-	4	Enquire
3	700151	SCREW M8x45 HEX FLG8	700151 SCREW M8x45 HEX FLG8	-	2	Enquire
3	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	4	Enquire
4	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
5	703153	BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	703153 BOLT M8x33 FLNG PIL ADH 10.9 CHROME FREE	-	1	Enquire
6	1R12384064AA	Gaiter, cardan joint	1R12384064AA Gaiter, cardan joint	-	1	Enquire
6	700920	NUT M8 HEX FLG P/T MTL 10	700920 NUT M8 HEX FLG P/T MTL 10	-	1	Enquire
7	1R12381756AC	AV MOUNT - ASM MFOLD	1R12381756AC AV MOUNT - ASM MFOLD	-	4	Enquire
8	699618	'P' CLIP IN STOCK	699618 'P' CLIP IN STOCK	-	1	Enquire
9	699083	SCREW M6 x 30 FLG HD	699083 SCREW M6 x 30 FLG HD	-	2	Enquire
10	1R12382674AB	FIXING STRAP HOSE	1R12382674AB FIXING STRAP HOSE	-	1	Enquire
12	699700	'P' CLIP - 08	699700 'P' CLIP - 08	-	2	Enquire
13	699697	Nut, M6, Flg Duralock	699697 Nut, M6, Flg Duralock	-	1	Enquire
14	1R124110689	ASM PUMP KIT	1R124110689 ASM PUMP KIT	-	1	Enquire
15	703199	Bolt M6x30 HEX FLG Chrome Free IN STOCK	703199 Bolt M6x30 HEX FLG Chrome Free IN STOCK	-	3	Enquire
16	3280356	GROMMET	3280356 GROMMET	-	3	Enquire
17	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	3	Enquire
18	1R12381725AG	HOSE - ASM PUMP TO ASM MANIFOLD (HP)	1R12381725AG HOSE - ASM PUMP TO ASM MANIFOLD (HP)	-	1	Enquire
19	1R12382818AB	ADAPTOR ASM PUMP M12x1.0	1R12382818AB ADAPTOR ASM PUMP M12x1.0	-	1	Enquire
20	699700	'P' CLIP - 08	699700 'P' CLIP - 08	-	1	Enquire
21	699683	ISOLATOR - TYPE A 20-20	699683 ISOLATOR - TYPE A 20-20	-	1	Enquire
22	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	1	Enquire
23	1R12384568AA	RESERVOIR - HYDRAULIC OIL	1R12384568AA RESERVOIR - HYDRAULIC OIL	-	2	Enquire
24	1R12381441AB	BRKT-ASM RESERVOIR	1R12381441AB BRKT-ASM RESERVOIR	-	1	Enquire
25	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	2	Enquire
26	699685	ISOLATOR - TYPE A 30-15	699685 ISOLATOR - TYPE A 30-15	-	2	Enquire
27	699681	WASHER	699681 WASHER	-	2	Enquire
28	1R12381449AF	HOSE ASSY - ASM IN STOCK	1R12381449AF HOSE ASSY - ASM IN STOCK	-	1	Enquire
29	1R12381729AH	HOSE-Y-PIECE TO ASM	1R12381729AH HOSE-Y-PIECE TO ASM	-	1	Enquire
30	699094	Clip, Hose, Spring Loaded, 16-25 IN STOCK	699094 Clip, Hose, Spring Loaded, 16-25 IN STOCK	-	1	Enquire
30	699721	HOSE CLAMP DIA 21	699721 HOSE CLAMP DIA 21	-	1	Enquire
30	699545	HOSE CLAMP OETIKER REF: 025.6 - 706R	699545 HOSE CLAMP OETIKER REF: 025.6 - 706R	-	2	Enquire
31	1R12384340BA	BRACE RES O/FLOW	1R12384340BA BRACE RES O/FLOW	-	1	Enquire
32	702972	Screw, M8 x 14	702972 Screw, M8 x 14	-	4	Enquire
33	1R12384430AB	HOSE - RESERVOIR TO OVER FLOW	1R12384430AB HOSE - RESERVOIR TO OVER FLOW	-	1	Enquire
34	8D3360155AA	CLAMP - PAS HOSE	8D3360155AA CLAMP - PAS HOSE	-	1	Enquire
35	1R12384431AA	HOSE - BLANK ASM OVERFLOW	1R12384431AA HOSE - BLANK ASM OVERFLOW	-	1	Enquire
36	1R12382943AA	ELBOW - ASM RESERVOIR PIPE	1R12382943AA ELBOW - ASM RESERVOIR PIPE Early cars	-	1	Enquire
37	1R12382942AA	ASM VENT PIPE	1R12382942AA ASM VENT PIPE	-	1	Enquire
38	1R12383289AD	BRACKET - HP\LP SUPPORT	1R12383289AD BRACKET - HP\LP SUPPORT Early cars	-	1	Enquire
39	1R12383581AB	ISOLATOR RUBBER	1R12383581AB ISOLATOR RUBBER	-	2	Enquire
40	1R12385777AA	BRACKET ASM SUPPORT	1R12385777AA BRACKET ASM SUPPORT Early cars	-	1	Enquire
41	700437	SPACER ASM BRACKET 12MM	700437 SPACER ASM BRACKET 12MM Later cars	-	1	Enquire
41	1R12385777AA	BRACKET ASM SUPPORT	1R12385777AA BRACKET ASM SUPPORT Early cars	-	1	Enquire
41	1R12385777AA	BRACKET ASM SUPPORT	1R12385777AA BRACKET ASM SUPPORT Later cars	-	1	Enquire
41	699699	'P' CLIP - 16	699699 'P' CLIP - 16 Later cars	-	3	Enquire
42	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head IN STOCK	-	4	Enquire
43	1R12103825AA	STUD - REAR MOUNT - GEARBOX	1R12103825AA STUD - REAR MOUNT - GEARBOX See sect 1.8	-	1	Enquire
43	1R124110465	MAGNETIC SENSOR UPGRADE KIT	1R124110465 MAGNETIC SENSOR UPGRADE KIT	-	1	Enquire
43	1R123710370A	KIT-CLUTCH POSITION SENSOR	1R123710370A KIT-CLUTCH POSITION SENSOR	-	1	Enquire
43	4R12386325AB	PLCD SENSOR MAIN BODY	4R12386325AB PLCD SENSOR MAIN BODY	-	1	Enquire
43	701200	LOCATING SCREW M4	701200 LOCATING SCREW M4	-	1	Enquire
43	4R12386327AA	PLCD MAGNET CARRIER	4R12386327AA PLCD MAGNET CARRIER	-	1	Enquire
43	5R13386362AA	GASKET - MODIFIED GEARSHIFT SENSOR	5R13386362AA GASKET - MODIFIED GEARSHIFT SENSOR	-	1	Enquire
43	4R12376322AA	TRANSMISSION GEAR POSITION LINK LEAD	4R12376322AA TRANSMISSION GEAR POSITION LINK LEAD	-	1	Enquire
43	91842	H PLATE	91842 H PLATE	-	1	Enquire
43	4R13416328AA	BLANKING PLUG - GEARBOX (SERVICE ONLY)	4R13416328AA BLANKING PLUG - GEARBOX (SERVICE ONLY)	-	2	Enquire
43	703193	BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	703193 BOLT M8 x 55 GRD 8 FLANGE HEX HEAD CHROME FREE	-	2	Enquire
43	703188	SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	703188 SCREW M8 x1.25 x 20 FLANGE HEX HEAD CHROME FREE	-	4	Enquire
43	703169	NUT - M6 HEX FLANGE CHROME FREE IN STOCK	703169 NUT - M6 HEX FLANGE CHROME FREE IN STOCK	-	4	Enquire
43	703273	WASHER WAVE SPRING M8	703273 WASHER WAVE SPRING M8	-	4	Enquire
43	699751S	LUBRICANT-1 ltr ASM SYSTEM	699751S LUBRICANT-1 ltr ASM SYSTEM	-	-	Enquire
