Oil Cooling Transmission

Aston Martin Vanquish (2001-2007)

Find Your Part

Aston Martin Vanquish (2001-2007) - Oil Cooling Transmission

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
5R137A095AA ASSY - DIFF AND TRANS COOLER $3,289.69 To Order
1R12445721AA TRANSMISSION COOLER MIDDLE EAST $2,070.32 To Order
1R12442060AA MATRIX OIL COOLER - TRANSMISSION $2,248.35 To Order
Photo Part No Description Price (each) Stock
700150 WASHER M8 X 19 X 3 PLAIN ZINC BRT $0.89 To Order
Photo Part No Description Price (each) Stock
700144 SCREW M8x20 HEX FLG8 $10.00 To Order
Photo Part No Description Price (each) Stock
1R12442810AA BRACKET-TRANSMISSION COOLER MOUNTING $33.64 To Order
Photo Part No Description Price (each) Stock
699848 SCREW M6 x 25 CSUNK $0.57 To Order
Photo Part No Description Price (each) Stock
1R12415723AA Pipe, transmission cooler to return pipe Enquire To Order
1R12441997AF TUBE ASSY - MATRIX TO JOINT $820.61 To Order
Photo Part No Description Price (each) Stock
1R12441996AF HOSE ASSY - RADIATOR PACK (UPPER) TO MATX $151.96 To Order
700004 HOSE CLAMP $1.64 To Order
1R12415722AA PIPE RADIATIOR TO TRANS COOLER $332.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
1R12441995AE TUBE ASSY - PUMP TO RAD PACK (LOWER) $372.39 To Order
Photo Part No Description Price (each) Stock
32122742AA OIL PUMP MANUAL TRANSMISSION $1,278.99 To Order
Photo Part No Description Price (each) Stock
700126 SCREW M6x20 HEX FLG $3.17 To Order
Photo Part No Description Price (each) Stock
1R12442890AB MALE HOSE TAIL - M14 X 1.5 $45.98 IN STOCK
Photo Part No Description Price (each) Stock
1R12442891AA DOWTY BONDED SEAL M14 $1.89 IN STOCK
Photo Part No Description Price (each) Stock
699094 Clip, Hose, Spring Loaded, 16-25 $7.79 IN STOCK
Photo Part No Description Price (each) Stock
1R12441994AG TUBE ASSY - GEARBOX TO PUMP (SUCTION) $672.90 To Order
Photo Part No Description Price (each) Stock
1R12442719AG TUBE ASSY - JOINT TO GEARBOX $711.00 To Order
Photo Part No Description Price (each) Stock
1R124410374 KIT-QUICK CONNECTOR $937.51 To Order
Photo Part No Description Price (each) Stock
1R124410374 KIT-QUICK CONNECTOR $937.51 To Order
Photo Part No Description Price (each) Stock
694891 P-CLIP $4.08 To Order
Photo Part No Description Price (each) Stock
703265 Screw, M6 x 16, Hex Flange Head $0.36 IN STOCK
Photo Part No Description Price (each) Stock
1R12443287AA BRACKET TRANS COOLER PIPES TO SUMP $147.73 To Order
View All

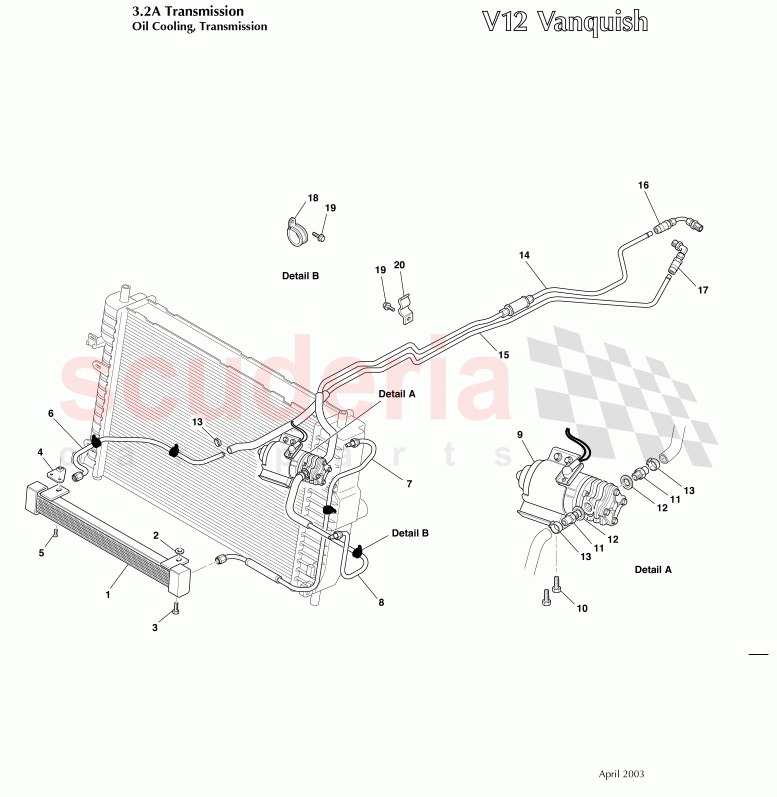

Oil Cooling Transmission of Aston Martin Aston Martin Vanquish (2001-2007) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 5R137E319AA
MALE-MALE CONNECTOR M14X1.5 / - 6 JIC
Vanquish S From (V) 501506 		$18.42 1
- 5R137F112AB
TRANS PIPE (RETURN) COOLER TO JOINT
Vanquish S From (V) 501506 		$223.25 1
- 5R137F113AA
TRANS PIPE (FEED) COOLER TO PUMP
Vanquish S From (V) 501506 		$299.81 1
- 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
IN STOCK 		$5.90 1
- 700144
SCREW M8x20 HEX FLG8 		$10.00 1
1 5R137A095AA
ASSY - DIFF AND TRANS COOLER
Vanquish S From (V) 501506 		$3,289.69 1
1 1R12445721AA
TRANSMISSION COOLER MIDDLE EAST
Middle East cars 		$2,070.32 1
1 1R12442060AA
MATRIX OIL COOLER - TRANSMISSION 		$2,248.35 1
2 700150
WASHER M8 X 19 X 3 PLAIN ZINC BRT 		$0.89 1
3 700144
SCREW M8x20 HEX FLG8 		$10.00 2
4 1R12442810AA
BRACKET-TRANSMISSION COOLER MOUNTING 		$33.64 1
5 699848
SCREW M6 x 25 CSUNK 		$0.57 2
6 1R12415723AA
Pipe, transmission cooler to return pipe
Middle East cars 		- 1 Enquire
6 1R12441997AF
TUBE ASSY - MATRIX TO JOINT 		$820.61 1
7 1R12441996AF
HOSE ASSY - RADIATOR PACK (UPPER) TO MATX
Lower part of item 7 		$151.96 1
7 700004
HOSE CLAMP
Lower part of item 7 		$1.64 1
7 1R12415722AA
PIPE RADIATIOR TO TRANS COOLER
Middle East cars 		$332.81 1
7 1R12444763AA
TUBE ASSY - JOINT TO MATRIX 		$92.71 1
8 1R12441995AE
TUBE ASSY - PUMP TO RAD PACK (LOWER) 		$372.39 1
9 32122742AA
OIL PUMP MANUAL TRANSMISSION 		$1,278.99 1
10 700126
SCREW M6x20 HEX FLG 		$3.17 2
11 1R12442890AB
MALE HOSE TAIL - M14 X 1.5
IN STOCK 		$45.98 2
12 1R12442891AA
DOWTY BONDED SEAL M14
IN STOCK 		$1.89 2
13 699094
Clip, Hose, Spring Loaded, 16-25
IN STOCK 		$7.79 3
14 1R12441994AG
TUBE ASSY - GEARBOX TO PUMP (SUCTION) 		$672.90 1
15 1R12442719AG
TUBE ASSY - JOINT TO GEARBOX 		$711.00 1
16 1R124410374
KIT-QUICK CONNECTOR 		$937.51 1
17 1R124410374
KIT-QUICK CONNECTOR 		$937.51 1
18 694891
P-CLIP 		$4.08 4
19 703265
Screw, M6 x 16, Hex Flange Head
IN STOCK 		$0.36 5
20 1R12443287AA
BRACKET TRANS COOLER PIPES TO SUMP 		$147.73 1
