Aston Martin Vanquish (2001-2007) - Oil Cooling Axle

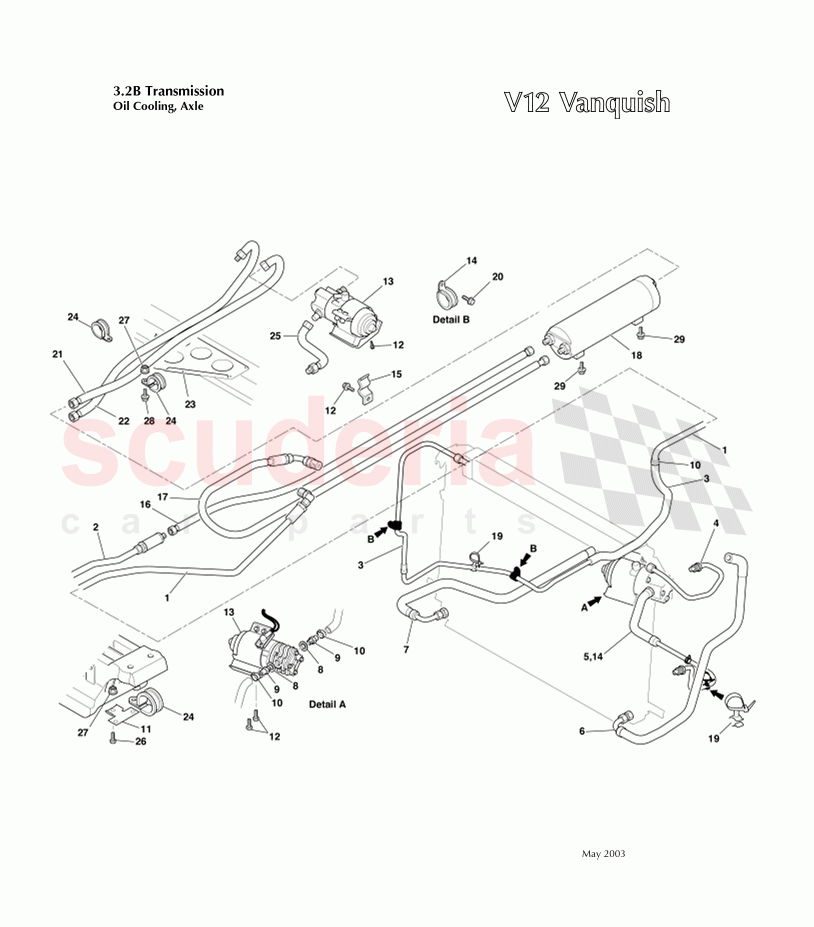

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R12442719AG	TUBE ASSY - JOINT TO GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12441994AG	TUBE ASSY - GEARBOX TO PUMP (SUCTION)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12415723AA	Pipe, transmission cooler to return pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12415722AA	PIPE RADIATIOR TO TRANS COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12245732AA	HOSE ASSY - COOLER TO PAS BOTTLE MIDDLE EAST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12245731AA	HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12442891AA	DOWTY BONDED SEAL M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12442890AA	Male hose tail, M14 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699547	Clamp, Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12415734AA	BRACKET HOSE - GEARBOX MOUNT MIDDLE EAST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	32122742AA	OIL PUMP MANUAL TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	694891	P-CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12443287AA	BRACKET TRANS COOLER PIPES TO SUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12275726AA	PIPE AXLE COOLER TO FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12275725AA	PIPE GEARBOX TO AXLE COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12445724AA	AXLE COOLER MIDDLE EAST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699693	ASSY CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700126	SCREW M6x20 HEX FLG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12275728AA	PIPE PUMP TO AXLE COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12275729AA	PIPE AXLE COOLER TO AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12415764AA	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699699	'P' CLIP - 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12275727AA	PIPE-AXLE TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	5R134C083AA	MALE-MALE CONNECTOR M16X1.5 / - 6 JIC	Enquire	To Order
	5R137W093AA	TUNNEL PIPE (RETURN) DIFF TO COOLER	Enquire	To Order
	5R137A095AA	ASSY - DIFF AND TRANS COOLER	Enquire	To Order

...and 17 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	1R12442719AG	TUBE ASSY - JOINT TO GEARBOX	1R12442719AG TUBE ASSY - JOINT TO GEARBOX	-	1	Enquire
2	1R12441994AG	TUBE ASSY - GEARBOX TO PUMP (SUCTION)	1R12441994AG TUBE ASSY - GEARBOX TO PUMP (SUCTION)	-	1	Enquire
3	1R12415723AA	Pipe, transmission cooler to return pipe	1R12415723AA Pipe, transmission cooler to return pipe Middle East cars	-	1	Enquire
4	1R12415722AA	PIPE RADIATIOR TO TRANS COOLER	1R12415722AA PIPE RADIATIOR TO TRANS COOLER Middle East cars	-	1	Enquire
5	1R12441995AE	TUBE ASSY - PUMP TO RAD PACK (LOWER)	1R12441995AE TUBE ASSY - PUMP TO RAD PACK (LOWER)	-	1	Enquire
6	1R12245732AA	HOSE ASSY - COOLER TO PAS BOTTLE MIDDLE EAST	1R12245732AA HOSE ASSY - COOLER TO PAS BOTTLE MIDDLE EAST	-	1	Enquire
7	1R12245731AA	HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST	1R12245731AA HOSE ASSY-RACK TUBE TO PAS COOLER M/EAST	-	1	Enquire
8	1R12442891AA	DOWTY BONDED SEAL M14	1R12442891AA DOWTY BONDED SEAL M14 Middle East cars	-	2	Enquire
9	1R12442890AA	Male hose tail, M14 x 1.5	1R12442890AA Male hose tail, M14 x 1.5 Middle East cars	-	2	Enquire
10	699547	Clamp, Hose	699547 Clamp, Hose Middle East cars	-	2	Enquire
11	1R12415734AA	BRACKET HOSE - GEARBOX MOUNT MIDDLE EAST	1R12415734AA BRACKET HOSE - GEARBOX MOUNT MIDDLE EAST Middle East cars	-	2	Enquire
12	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Middle East cars	-	4	Enquire
13	32122742AA	OIL PUMP MANUAL TRANSMISSION	32122742AA OIL PUMP MANUAL TRANSMISSION Middle East cars	-	1	Enquire
14	694891	P-CLIP	694891 P-CLIP Middle East cars	-	3	Enquire
15	1R12443287AA	BRACKET TRANS COOLER PIPES TO SUMP	1R12443287AA BRACKET TRANS COOLER PIPES TO SUMP Middle East cars	-	1	Enquire
16	1R12275726AA	PIPE AXLE COOLER TO FILTER	1R12275726AA PIPE AXLE COOLER TO FILTER Middle East cars	-	1	Enquire
17	1R12275725AA	PIPE GEARBOX TO AXLE COOLER	1R12275725AA PIPE GEARBOX TO AXLE COOLER Middle East cars	-	1	Enquire
18	1R12445724AA	AXLE COOLER MIDDLE EAST	1R12445724AA AXLE COOLER MIDDLE EAST Middle East cars	-	1	Enquire
19	699693	ASSY CLIP	699693 ASSY CLIP Middle East cars	-	2	Enquire
20	700126	SCREW M6x20 HEX FLG	700126 SCREW M6x20 HEX FLG Middle East cars	-	2	Enquire
21	1R12275728AA	PIPE PUMP TO AXLE COOLER	1R12275728AA PIPE PUMP TO AXLE COOLER Middle East cars	-	1	Enquire
22	1R12275729AA	PIPE AXLE COOLER TO AXLE	1R12275729AA PIPE AXLE COOLER TO AXLE Middle East cars	-	1	Enquire
23	1R12415764AA	Bracket	1R12415764AA Bracket Middle East cars	-	1	Enquire
24	699699	'P' CLIP - 16	699699 'P' CLIP - 16 Middle East cars	-	4	Enquire
25	1R12275727AA	PIPE-AXLE TO PUMP	1R12275727AA PIPE-AXLE TO PUMP Middle East cars	-	1	Enquire
26	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Middle East cars	-	2	Enquire
27	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking Middle East cars	-	3	Enquire
28	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head Middle East cars	-	1	Enquire
29	5R134C083AA	MALE-MALE CONNECTOR M16X1.5 / - 6 JIC	5R134C083AA MALE-MALE CONNECTOR M16X1.5 / - 6 JIC Vanquish S From (V) 501506	-	1	Enquire
29	5R137W093AA	TUNNEL PIPE (RETURN) DIFF TO COOLER	5R137W093AA TUNNEL PIPE (RETURN) DIFF TO COOLER Vanquish S From (V) 501506	-	1	Enquire
29	5R137A095AA	ASSY - DIFF AND TRANS COOLER	5R137A095AA ASSY - DIFF AND TRANS COOLER Vanquish S From (V) 501506	-	1	Enquire
29	5R134N249AB	FRT PIPE (RETURN) DIFF TO COOLER	5R134N249AB FRT PIPE (RETURN) DIFF TO COOLER Vanquish S From (V) 501506	-	1	Enquire
29	5R137W093BA	TUNNEL PIPE (FEED) COOLER TO DIFF	5R137W093BA TUNNEL PIPE (FEED) COOLER TO DIFF Vanquish S From (V) 501506	-	1	Enquire
29	5R134N249BB	FRT PIPE (FEED) COOLER TO DIFF	5R134N249BB FRT PIPE (FEED) COOLER TO DIFF Vanquish S From (V) 501506	-	1	Enquire
29	5R13326E0AA	PIPE (FEED) COOLER TO DIFF	5R13326E0AA PIPE (FEED) COOLER TO DIFF Vanquish S From (V) 501506	-	1	Enquire
29	1R12275728AA	PIPE PUMP TO AXLE COOLER	1R12275728AA PIPE PUMP TO AXLE COOLER Vanquish S From (V) 501506	-	1	Enquire
29	1R12275727AA	PIPE-AXLE TO PUMP	1R12275727AA PIPE-AXLE TO PUMP Vanquish S From (V) 501506	-	1	Enquire
29	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking Vanquish S From (V) 501506	-	1	Enquire
29	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head Vanquish S From (V) 501506	-	1	Enquire
29	32122742AA	OIL PUMP MANUAL TRANSMISSION	32122742AA OIL PUMP MANUAL TRANSMISSION Vanquish S From (V) 501506	-	1	Enquire
29	1R12445764AA	BRACKET AXLE COOLER PIPE CLIP - MIDDLE EAST	1R12445764AA BRACKET AXLE COOLER PIPE CLIP - MIDDLE EAST Vanquish S From (V) 501506	-	1	Enquire
29	1R12442891AA	DOWTY BONDED SEAL M14	1R12442891AA DOWTY BONDED SEAL M14 Vanquish S From (V) 501506	-	2	Enquire
29	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Vanquish S From (V) 501506	-	2	Enquire
29	699699	'P' CLIP - 16	699699 'P' CLIP - 16 Vanquish S From (V) 501506	-	2	Enquire
29	697274PK	TIE STRAP(PK OF 100)	697274PK TIE STRAP(PK OF 100) Vanquish S From (V) 501506	-	5	Enquire
29	45120459AA	LUBRICANT-TRANSMISSN	45120459AA LUBRICANT-TRANSMISSN Vanquish S From (V) 501506	-	-	Enquire
29	696819	Oil, Mobil	696819 Oil, Mobil Vanquish S From (V) 501506	-	-	Enquire
29	703202	Screw, M8 x 12, Flange Hd	703202 Screw, M8 x 12, Flange Hd Middle East cars	-	2	Enquire
