Engine Air Charging of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Engine Air Charging

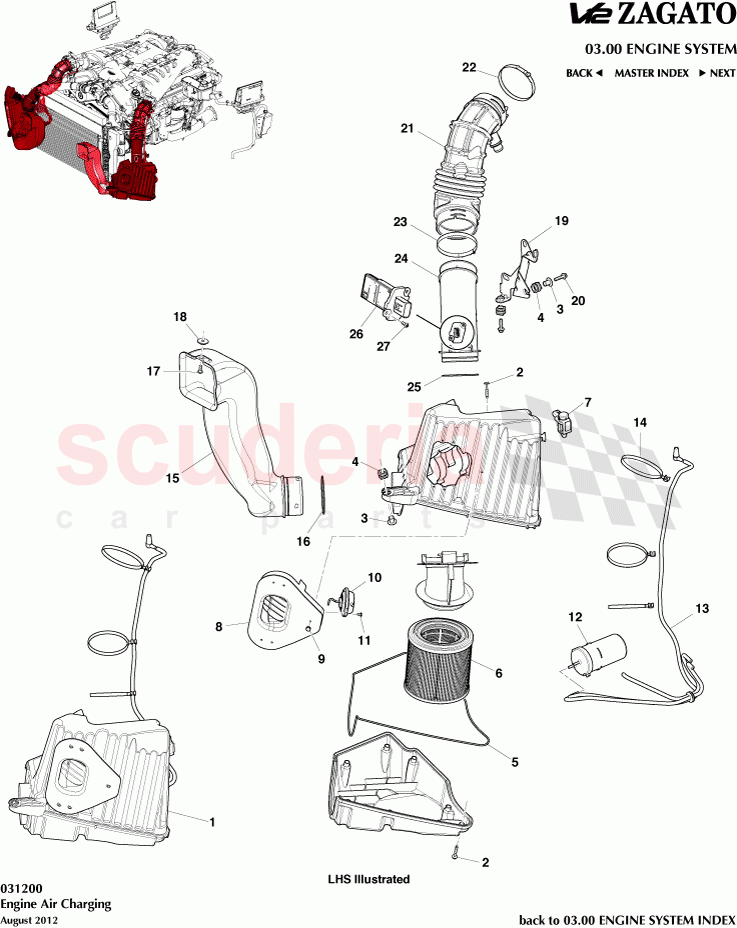

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D339600CA	Airbox Assembly - LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430410AA	Screw - 5.2x32 Self Tap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G435144AA	Spacer, Engine Airbox Isolator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439697CA	Grommet, Engine Airbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439C664AB	Gasket - Air Cleaner Housing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439601ABPK	Air Filter (Pack of 2)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L349H465BA	Valve assy, Therm Air Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D333N731AA	VALVE HOUSING ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D335F006AA	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D337L576AA	Actuator, Control Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W506941S437	Screw, M4 x 8, Pan Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D332K061AA	VACCUUM RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3343836AA	VACUUM HOSE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D33ANR1350AA	CABLE TIE HOSE CLIP ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239A675BA	ASSY - A/CLEANER INTAKE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704AA	O Ring - Engine Duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G432705AA	Rivet Plastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BD239B609AA	Bracket, Air Cleaner Outer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703025	Screw, M6 x 25, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD239C623BB	Duct Assy, Air Cleaner to Engine LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N832AA	Clamp - Air Cleaner Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G436C704BA	O-Ring Engine Duct Interior	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430810933	Mass Air Flow Meter	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430410BB	Screw, M35 x 12 Self Tap	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8D339600BA	Airbox RH	8D339600BA Airbox RH	-	1	Enquire
-	AD239A675AA	ASSY - A/CLEANER INTAKE RH	AD239A675AA ASSY - A/CLEANER INTAKE RH Includes Item 16	-	1	Enquire
-	BD239B609BA	Bracket, Air Cleaner Outer, RH	BD239B609BA Bracket, Air Cleaner Outer, RH	-	1	Enquire
-	AD239C623AA	Duct Assy, Air Cleaner to Engine RH	AD239C623AA Duct Assy, Air Cleaner to Engine RH Includes Items 22 and 23	-	1	Enquire
1	8D339600CA	Airbox Assembly - LHS	8D339600CA Airbox Assembly - LHS	-	1	Enquire
2	4G430410AA	Screw - 5.2x32 Self Tap	4G430410AA Screw - 5.2x32 Self Tap	-	20	Enquire
3	4G435144AA	Spacer, Engine Airbox Isolator	4G435144AA Spacer, Engine Airbox Isolator	-	6	Enquire
4	4G439697CA	Grommet, Engine Airbox	4G439697CA Grommet, Engine Airbox	-	8	Enquire
5	4G439C664AB	Gasket - Air Cleaner Housing	4G439C664AB Gasket - Air Cleaner Housing	-	2	Enquire
6	4G439601ABPK	Air Filter (Pack of 2)	4G439601ABPK Air Filter (Pack of 2) Pack of 2	-	2	Enquire
7	6L349H465BA	Valve assy, Therm Air Control	6L349H465BA Valve assy, Therm Air Control	-	2	Enquire
8	8D333N731AA	VALVE HOUSING ASSEMBLY	8D333N731AA VALVE HOUSING ASSEMBLY	-	2	Enquire
9	8D335F006AA	RIVET	8D335F006AA RIVET	-	20	Enquire
10	8D337L576AA	Actuator, Control Valve	8D337L576AA Actuator, Control Valve	-	2	Enquire
11	W506941S437	Screw, M4 x 8, Pan Hd	W506941S437 Screw, M4 x 8, Pan Hd	-	2	Enquire
12	8D332K061AA	VACCUUM RESERVOIR	8D332K061AA VACCUUM RESERVOIR	-	2	Enquire
13	8D3343836AA	VACUUM HOSE ASSEMBLY	8D3343836AA VACUUM HOSE ASSEMBLY	-	2	Enquire
14	8D33ANR1350AA	CABLE TIE HOSE CLIP ASSEMBLY	8D33ANR1350AA CABLE TIE HOSE CLIP ASSEMBLY	-	6	Enquire
15	AD239A675BA	ASSY - A/CLEANER INTAKE LH	AD239A675BA ASSY - A/CLEANER INTAKE LH Includes Item 16	-	1	Enquire
16	4G436C704AA	O Ring - Engine Duct	4G436C704AA O Ring - Engine Duct	-	2	Enquire
17	4G432705AA	Rivet Plastic	4G432705AA Rivet Plastic	-	2	Enquire
18	4G439N967AA	Grommet - ENG A/CLNR Tub EXT	4G439N967AA Grommet - ENG A/CLNR Tub EXT	-	2	Enquire
19	BD239B609AA	Bracket, Air Cleaner Outer, LH	BD239B609AA Bracket, Air Cleaner Outer, LH	-	1	Enquire
20	703025	Screw, M6 x 25, Hex Flange Head	703025 Screw, M6 x 25, Hex Flange Head	-	4	Enquire
21	AD239C623BB	Duct Assy, Air Cleaner to Engine LH	AD239C623BB Duct Assy, Air Cleaner to Engine LH Includes Items 22 and 23	-	1	Enquire
22	4G439N832BB	HOSE CLAMP DUCT TO AIRBOX	4G439N832BB HOSE CLAMP DUCT TO AIRBOX	-	2	Enquire
23	4G439N832AA	Clamp - Air Cleaner Hose	4G439N832AA Clamp - Air Cleaner Hose	-	2	Enquire
24	4G4312B612AB	Body - Engine Electronic Mas Air Flow Sensor	4G4312B612AB Body - Engine Electronic Mas Air Flow Sensor Includes Item 25	-	2	Enquire
25	4G436C704BA	O-Ring Engine Duct Interior ARRIVING SOON	4G436C704BA O-Ring Engine Duct Interior ARRIVING SOON	-	2	Enquire
26	4G430810933	Mass Air Flow Meter ARRIVING SOON	4G430810933 Mass Air Flow Meter ARRIVING SOON	-	2	Enquire
27	4G430410BB	Screw, M35 x 12 Self Tap	4G430410BB Screw, M35 x 12 Self Tap	-	4	Enquire
