Valve Train of Aston Martin Aston Martin V12 Zagato

View All

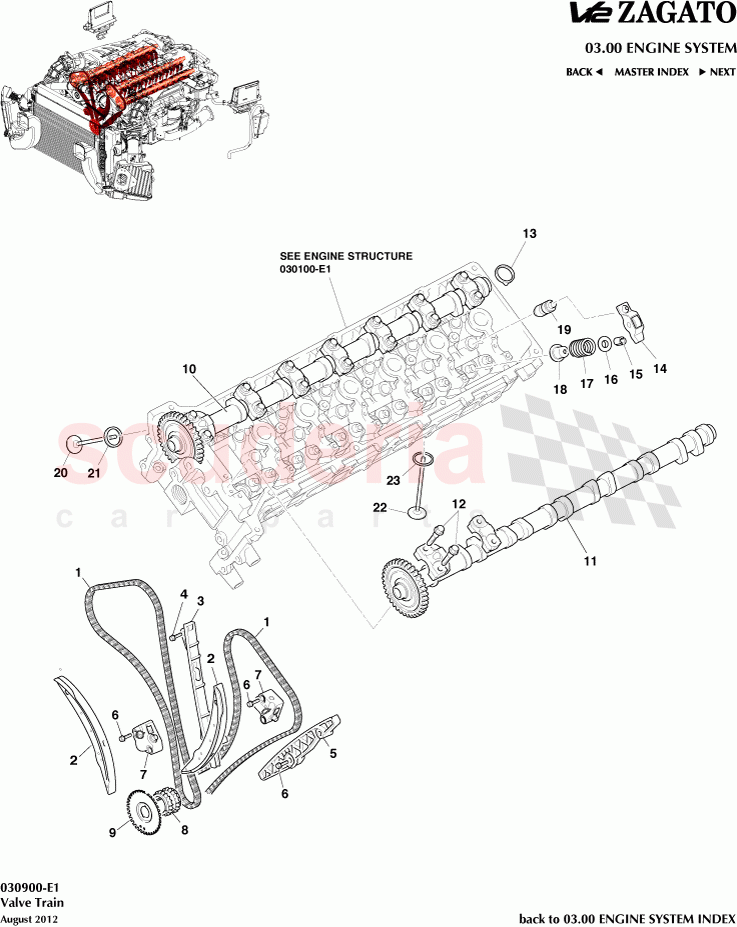

Aston Martin V12 Zagato - Valve Train

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1R120310483	Chain, Timing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430310013	Arm Assembly, Timing Chain Tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310069	Guide, Timing Chain, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310070	Guide, Timing Chain, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703694	BOLT & WASHER M8x45 HF PIL 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120310071	Tensioner - Timing Chain	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120710720	SENSOR RING-IGNITION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A267AB	Camshaft Assy, Intake, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4E6A269AB	Camshaft Assy, Exhaust, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685321	Bolt, M6 x 40, Hex Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685914	Arm Assembly Valve Rocker	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	685041	Key, Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685040	Retainer Valve Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120610062	Spring, Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685038PK	Seal Valve Stem (Pack of 24)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685042	Adjuster Valve Lash	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	685037	Valve, Exhaust	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	CD336057AA	Insert, Valve Seat, Exhaust	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430610577	Valve, Inlet	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	6G430610177	Insert, Valve Seat, Intake	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7G4E6A266AB	Camshaft Assy, Intake, RH	7G4E6A266AB Camshaft Assy, Intake, RH	-	1	Enquire
-	7G4E6A268AB	Camshaft Assy, Exhaust, RH	7G4E6A268AB Camshaft Assy, Exhaust, RH	-	1	Enquire
-	685035	Bushing, Valve Guide	685035 Bushing, Valve Guide	-	48	Enquire
1	1R120310483	Chain, Timing	1R120310483 Chain, Timing	-	2	Enquire
2	4G430310013	Arm Assembly, Timing Chain Tensioner	4G430310013 Arm Assembly, Timing Chain Tensioner	-	2	Enquire
3	1R120310069	Guide, Timing Chain, RH	1R120310069 Guide, Timing Chain, RH	-	1	Enquire
4	702851	BOLT & WASHER M8 X 32 HEX FLANGE	702851 BOLT & WASHER M8 X 32 HEX FLANGE	-	2	Enquire
5	1R120310070	Guide, Timing Chain, LH	1R120310070 Guide, Timing Chain, LH	-	1	Enquire
6	703694	BOLT & WASHER M8x45 HF PIL 8	703694 BOLT & WASHER M8x45 HF PIL 8	-	6	Enquire
7	1R120310071	Tensioner - Timing Chain ARRIVING SOON	1R120310071 Tensioner - Timing Chain ARRIVING SOON	-	2	Enquire
8	4G430210012	CRANKSHAFT SPROCKET-DOUBLE - 21T	4G430210012 CRANKSHAFT SPROCKET-DOUBLE - 21T	-	1	Enquire
9	1R120710720	SENSOR RING-IGNITION	1R120710720 SENSOR RING-IGNITION	-	1	Enquire
10	7G4E6A267AB	Camshaft Assy, Intake, LH	7G4E6A267AB Camshaft Assy, Intake, LH	-	1	Enquire
11	7G4E6A269AB	Camshaft Assy, Exhaust, LH	7G4E6A269AB Camshaft Assy, Exhaust, LH	-	1	Enquire
12	685321	Bolt, M6 x 40, Hex Hd	685321 Bolt, M6 x 40, Hex Hd	-	56	Enquire
13	785366	GASKET SPARK PLUG HOLE	785366 GASKET SPARK PLUG HOLE	-	12	Enquire
14	685914	Arm Assembly Valve Rocker ARRIVING SOON	685914 Arm Assembly Valve Rocker ARRIVING SOON	-	48	Enquire
15	685041	Key, Valve Spring	685041 Key, Valve Spring	-	96	Enquire
16	685040	Retainer Valve Spring	685040 Retainer Valve Spring	-	48	Enquire
17	1R120610062	Spring, Valve	1R120610062 Spring, Valve	-	48	Enquire
18	685038PK	Seal Valve Stem (Pack of 24)	685038PK Seal Valve Stem (Pack of 24) Pack of 24	-	48	Enquire
19	685042	Adjuster Valve Lash	685042 Adjuster Valve Lash	-	48	Enquire
20	685037	Valve, Exhaust ARRIVING SOON	685037 Valve, Exhaust ARRIVING SOON	-	24	Enquire
21	CD336057AA	Insert, Valve Seat, Exhaust	CD336057AA Insert, Valve Seat, Exhaust	-	24	Enquire
22	4G430610577	Valve, Inlet ARRIVING SOON	4G430610577 Valve, Inlet ARRIVING SOON	-	24	Enquire
23	6G430610177	Insert, Valve Seat, Intake	6G430610177 Insert, Valve Seat, Intake	-	24	Enquire
