Name: Engine Sealing
Rating: 5.0 (1 reviews)

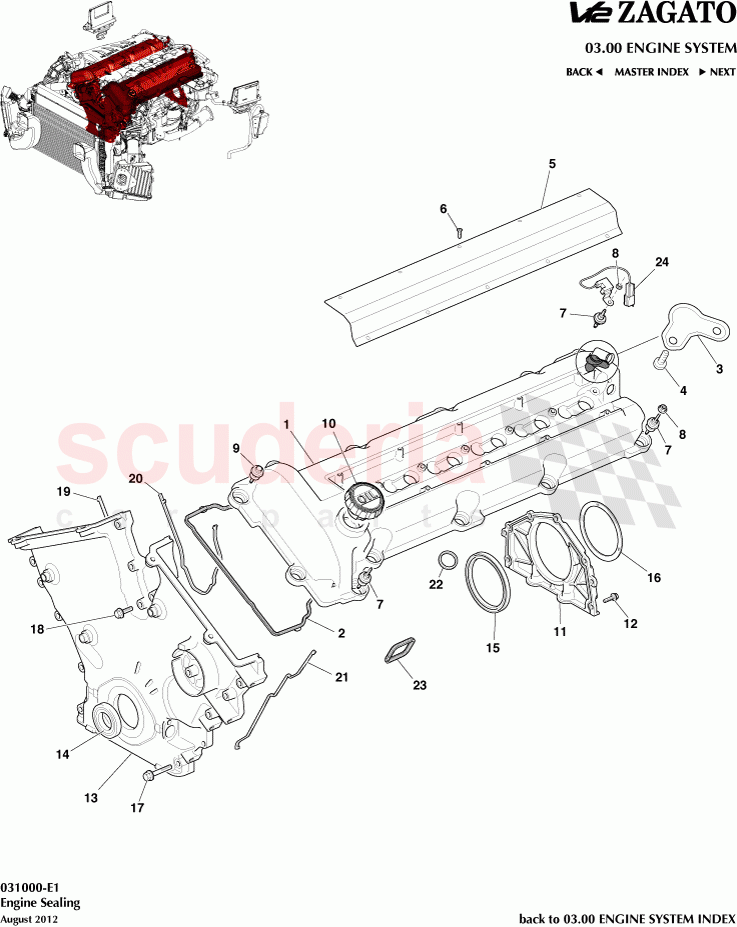

Engine Sealing of Aston Martin Aston Martin V12 Zagato

View All

Aston Martin V12 Zagato - Engine Sealing

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G436A505AA	COVER ASSY - VALVE ROCKER ARM COVER LH	$1,378.62	To Order

Photo	Part No	Description	Price (each)	Stock
	785057	Gasket, Valve Cover, LH	$158.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785055	BAFFLE-PCV	$12.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703175	SCREW M4 x 10 PAN TORX CHROME FREE	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7G436P068AA	COIL COVER SPARK PLUG	$371.41	To Order

Photo	Part No	Description	Price (each)	Stock
	703703	Bolt, Flange Head M8 x 16	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430710788	Stud and Grommet Assembly	$4.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430710763	Bolt and Grommet	$3.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G430710625	OIL FILLER CAP BLACK LETTERING NO AM WING	$10.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185003	Retainer, Crankshaft Oil Seal	$247.32	To Order

Photo	Part No	Description	Price (each)	Stock
	706648	SCREW-M6 x 22 HEX FL	$13.05	To Order

Photo	Part No	Description	Price (each)	Stock
	8G430311422	KIT-FRONT COVER	$498.64	To Order

Photo	Part No	Description	Price (each)	Stock
	385067	Oil Seal - Crankshaft Front	$33.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R120110434	Seal Crankshaft Rear	$47.37	To Order

Photo	Part No	Description	Price (each)	Stock
	4G430110194	Slinger, Rear Seal	$32.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	$2.05	To Order

Photo	Part No	Description	Price (each)	Stock
	702851	BOLT & WASHER M8 X 32 HEX FLANGE	$5.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385066	Gasket Engine Front Cover RH	$124.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385065	GASKET FRONT ENGINE COVER CENTRE	$124.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	385064	Gasket Engine Front Cover LH	$110.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	785366	GASKET SPARK PLUG HOLE	$7.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	NY738507AA	WATER PUMP GASKET	$42.20	To Order

Photo	Part No	Description	Price (each)	Stock
	CD330710073	CAPACITOR ASY-RADIO	$18.04	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	8G436582AA	COVER ASSY - VALVE ROCKER ARM RH	8G436582AA COVER ASSY - VALVE ROCKER ARM RH	$1,378.62	1
-	785056	Gasket, Valve Cover, RH IN STOCK	785056 Gasket, Valve Cover, RH IN STOCK	$158.25	1
1	8G436A505AA	COVER ASSY - VALVE ROCKER ARM COVER LH	8G436A505AA COVER ASSY - VALVE ROCKER ARM COVER LH	$1,378.62	1
2	785057	Gasket, Valve Cover, LH IN STOCK	785057 Gasket, Valve Cover, LH IN STOCK	$158.25	1
3	785055	BAFFLE-PCV IN STOCK	785055 BAFFLE-PCV IN STOCK	$12.14	2
4	703175	SCREW M4 x 10 PAN TORX CHROME FREE IN STOCK	703175 SCREW M4 x 10 PAN TORX CHROME FREE IN STOCK	$0.21	4
5	7G436P068AA	COIL COVER SPARK PLUG	7G436P068AA COIL COVER SPARK PLUG	$371.41	2
6	703703	Bolt, Flange Head M8 x 16	703703 Bolt, Flange Head M8 x 16	$0.53	20
7	4G430710788	Stud and Grommet Assembly IN STOCK	4G430710788 Stud and Grommet Assembly IN STOCK	$4.01	6
8	702295	Nut, M5, Hex Flange Head IN STOCK	702295 Nut, M5, Hex Flange Head IN STOCK	$0.11	2
9	4G430710763	Bolt and Grommet IN STOCK	4G430710763 Bolt and Grommet IN STOCK	$3.10	27
10	4G430710625	OIL FILLER CAP BLACK LETTERING NO AM WING IN STOCK	4G430710625 OIL FILLER CAP BLACK LETTERING NO AM WING IN STOCK	$10.34	1
11	185003	Retainer, Crankshaft Oil Seal	185003 Retainer, Crankshaft Oil Seal	$247.32	1
12	706648	SCREW-M6 x 22 HEX FL	706648 SCREW-M6 x 22 HEX FL	$13.05	6
13	8G430311422	KIT-FRONT COVER	8G430311422 KIT-FRONT COVER	$498.64	1
14	385067	Oil Seal - Crankshaft Front IN STOCK	385067 Oil Seal - Crankshaft Front IN STOCK	$33.41	1
15	1R120110434	Seal Crankshaft Rear	1R120110434 Seal Crankshaft Rear	$47.37	1
16	4G430110194	Slinger, Rear Seal IN STOCK	4G430110194 Slinger, Rear Seal IN STOCK	$32.52	1
17	697737	BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	697737 BOLT & WASHER M8 M8 X 47.5 HEX FLANGE PILOT GRD 8.8 BLACK	$2.05	14
18	702851	BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	702851 BOLT & WASHER M8 X 32 HEX FLANGE IN STOCK	$5.21	1
19	385066	Gasket Engine Front Cover RH IN STOCK	385066 Gasket Engine Front Cover RH IN STOCK	$124.00	1
20	385065	GASKET FRONT ENGINE COVER CENTRE IN STOCK	385065 GASKET FRONT ENGINE COVER CENTRE IN STOCK	$124.00	1
21	385064	Gasket Engine Front Cover LH IN STOCK	385064 Gasket Engine Front Cover LH IN STOCK	$110.56	1
22	785366	GASKET SPARK PLUG HOLE IN STOCK	785366 GASKET SPARK PLUG HOLE IN STOCK	$7.20	12
23	NY738507AA	WATER PUMP GASKET	NY738507AA WATER PUMP GASKET	$42.20	1
24	CD330710073	CAPACITOR ASY-RADIO	CD330710073 CAPACITOR ASY-RADIO	$18.04	2
