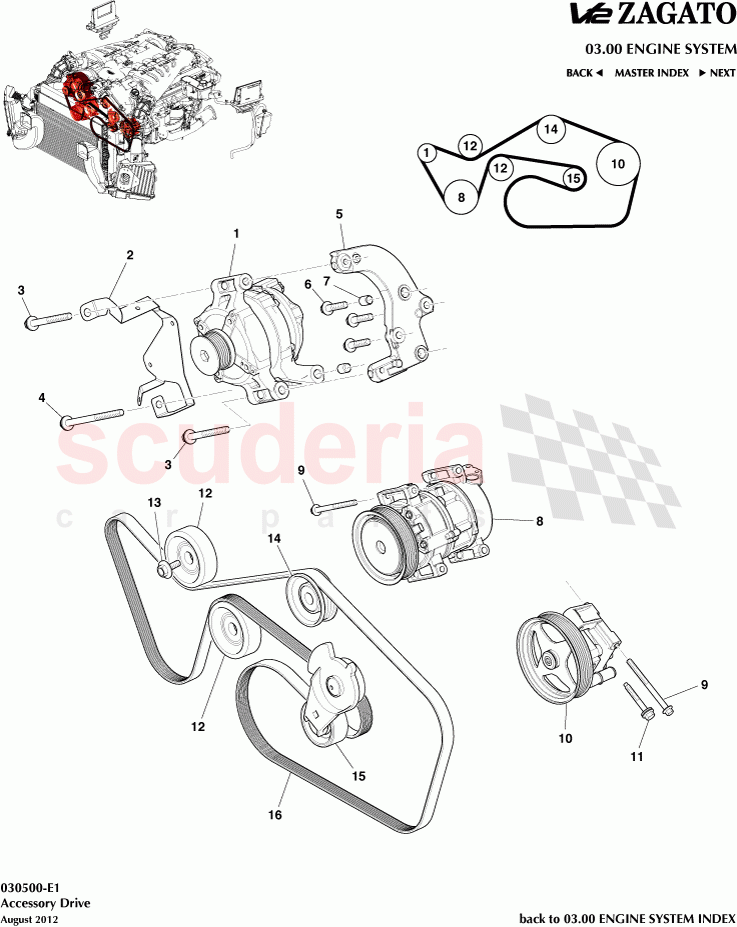

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4310300AE	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2314W163AA	Bracket, Alternator Harness Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700140	Bolt and Washer, M10 x 97.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702554	Bolt, M10 x 140	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4340910010	Bracket assy, alternator mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703692	Bolt, flg, M10x45, Alt bkt to cl hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697759	Dowel, hollow, 14.0 X 17.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3319D629AB	Compressor & Clutch, A/C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702557	BOLT M8 X 100 HF 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433A696AD	Pump and Pulley Assy, Power Steering	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701147	Bolt and Washer, M8 x 55, Hex Flg Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510488	Pulley, Engine Idler	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707627	SCREW M8 X 25MM HEX HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R120510530	Idler Pulley Grooved	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	585368	Tensioner Drive Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ED238620AA	Feed Drive Belt	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4310300AE	ALTERNATOR	4G4310300AE ALTERNATOR	-	1	Enquire
2	AD2314W163AA	Bracket, Alternator Harness Support	AD2314W163AA Bracket, Alternator Harness Support	-	1	Enquire
3	700140	Bolt and Washer, M10 x 97.5	700140 Bolt and Washer, M10 x 97.5	-	2	Enquire
4	702554	Bolt, M10 x 140	702554 Bolt, M10 x 140	-	1	Enquire
5	4G4340910010	Bracket assy, alternator mounting	4G4340910010 Bracket assy, alternator mounting	-	1	Enquire
6	703692	Bolt, flg, M10x45, Alt bkt to cl hd	703692 Bolt, flg, M10x45, Alt bkt to cl hd	-	3	Enquire
7	697759	Dowel, hollow, 14.0 X 17.5	697759 Dowel, hollow, 14.0 X 17.5	-	2	Enquire
8	6G3319D629AB	Compressor & Clutch, A/C	6G3319D629AB Compressor & Clutch, A/C	-	1	Enquire
9	702557	BOLT M8 X 100 HF 8	702557 BOLT M8 X 100 HF 8	-	5	Enquire
10	4G433A696AD	Pump and Pulley Assy, Power Steering	4G433A696AD Pump and Pulley Assy, Power Steering	-	1	Enquire
11	701147	Bolt and Washer, M8 x 55, Hex Flg Hd	701147 Bolt and Washer, M8 x 55, Hex Flg Hd	-	1	Enquire
12	1R120510488	Pulley, Engine Idler	1R120510488 Pulley, Engine Idler	-	2	Enquire
13	707627	SCREW M8 X 25MM HEX HEAD	707627 SCREW M8 X 25MM HEX HEAD	-	3	Enquire
14	1R120510530	Idler Pulley Grooved	1R120510530 Idler Pulley Grooved	-	1	Enquire
15	585368	Tensioner Drive Belt	585368 Tensioner Drive Belt	-	1	Enquire
16	ED238620AA	Feed Drive Belt	ED238620AA Feed Drive Belt	-	1	Enquire
