Body Side and Quarter Trim and Ornamentation of Aston Martin Aston Martin V12 Zagato

View All

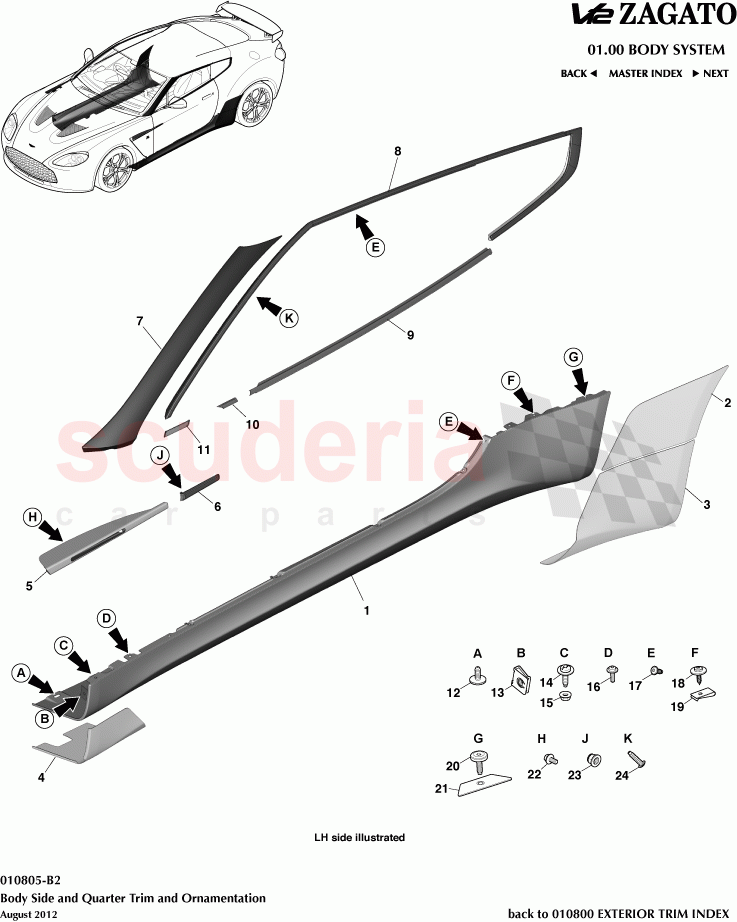

Aston Martin V12 Zagato - Body Side and Quarter Trim and Ornamentation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CY8310609BA	Sill Panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8310629AA	Tape, Rear Qtr, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8310625AA	Tape, Sill Rear, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8310627AA	Tape, Sill Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83280B63BB	Side Strake, Fender, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83018K29AA	Side Strake, Door, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8332228AB	A Post Cap, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83C519A37AA	Finisher, Cantrail, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8320563AA	Finisher, Door Waist Seal Outer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8320565AA	Finisher, Door Waist Mirror, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8320567AA	Finisher, Door Waist Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430516BBA	Screw, M6 x 16, Self Tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	703156	Screw/Washer M6x18 Chrome Free	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707623	Screw and Washer, M4 x 16, Pan Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G33334177AA	Nut Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697818	SCREW M5 x 12 FLG HD BLACK GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702840	Nut & Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83N010264AA	Screw, M5 x 20, Pan Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CY8310608BA	Sill Panel, RH	CY8310608BA Sill Panel, RH	-	1	Enquire
-	CY8310628AA	Tape, Rear Qtr, RH	CY8310628AA Tape, Rear Qtr, RH	-	1	Enquire
-	CY8310624AA	Tape, Sill Rear, RH	CY8310624AA Tape, Sill Rear, RH	-	1	Enquire
-	CY8310626AA	Tape, Sill Front, RH	CY8310626AA Tape, Sill Front, RH	-	1	Enquire
-	CY83280B62BB	Side Strake, Fender, RH	CY83280B62BB Side Strake, Fender, RH	-	1	Enquire
-	CY83018K28AA	Side Strake, Door, RH	CY83018K28AA Side Strake, Door, RH	-	1	Enquire
-	CY8332229AB	A Post Cap, RH	CY8332229AB A Post Cap, RH	-	1	Enquire
-	CY83C519A36AA	Finisher, Cantrail, RH	CY83C519A36AA Finisher, Cantrail, RH	-	1	Enquire
-	CY8320562AA	Finisher, Door Waist Seal Outer, RH	CY8320562AA Finisher, Door Waist Seal Outer, RH	-	1	Enquire
-	CY8320564AA	Finisher, Door Waist Mirror, RH	CY8320564AA Finisher, Door Waist Mirror, RH	-	1	Enquire
-	CY8320566AA	Finisher, Door Waist Front, RH	CY8320566AA Finisher, Door Waist Front, RH	-	1	Enquire
1	CY8310609BA	Sill Panel, LH	CY8310609BA Sill Panel, LH	-	1	Enquire
2	CY8310629AA	Tape, Rear Qtr, LH	CY8310629AA Tape, Rear Qtr, LH	-	1	Enquire
3	CY8310625AA	Tape, Sill Rear, LH	CY8310625AA Tape, Sill Rear, LH	-	1	Enquire
4	CY8310627AA	Tape, Sill Front, LH	CY8310627AA Tape, Sill Front, LH	-	1	Enquire
5	CY83280B63BB	Side Strake, Fender, LH	CY83280B63BB Side Strake, Fender, LH	-	1	Enquire
6	CY83018K29AA	Side Strake, Door, LH	CY83018K29AA Side Strake, Door, LH	-	1	Enquire
7	CY8332228AB	A Post Cap, LH	CY8332228AB A Post Cap, LH	-	1	Enquire
8	CY83C519A37AA	Finisher, Cantrail, LH	CY83C519A37AA Finisher, Cantrail, LH	-	1	Enquire
9	CY8320563AA	Finisher, Door Waist Seal Outer, LH	CY8320563AA Finisher, Door Waist Seal Outer, LH	-	1	Enquire
10	CY8320565AA	Finisher, Door Waist Mirror, LH	CY8320565AA Finisher, Door Waist Mirror, LH	-	1	Enquire
11	CY8320567AA	Finisher, Door Waist Front, LH	CY8320567AA Finisher, Door Waist Front, LH	-	1	Enquire
12	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	14	Enquire
13	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	4	Enquire
14	703156	Screw/Washer M6x18 Chrome Free	703156 Screw/Washer M6x18 Chrome Free	-	2	Enquire
15	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
16	707623	Screw and Washer, M4 x 16, Pan Head	707623 Screw and Washer, M4 x 16, Pan Head	-	8	Enquire
17	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) Pack of 10	-	16	Enquire
18	702510PK	Screw & Washer 4.8 x 19 Pan Head (Pack of 5)	702510PK Screw & Washer 4.8 x 19 Pan Head (Pack of 5) Pack of 5	-	2	Enquire
19	702511PK	Nut J SPG 4.8 x 0.70 (PACK OF 10)	702511PK Nut J SPG 4.8 x 0.70 (PACK OF 10) Pack of 10	-	2	Enquire
20	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
21	9G33334177AA	Nut Plate	9G33334177AA Nut Plate	-	2	Enquire
22	697818	SCREW M5 x 12 FLG HD BLACK GRADE 8.8	697818 SCREW M5 x 12 FLG HD BLACK GRADE 8.8	-	10	Enquire
23	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	2	Enquire
24	CY83N010264AA	Screw, M5 x 20, Pan Head	CY83N010264AA Screw, M5 x 20, Pan Head	-	12	Enquire
