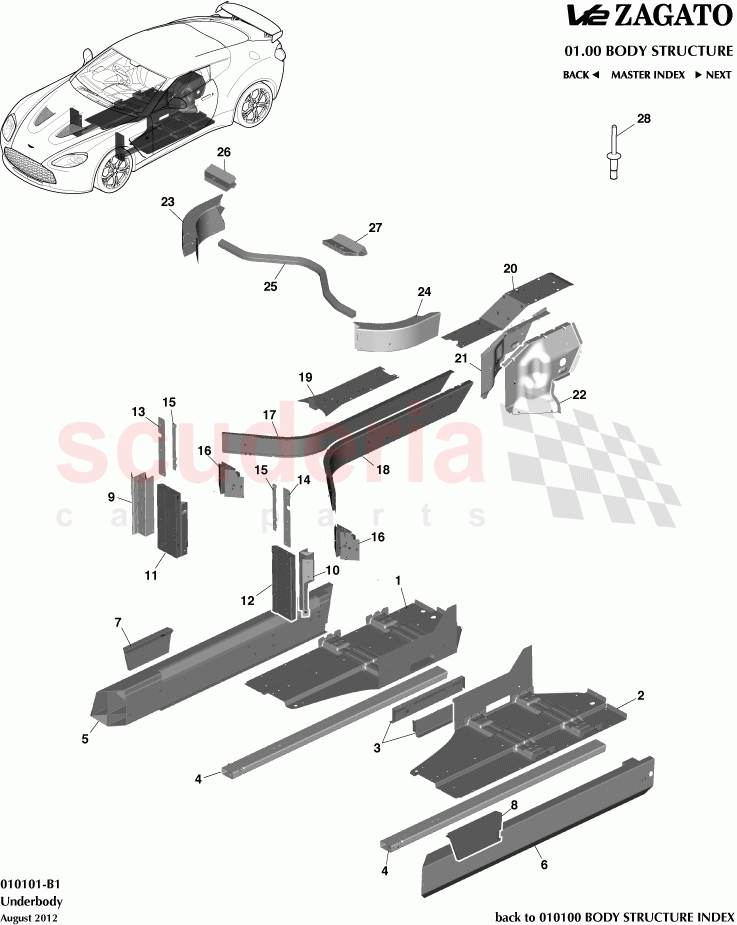

Aston Martin V12 Zagato - Underbody

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G331610440S	ASY FLR RH-STAMPED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G331610441	ASSEMBLY FLOOR LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33122716AA	Reinforcement, Transmission Tunnel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG3310120AA	Member, Floor Side, Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG33C10116AA	Member, Floor Side Inner, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG33C10117AB	Member, Floor Side Inner, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33100A94AA	Member, Lower Reinforcement, Front Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33100A95AA	Member, Lower Reinforcement, Front Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K32AA	Brace, Tunnel Upper Outer Reinforcement, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K33AA	Brace, Tunnel Upper Outer Reinforcement, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K30AA	Brace, Tunnel Upper Outer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG33F001K31AA	Brace, Tunnel Upper Outer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F001K28AA	Bracket, tunnel upper inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310772BB	Tunnel Extrusion, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310773BC	Tunnel Extrusion, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33113C18AA	Panel, tunnel, top front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG3311160AA	Panel, tunnel, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33120780AA	Panel, transmission tunnel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33120781AA	Panel, transmission tunnel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310276BA	Member, Front Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG4310277BA	Member, Front Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02599BA	Cross Member, Body Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310094AA	Member, Reinforcement Front Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310095AA	Member, Reinforcement Front Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	6G331610440S	ASY FLR RH-STAMPED	6G331610440S ASY FLR RH-STAMPED Vin Stamp Required, Structural. Cat A Only	-	1	Enquire
2	6G331610441	ASSEMBLY FLOOR LH	6G331610441 ASSEMBLY FLOOR LH Structural. Cat A Only	-	1	Enquire
3	AG33122716AA	Reinforcement, Transmission Tunnel	AG33122716AA Reinforcement, Transmission Tunnel Structural. Cat A Only	-	2	Enquire
4	GOAG3310120AA	Member, Floor Side, Front	GOAG3310120AA Member, Floor Side, Front Structural. Cat A Only	-	1	Enquire
5	DG33C10116AA	Member, Floor Side Inner, RH	DG33C10116AA Member, Floor Side Inner, RH Structural. Cat A Only	-	1	Enquire
6	DG33C10117AB	Member, Floor Side Inner, LH	DG33C10117AB Member, Floor Side Inner, LH Structural. Cat A Only	-	1	Enquire
7	GOAG33100A94AA	Member, Lower Reinforcement, Front Side, RH	GOAG33100A94AA Member, Lower Reinforcement, Front Side, RH Structural. Cat A Only	-	1	Enquire
8	GOAG33100A95AA	Member, Lower Reinforcement, Front Side, LH	GOAG33100A95AA Member, Lower Reinforcement, Front Side, LH Structural. Cat A Only	-	1	Enquire
9	AG33F001K32AA	Brace, Tunnel Upper Outer Reinforcement, RH	AG33F001K32AA Brace, Tunnel Upper Outer Reinforcement, RH Structural. Cat A Only	-	1	Enquire
10	AG33F001K33AA	Brace, Tunnel Upper Outer Reinforcement, LH	AG33F001K33AA Brace, Tunnel Upper Outer Reinforcement, LH Structural. Cat A Only	-	1	Enquire
11	AG33F001K30AA	Brace, Tunnel Upper Outer, RH	AG33F001K30AA Brace, Tunnel Upper Outer, RH Structural. Cat A Only	-	1	Enquire
12	AG33F001K31AA	Brace, Tunnel Upper Outer, LH	AG33F001K31AA Brace, Tunnel Upper Outer, LH Structural. Cat A Only	-	1	Enquire
13	8G43434K10AA	NUTPLATE FRONT END MOUNTING OUTER RH M12	8G43434K10AA NUTPLATE FRONT END MOUNTING OUTER RH M12	-	1	Enquire
14	8G43434K11AA	NUTPLATE FRONT END MOUNTING OUTER LH M12	8G43434K11AA NUTPLATE FRONT END MOUNTING OUTER LH M12	-	1	Enquire
15	8G43390725AA	NUT PLATE FRONT END MOUNTING INR M12	8G43390725AA NUT PLATE FRONT END MOUNTING INR M12	-	2	Enquire
16	GOAG33F001K28AA	Bracket, tunnel upper inner	GOAG33F001K28AA Bracket, tunnel upper inner Structural. Cat A Only	-	2	Enquire
17	DG4310772BB	Tunnel Extrusion, RH	DG4310772BB Tunnel Extrusion, RH Structural. Cat A Only	-	1	Enquire
18	DG4310773BC	Tunnel Extrusion, LH	DG4310773BC Tunnel Extrusion, LH Structural. Cat A Only	-	1	Enquire
19	BG33113C18AA	Panel, tunnel, top front	BG33113C18AA Panel, tunnel, top front Structural. Cat A Only	-	1	Enquire
20	BG3311160AA	Panel, tunnel, top	BG3311160AA Panel, tunnel, top Structural. Cat A Only	-	1	Enquire
21	BG33120780AA	Panel, transmission tunnel, RH	BG33120780AA Panel, transmission tunnel, RH Structural. Cat A Only	-	1	Enquire
22	BG33120781AA	Panel, transmission tunnel, LH	BG33120781AA Panel, transmission tunnel, LH Structural. Cat A Only	-	1	Enquire
23	DG4310276BA	Member, Front Side, RH	DG4310276BA Member, Front Side, RH Structural. Cat A Only	-	1	Enquire
24	DG4310277BA	Member, Front Side, LH	DG4310277BA Member, Front Side, LH Structural. Cat A Only	-	1	Enquire
25	GOAG33F02599BA	Cross Member, Body Front	GOAG33F02599BA Cross Member, Body Front Structural. Cat A Only	-	1	Enquire
26	AG3310094AA	Member, Reinforcement Front Side, RH	AG3310094AA Member, Reinforcement Front Side, RH Structural. Cat A Only	-	1	Enquire
27	AG3310095AA	Member, Reinforcement Front Side, LH	AG3310095AA Member, Reinforcement Front Side, LH Structural. Cat A Only	-	1	Enquire
28	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
