Aston Martin V12 Zagato - Body Components (Page 2)

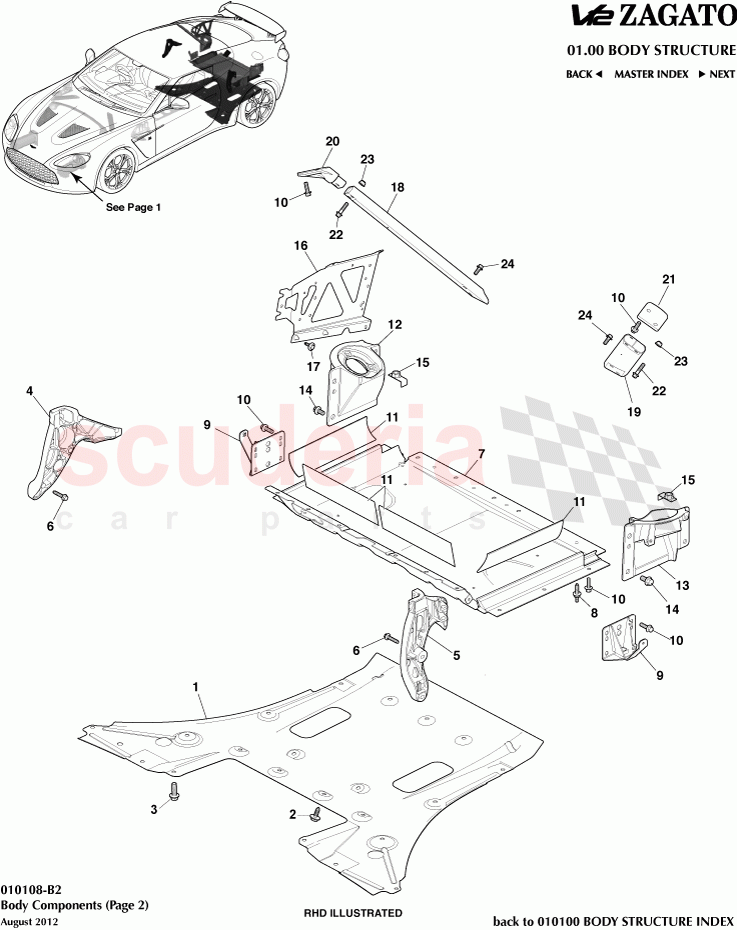

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BG33L17C857KD	SHLD RR BMPR OPNG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703268	Screw and Washer, M8 x 21	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703142	Bolt, M8 x 38, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G439N070AB	INSULATION - FUEL TANK SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310N873AA	Mounting Panel, Amplifier	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8328442AA	Brace, Body Corner Panel, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8328443AA	Brace, Body Corner Panel, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83314A10BA	Mounting, Upper Strut, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY83314A11BA	Mounting, Upper Strut, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703731	Bolt, M8 x 35, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703739	Nut, M8, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703121	Screw, M8 x 25, Hex Flange Head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	ED239N172BA	ASSY PNL FU/TNK COM	ED239N172BA ASSY PNL FU/TNK COM 13MY	-	1	Enquire
1	BG33L17C857KD	SHLD RR BMPR OPNG	BG33L17C857KD SHLD RR BMPR OPNG	-	1	Enquire
2	703268	Screw and Washer, M8 x 21	703268 Screw and Washer, M8 x 21	-	15	Enquire
3	702210PK	BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)	702210PK BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10) Pack of 10	-	2	Enquire
4	6G33611D38BA	Bracket Assembly, Front Seat Belt Retainer, RH	6G33611D38BA Bracket Assembly, Front Seat Belt Retainer, RH	-	1	Enquire
5	6G33611D39BA	Bracket Assembly, Front Seat Belt Retainer, LH	6G33611D39BA Bracket Assembly, Front Seat Belt Retainer, LH	-	1	Enquire
6	703142	Bolt, M8 x 38, Hex Flange Head	703142 Bolt, M8 x 38, Hex Flange Head	-	8	Enquire
7	6G339N172AE	ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	6G339N172AE ASSEMBLY PANEL FUEL TANK COMPARTMENT PT LWR COMP	-	1	Enquire
8	702509	STUD M8x23 + M6x14 HEX FLANGE PILOT	702509 STUD M8x23 + M6x14 HEX FLANGE PILOT	-	4	Enquire
9	6G335D022AD	BRACKET REAR SUB FRAME STABILISER	6G335D022AD BRACKET REAR SUB FRAME STABILISER	-	2	Enquire
10	703120	Screw M8-1.25-90 Hex Socket Head Shoulder	703120 Screw M8-1.25-90 Hex Socket Head Shoulder	-	26	Enquire
11	4G439N070AB	INSULATION - FUEL TANK SUPPORT	4G439N070AB INSULATION - FUEL TANK SUPPORT	-	4	Enquire
12	6G3318A000AD	Member, Rear Shock Absorber Mounting, RH	6G3318A000AD Member, Rear Shock Absorber Mounting, RH	-	1	Enquire
13	6G3318A001AD	Member, Rear Shock Absorber Mounting, LH	6G3318A001AD Member, Rear Shock Absorber Mounting, LH	-	1	Enquire
14	703185	M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	703185 M12x1.75x25 HEX FLANGE HEX HEAD CHROME FREE	-	8	Enquire
15	4G43501B0AC	NUT PLATE REAR SUB FRAME REAR M14	4G43501B0AC NUT PLATE REAR SUB FRAME REAR M14	-	2	Enquire
16	AG3310N873AA	Mounting Panel, Amplifier	AG3310N873AA Mounting Panel, Amplifier	-	1	Enquire
17	703152PK	Screw & Washer M6 x 20 Hex Head (Pack of 10)	703152PK Screw & Washer M6 x 20 Hex Head (Pack of 10) Pack of 10	-	6	Enquire
18	CY8328442AA	Brace, Body Corner Panel, RH	CY8328442AA Brace, Body Corner Panel, RH	-	1	Enquire
19	CY8328443AA	Brace, Body Corner Panel, LH	CY8328443AA Brace, Body Corner Panel, LH	-	1	Enquire
20	CY83314A10BA	Mounting, Upper Strut, RH	CY83314A10BA Mounting, Upper Strut, RH	-	1	Enquire
21	CY83314A11BA	Mounting, Upper Strut, LH	CY83314A11BA Mounting, Upper Strut, LH	-	1	Enquire
22	703731	Bolt, M8 x 35, Hex Flange Head	703731 Bolt, M8 x 35, Hex Flange Head	-	4	Enquire
23	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	4	Enquire
24	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	4	Enquire
