Aston Martin V12 Zagato - Body Dash and Cowl

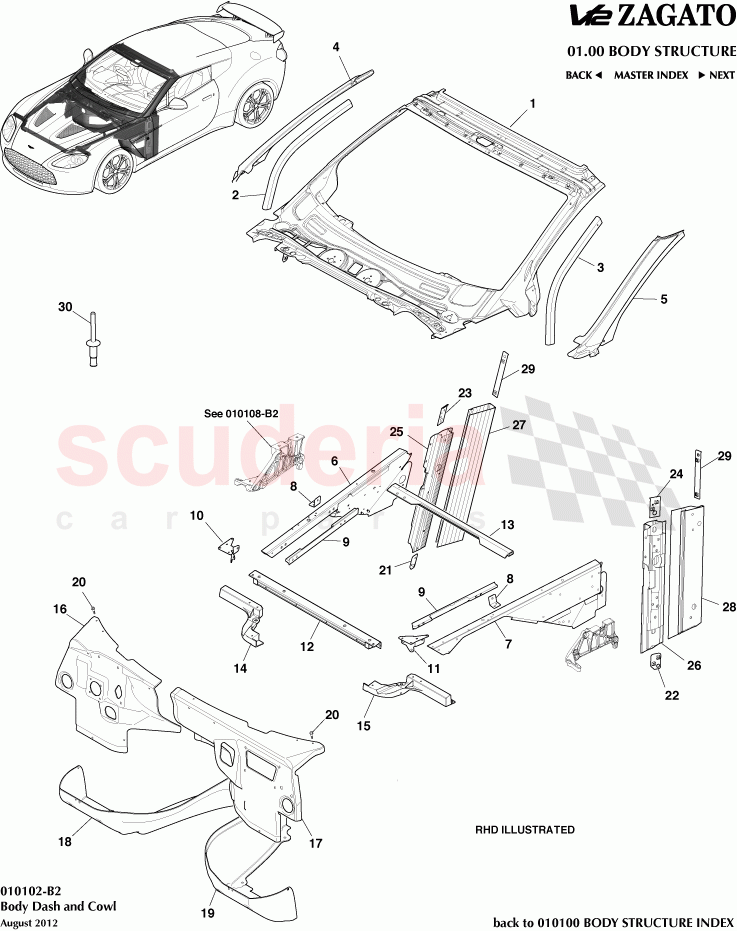

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G43C03014BR	Frame Assembly, Windshield, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOGG33F02526AA	REINF FRT BDY PLR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02527AA	Pillar, Front Body Reinforcement, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8302538BA	Reinforcement Assembly, A Post, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CY8302539BA	Reinforcement Assembly, A Post, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332010442	Support Assembly, Front Fender, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G332010443	ASEMBLY FRONT FENDER SUPPORT LLH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33C18178AB	Bracket, Gas Damper Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GODG4317F790BA	Nutplate, Shotgun, M10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P0AD235048AA	Bracket, Cross Member, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	P0AD235049AA	Bracket, Cross Member, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD235D066AA	CROSS MEMBER FRONT UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG3310414AA	MEMBER FRONT CS AT DH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2316430AA	Casting, Front Side Member to Front Cross Member, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD2316431AA	Casting, Front Side Member to Front Cross Member, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43F01760BA	Panel, Dash Upper, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DG43F01761BA	Panel, Dash Upper, LH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33F01612AA	Panel, Dash Side, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BG33F01613AA	Panel, Dash Side, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3315111AB	Nutplate M8, ??post hinge, lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G33486226AA	Nutplate, M8, IP beam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3368676AC	Rivet Structural 6.5 x 14, Blind	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	EG33C03014AB	FR ASY W/SHIELD	EG33C03014AB FR ASY W/SHIELD Structural Cat. A Only	-	1	Enquire
-	DG43F01760AA	Panel, Dash Upper, RH, LHD	DG43F01760AA Panel, Dash Upper, RH, LHD Structural Cat. A Only	-	1	Enquire
-	DG43F01761AB	Panel, Dash Upper, LH, LHD	DG43F01761AB Panel, Dash Upper, LH, LHD Structural Cat. A Only	-	1	Enquire
1	4G43C03014BR	Frame Assembly, Windshield, RHD	4G43C03014BR Frame Assembly, Windshield, RHD Structural Cat. A Only	-	1	Enquire
2	GOGG33F02526AA	REINF FRT BDY PLR	GOGG33F02526AA REINF FRT BDY PLR Structural Cat. A Only	-	1	Enquire
3	GOAG33F02527AA	Pillar, Front Body Reinforcement, LH	GOAG33F02527AA Pillar, Front Body Reinforcement, LH Structural Cat. A Only	-	1	Enquire
4	CY8302538BA	Reinforcement Assembly, A Post, RH	CY8302538BA Reinforcement Assembly, A Post, RH Structural Cat. A Only	-	1	Enquire
5	CY8302539BA	Reinforcement Assembly, A Post, LH	CY8302539BA Reinforcement Assembly, A Post, LH Structural Cat. A Only	-	1	Enquire
6	6G332010442	Support Assembly, Front Fender, RH	6G332010442 Support Assembly, Front Fender, RH Structural Cat. A Only	-	1	Enquire
7	6G332010443	ASEMBLY FRONT FENDER SUPPORT LLH	6G332010443 ASEMBLY FRONT FENDER SUPPORT LLH Structural Cat. A Only	-	1	Enquire
8	6G33C18178AB	Bracket, Gas Damper Mounting	6G33C18178AB Bracket, Gas Damper Mounting Structural Cat. A Only	-	2	Enquire
9	GODG4317F790BA	Nutplate, Shotgun, M10	GODG4317F790BA Nutplate, Shotgun, M10 Structural Cat. A Only	-	2	Enquire
10	P0AD235048AA	Bracket, Cross Member, RH	P0AD235048AA Bracket, Cross Member, RH Structural Cat. A Only	-	1	Enquire
11	P0AD235049AA	Bracket, Cross Member, LH	P0AD235049AA Bracket, Cross Member, LH Structural Cat. A Only	-	1	Enquire
12	AD235D066AA	CROSS MEMBER FRONT UPPER	AD235D066AA CROSS MEMBER FRONT UPPER Structural Cat. A Only	-	1	Enquire
13	AG3310414AA	MEMBER FRONT CS AT DH	AG3310414AA MEMBER FRONT CS AT DH Structural Cat. A Only	-	1	Enquire
14	AD2316430AA	Casting, Front Side Member to Front Cross Member, RH	AD2316430AA Casting, Front Side Member to Front Cross Member, RH Structural Cat. A Only	-	1	Enquire
15	AD2316431AA	Casting, Front Side Member to Front Cross Member, LH	AD2316431AA Casting, Front Side Member to Front Cross Member, LH Structural Cat. A Only	-	1	Enquire
16	DG43F01760BA	Panel, Dash Upper, RH, RHD	DG43F01760BA Panel, Dash Upper, RH, RHD Structural Cat. A Only	-	1	Enquire
17	DG43F01761BA	Panel, Dash Upper, LH, RHD	DG43F01761BA Panel, Dash Upper, LH, RHD Structural Cat. A Only	-	1	Enquire
18	BG33F01612AA	Panel, Dash Side, RH	BG33F01612AA Panel, Dash Side, RH Structural Cat. A Only	-	1	Enquire
19	BG33F01613AA	Panel, Dash Side, LH	BG33F01613AA Panel, Dash Side, LH Structural Cat. A Only	-	1	Enquire
20	6G33375732AB	Screw, 5.5 x 19, Self Drill, Hex Flange head	6G33375732AB Screw, 5.5 x 19, Self Drill, Hex Flange head Structural Cat. A Only	-	2	Enquire
21	6G3315110AB	Nutplate M8, ??post hinge, lower, RH	6G3315110AB Nutplate M8, ??post hinge, lower, RH Structural Cat. A Only	-	1	Enquire
22	6G3315111AB	Nutplate M8, ??post hinge, lower, LH	6G3315111AB Nutplate M8, ??post hinge, lower, LH Structural Cat. A Only	-	1	Enquire
23	6G3371490AA	Nutplate, A Post Hinge, Upper, RH	6G3371490AA Nutplate, A Post Hinge, Upper, RH Structural Cat. A Only	-	1	Enquire
24	6G3394545AA	Nutplate, A Post Hinge, Upper, LH	6G3394545AA Nutplate, A Post Hinge, Upper, LH Structural Cat. A Only	-	1	Enquire
25	GOAG33F02660AB	Pillar, Front Body Lower Front, RH	GOAG33F02660AB Pillar, Front Body Lower Front, RH Structural Cat. A Only	-	1	Enquire
26	GOAG33F02661AB	Pillar, Front Body Lower Front, LH	GOAG33F02661AB Pillar, Front Body Lower Front, LH Structural Cat. A Only	-	1	Enquire
27	GOAG33F02662AB	Extrusion, Front Body Pillar Lower, RH	GOAG33F02662AB Extrusion, Front Body Pillar Lower, RH Structural Cat. A Only	-	1	Enquire
28	GOAG33F02663AB	Extrusion, Front Body Pillar Lower, LH	GOAG33F02663AB Extrusion, Front Body Pillar Lower, LH Structural Cat. A Only	-	1	Enquire
29	6G33486226AA	Nutplate, M8, IP beam	6G33486226AA Nutplate, M8, IP beam Structural Cat. A Only	-	2	Enquire
30	6G3368676AC	Rivet Structural 6.5 x 14, Blind	6G3368676AC Rivet Structural 6.5 x 14, Blind	-	A/R	Enquire
