Electrical Wiring - Battery of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Electrical Wiring - Battery

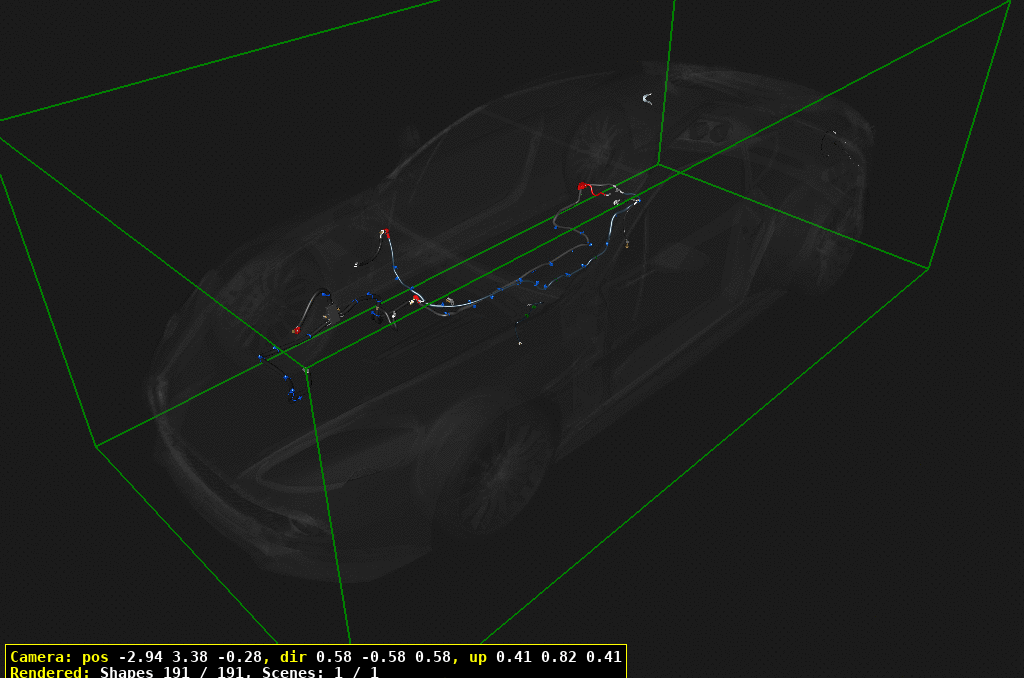

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	703739	Nut, M8, Hex Flange Head	703739 Nut, M8, Hex Flange Head	-	1	Enquire
30	703200	SCREW M10x25 HEX FLG CHROME FREE	703200 SCREW M10x25 HEX FLG CHROME FREE	-	1	Enquire
40	4G4314301AD	Cable Assembly, Battery to GND	4G4314301AD Cable Assembly, Battery to GND	-	1	Enquire
50	4G4314300AD	Cable Assembly, Battery to BDS	4G4314300AD Cable Assembly, Battery to BDS	-	1	Enquire
60	CD3314305AB	Harness Assy, BDS to Bulkhead Stud, Dirty Feed	CD3314305AB Harness Assy, BDS to Bulkhead Stud, Dirty Feed	-	1	Enquire
80	4G4314B278DD	Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	4G4314B278DD Cable Assembly, Clean Feed Bulkhead Stud to Engine Bay Fuse Box	-	1	Enquire
90	CD3314B278LB	Cable, BDS to Bulkhead Stud/CEM, LHD	CD3314B278LB Cable, BDS to Bulkhead Stud/CEM, LHD LHD	-	1	Enquire
91	CD3314B278MB	Cable, BDS to Bulkhead Stud/CEM, RHD	CD3314B278MB Cable, BDS to Bulkhead Stud/CEM, RHD RHD	-	1	Enquire
100	DD3314A280AB	Earth Braid, Transmission to Body	DD3314A280AB Earth Braid, Transmission to Body	-	1	Enquire
120	DG4310C310AB	Harness Assy, Transfer Stud to Starter/Alternator/Jump point	DG4310C310AB Harness Assy, Transfer Stud to Starter/Alternator/Jump point	-	1	Enquire
130	4G4314A280FC	Earth Braid, Antenna Module	4G4314A280FC Earth Braid, Antenna Module	-	1	Enquire
150	4G43E820201AA	M8 HALF NUT HEX BRASS	4G43E820201AA M8 HALF NUT HEX BRASS	-	2	Enquire
160	9G4310A752AA	TERMINAL POST ASSY	9G4310A752AA TERMINAL POST ASSY	-	2	Enquire
170	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	2	Enquire
180	9G43E820201AA	NUT HEX SPCL BRASS M8 BINX	9G43E820201AA NUT HEX SPCL BRASS M8 BINX	-	4	Enquire
190	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	703203 Screw M6 x 20 Heex Flange 8 Chrome Free	-	2	Enquire
200	00RG023	GROMMET - CHILD ANCHORAGE BRACKET HOLES	00RG023 GROMMET - CHILD ANCHORAGE BRACKET HOLES Shooting Brake only	-	2	Enquire
