Electrical Wiring - Front

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Electrical Wiring - Front

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

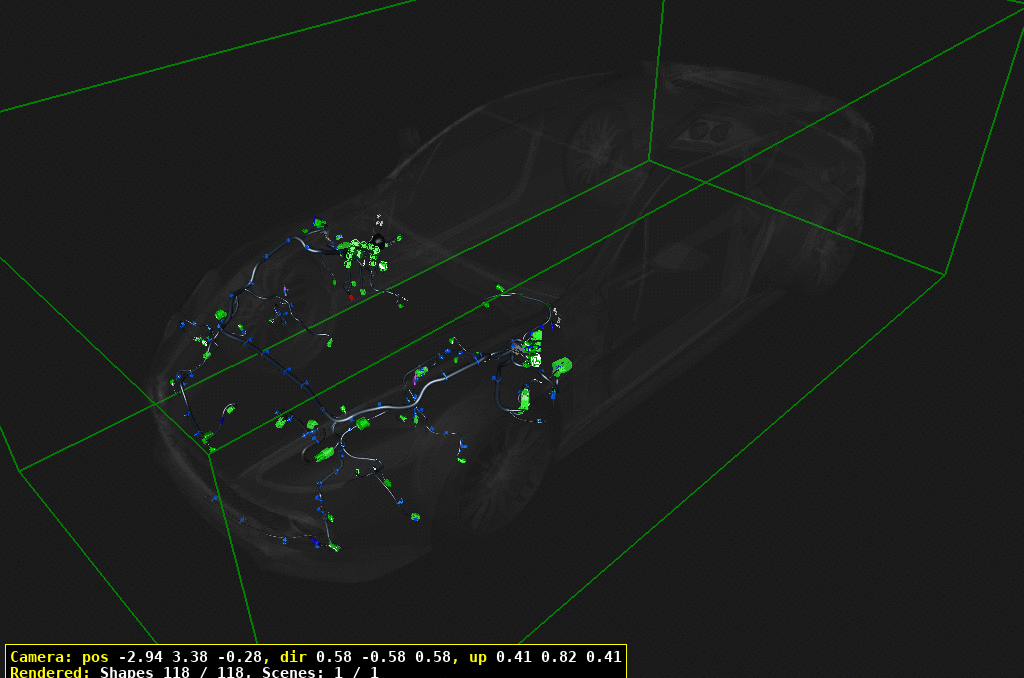

Electrical Wiring - Front of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- 1 Enquire
20 FD339137AB
FAN PACK LINK 		- 1 Enquire
30 FD3314290DA
PAS LINK HARNESS
LHD 		- 1 Enquire
31 FD3314290CA
PAS LINK HARNESS
RHD 		- 1 Enquire
40 CD3314N003BA
Bracket, Inline Connection, LH 		- 1 Enquire
50 CD3314N003AA
Bracket, Inline Connection, RH 		- 1 Enquire
60 00RA282
SCREW - 12X25 - BUTTON
RoW, LHD 		- 1 Enquire
61 JD3Y14290BA
RHD FORWARD HRNS
RoW, RHD 		- 1 Enquire
62 00RC015
WASHER - M8X24X2
Federal 		- 1 Enquire
70 22AB727GP
SEAL BONNET MARGIN MLD RH 		- 1 Enquire
80 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10
IN STOCK 		- 4 Enquire
100 707141
SCREW-M5 x 20 PAN HD 		- 4 Enquire
110 9D3314N003AA
Inline bracket, Instrument Panel (IP), RHS
B&O 		- 1 Enquire
120 9D3314N003BB
Inline bracket, Instrument Panel (IP), LHS
B&O 		- 1 Enquire
130 FD3314401AA
LHD B&O FACIA HARN
LHD 		- 1 Enquire
131 FD3314K024AA
RHD B&O FACIA HRNS
RHD 		- 1 Enquire
140 HG439137AA
TRACKER LINK 		- 1 Enquire
150 FD3314B079AA
CENTRE STACK AUTO 		- 1 Enquire
160 HD3314B544AA
TRACKER FUSE BRKT 		- 1 Enquire
170 4G4317A873AA
RIVET 4.8 x 12 BLND LRG AL 		- 2 Enquire
