Electrical Wiring - Cabin - Coupe and Volante of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Electrical Wiring - Cabin - Coupe and Volante

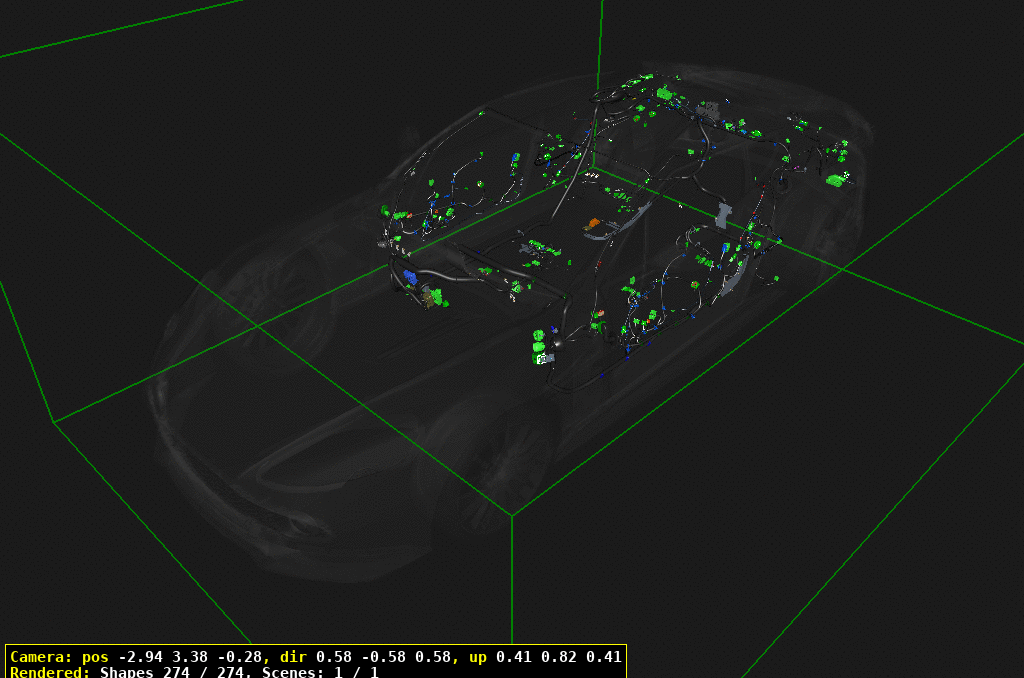

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	HD3Y14A005CB	LHD CPE CBN HRNSS	HD3Y14A005CB LHD CPE CBN HRNSS Coupe, LHD	-	1	Enquire
21	HD3Y14A005DB	RHD CPE CBN HRNS	HD3Y14A005DB RHD CPE CBN HRNS Coupe, RHD	-	1	Enquire
22	11A1919CP	BRACKET - BUMPER MOUNTING - FRONT - LH	11A1919CP BRACKET - BUMPER MOUNTING - FRONT - LH Volante, LHD	$81.80	1
23	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Volante, RHD	-	1	Enquire
30	BD439137DA	Link Harness, Cant Rail, Rear Lighting	BD439137DA Link Harness, Cant Rail, Rear Lighting	-	2	Enquire
40	AD4360008CAA	HRNS CLP 6.4	AD4360008CAA HRNS CLP 6.4	-	10	Enquire
50	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head IN STOCK	-	28	Enquire
60	702522	M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT	702522 M5 GRADE 8 HEX FLANGE ALMETTAL LOCKING NUT	-	3	Enquire
70	ED339137CA	Link Assembly, CD / DVD Multi-Changer	ED339137CA Link Assembly, CD / DVD Multi-Changer Coupe	-	1	Enquire
80	HD3Y9137CA	SPOILER LINK HNSS	HD3Y9137CA SPOILER LINK HNSS Coupe	-	1	Enquire
90	00RX043	BOLT - HEX HEAD - FLANGE - M8X20	00RX043 BOLT - HEX HEAD - FLANGE - M8X20 Volante	-	1	Enquire
100	703026	Screw, M5 x 16, Hex Flange Head IN STOCK	703026 Screw, M5 x 16, Hex Flange Head IN STOCK	-	5	Enquire
110	ED3314284AA	Link Harness, Rear Quarter Light	ED3314284AA Link Harness, Rear Quarter Light Volante	-	2	Enquire
120	13A5522CP	Longitudinal Crash Structure - Front - LH	13A5522CP Longitudinal Crash Structure - Front - LH See Section 18-02	$1,649.60	-
130	ED3314631BC	Harness Assy, Left Hand, LHD	ED3314631BC Harness Assy, Left Hand, LHD LHD	-	1	Enquire
131	ED3314630AC	Harness Assy, Left Hand, RHD	ED3314630AC Harness Assy, Left Hand, RHD RHD	-	1	Enquire
140	ED3314630BC	Harness Assy, Right Hand, LHD	ED3314630BC Harness Assy, Right Hand, LHD LHD	-	1	Enquire
141	ED3314631AC	Harness Assy, Right Hand, RHD	ED3314631AC Harness Assy, Right Hand, RHD RHD	-	1	Enquire
150	CD3314631CC	LH/RH SIDE LIGHTING	CD3314631CC LH/RH SIDE LIGHTING	-	2	Enquire
