Electrical Wiring - Cabin - Speedster

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Electrical Wiring - Cabin - Speedster

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

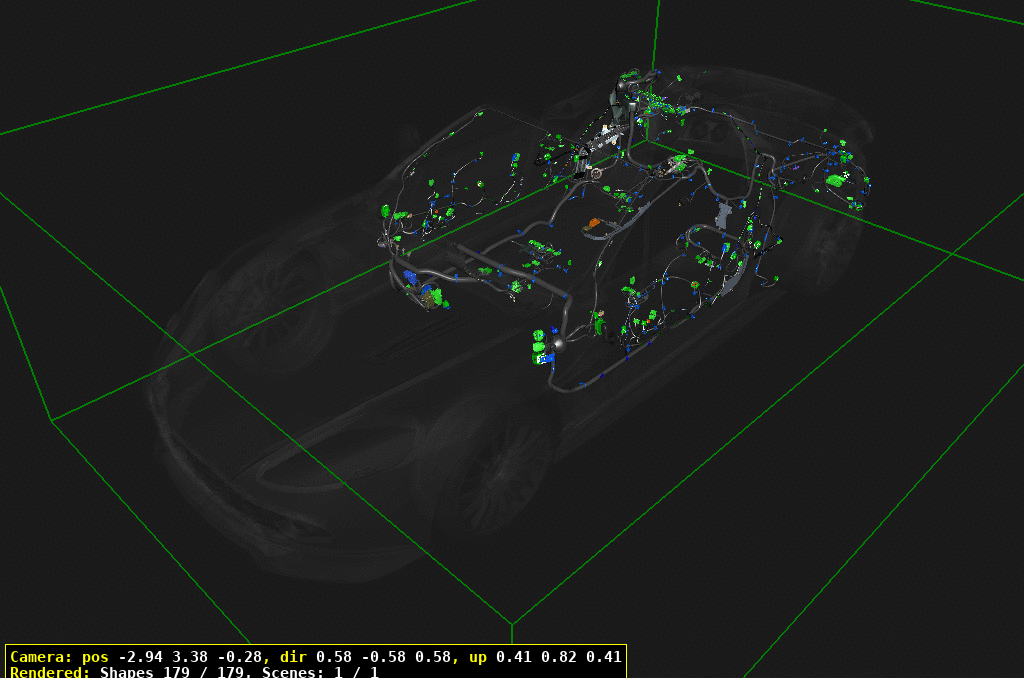

Electrical Wiring - Cabin - Speedster of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- - Enquire
20 JD3M14A005AA
LHD SPEEDSTR CAB HAR
LHD 		- 1 Enquire
21 JD3M14A005BA
RHD SPEEDSTR CAB HAR
RHD 		- 1 Enquire
30 ED3314N003AA
Bracket, Inline Cabin Harness 		- 1 Enquire
40 00RX043
BOLT - HEX HEAD - FLANGE - M8X20 		- 1 Enquire
50 701441PK
Screw, 4.2 x 13, Small Washer Head
Pack of 10 		- 4 Enquire
60 702944
Nut, M6, Hex Flanged Head 		- 29 Enquire
80 703026
Screw, M5 x 16, Hex Flange Head 		- 5 Enquire
90 13A1309CP
Subframe - Front 		- 2 Enquire
100 703264
SCREW-M6 x 14 HEX HD 		- 1 Enquire
120 13A5186CP
COVER - RESERVOIR - RH 		- 3 Enquire
160 ED3314284AA
Link Harness, Rear Quarter Light 		- 2 Enquire
170 4G433710659
TONNEAU LID LOCK RELAY 20A MICRO 		- 3 Enquire
180 13A5522CP
Longitudinal Crash Structure - Front - LH
See Section 18-02 		$1,649.60 -
190 ED3314631BC
Harness Assy, Left Hand, LHD
LHD 		- 1 Enquire
191 ED3314630AC
Harness Assy, Left Hand, RHD
RHD 		- 1 Enquire
200 ED3314630BC
Harness Assy, Right Hand, LHD
LHD 		- 1 Enquire
201 ED3314631AC
Harness Assy, Right Hand, RHD
RHD 		- 1 Enquire
210 CD3314631CC
LH/RH SIDE LIGHTING 		- 2 Enquire
