Exterior Trim of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Exterior Trim

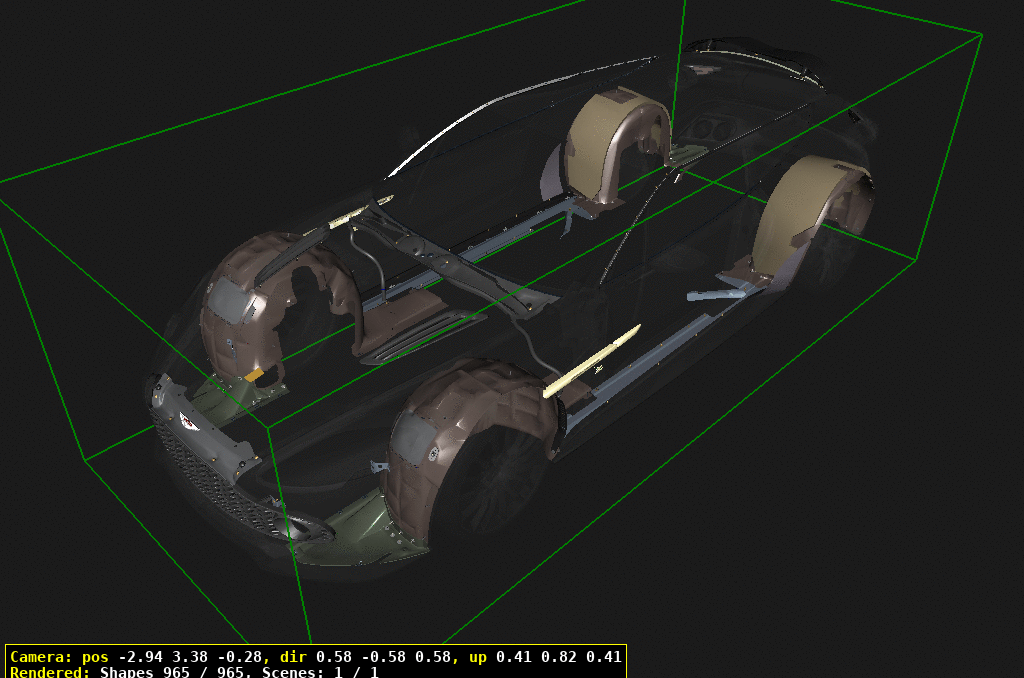

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
30	HD3Y8A100AC	GRL RAD ASY BLK	HD3Y8A100AC GRL RAD ASY BLK	-	1	Enquire
40	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	2	Enquire
50	703149	SCREW M6x16 PAN FLG TORX CHROME FRE	703149 SCREW M6x16 PAN FLG TORX CHROME FRE	-	12	Enquire
60	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
70	HD3Y17766BB	BRACKET FRONT BUMPER	HD3Y17766BB BRACKET FRONT BUMPER	-	1	Enquire
80	HD3Y17765BB	BRACKET FRONT BUMPER	HD3Y17765BB BRACKET FRONT BUMPER	-	1	Enquire
90	22AB022GP	ASSY PNL BODYSIDE RR LWR RH	22AB022GP ASSY PNL BODYSIDE RR LWR RH	-	1	Enquire
100	4G4316K808AB	Bumper Hood to Cowl Top	4G4316K808AB Bumper Hood to Cowl Top	-	2	Enquire
110	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	6	Enquire
120	XR8TF03836AA	Bumpon, 11.1 x 5 MM	XR8TF03836AA Bumpon, 11.1 x 5 MM	-	4	Enquire
130	6G33301A00AA	SPCR QTR WDO	6G33301A00AA SPCR QTR WDO	-	3	Enquire
200	HD3Y16C693AA	HOOD LOUVRE LH GLS	HD3Y16C693AA HOOD LOUVRE LH GLS Carbon	-	1	Enquire
210	HD3Y16C692AA	HOOD LOVRE RH GL	HD3Y16C692AA HOOD LOVRE RH GL Carbon	-	1	Enquire
220	HD3Y250B85BA	M6 NYLON WASHER	HD3Y250B85BA M6 NYLON WASHER	-	24	Enquire
230	4G4316C695ABPK	Nut M6 Black Nylon Domed Pack (Pack of 10)	4G4316C695ABPK Nut M6 Black Nylon Domed Pack (Pack of 10) Pack of 10	-	12	Enquire
300	KD3MC519A36AA	DLO FIN ASSY LH	KD3MC519A36AA DLO FIN ASSY LH Black	-	1	Enquire
310	KD3MC519A37AA	DLO FIN ASSY RH	KD3MC519A37AA DLO FIN ASSY RH Black	-	1	Enquire
320	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	14	Enquire
330	HD3Y250B85CA	11.75 NYLON WASHER	HD3Y250B85CA 11.75 NYLON WASHER Black	-	24	Enquire
340	6G33C699761AA	CLIP - DRIP RAIL	6G33C699761AA CLIP - DRIP RAIL	-	2	Enquire
350	6G3378788AC	3.0 RIVET 1.5 - 3.5	6G3378788AC 3.0 RIVET 1.5 - 3.5	-	2	Enquire
360	FD33F20563BA	DR WAIT SEAL OTR LH	FD33F20563BA DR WAIT SEAL OTR LH Black	-	1	Enquire
361	CD33F20563AC	Waist Seal, Door Outer, LH	CD33F20563AC Waist Seal, Door Outer, LH Bright	-	1	Enquire
370	FD33F20562BA	DR WAIST SEAL OTR RH	FD33F20562BA DR WAIST SEAL OTR RH Black	-	1	Enquire
371	CD33F20562AC	Waist Seal, Door Outer, RH	CD33F20562AC Waist Seal, Door Outer, RH Bright	-	1	Enquire
380	KD3M1228497BA	PRSNG DLO FIN LH BLK	KD3M1228497BA PRSNG DLO FIN LH BLK Black	-	1	Enquire
381	KD3M1228497AA	PRSNG DLO FIN LH BRT	KD3M1228497AA PRSNG DLO FIN LH BRT Bright	-	1	Enquire
390	KD3M1228496BA	PRSNG DLO FIN RH BLK	KD3M1228496BA PRSNG DLO FIN RH BLK Black	-	1	Enquire
391	KD3M1228496AA	PRSNG DLO FIN RH BRT	KD3M1228496AA PRSNG DLO FIN RH BRT Bright	-	1	Enquire
400	HD3Y280B63AD	SD STRK FND BRONZELH	HD3Y280B63AD SD STRK FND BRONZELH Bronze	-	1	Enquire
401	HD3Y280B63BC	SIDE STRK FNDR CHROM	HD3Y280B63BC SIDE STRK FNDR CHROM Bright	-	1	Enquire
402	HD3Y280B63CA	SD STRK FND CRBN LH	HD3Y280B63CA SD STRK FND CRBN LH Carbon	-	1	Enquire
410	HD3Y018K29AC	SD STRK DR LH BRONZE	HD3Y018K29AC SD STRK DR LH BRONZE Bronze	-	1	Enquire
411	HD3Y018K29BB	SIDE STRAKE DR CHROM	HD3Y018K29BB SIDE STRAKE DR CHROM Bright	-	1	Enquire
412	HD3Y018K29CA	SD STRK DR LH CARBON	HD3Y018K29CA SD STRK DR LH CARBON Carbon	-	1	Enquire
420	HD3Y280B62AD	SD STRK FND BRONZ RH	HD3Y280B62AD SD STRK FND BRONZ RH Bronze	-	1	Enquire
421	HD3Y280B62BC	SIDE STKE FNDR CRM R	HD3Y280B62BC SIDE STKE FNDR CRM R Bright	-	1	Enquire
422	HD3Y280B62CA	SD STRK FND CRBN RH	HD3Y280B62CA SD STRK FND CRBN RH Carbon	-	1	Enquire
430	HD3Y018K28AC	SD STKE DR RH BRONZE	HD3Y018K28AC SD STKE DR RH BRONZE Bronze	-	1	Enquire
431	HD3Y018K28BB	SIDE STRAKE DOOR CHR	HD3Y018K28BB SIDE STRAKE DOOR CHR Bright	-	1	Enquire
432	HD3Y018K28CA	SD STKE DR RH CARBON	HD3Y018K28CA SD STKE DR RH CARBON Carbon	-	1	Enquire
440	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	4	Enquire
460	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) Pack of 10	-	6	Enquire
470	HD3Y0937AA	RETAINER STRAKE DR	HD3Y0937AA RETAINER STRAKE DR	-	2	Enquire
480	KD3M10609AA	SILL APPLIQUE LH	KD3M10609AA SILL APPLIQUE LH Gloss	-	1	Enquire
481	22AB405GP	HEATSHIELD REFLECTOR LH	22AB405GP HEATSHIELD REFLECTOR LH Satin	-	1	Enquire
482	22AB406GP	HEATSHIELD REFLECTOR RH	22AB406GP HEATSHIELD REFLECTOR RH Natural - Q	-	1	Enquire
490	KD3M10608AA	SILL APPLIQUE RH	KD3M10608AA SILL APPLIQUE RH Gloss	-	1	Enquire
491	22AB408GP	RR BMPR NUMBER PLATE LAMP COVER LH	22AB408GP RR BMPR NUMBER PLATE LAMP COVER LH Satin	-	1	Enquire
492	22AB409GP	RR BMPR NUMBER PLATE LAMP COVER RH	22AB409GP RR BMPR NUMBER PLATE LAMP COVER RH Natural - Q	-	1	Enquire
500	KD3M10611AA	SILL CLSG PNL LH	KD3M10611AA SILL CLSG PNL LH	-	1	Enquire
510	KD3M10610AA	SILL CLSG PNL RH	KD3M10610AA SILL CLSG PNL RH	-	1	Enquire
520	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	22	Enquire
530	703143	BUTTON TORX WASHER CHROME FREE	703143 BUTTON TORX WASHER CHROME FREE	-	8	Enquire
540	701553	Screw, M6 x 16, Pan Head	701553 Screw, M6 x 16, Pan Head	-	2	Enquire
550	6G430516BBA	Screw, M6 x 16, Self Tapping	6G430516BBA Screw, M6 x 16, Self Tapping	-	12	Enquire
560	KY53100134AA	SCW-M8x1.25 PAN TORX	KY53100134AA SCW-M8x1.25 PAN TORX	-	2	Enquire
570	KD3M13B217AB	TAIL LAMP VENT LH	KD3M13B217AB TAIL LAMP VENT LH	-	1	Enquire
580	KD3M13B216AB	TAIL LAMP VENT RH	KD3M13B216AB TAIL LAMP VENT RH	-	1	Enquire
590	HD3Y10625DA	HELI TAPE SILL LH	HD3Y10625DA HELI TAPE SILL LH	-	1	Enquire
600	HD3Y10624DA	HELI TAPE SILL RH	HD3Y10624DA HELI TAPE SILL RH	-	1	Enquire
610	HD3Y280B84AA	FENDERETTE MESH LH	HD3Y280B84AA FENDERETTE MESH LH	-	1	Enquire
620	HD3Y280B83AA	FENDERETTE MESH RH	HD3Y280B83AA FENDERETTE MESH RH	-	1	Enquire
630	KD3M642B33AB	AERO FENCE	KD3M642B33AB AERO FENCE	-	1	Enquire
640	KD3M642B32AB	AERO FENCE	KD3M642B32AB AERO FENCE	-	1	Enquire
650	702944	Nut, M6, Hex Flanged Head	702944 Nut, M6, Hex Flanged Head	-	2	Enquire
700	CD33292670AD	LEAFSCREEN ASY LHD	CD33292670AD LEAFSCREEN ASY LHD LHD	-	1	Enquire
701	CD33292670BD	LEAFSCREEN ASY RHD	CD33292670BD LEAFSCREEN ASY RHD RHD	-	1	Enquire
710	703085	Screw M6x12 PC TI8	703085 Screw M6x12 PC TI8	-	2	Enquire
740	DG43219005AA	Screw, 4.2 x 16	DG43219005AA Screw, 4.2 x 16	-	3	Enquire
750	DG433810AA	Drain Tube, Leaf Screen, Driver	DG433810AA Drain Tube, Leaf Screen, Driver	-	1	Enquire
760	DG433811AA	Drain Tube, Leaf Screen, Passenger	DG433811AA Drain Tube, Leaf Screen, Passenger	-	1	Enquire
800	KD3M442A92AA	SPOILER BLADE	KD3M442A92AA SPOILER BLADE Carbon	-	1	Enquire
801	22AB538GP	ASSY RR BUMPER CTR PANEL WITH PDC	22AB538GP ASSY RR BUMPER CTR PANEL WITH PDC Painted	-	1	Enquire
810	EG4343422AA	WASHER A2 10.1D	EG4343422AA WASHER A2 10.1D	-	10	Enquire
820	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	5	Enquire
830	KD3MM8G216AA	SPLR - DECK GASKET	KD3MM8G216AA SPLR - DECK GASKET	-	1	Enquire
840	22AA868GP	ASSY RR BUMPER CTR PANEL BASE	22AA868GP ASSY RR BUMPER CTR PANEL BASE Carbon	-	1	Enquire
841	22AA078MP	BUMPER - REAR - CTR - BASE-VCF	22AA078MP BUMPER - REAR - CTR - BASE-VCF Painted	-	1	Enquire
900	HD3Y407A74BA	WING BADGE RED FRT R	HD3Y407A74BA WING BADGE RED FRT R White/Red	-	1	Enquire
910	00RA068	SCREW - M8X12 - HEX	00RA068 SCREW - M8X12 - HEX	-	1	Enquire
911	22AA796GP	ASSY BRKT RR FENDER FRT LH	22AA796GP ASSY BRKT RR FENDER FRT LH 'Vila D'Este'	-	1	Enquire
920	HD3Y43549AA	ZAGATO FENDER BADGE	HD3Y43549AA ZAGATO FENDER BADGE	-	2	Enquire
930	4G43103021AB	Fix, Push On	4G43103021AB Fix, Push On	-	4	Enquire
940	CY83407A74BA	Badge Assy, AML Wings	CY83407A74BA Badge Assy, AML Wings White/Red	-	1	Enquire
1000	KD3M166563AB	FRT WHL/ARCH LNR LH	KD3M166563AB FRT WHL/ARCH LNR LH	-	1	Enquire
1010	KD3M166562AB	FRT WHL/ARCH LNR RH	KD3M166562AB FRT WHL/ARCH LNR RH	-	1	Enquire
1020	8D33166573AA	Bracket, Front Wheel Arch Liner, LH	8D33166573AA Bracket, Front Wheel Arch Liner, LH	-	1	Enquire
1030	8D33166572AA	Bracket, Front Wheel Arch Liner, RH	8D33166572AA Bracket, Front Wheel Arch Liner, RH	-	1	Enquire
1040	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	21	Enquire
1050	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	16	Enquire
1100	14M0005CP	DECOUPLING RING - PDC SENSOR	14M0005CP DECOUPLING RING - PDC SENSOR	-	1	Enquire
1110	14M1156CP	SENSOR - PDC - PRIMED	14M1156CP SENSOR - PDC - PRIMED	-	1	Enquire
1120	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	21	Enquire
1130	7G4310609EAAPK	Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) ARRIVING SOON	7G4310609EAAPK Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10) Pack of 10 ARRIVING SOON	-	6	Enquire
