Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Lower

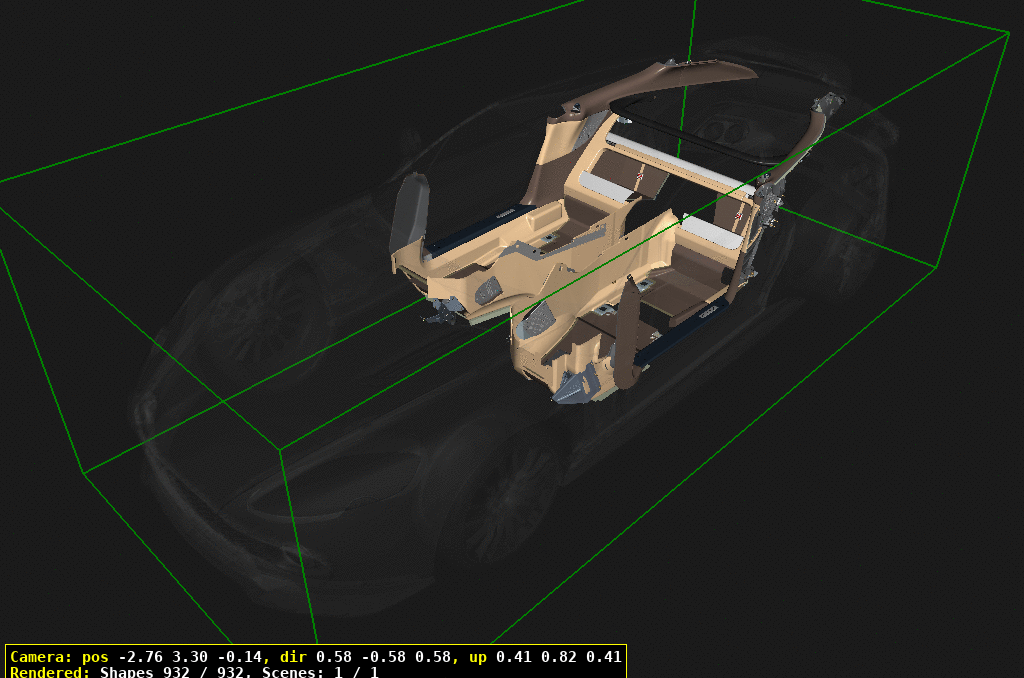

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	22AB201GP	ASSY PNL RR FENDER SUPPORT UPR LH	22AB201GP ASSY PNL RR FENDER SUPPORT UPR LH	-	-	Enquire
20	ED3302349ADW	A-POST LWR ASSY LH	ED3302349ADW A-POST LWR ASSY LH	-	1	Enquire
30	ED3302348ADW	A-POST LWR ASY RH	ED3302348ADW A-POST LWR ASY RH	-	1	Enquire
40	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	2	Enquire
50	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
60	6G33100N00AA	Adhesive Tape, Double Sided	6G33100N00AA Adhesive Tape, Double Sided	-	A/R	Enquire
70	FD33100A90AA	RH RR FLR SPRT PNL	FD33100A90AA RH RR FLR SPRT PNL	-	1	Enquire
80	4G43M4D4515AA	Foam Strip, Handbrake Gaiter	4G43M4D4515AA Foam Strip, Handbrake Gaiter	-	1	Enquire
90	703747	SCREW &WASHER-M6x25	703747 SCREW &WASHER-M6x25	-	2	Enquire
100	DD3319L525AA	Scuff Plate, Accelerator, Upper	DD3319L525AA Scuff Plate, Accelerator, Upper LHD only	-	1	Enquire
110	FD33100A91AA	LH RR SUPT PANEL	FD33100A91AA LH RR SUPT PANEL	-	1	Enquire
120	CD338310016	Kit, Floor Carpets, LHD	CD338310016 Kit, Floor Carpets, LHD LHD, Heavyweight	-	1	Enquire
121	CD338310017	Kit, Floor Carpets, LHD	CD338310017 Kit, Floor Carpets, LHD LHD, Lightweight	-	1	Enquire
122	CD338310014	Kit, Floor Carpets, RHD	CD338310014 Kit, Floor Carpets, RHD RHD, Heavyweight	-	1	Enquire
123	CD338310015	Kit, Floor Carpets, RHD	CD338310015 Kit, Floor Carpets, RHD RHD, Lightweight	-	1	Enquire
130	CD33044J09AA	Energy Absorber, Foot Rest	CD33044J09AA Energy Absorber, Foot Rest LHD	-	1	Enquire
140	9G4312020BA	LHD FOOTREST TOP PAD ASSY	9G4312020BA LHD FOOTREST TOP PAD ASSY LHD, Silver Pedals	-	1	Enquire
141	CD3312020CA	Cover Plate, Foot Rest	CD3312020CA Cover Plate, Foot Rest LHD, Black Pedals	-	1	Enquire
150	CD333N328BB	FOOTREST BRKT	CD333N328BB FOOTREST BRKT LHD	-	1	Enquire
160	DD33130B53BB	Support, Floor Carpet, LH	DD33130B53BB Support, Floor Carpet, LH LHD	-	1	Enquire
161	DD33130B53AB	Support, Floor Carpet, LH	DD33130B53AB Support, Floor Carpet, LH RHD	-	1	Enquire
170	DD33130B52BB	Support, Floor Carpet, RH	DD33130B52BB Support, Floor Carpet, RH LHD	-	1	Enquire
171	DD33130B52AB	Support, Floor Carpet, RH	DD33130B52AB Support, Floor Carpet, RH RHD	-	1	Enquire
180	DD33311A76AA	Speaker Grille, Footwell, RH, Black	DD33311A76AA Speaker Grille, Footwell, RH, Black Black	-	1	Enquire
181	DD33311A76BA	Speaker Grille, Footwell, RH, Iridium	DD33311A76BA Speaker Grille, Footwell, RH, Iridium Iridium	-	1	Enquire
210	CD3310K973AEW	HLBRD ASSY LH	CD3310K973AEW HLBRD ASSY LH	-	1	Enquire
220	DD33311A77AA	Speaker Grille, Footwell, LH, Black	DD33311A77AA Speaker Grille, Footwell, LH, Black Black	-	1	Enquire
221	DD33311A77BA	Speaker Grille, Footwell, LH, Iridium	DD33311A77BA Speaker Grille, Footwell, LH, Iridium Iridium	-	1	Enquire
240	703168	NUT M6 HF PTM 8	703168 NUT M6 HF PTM 8	-	1	Enquire
270	22AB628GP	ASSY FENDER MNTG BRKT OUTER LH	22AB628GP ASSY FENDER MNTG BRKT OUTER LH	-	2	Enquire
280	FD33281B11ABW	KIT ASSY SD CRPT LHD	FD33281B11ABW KIT ASSY SD CRPT LHD LHD	-	1	Enquire
281	FD33281B10ABW	KIT ASSY SD CRPT RHD	FD33281B10ABW KIT ASSY SD CRPT RHD RHD	-	1	Enquire
290	4G43831237ABW	HANDBRAKE GAITER ASSY LHD	4G43831237ABW HANDBRAKE GAITER ASSY LHD LHD	-	1	Enquire
291	4G43831236ABW	HANDBRAKE GAITER ASSY RHD	4G43831236ABW HANDBRAKE GAITER ASSY RHD RHD	-	1	Enquire
300	GD33201A49AA	SHLD SPKR GRL PR LH	GD33201A49AA SHLD SPKR GRL PR LH	-	1	Enquire
310	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	3	Enquire
320	6G33E801202AA	M5X45MM CSK HEX STAINLESS STEEL BLACK	6G33E801202AA M5X45MM CSK HEX STAINLESS STEEL BLACK	-	3	Enquire
330	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	2	Enquire
340	697564	Retainer, Push On	697564 Retainer, Push On	-	3	Enquire
350	706711	SCREW-M5x16 CSK BLK	706711 SCREW-M5x16 CSK BLK	-	4	Enquire
360	22AB631GP	ASSY FENDER MNTG BRKT OUTER RH	22AB631GP ASSY FENDER MNTG BRKT OUTER RH	-	2	Enquire
370	DD33130B14AB	Bracket, Carpet Support	DD33130B14AB Bracket, Carpet Support	-	2	Enquire
380	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	-	2	Enquire
390	AD43666A40AB	CARPET FINISHER RHS COMMON	AD43666A40AB CARPET FINISHER RHS COMMON	-	2	Enquire
400	AD43666A41AB	CARPET FINISHER LHS COMMON	AD43666A41AB CARPET FINISHER LHS COMMON	-	2	Enquire
420	6G3368D11AA	Screw, M5 x 12, Cap Head	6G3368D11AA Screw, M5 x 12, Cap Head	-	4	Enquire
430	6G3368D11BA	Screw, M5 x 20, Cap Head	6G3368D11BA Screw, M5 x 20, Cap Head	-	4	Enquire
440	6G3379231AC	Screw, M3.5 x 38, Flat Hd Csk	6G3379231AC Screw, M3.5 x 38, Flat Hd Csk	-	1	Enquire
500	DD3313242AGW	KIT DOOR PLT SCF	DD3313242AGW KIT DOOR PLT SCF	-	1	Enquire
511	6G33SS106209AAPK	BOLT-M6x20 SKT HD(2)	6G33SS106209AAPK BOLT-M6x20 SKT HD(2) Bright. Pack of 2	-	8	Enquire
520	22AC150GP	FOAM-LTR-LOWER	22AC150GP FOAM-LTR-LOWER 'Zagato'	-	2	Enquire
521	22AA194GP	FOAM BUMPER FRONT ECE	22AA194GP FOAM BUMPER FRONT ECE 'Villa D'Este'	-	2	Enquire
522	KD3M132A50CA	NM PLT FRT SILL SCF	KD3M132A50CA NM PLT FRT SILL SCF 'Zagato', Personalised	-	2	Enquire
523	22AA195GP	FOAM BUMPER FRONT NAR	22AA195GP FOAM BUMPER FRONT NAR 'Villa D'Este',Personalised	-	2	Enquire
530	703026	Screw, M5 x 16, Hex Flange Head	703026 Screw, M5 x 16, Hex Flange Head	-	4	Enquire
540	CD333N234AA	Bracket, Foot Rest	CD333N234AA Bracket, Foot Rest RHD	-	1	Enquire
550	CD33044J08AA	Energy Absorber, Foot Rest	CD33044J08AA Energy Absorber, Foot Rest RHD	-	1	Enquire
560	22AB636GP	BRKT FNDR REINF LONGI RR RH	22AB636GP BRKT FNDR REINF LONGI RR RH RHD, Silver Pedals	-	1	Enquire
561	6G3312021AA	RH F/R COVER PLATE	6G3312021AA RH F/R COVER PLATE RHD, Black Pedals	-	1	Enquire
800	DD3331464AB	REINF QTR TR BRKT UP	DD3331464AB REINF QTR TR BRKT UP	-	2	Enquire
810	22AA629GP	FR-LICENSE PLATE PLINTH JAPAN-AUSTRALIA	22AA629GP FR-LICENSE PLATE PLINTH JAPAN-AUSTRALIA Includes items 820-821	-	1	Enquire
820	9D33310B08BA	Speaker Grille, Black Rear Quarter Lower, RH	9D33310B08BA Speaker Grille, Black Rear Quarter Lower, RH Black	-	1	Enquire
821	9D33310B08CA	Grille, Rear Quarter, RH	9D33310B08CA Grille, Rear Quarter, RH Iridium	-	1	Enquire
830	22AA631GP	FR-LICENSE PLATE PLINTH CHINA-FED-AGCC	22AA631GP FR-LICENSE PLATE PLINTH CHINA-FED-AGCC Includes items 840-841	-	1	Enquire
840	9D33310B09BA	Speaker Grille, Black Rear Quarter Lower, LH	9D33310B09BA Speaker Grille, Black Rear Quarter Lower, LH Black	-	1	Enquire
841	9D33310B09CA	Grille, Rear Quarter, LH	9D33310B09CA Grille, Rear Quarter, LH Iridium	-	1	Enquire
850	KD3M290A23ABW	MLDG ASY QTR TR UPR	KD3M290A23ABW MLDG ASY QTR TR UPR	-	1	Enquire
860	KD3M290A22ABW	RR UP QT MLDG ASY RH	KD3M290A22ABW RR UP QT MLDG ASY RH	-	1	Enquire
870	KD3ML31113AAW	PNL BDY SD TR RR LH	KD3ML31113AAW PNL BDY SD TR RR LH	-	1	Enquire
880	KD3ML31112AAW	PNL BDY SD TR R RH	KD3ML31112AAW PNL BDY SD TR R RH	-	1	Enquire
900	AD4303722AA	CLIP TRIM	AD4303722AA CLIP TRIM	-	2	Enquire
910	CD3324859AD	BZL ASY S/BELT BC	CD3324859AD BZL ASY S/BELT BC	-	1	Enquire
920	CD3324858AD	BZL ASY S/BELT BC	CD3324858AD BZL ASY S/BELT BC	-	1	Enquire
930	W505771S307	Screw, CSK, M5 x 10	W505771S307 Screw, CSK, M5 x 10	-	4	Enquire
940	22AA632GP	FR-LICENSE PLATE PLINTH EU	22AA632GP FR-LICENSE PLATE PLINTH EU	-	1	Enquire
950	22AA199GP	REINF BUMPER SKIN LH	22AA199GP REINF BUMPER SKIN LH	-	1	Enquire
960	22AA200GP	REINF BUMPER SKIN RH	22AA200GP REINF BUMPER SKIN RH	-	1	Enquire
970	22AA569GP	REINF BUMPER SKIN FRONT	22AA569GP REINF BUMPER SKIN FRONT	-	6	Enquire
980	KD3M41853AA	L/C FR SD BRKT ASSY	KD3M41853AA L/C FR SD BRKT ASSY	-	1	Enquire
990	KD3M41852AA	L/C FR SD BRKT ASSY	KD3M41852AA L/C FR SD BRKT ASSY	-	1	Enquire
1000	KD3M03525AA	RR QTR FR BRKT ASSY	KD3M03525AA RR QTR FR BRKT ASSY	-	1	Enquire
1010	KD3M03524AA	RR QTR FR BRKT ASSY	KD3M03524AA RR QTR FR BRKT ASSY	-	1	Enquire
1020	703732	Screw, M5 x 20, Hex Flange Head	703732 Screw, M5 x 20, Hex Flange Head	-	6	Enquire
1030	KD3M50337BA	RR QTR FR BRKT ASSY	KD3M50337BA RR QTR FR BRKT ASSY	-	1	Enquire
1040	KD3M50337AA	RR QTR FR BRKT ASSY	KD3M50337AA RR QTR FR BRKT ASSY	-	1	Enquire
1050	22AA878GP	FRONT BUMPER SKIN UPR WITH PDC	22AA878GP FRONT BUMPER SKIN UPR WITH PDC	-	1	Enquire
1060	00RB006	SPIER CLIP - 4.2X7 2.5X5.0 8MM	00RB006 SPIER CLIP - 4.2X7 2.5X5.0 8MM	-	1	Enquire
1070	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	4	Enquire
1080	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
1090	8D33313A73AB	Bracket, Cabin Finisher, Outboard, LH	8D33313A73AB Bracket, Cabin Finisher, Outboard, LH	-	1	Enquire
1100	8D33313A72AB	Bracket, Cabin Finisher, Outboard, RH	8D33313A72AB Bracket, Cabin Finisher, Outboard, RH	-	1	Enquire
1110	697603	Screw, M6 x 25, Csk Socket Hd	697603 Screw, M6 x 25, Csk Socket Hd	-	4	Enquire
1120	4G43105104AA	Screw, M4 x 8, Cap Head, Black	4G43105104AA Screw, M4 x 8, Cap Head, Black	-	2	Enquire
1130	8D33314A97AC	Bracket, Rear Heel Board, LH	8D33314A97AC Bracket, Rear Heel Board, LH	-	1	Enquire
1140	8D33314A96AC	Bracket, Rear Heel Board, RH	8D33314A96AC Bracket, Rear Heel Board, RH	-	1	Enquire
1150	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	6	Enquire
1160	701441PK	Screw, 4.2 x 13, Small Washer Head	701441PK Screw, 4.2 x 13, Small Washer Head	-	9	Enquire
1170	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	12	Enquire
1180	DD3367340AA	PNL RR ST HL BD	DD3367340AA PNL RR ST HL BD	-	1	Enquire
1190	00RB176	CLIP - STEM	00RB176 CLIP - STEM	-	1	Enquire
1200	KD3M11766AAW	PNL ASY STWG CMPT RH	KD3M11766AAW PNL ASY STWG CMPT RH	-	1	Enquire
1210	11A7405CP	CLIP - HARNESS	11A7405CP CLIP - HARNESS Includes item 1220,1230	-	1	Enquire
1220	GD3319C166AB	DUAL USB	GD3319C166AB DUAL USB	-	1	Enquire
1240	KD3M045C62AAW	MLDS ASSY ANSL PNL S	KD3M045C62AAW MLDS ASSY ANSL PNL S	-	1	Enquire
1250	704327	Nut and Washer, M6, Hex Flange Head	704327 Nut and Washer, M6, Hex Flange Head	-	6	Enquire
1260	00RB213	CLIP - U NUT - M6	00RB213 CLIP - U NUT - M6	-	1	Enquire
1270	KD3M60028ABW	PNL ASY CVR RR RH	KD3M60028ABW PNL ASY CVR RR RH	-	1	Enquire
1280	4G43C045F70AB	RETAINER PASSENGER AIRBAG COVER PAD	4G43C045F70AB RETAINER PASSENGER AIRBAG COVER PAD	-	8	Enquire
1290	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	4	Enquire
1300	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	4	Enquire
1310	CD33310A85AA	Bracket, Bulk Head Side, LH	CD33310A85AA Bracket, Bulk Head Side, LH	-	1	Enquire
1320	8D33310A84AB	Bracket, Bulk Head Side, RH	8D33310A84AB Bracket, Bulk Head Side, RH	-	1	Enquire
1330	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	4	Enquire
1340	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10) Pack of 10	-	2	Enquire
1350	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	2	Enquire
1360	22AC686GP	FOAM-LTR-UPR	22AC686GP FOAM-LTR-UPR	-	1	Enquire
1370	22AC662GP	SEALING FRONT BUMPER	22AC662GP SEALING FRONT BUMPER	-	1	Enquire
1380	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	8	Enquire
1390	22AB727GP	SEAL BONNET MARGIN MLD RH	22AB727GP SEAL BONNET MARGIN MLD RH	-	8	Enquire
1400	13A5855CP	FOAM BLOCK - FENDER COVER - INNER	13A5855CP FOAM BLOCK - FENDER COVER - INNER	-	1	Enquire
1401	13A5836CP	FOAM SUPPORT - CENTRE - WIPER COVER	13A5836CP FOAM SUPPORT - CENTRE - WIPER COVER Carbon	-	1	Enquire
1410	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	4	Enquire
1420	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
1430	13AA795CP	BADGE - FRONT - MCLAREN - GREY	13AA795CP BADGE - FRONT - MCLAREN - GREY	-	1	Enquire
1440	HD43711387AA	BOLT-M8x25.5 PN TITE SPL8	HD43711387AA BOLT-M8x25.5 PN TITE SPL8	-	6	Enquire
1450	00RB012	CLIP - 2MM - TRIM PANEL	00RB012 CLIP - 2MM - TRIM PANEL	-	6	Enquire
1460	13A5175CP	COVER - RESERVOIR - LH	13A5175CP COVER - RESERVOIR - LH	-	2	Enquire
1470	702288	Screw, 4.2 x 16 Self Tapping	702288 Screw, 4.2 x 16 Self Tapping	-	2	Enquire
1480	13A5186CP	COVER - RESERVOIR - RH	13A5186CP COVER - RESERVOIR - RH	-	6	Enquire
1490	707957	SCREW-M5 x12 HEX FLG	707957 SCREW-M5 x12 HEX FLG	-	2	Enquire
1500	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE	-	2	Enquire
1510	FD4310512FAA	M5X20 FLNC PN HD	FD4310512FAA M5X20 FLNC PN HD	-	4	Enquire
1520	610261357	FOAM STRIP AD BK	610261357 FOAM STRIP AD BK	-	2	Enquire
1530	DD3361236AA	Bezel, Seat Belt Gap Hider Moulding	DD3361236AA Bezel, Seat Belt Gap Hider Moulding	-	2	Enquire
1540	22AB370GP	COVER WIPER SYSTEM LHD	22AB370GP COVER WIPER SYSTEM LHD	-	1	Enquire
1550	AD43C519A40AA	SCREW-M5x13 PN HD	AD43C519A40AA SCREW-M5x13 PN HD	-	5	Enquire
