Body Closures of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

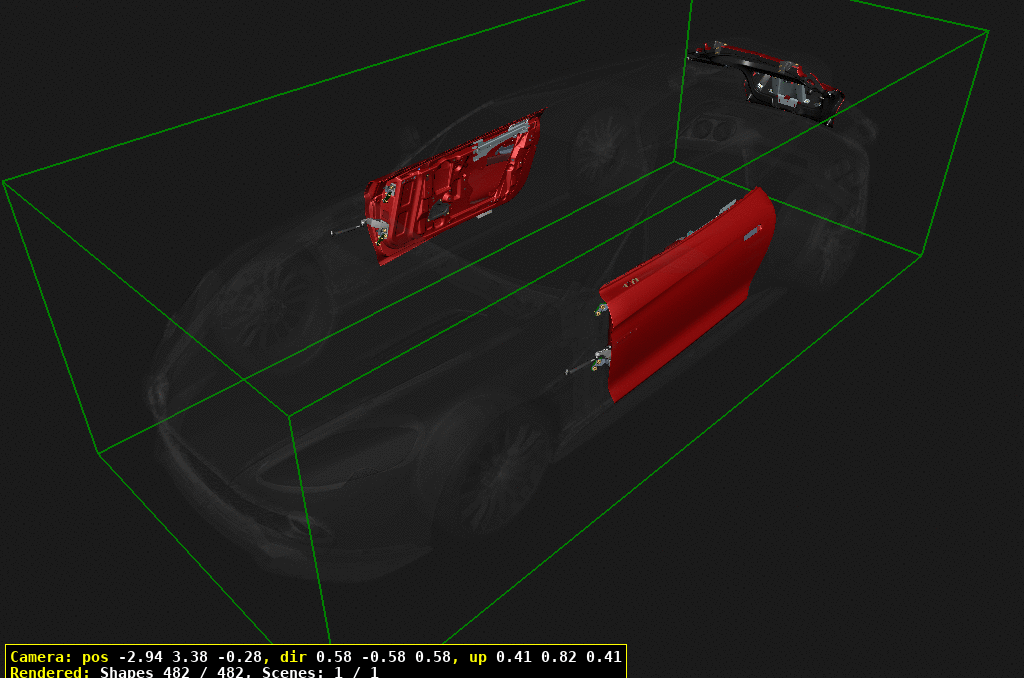

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Body Closures

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	11A4020SP	BUMPSTOP - ENGINE COVER	11A4020SP BUMPSTOP - ENGINE COVER	-	1	Enquire
30	22AD733GP	ELECTRIC HATCH LID	22AD733GP ELECTRIC HATCH LID	-	1	Enquire
40	4G436510056	Hinge Assy, Front Door, LH	4G436510056 Hinge Assy, Front Door, LH Includes item 60	-	2	Enquire
50	4G436510055	HINGE FRONT DOOR RH	4G436510055 HINGE FRONT DOOR RH Includes item 60	-	2	Enquire
60	703269	SC M8x8 HD/LS EXTNL	703269 SC M8x8 HD/LS EXTNL	-	4	Enquire
70	4G4322817AC	SHIM DOOR HINGE ON BODY	4G4322817AC SHIM DOOR HINGE ON BODY 1.2mm	-	4	Enquire
80	4G4322816AC	SHIM DOOR HINGE ON BODY	4G4322816AC SHIM DOOR HINGE ON BODY 0.5mm	-	4	Enquire
90	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	4	Enquire
100	DG43201262AA	Screw/Washer, M8 x 25	DG43201262AA Screw/Washer, M8 x 25	-	8	Enquire
110	4G4340176AB	Pin, Door Locating	4G4340176AB Pin, Door Locating	-	4	Enquire
120	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	6	Enquire
130	4G43E826280BAPK	Nut M6- Flexax Tolerance (Pack of 5)	4G43E826280BAPK Nut M6- Flexax Tolerance (Pack of 5) Pack of 5	-	2	Enquire
140	4G43702961AA	CVR DR ACC OPNG - ALUMINIUM SPACER	4G43702961AA CVR DR ACC OPNG - ALUMINIUM SPACER	-	4	Enquire
160	4G4313283BA	Cover, Door Access Opening, LH	4G4313283BA Cover, Door Access Opening, LH	-	1	Enquire
170	4G4313282BA	Cover, Door Access Opening, RH	4G4313282BA Cover, Door Access Opening, RH	-	1	Enquire
180	697517PK	WASHER-M6 LGE OD BLK PACK OF 20	697517PK WASHER-M6 LGE OD BLK PACK OF 20 Pack of 20	-	4	Enquire
200	4G4323504AB	Stay Front Door	4G4323504AB Stay Front Door	-	2	Enquire
211	FD33500120AA	BOLT-M10 x 1.5 x 40	FD33500120AA BOLT-M10 x 1.5 x 40	-	4	Enquire
220	703121	Screw, M8 x 25, Hex Flange Head	703121 Screw, M8 x 25, Hex Flange Head	-	6	Enquire
280	22AA038GP	ASSY BRKT FNDR REINF LONGI RH	22AA038GP ASSY BRKT FNDR REINF LONGI RH	-	2	Enquire
300	KD3M40110AA	ASSY DECKLID	KD3M40110AA ASSY DECKLID	-	1	Enquire
310	22AA715GP	SEAL BELT DOOR OTR LH	22AA715GP SEAL BELT DOOR OTR LH	-	1	Enquire
320	22AA716GP	SEAL BELT DOOR OTR RH	22AA716GP SEAL BELT DOOR OTR RH	-	1	Enquire
330	22AD215GP	DOOR SILL BODY PROTECTION COVER LH	22AD215GP DOOR SILL BODY PROTECTION COVER LH	-	1	Enquire
340	22AD216GP	DOOR SILL BODY PROTECTION COVER RH	22AD216GP DOOR SILL BODY PROTECTION COVER RH	-	1	Enquire
350	HD43711387AA	BOLT-M8x25.5 PN TITE SPL8	HD43711387AA BOLT-M8x25.5 PN TITE SPL8	-	8	Enquire
360	AD4360008CAA	HRNS CLP 6.4	AD4360008CAA HRNS CLP 6.4	-	3	Enquire
370	22AD698GP	FINISHER FNDR CHEATER WAIST LH	22AD698GP FINISHER FNDR CHEATER WAIST LH	-	2	Enquire
380	6485690	BALL STUD-GAS STRUT	6485690 BALL STUD-GAS STRUT	-	4	Enquire
390	CD3343422AA	Washer, 81 x 21 x 1.6	CD3343422AA Washer, 81 x 21 x 1.6	-	4	Enquire
400	6G33N40452AB	Bump Stop Assembly, Deck Lid	6G33N40452AB Bump Stop Assembly, Deck Lid	-	2	Enquire
