Sound And Heat Control

Aston Martin GT VANQUISH ZAGATO (2016-2019)

Find Your Part

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Sound and Heat Control

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

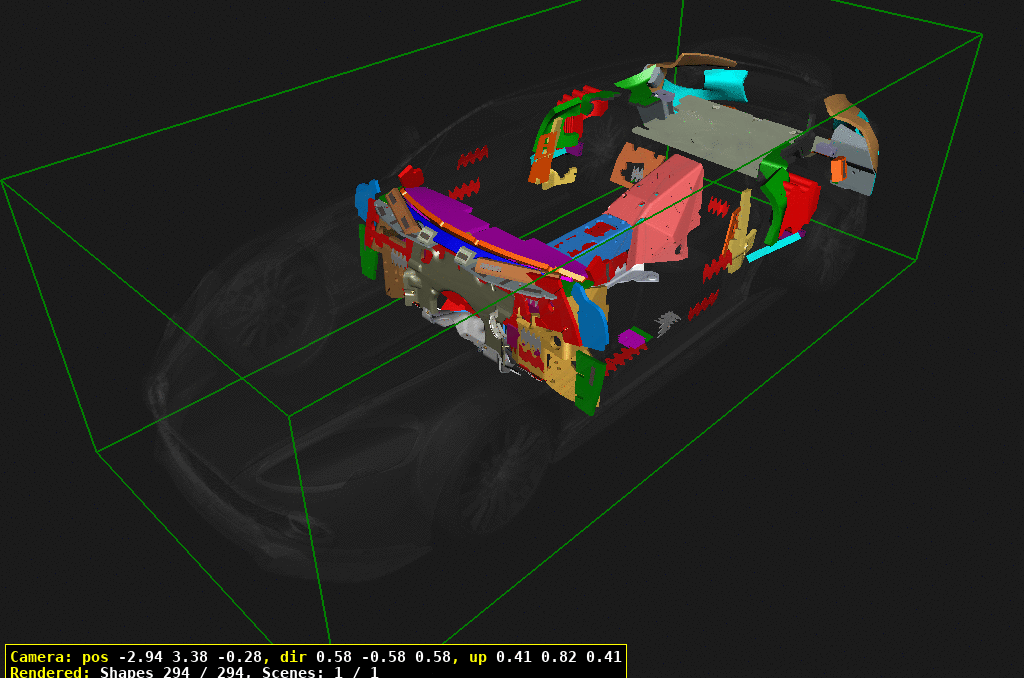

Sound and Heat Control of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 22AB201GP
ASSY PNL RR FENDER SUPPORT UPR LH 		- 1 Enquire
20 DD3300152AB
Insulation, Plenum, Engine Bay Side 		- 1 Enquire
30 DD3328110AB
NVH Foam Pad Assembly, Fender Lower 		- 2 Enquire
40 DD3328112AA
NVH Foam Pad, Fender Upper 		- 2 Enquire
50 AD4368066CA
NVH DASH FOAM UNDER 		- 2 Enquire
60 DG4368066BA
NVH DASH FOAM UNDER 		- 2 Enquire
80 6G33102B00AE
INS ENG HSG SND LHD
LHD 		- 1 Enquire
81 6G33102B00BE
INS ENG HSG SND RHD
RHD 		- 1 Enquire
90 8G4304564AA
NVH, Autobox Clutch Pedal 		- 1 Enquire
100 8G4348181AB
Foam Pad, Under IP, LH 		- 1 Enquire
110 8G4348182AB
Foam Pad, Under IP, RH 		- 1 Enquire
130 22AA688GP
ASSY BRACKET SAB TO REAR FENDER RH 		- 1 Enquire
140 00RB250
CLIP - BOWDEN CABLE 		- 1 Enquire
150 702212
Snapsac, 6.8mm, Push-on, Plastic 		- 1 Enquire
160 DD33015A23AD
DSH INR LH LHD
LHD 		- 1 Enquire
161 DD33015A22AG
DSH INR LH RHD
RHD 		- 1 Enquire
170 DD33002K05AF
DASH INR RH LHD
LHD 		- 1 Enquire
171 DD33002K06AD
DSH INR RH RHD
RHD 		- 1 Enquire
180 13A5840CP
COVER - LUGGAGE BIN TOE 		- 1 Enquire
200 AD43534A0AB
Panel Assembly, Dash Lower Drivers Side
LHD 		- 1 Enquire
201 11A5697CP
OUTLET - 12V
RHD 		- 1 Enquire
210 AD43534A1AC
Panel Assembly, Dash Lower Passengers Side
LHD 		- 1 Enquire
211 00RB172
CLIP - EXPANDING
RHD 		- 1 Enquire
220 6G3368066AC
NVH DASH FOAM UNDER SIDE CAVITY ASSY 		- 1 Enquire
300 4G437Z309AC
Insulation, Transmission Case Cover 		- 1 Enquire
310 4G43114B26AH
Insulation, Tunnel 		- 1 Enquire
330 702212
Snapsac, 6.8mm, Push-on, Plastic 		- 5 Enquire
340 ED335416AD
NVH TNL RR INR 		- 1 Enquire
350 DD3311446AD
INS FLR PAN GR SH LV 		- 1 Enquire
360 CG43D1161AC
Insulation, Rear Quarter Trim, LH 		- 1 Enquire
370 00RB173
STUD - CLIP - EXPANDING 		- 1 Enquire
380 ED33L27747AA
NVH, Rear Quarter Panel, Cabin, LH 		- 1 Enquire
390 ED33L27746AA
NVH, Rear Quarter Panel, Cabin, RH 		- 1 Enquire
400 00RB215
CLIP - EDGE CLAMP - LUGGAGE BIN HATCH - BLACK 		- 1 Enquire
410 11A3519CP
SWITCH - LUGGAGE COMPARTMENT - LID RELEASE - US 		- 1 Enquire
420 13AA721CP
LUGGAGE BIN - FRONT 		- 1 Enquire
430 13A5452CP
NVH PAD - LUGGAGE BIN 		- 1 Enquire
440 11N2342CP
LUGGAGE BIN NET 		- 1 Enquire
450 22AA585GP
ASSY REAR TRIM LUGGAGE BIN 		- 1 Enquire
700 ED3331314AB
Insulation, Quarter Panel Rear 		- 1 Enquire
720 DD33C27747AA
Sound Insulation Panel, Rear Quarter, LH 		- 1 Enquire
730 DD33C27746AA
Sound Insulation Panel, Rear Quarter, RH 		- 1 Enquire
740 KD3MD1161AA
INS RR QTR SND LH 		- 1 Enquire
750 22AD582GP
REAR FENDER FINISHER LH 		- 1 Enquire
760 22AD383GP
REAR FENDER FINISHER RH 		- 1 Enquire
770 22AC312GP
ASSY REAR BADGE 		- 1 Enquire
780 KD3MF310A26AB
INS QTR I/S PNL SND 		- 1 Enquire
790 13A6476CP
BODYSIDE EXTENSION - REAR - LOWER - LH 		- 1 Enquire
800 22NB477GP
REAR TRIM ASSY - LUGGAGE HOOP 		- 1 Enquire
810 ED33403C20AA
Insulation, Back Panel Outer 		- 2 Enquire
820 22AD380GP
REAR FENDER FINISHER UPPER LH 		- 1 Enquire
830 22AD381GP
REAR FENDER FINISHER UPPER RH 		- 1 Enquire
840 22AD657GP
ASSY MIDDLE GRILLE UPR 		- 1 Enquire
850 22AD637GP
ASSY SIDE GRILLES LH 		- 1 Enquire
860 22AA974GP
BRACKET LH 		- 1 Enquire
870 22AD638GP
ASSY SIDE GRILLES RH 		- 1 Enquire
880 22AA975GP
BRACKET RH 		- 1 Enquire
890 22AA987GP
REAR GRILLE LOWER 		- 1 Enquire
900 14A4456CP
COVER - BEZEL - PARKING SENSOR - REAR BUMPER 		- 1 Enquire
910 22AA222GP
MIDDLE GRILLE LOWER 		- 1 Enquire
920 22AA865GP
ASSY REINFORCEMENT BUMPER 		- 1 Enquire
1100 4G43017A16AG
HEATSHIELD - FRONT BULKHEAD - LHD
LHD 		- 1 Enquire
1101 4G43017A16BG
HEATSHIELD - FRONT BULKHEAD - RHD
RHD 		- 1 Enquire
1110 4G432B485AC
HEATSHIELD - BRAKE BOOSTER 		- 1 Enquire
1120 703612
Nut & Washer, M6, HVAC to XCB 		- 2 Enquire
1130 DG4311398AB
Heat Shield-Deflector, Front Floor 		- 1 Enquire
1140 4G433962GA
Bracket, Heat Deflector Support 		- 2 Enquire
1150 703612
Nut & Washer, M6, HVAC to XCB 		- 2 Enquire
1160 4G433962CD
HEATSHIELD - DEFLECTOR FRONT FLOOR HEAT BRACKET 		- 2 Enquire
1170 703264
SCREW-M6 x 14 HEX HD 		- 2 Enquire
1180 703612
Nut & Washer, M6, HVAC to XCB 		- 2 Enquire
1190 703151
Screw M6x16 Washer Hex HD Chrome Free 		- 6 Enquire
1210 CD3311398BB
Heat Shield, Cat Blister, LH 		- 1 Enquire
1220 CD3311398AB
Heat Shield, Cat Blister RH 		- 1 Enquire
1230 4G434A380AE
HEATSHIELD - TUNNEL 		- 1 Enquire
1240 703265
Screw, M6 x 16, Hex Flange Head 		- 2 Enquire
1250 703612
Nut & Washer, M6, HVAC to XCB 		- 2 Enquire
1260 22AA869GP
ASSY BUMPER REAR WITH CAMERA AND PDC 		- 1 Enquire
1270 707004
BOLT & WSHR M6x16 HX 		- 13 Enquire
1280 22AB104GP
ASSY BUMPER REAR SKIN BASE 		- 1 Enquire
1290 22AA984GP
GRILLE LOWER LH 		- 1 Enquire
