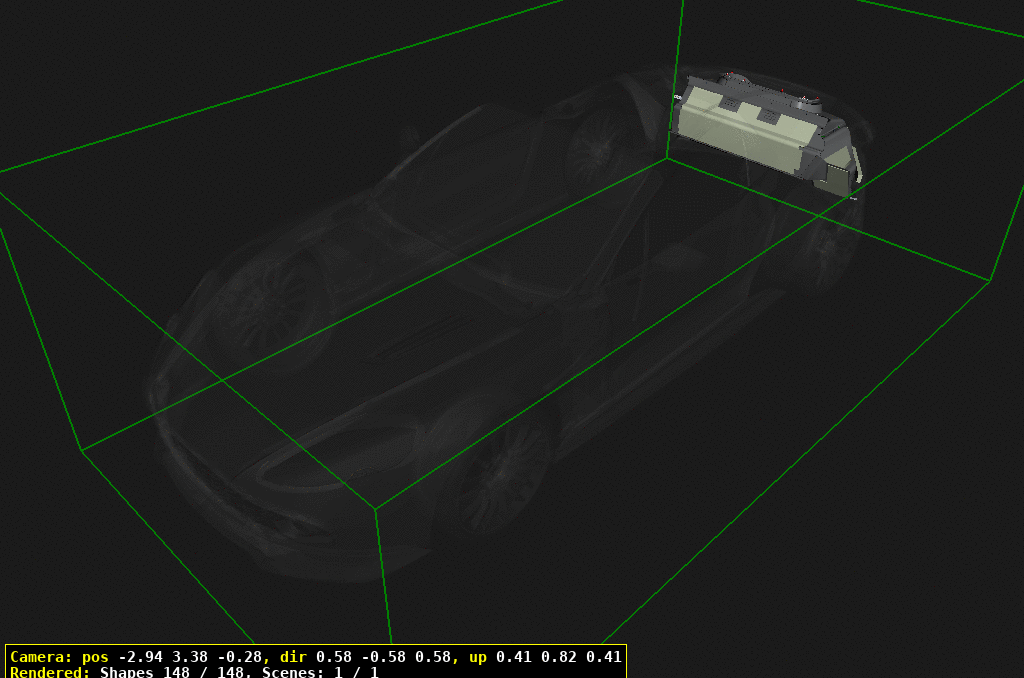

Interior Trim - Luggage Compartment of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

View All

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Interior Trim - Luggage Compartment

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
20	11A4538CP	ADHESIVE - STRUCTURAL - SA9820 - 400CC	11A4538CP ADHESIVE - STRUCTURAL - SA9820 - 400CC	-	1	Enquire
30	JD3M454K64AAW	PANEL ASSY L/C RH	JD3M454K64AAW PANEL ASSY L/C RH	-	1	Enquire
40	703742	Fastener, Push In, 6.5 x 6.0	703742 Fastener, Push In, 6.5 x 6.0	-	9	Enquire
50	701448	Spring Nut, U Type, 4.2 x 2.1	701448 Spring Nut, U Type, 4.2 x 2.1	-	9	Enquire
60	13A4911CP	INTERNAL ARM - DOOR MIRROR - RH	13A4911CP INTERNAL ARM - DOOR MIRROR - RH	-	2	Enquire
70	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	2	Enquire
80	JD3M454K65AAW	PNL ASY LOAD COMP LH	JD3M454K65AAW PNL ASY LOAD COMP LH	-	1	Enquire
90	4G43MXC1800AAPK	Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20)	4G43MXC1800AAPK Fir Tree Button 6.4 X 2.3 - 14.2 (Pack of 20) Pack of 20	-	2	Enquire
100	AG43608073AA	SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	AG43608073AA SCREW-No8 x 25 STB INT H COUNTERSUNK STAINLESS BLACK	-	9	Enquire
110	13A4912CP	INTERNAL ARM - DOOR MIRROR - LH	13A4912CP INTERNAL ARM - DOOR MIRROR - LH	-	1	Enquire
120	ED330936AAW	Retainer, Umbrella	ED330936AAW Retainer, Umbrella	-	4	Enquire
130	6G33FA0115ABPK	Screw and Washer M6 x 20 Torx Head (Pack of 20)	6G33FA0115ABPK Screw and Washer M6 x 20 Torx Head (Pack of 20) Pack of 20	-	2	Enquire
140	DD33045L27AB	MLDG L/C AUX PWR	DD33045L27AB MLDG L/C AUX PWR	-	1	Enquire
150	13A5601CP	CHEATER PANEL - LH	13A5601CP CHEATER PANEL - LH	-	1	Enquire
160	14A3463CP	SCALP - DOOR MIRROR - RH	14A3463CP SCALP - DOOR MIRROR - RH	-	1	Enquire
170	14A3464CP	SCALP - DOOR MIRROR - LH	14A3464CP SCALP - DOOR MIRROR - LH	-	1	Enquire
180	14AB091CP	SCALP - DOOR MIRROR - CARBON - LH	14AB091CP SCALP - DOOR MIRROR - CARBON - LH	-	1	Enquire
190	JD3M454K65BAW	PNL ASY LOAD COMP LH	JD3M454K65BAW PNL ASY LOAD COMP LH	-	1	Enquire
200	14AB092CP	SCALP - DOOR MIRROR - CARBON - RH	14AB092CP SCALP - DOOR MIRROR - CARBON - RH	-	1	Enquire
210	JD3YMWC1474AA	FIR TREE CLIP	JD3YMWC1474AA FIR TREE CLIP	-	7	Enquire
220	ED330440AA	Screw, M8 x 30 Csk Torx	ED330440AA Screw, M8 x 30 Csk Torx	-	1	Enquire
230	4G43N623361AA	Clip, U Type, Emergency Handle	4G43N623361AA Clip, U Type, Emergency Handle	-	1	Enquire
240	13A5606CP	CLIP - CHEATER PANEL - RH	13A5606CP CLIP - CHEATER PANEL - RH	-	1	Enquire
250	CD3340168AAW	Bracket, Pull Down Retention, Luggage Compartment	CD3340168AAW Bracket, Pull Down Retention, Luggage Compartment	-	1	Enquire
