Aston Martin GT VANQUISH ZAGATO (2016-2019) - Body Structure

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
Body Structure of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 13A4984CP
COVER - DOOR - GAS STRUT - RH 		- - Enquire
20 DG4310120AA
Member, Floor, Side Front
Structural. Cat A Only 		- 2 Enquire
30 ED33L243A61AE
REINF CTR BDY UPR
Structural. Cat A Only 		- 1 Enquire
40 ED33L243A60AE
REINF CTR BDY UPR
Structural. Cat A Only 		- 1 Enquire
50 00RA325
SCREW - M8X20 - BUTTON
Structural. Cat A Only 		- 1 Enquire
60 13A7002CP
INSERT - GAS STRUT
Structural. Cat A Only 		- 1 Enquire
70 00RA590
BOLT - HEX HEAD - FLANGED - M10X35
Structural. Cat A Only 		- 1 Enquire
80 4G43434K12AB
Nut Plate M10 		- 2 Enquire
90 8G43434K10AA
NUTPLATE FRONT END MOUNTING OUTER RH M12 		- 1 Enquire
100 00RA541
SCREW - COUNTERSUNK - HEX - M6X10 		- 1 Enquire
110 8G43390725AA
NUT PLATE FRONT END MOUNTING INR M12 		- 2 Enquire
120 GOAG33F001K28AA
Bracket, tunnel upper inner
Structural. Cat A Only 		- 2 Enquire
130 4G432010876
FRONT SUBFRAME UPRIGHT ASSY RH-DB9
Structural. Cat A Only 		- 1 Enquire
140 4G432010877
FRONT SUBFRAME UPRIGHT ASSY-LH DB9
Structural. Cat A Only 		- 1 Enquire
150 4G431610880
PANEL FLOOR LH
Structural. Cat A Only 		- 1 Enquire
160 4G431610879S
Panel assy, floor, RH
Structural. Cat A Only 		- 1 Enquire
180 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- A/R Enquire
190 00RC034
WASHER - PLAIN - M12X28X2.7
Structural. Cat A Only 		- 1 Enquire
200 00RC035
WASHER - PLAIN - M10X28X2.5
Structural. Cat A Only 		- 1 Enquire
230 DG43101D07AA
Extension Member, Rear Floor Side Lower, LH
Structural. Cat A Only 		- 1 Enquire
240 00RC121
WASHER - PLAIN - M10X28X2.5
Structural. Cat A Only 		- 1 Enquire
250 22AD507GP
ASSY HINGE DOOR LH
Structural. Cat A Only 		- 2 Enquire
260 GOFD33270A50AC
EXT SIDE IMPT PSHR B
Structural. Cat A Only 		- 2 Enquire
270 GOFD33026B04AB
REINF B PILLAR PLATE
Structural. Cat A Only 		- 2 Enquire
280 GOFD33106A78AA
EXT SILL CATCHER 		- 2 Enquire
290 00RA112
TORX SCREW-WASHER 4.2X16
Structural. Cat A Only 		- 1 Enquire
300 00RA083
SCREW - M6X20 - FLANGE HEX
Structural. Cat A Only 		- 2 Enquire
310 702944
Nut, M6, Hex Flanged Head 		- - Enquire
320 GOFD3324437AB
REINF B PILLAR LWR L
Structural. Cat A Only 		- 1 Enquire
330 00RA551
SCREW - COUNTERSUNK - HEX - M8X16 		- 1 Enquire
340 22AC190GP
GUIDE - VANE FRONT - LH EXT 		- 1 Enquire
350 00RC064
WASHER - M6X18X1.6 - BLACK 		- 1 Enquire
360 22AB144GP
FRONT FLOOR 		- 1 Enquire
400 6G3315110AB
Nutplate M8, ??post hinge, lower, RH 		- 1 Enquire
410 DG4316430AA
Reinforcement, Hood Striker Plate, RH
Structural. Cat A Only 		- 1 Enquire
420 ED3371490AA
Nutplate, A Post Hinge, Upper, RH 		- 1 Enquire
430 22AB326GP
TAILGATE COOLING AIR DUCT RH 		- 1 Enquire
440 DG4316431AA
Reinforcement, Hood Striker Plate, LH
Structural. Cat A Only 		- 1 Enquire
450 6G33486226AA
Nutplate, M8, IP beam 		- 2 Enquire
460 ED3371491AA
Nutplate, A Post Hinge, Upper, LH 		- 1 Enquire
470 GODG43F292650AC
Plenum, Lower
Structural. Cat A Only 		- 1 Enquire
480 22AC192GP
GUIDE - VANE FRONT - LH INT
Structural. Cat A Only 		- 1 Enquire
490 22AC191GP
GUIDE - VANE FRONT - RH EXT
Structural. Cat A Only 		- 1 Enquire
500 GODG4317F790AA
NUTPLATE SHOTGUN M10 		- 2 Enquire
510 DD4316185AC
Extrusion, Front Wing LH
Structural. Cat A Only 		- 1 Enquire
520 DD4316184AC
Extrusion, Front Wing RH
Structural. Cat A Only 		- 1 Enquire
530 GOED33F02660AA
Pillar, Front Body, Lower Front, RH
Structural. Cat A Only 		- 1 Enquire
540 GOED33F02661AA
Pillar, Front Body, Lower Front, LH
Structural. Cat A Only 		- 1 Enquire
550 GOED33F02662AA
Extrusion, Front Body Pillar Lower, RH
Structural. Cat A Only 		- 1 Enquire
560 GOED33F02663AA
Extrusion, Front Body Pillar Lower, LH 		- 1 Enquire
570 DD3318178AA
Bracket, Gas Damper Mounting 		- 2 Enquire
580 22AA542GP
GAS STRUT DOOR RH
Structural. Cat A Only 		- 1 Enquire
590 22AA539GP
GAS STRUT DOOR LH
Structural. Cat A Only 		- 1 Enquire
600 GODD4371023AE
Cowl, Reinforcement Casting
Structural. Cat A Only 		- 1 Enquire
610 GOFD3302526AA
BDY PLR FRT REINF BL
Structural. Cat A Only 		- 2 Enquire
620 22AC193GP
GUIDE - VANE FRONT - RH INT
Structural. Cat A Only 		- 1 Enquire
630 22AA623GP
COVER FOG DIFFUSER
Structural. Cat A Only 		- 1 Enquire
640 ED33L03014BC
Frame Assembly, Windshield
Structural. Cat A Only 		- 1 Enquire
650 703121
Screw, M8 x 25, Hex Flange Head 		- 2 Enquire
660 6G33375732AB
Screw, 5.5 x 19, Self Drill, Hex Flange head 		- 2 Enquire
700 8G43CSA01GA
Front Structure Assembly
Structural. Cat A Only 		- 1 Enquire
710 6G3310595AA
Bracket, Front Side Member to Front Suspension Housing, LH 		- 1 Enquire
720 6G3310594AA
Bracket, Front Side Member to Front Suspension Housing, RH 		- 1 Enquire
730 GO8G4310072AA
Reinforcement, Front Strut Mounting, RH 		- 1 Enquire
740 DG43130A32AA
Bracket, Front Side Member, Rear, RH 		- 1 Enquire
770 DG43130A33AA
Bracket, Front Side Member, Rear, LH 		- 1 Enquire

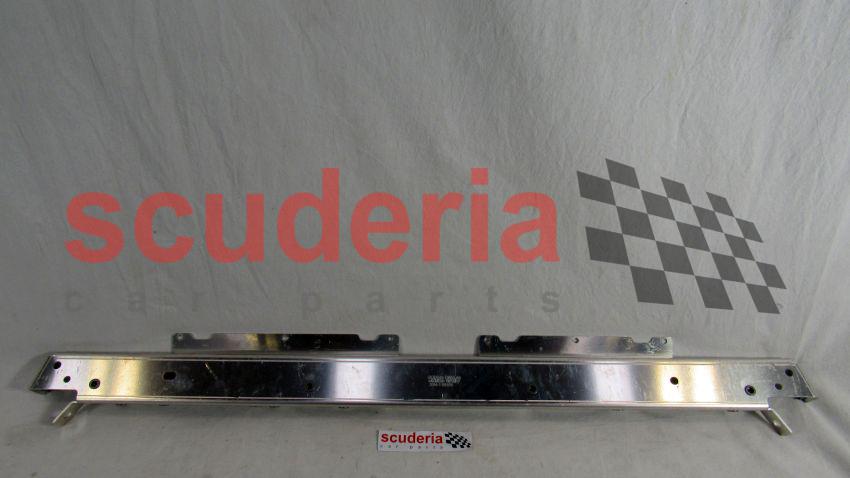

780 DG4310853AB
Front Cross Member, Latch Mounting 		- 1 Enquire
800 GODG4310073AB
Reinforcement, Front Strut Mounting, LH 		- 1 Enquire
830 703121
Screw, M8 x 25, Hex Flange Head 		- 6 Enquire

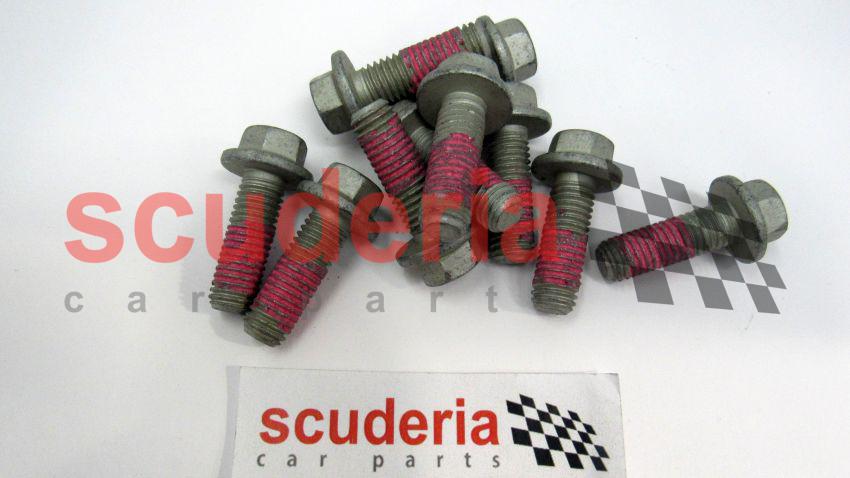

840 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 12 Enquire

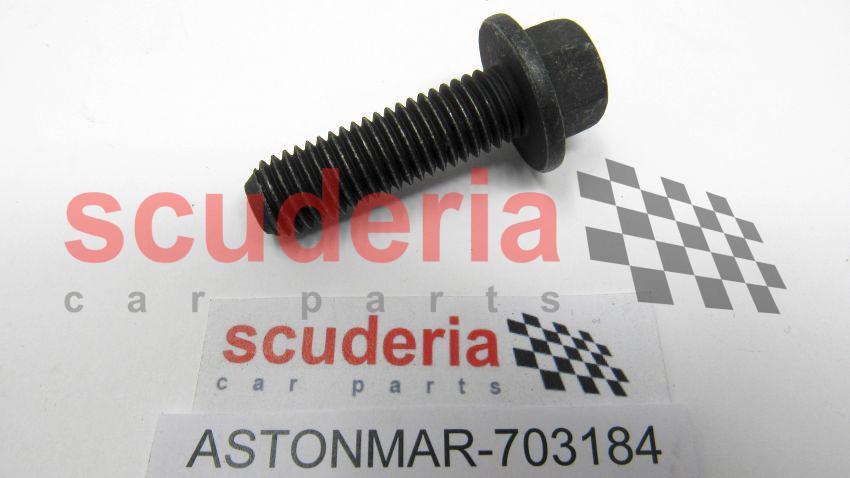

850 703184
Screw M12 x 40 Hex Flange Head 		- 8 Enquire
860 4G4371480AC
Nutplate, Front Crush Structure, Outer 		- 2 Enquire
900 13AA822CP
BRKT LATCH MTG LH - LATCH MOUNTING - LH
RoW. Structural. Cat AOnly 		- 1 Enquire
901 15AC155CP
CAP - DOOR RELEASE CABLE - LH
Federal. Structural. CatA Only 		- 1 Enquire
910 13AB222RP
CABLE - EXTERIOR RELEASE - DOOR
RoW. Structural. Cat AOnly 		- 1 Enquire
911 16AD545CP
LATCH DOOR POWER CLOSE - LH
Federal. Structural. CatA Only 		- 1 Enquire
930 7G4310609EAAPK
Clip Spring M6 U Type 1.5-4.0 Black (Pack of 10)
Pack of 10
ARRIVING SOON 		- 12 Enquire
940 JD3YL02623AA
A PLR OTR UP LH
Structural. Cat A Only 		- 1 Enquire
950 JD3YL02622AA
A PLR OTR UP RH
Structural. Cat A Only 		- 1 Enquire
960 ED3354246A35AC
W/S SUR UPR SL CA LH 		- 1 Enquire
970 ED3354246A34AC
W/S SUR UPR SL CA RH 		- 1 Enquire
980 FD33278A51AB
REINF DOOR LWR LH 		- 1 Enquire
990 FD33278A50AB
REINF DOOR LWR RH 		- 1 Enquire
1000 DG4313068AC
PNL HD/LP MTNG RH 		- 1 Enquire
1010 8G43199901AA
Nutplate, M6 Headlamp Bracket 		- 2 Enquire
1020 22AD497GP
ASSY PANEL TAILGATE INNER 		- 4 Enquire
1030 703266
Screw M6 x 10 Pan Head Torx 		- 6 Enquire
1040 22AA651GP
UPPER TRIM TAILGATE MACHINED 		- 1 Enquire
1050 22AB017GP
ASSY PNL TAILGATE OTR 		- 2 Enquire
1060 7G432943707AA
Plate, Weld Nut, Centre 		- 6 Enquire
1080 ED3310874AA
Hexcell Block Assy, RH 		- 1 Enquire
1090 4G43L24556AB
Nutplate, Pillar Centre Body Inner Rear 		- 2 Enquire
1100 4G434210021
PLUG-T/CONV ACCESS TORQUE TUBE 		- 1 Enquire
1110 9G4328035AB
Panel, Rear Quarter Shedder, LH 		- 1 Enquire
1120 ED33L277A61AC
Bracket, Reinforcement Rear Quarter Inner, LH 		- 1 Enquire
1130 CD33393126AC
Mounting Plate, Catcher 		- 2 Enquire
1140 9G4311262BA
Reinforcement Assembly, Floor Pan Front 		- 1 Enquire
1150 GODG43111K36AC
Tunnel Reinforcement, Front 		- 1 Enquire
1160 ED3318A008AB
HEX BLK BRK RH 		- 1 Enquire
1180 703265
Screw, M6 x 16, Hex Flange Head 		- 12 Enquire
1190 22AA129GP
SERVICE HATCH FOAM SEAL RR
Includes item 1200 		- 1 Enquire
1200 6G339A032AE
Heatshield, fuel tank 		- 1 Enquire
1210 9G4328034AB
Panel, Rear Quarter Shedder, RH 		- 1 Enquire
1220 ED33L243A70AA
ALIGNMENT PIN 		- 2 Enquire
1230 DG4313069AC
PNL HD/LP MNTG LH 		- 1 Enquire
1240 ED3318A009AB
HEX BLK BRK LH 		- 1 Enquire
1250 ED33EM7243AA
Clip, Tonneau Pump Cover Plate 		- 1 Enquire
1260 ED33L277A60AC
Bracket, Reinforcement Rear Quarter Inner, RH 		- 1 Enquire
1270 6G3318A000AD
Member, Rear Shock Absorber Mounting, RH 		- 1 Enquire
1280 ED33P8K141AA
Gasket, Tonneau Pump Closing Panel 		- 1 Enquire
1290 GODG431660AA
Spacer, Tunnel Reinforcement, Front 		- 2 Enquire
1300 GOED33108A87AB
BRKT FRT CS BRA LH 		- 1 Enquire
1310 GOED33108A86AB
BRKT FRT CS BRA RH 		- 1 Enquire
1320 ED33FA0115AA
SCREW M6x20 TORX HD 		- 3 Enquire
1330 6G3318A001AD
Member, Rear Shock Absorber Mounting, LH 		- 1 Enquire
1340 ED334S018AB
Bracket, Tonneau Bump Stop, RH 		- 1 Enquire
1350 FD33L17C857AB
SHIELD-RR BMPR OPG 		- 1 Enquire
1360 7G33108256AA
Screw, M8 x 21mm, Hex Flange Head 		- 17 Enquire
1370 4G439N070AB
INSULATION - FUEL TANK SUPPORT 		- A/R Enquire
1380 4G43111B48AB
Panel, Dummy Floor Cover, Front 		- 1 Enquire
1390 DAC402716AA
Edge Protection Strip, 170mm 		- 1 Enquire
1410 ED33507A63AA
Plate Assembly, Pump Closing 		- 1 Enquire
1420 DG4316A681AA
Reinforcement, Hood Hinge on Body, RH 		- 1 Enquire
1430 22AB325GP
TAILGATE COOLING AIR DUCT LH 		- 1 Enquire
1440 ED334S019AB
Bracket, Tonneau Bump Stop, LH 		- 1 Enquire
1450 HD3Y6C842AA
DUCT TRAN AIR COOL 		- 1 Enquire
1460 GOCD3310230AA
Reinforcement Extrusion, Rear Floor Side 		- 2 Enquire
1480 ED3367518AA
Panel, Rear Seat Heel Board, RH 		- 1 Enquire
1490 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 3 Enquire
1500 4G4314A573AA
Plate Assembly, Window Regulator Rear Switch Cover 		- 4 Enquire
1510 DG4316A682AA
Reinforcement, Hood Hinge on Body, LH 		- 1 Enquire
1520 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
1550 703194
BOLT M8x45 HEX FLNG CHROME FREE 		- 6 Enquire
1560 22AB326GP
TAILGATE COOLING AIR DUCT RH 		- 1 Enquire
1580 702839PK
Screw & Washer M6 x 20 Hex Head (Pack of 20)
Pack of 10 		- 4 Enquire
1590 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 6 Enquire
1610 DG43043B20AA
Tube, Passenger Air Bag Initiator, LH 		- 1 Enquire
1620 DG43043B19AA
Tube, Passenger Air Bag Initiator, RH 		- 1 Enquire
1630 ED335422AA
Bearing Casting, Water Shedder, RH 		- 1 Enquire
1640 ED33303A93AA
Bracket, Quarter Window Regulator Mounting, LH 		- 1 Enquire
1650 ED33303A92AA
Bracket, Quarter Window Regulator Mounting, RH 		- 1 Enquire
1660 703121
Screw, M8 x 25, Hex Flange Head 		- 4 Enquire
1670 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
1680 ED33A410K25AC
Panel, Rear Body Pillar Closing, LH 		- 1 Enquire
1690 DG43393126AA
Nutplate Assembly, Striker 		- 2 Enquire
1710 W500624S303
Bolt, M8 x 25, Hex Flange Head 		- 4 Enquire
1720 DD43108A75DA
Brace Assembly, Front Cross 		- 1 Enquire
1730 ED335423AA
Bearing Casting, Water Shedder, LH 		- 1 Enquire
1740 9G43111C60GF
Panel, Dummy Floor Front, LHD
LHD 		- 1 Enquire
1741 4G43111C61AE
Panel, Dummy Floor Front, RHD
RHD 		- 1 Enquire
1750 ED3310875AA
Hexcell Block Assy, LH 		- 1 Enquire
1760 6G335D022AD
BRACKET REAR SUB FRAME STABILISER 		- 2 Enquire
1770 00RA432
SCREW - BUTTON HEAD FL - M5X12-SS - BLACK 		- 8 Enquire
1780 3381094
Strip, Edge Protection, 65mm 		- 2 Enquire
1790 ED33L04703AB
Panel, Window Regulator Opening Cover, LH 		- 1 Enquire
1800 ED33L04702AB
Panel, Window Regulator Opening Cover, RH 		- 1 Enquire
1810 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 18 Enquire
1820 4G43111K37AE
Tunnel Reinforcement, Centre 		- 1 Enquire
1830 703731
Bolt, M8 x 35, Hex Flange Head 		- 2 Enquire
1840 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 6 Enquire
1850 ED33A410K24AC
Panel, Rear Body Pillar Closing, RH 		- 1 Enquire
1860 7G33108256AA
Screw, M8 x 21mm, Hex Flange Head 		- 14 Enquire
1870 702209
Bolt, M10 x 25, Torque Drive 		- 4 Enquire
1880 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 2 Enquire
1890 703169
NUT - M6 HEX FLANGE CHROME FREE 		- 2 Enquire
1900 701553
Screw, M6 x 16, Pan Head 		- 12 Enquire
1913 AD43F16350BB
Spacer
7.5mm 		- 2 Enquire
1914 AD43F16349BB
SPACER LATCH STRIKER
8.5mm 		- 2 Enquire
1915 AD43F16348BB
SPACER LATCH STRIKER
9.5mm 		- 2 Enquire
1916 AD43F16347BB
SPACER LATCH STRIKER
10.5mm 		- 2 Enquire
1917 AD43F16346BB
SPACER LATCH STRIKER
11.5mm 		- 2 Enquire
1930 703121
Screw, M8 x 25, Hex Flange Head 		- 6 Enquire
1940 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 4 Enquire
1950 703202
Screw,  M8  x 12, Flange Hd 		- 4 Enquire
1960 702210PK
BOLT M10 X 30 HEXAGON HEAD FLANGED (PACK OF 10)
Pack of 10 		- 2 Enquire
1970 FD43E830667AAPK
Washer 25mm x 6.4mm (Pack of 10)
pack of 10 		- 4 Enquire
1990 703149
SCREW M6x16 PAN FLG TORX CHROME FRE 		- 6 Enquire
2000 703749
Nut, M6, Hex Flange Head 		- 2 Enquire
2010 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
2020 6G3354428AA
RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni 		- 4 Enquire
2030 4G4316K808AB
Bumper Hood to Cowl Top 		- 2 Enquire
2040 702944
Nut, M6, Hex Flanged Head 		- 2 Enquire
2050 6G3354428AA
RIVNUT M6 FLAT HEAD KNURLED 1.5-3.0mm GRIP Zn/Ni 		- 4 Enquire
2060 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
2070 701744PK
WSHR-M12-HARDENED(10
Pack of 10 		- 8 Enquire
2080 706234
SCREW-M12x1.75x35 		- 4 Enquire
2090 703130
Washer Shake Proof EXT M12 Chrome Free 		- 4 Enquire
2100 703121
Screw, M8 x 25, Hex Flange Head 		- 18 Enquire
2110 6G3337949AA
DIA 4.8 X 13.9 BLIND RIVET 		- 10 Enquire
2200 22AB605GP
RETAINER NUT PLATE TAILGATE 		- 2 Enquire
2210 HD3317F035AA
ABS ASY BMPR RR LH 		- 1 Enquire
2220 6G3368676AC
Rivet Structural 6.5 x 14, Blind 		- A/R Enquire
2230 GOED33L416W21AD
REINF DECKLID SUPRT
Structural. Cat A Only 		- 1 Enquire
2240 ED33L279A54AE
Panel, Quarter Wheel Housing Inner Rear, RH
Structural. Cat A Only 		- 1 Enquire
2250 16AD546CP
LATCH DOOR POWER CLOSE RH 		- 1 Enquire
2260 13AA823CP
BRKT LATCH MTG RH - LATCH MOUNTING - RH 		- 1 Enquire
2270 SY9Y14025BB
FRT DR TR LINK RHS P 		- 2 Enquire
2280 HD3317F034AA
ABS ASY BMPR RR RH 		- 1 Enquire
2290 DG43501B1AA
Nut Plate, Rear Sub Frame, LH 		- 1 Enquire
2300 DG43501B0AA
Nut Plate, Rear Sub Frame, RH 		- 1 Enquire
2310 ED33L41037AA
Nut Plate, Rear Subframe, RH
Structural. Cat A Only 		- 1 Enquire
2320 ED33L41036AA
Panel, Rear Quarter Infill Rear, RH
Structural. Cat A Only 		- 1 Enquire
2330 ED33280C03AA
Gasket, Rear Corner Panel, LH 		- 1 Enquire
2340 GOED33L416W20AD
REINF DECKLID SPRT B
Structural. Cat A Only 		- 1 Enquire
2350 15AC143CP
CAP - DOOR RELEASE CABLE - RH 		- 1 Enquire
2360 ED33L279A55AB
Panel, Quarter Wheel Housing Inner Rear, LH
Structural. Cat A Only 		- 1 Enquire
2370 ED33280C02AA
Gasket, Rear Corner Panel, RH 		- 1 Enquire
2390 22AD241GP
MLDG DOOR STRIKER LH
Structural. Cat A Only 		- 1 Enquire
2400 CD3340338AD
Reinforced Lower Back Centre Panel
Structural. Cat A Only 		- 1 Enquire
2410 703121
Screw, M8 x 25, Hex Flange Head 		- 6 Enquire
2420 22MA145GP
TAILGATE CLOSE SWITCH
Structural. Cat A Only 		- 1 Enquire
2430 22AB595GP
ASSY MANUAL HATCH LID
Structural. Cat A Only 		- 1 Enquire
2440 22AA995GP
FINISHER TAILGATE LH
Structural. Cat A Only 		- 1 Enquire
2450 JD3YL41623AB
REINF DECKLID SUPT B
Structural. Cat A Only 		- 1 Enquire
2460 22AD242GP
MLDG DOOR STRIKER RH
Structural. Cat A Only 		- 1 Enquire
2470 13A5635CP
NVH FOAM - DOOR INNER - GT BULKHEAD
Structural. Cat A Only 		- 1 Enquire
2480 22AB792GP
TAILGATE COOLING CLOSURE LH
Structural. Cat A Only 		- 1 Enquire
2490 22AB793GP
TAILGATE COOLING CLOSURE RH
Structural. Cat A Only 		- 1 Enquire
2500 22AB778GP
ASSY DOOR STONE CHIP DEFLECTOR RH
Structural. Cat A Only 		- 1 Enquire
2510 22AB774GP
ASSY DOOR STONE CHIP DEFLECTOR LH
Structural. Cat A Only 		- 1 Enquire
2520 13A3862CP
MOULDING - DOOR POCKET - RH
Structural. Cat A Only 		- 1 Enquire
2530 13A3861CP
MOULDING - DOOR POCKET - LH
Structural. Cat A Only 		- 1 Enquire
2540 13A6371CP
SEAL - GLASS GUIDE 		- 2 Enquire
2560 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
Pack of 10 		- 6 Enquire
2570 703131
WASHER PLAIN FORM A M8 CHROME FREE 		- 2 Enquire
2580 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 8 Enquire
2590 22AC725GP
TAILGATE MARGIN SEAL 		- 2 Enquire
2600 DD43V17N800BA
Crash Can, Bumper Front 		- 2 Enquire
2610 HD3Y17757AA
BUMPER BM FRT 		- 1 Enquire
2630 CD333804AC
Bracket, Bonnet Latch Mounting
ARRIVING SOON 		- 1 Enquire
2640 22AA044GP
PNL FNDR FRT HEADLAMP MTG LH 		- 2 Enquire
2650 HD3Y16E146AA
STRUCT FRT END BOLST 		- 4 Enquire
2660 HD3Y17E937AB
INSRT FRT BMPR ISOL 		- 1 Enquire
2670 HD3Y17E936AB
INS FRT BMPR ISO RH 		- 1 Enquire
2680 HD3Y17766AB
BRKT FRT BMPR OTR LH 		- 1 Enquire
2690 HD3Y17765AB
BRKT FRT BMPR 		- 1 Enquire
2700 703199
Bolt M6x30 HEX FLG Chrome Free 		- 2 Enquire
2710 6G33FA0115ABPK
Screw and Washer M6 x 20 Torx Head (Pack of 20)
Pack of 20 		- 8 Enquire
2720 703155
SCREW/WASHER M8x25 CHROME FREE 		- 6 Enquire
2730 703172PK
Screw M8 x 25 Pan Head (Pack of 10)
Pack of 10 		- 4 Enquire
2740 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 4 Enquire
2750 704495
Screw, M8 x 35, Hex Flange Head 		- 12 Enquire
2800 22AA030GP
ASSY BRKT FRT FNDR MTG FRT RH 		- 1 Enquire
2810 22AA026GP
ASSY BRKT FRT FNDR MTG FRT LH 		- 2 Enquire
2820 22AA022GP
ASSY BRKT FRT FNDR MTG RR RH 		- 1 Enquire
2830 22AA018GP
ASSY BRKT FRT FNDR MTG RR LH 		- 1 Enquire
2840 13A3582CP
BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - RH 		- 1 Enquire
2850 13AB087CP
BRACKET - FENDER - WHEEL ARCH LINER COVER PANEL - LH 		- 1 Enquire
2860 00RA565
BOLT - HEX HEAD - FLANGE - M6X12 		- 1 Enquire
2870 13A3519CP
BRACKET - FENDER TO DOP - RH 		- 1 Enquire
2880 703203
Screw M6 x 20 Heex Flange 8 Chrome Free 		- 6 Enquire
2890 703025
Screw, M6 x 25, Hex Flange Head 		- 8 Enquire
2900 703120
Screw M8-1.25-90 Hex Socket Head Shoulder 		- 4 Enquire
2910 703201
SCREW M8 x 30 HEX FLANGE CHROME FREE 		- 4 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
